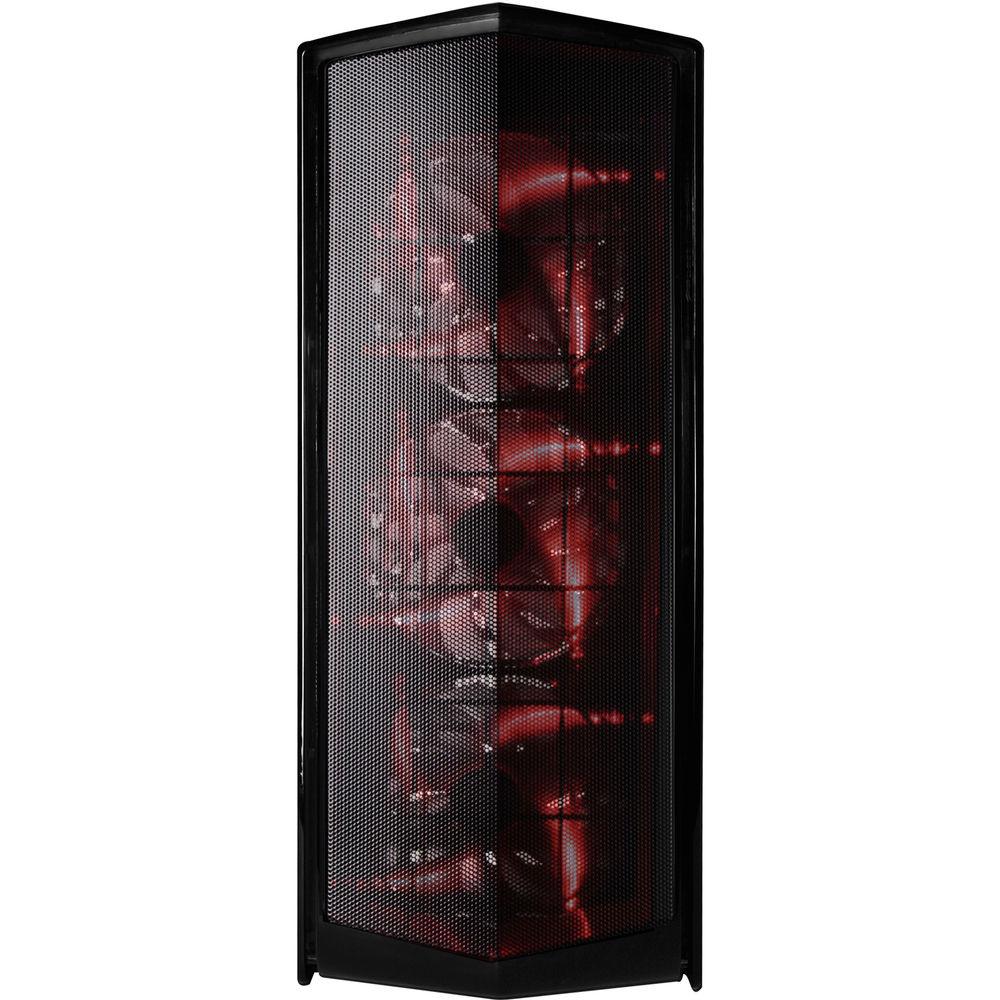

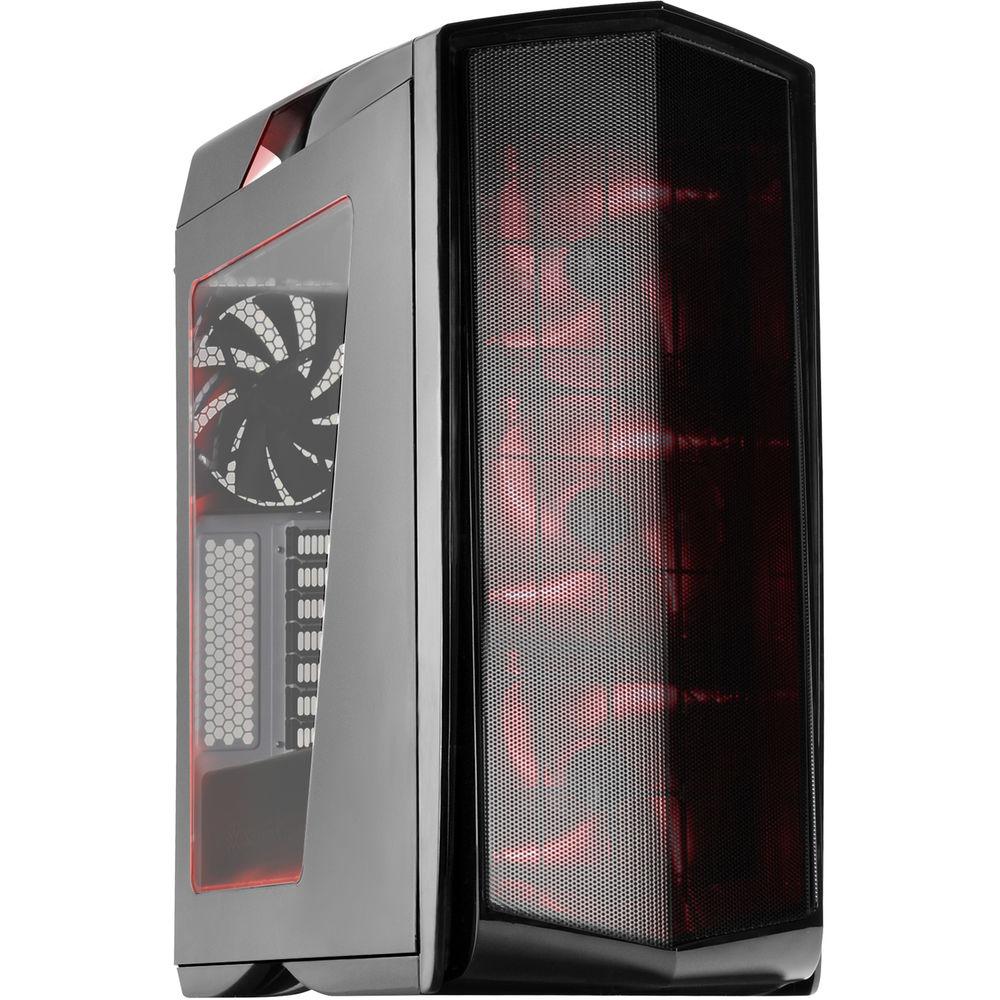

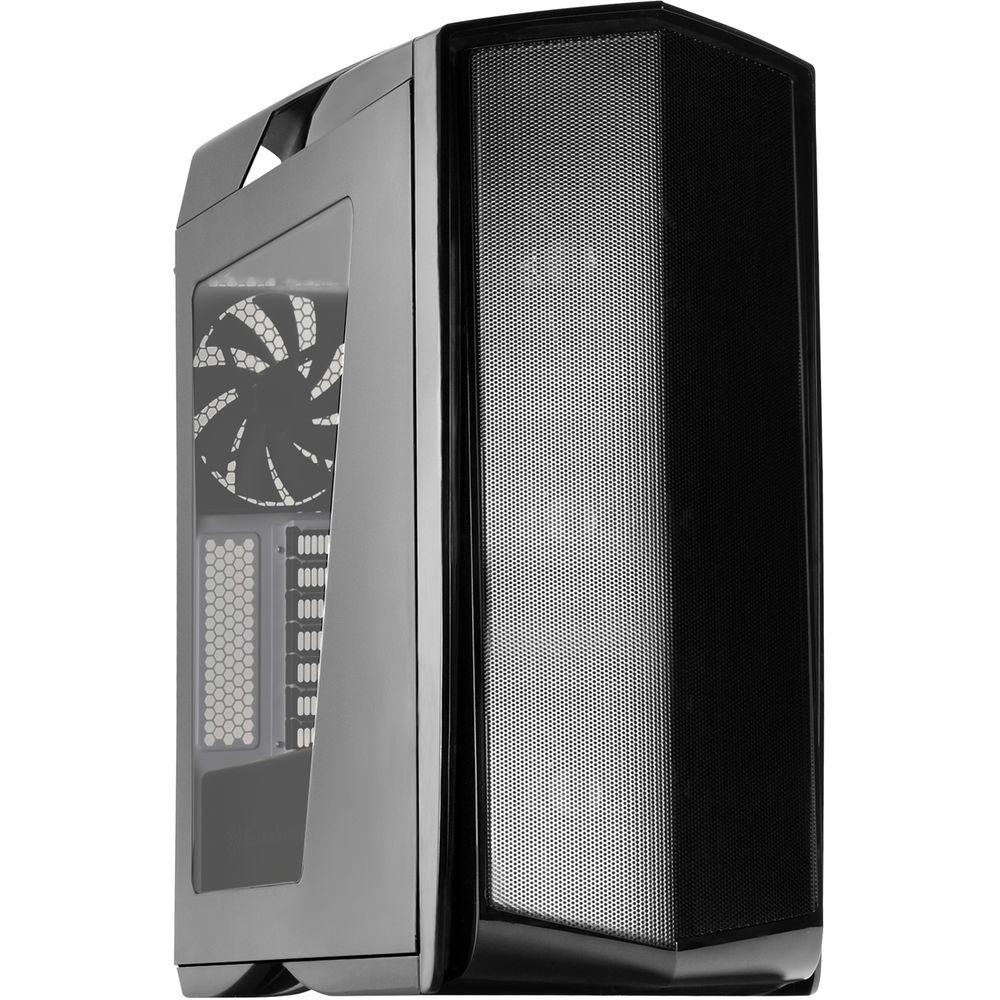

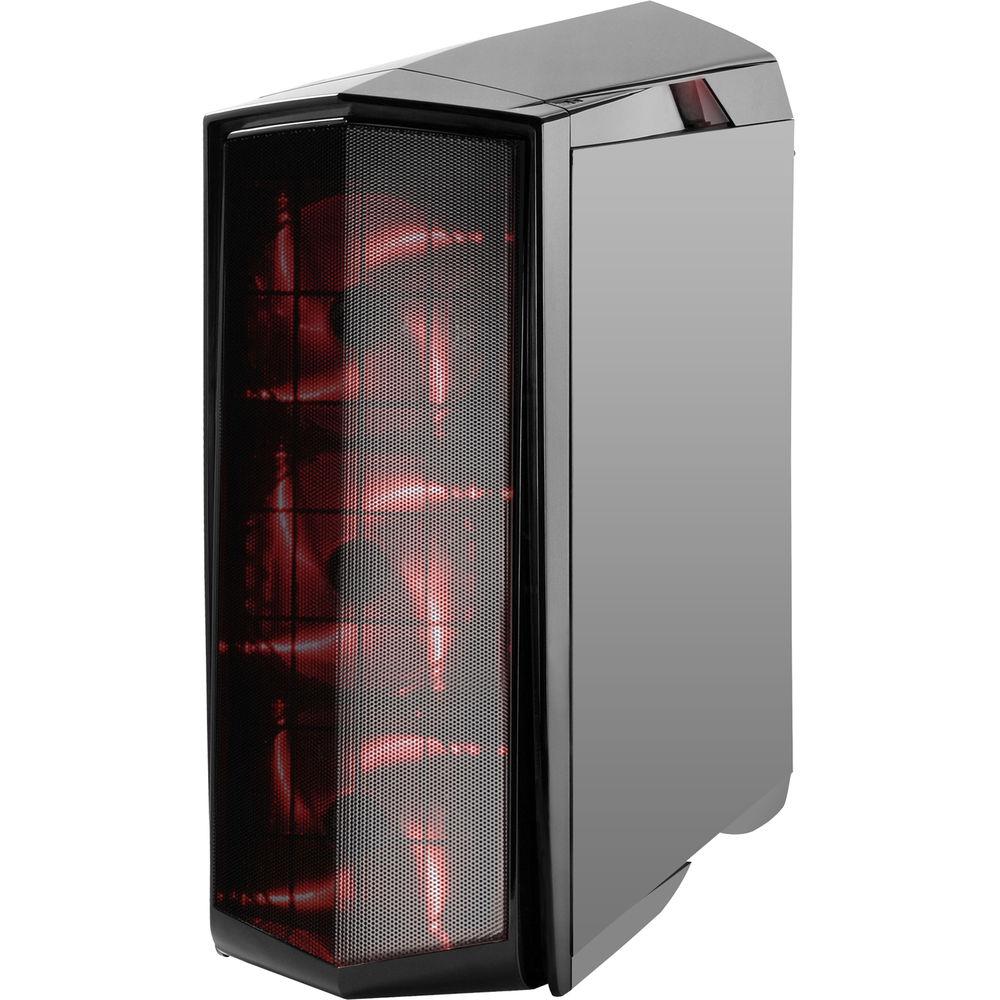

Product description The black PM01 Primera-Series Computer Case from SilverStone is a computer case with a windowed panel that supports an ATX or Micro ATX motherboard. It has four 2.5" or 3.5" and five 2.5" internal drive bays as well as seven expansion slots. There are three 140mm red LED fans included on the front panel and one 140mm fan included on the rear panel. Two 240, 280, or 360mm radiators are supported for AIO liquid cooler or custom water cooling. This case is equipped with two USB 2.0 ports, two USB 3.0 ports, an audio port, and a microphone port. A graphics card of up to 16.5" is supported with a width restriction of 6.88". A built-in four-segment LED light controller is included to adjust brightness and modes. - Built-in red LED strips for visual impact
- Oversized front panel mesh design
- Reserved water tank mounting holes for water cooling setup
- Removable filters with positive air pressure design for dust protection
- Built-in four-segment LED light controller to adjust brightness and modes
- Clean internal look with PSU (sold separately) and drive bay cover
- Includes 10-in-1 fan hub for fan cable management
UPC: 844761013301 In the Box SilverStone PM01 Primera-Series Computer Case with Windowed Side Panel (Black Chassis, Red LEDs) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone PM01 Primera-Series Computer Case with Windowed Side Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone PM01BR-W Specs | | | Motherboard Support | ATX, Micro-ATX | | External Drive Bays | None | | Internal Drive Bays | 4 x 2.5/3.5"
5 x 2.5" | | Expansion Slots | 7 x Full Height | | CPU Cooler Height | 7.09" / 180 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 9.45" / 240 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fans Included (Front) | 3 x 140 mm LED | | Fans Included (Rear) | 1 x 140 mm | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Fans Included (Internal) | None | | Filter Locations | Front | | | | Connections | 2 x USB Type-A (USB 2.0)
2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Built-In Lighting | Yes | | Dimensions (W x H x D) | 8.7 x 22.5 x 22.0" / 220.0 x 571.0 x 560.0 mm | | Weight | 19.8 lb / 9.0 kg | | | | Package Weight | 23.55 lb | | Box Dimensions (LxWxH) | 25.0 x 24.9 x 11.0" |
