User Manual for SilverStone Precision Series PS07 Micro-ATX Chassis Click to enlarge the picture
Contents of the user manual for the SilverStone Precision Series PS07 Micro-ATX Chassis
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Precision Series PS07 Micro-ATX Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

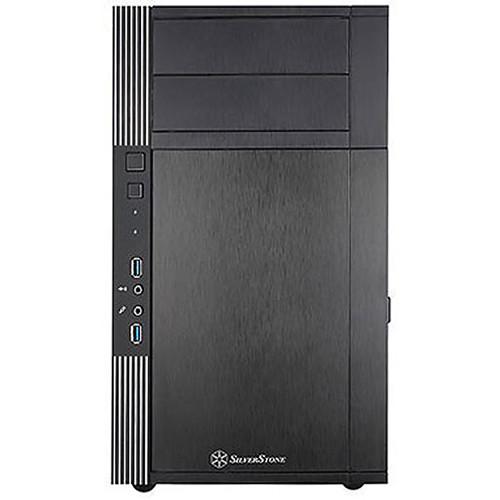

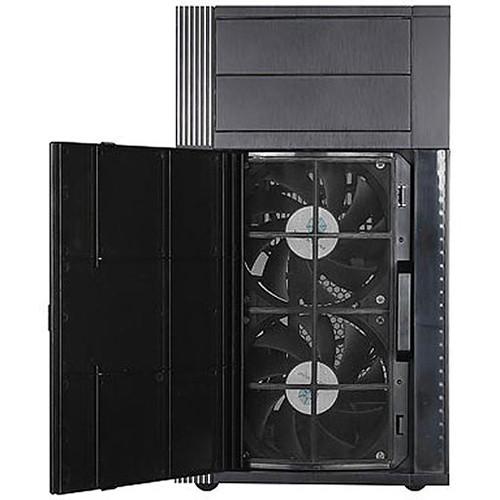

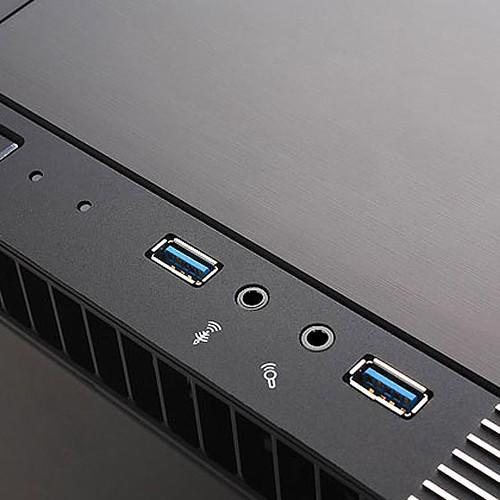

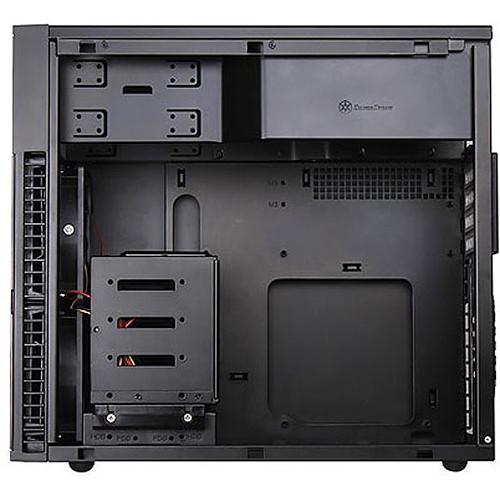

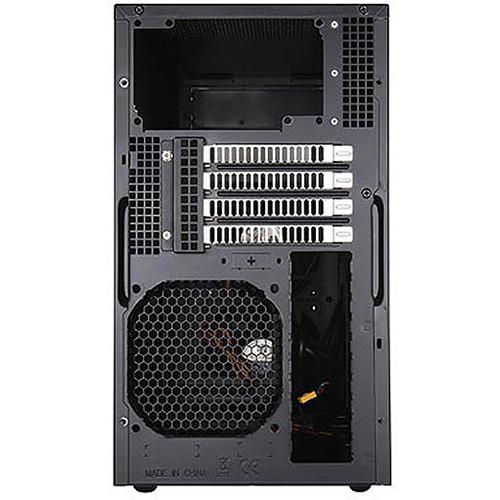

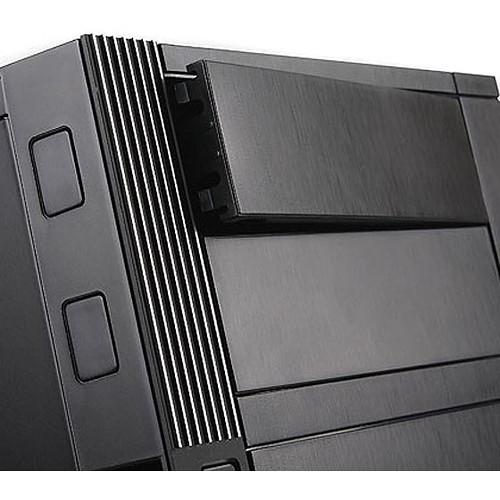

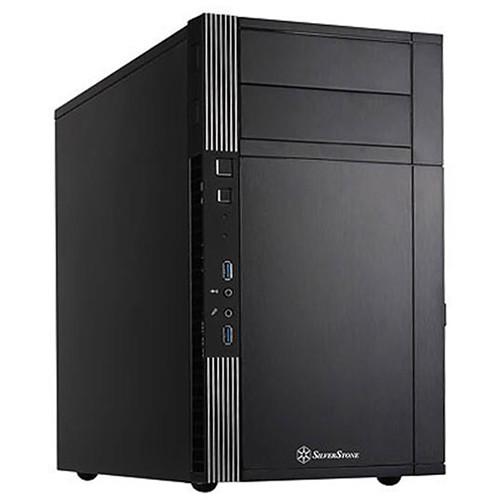

Product description Designed with a high-strength plastic front panel with aluminum accents and a steel body, this black Precision Series PS07 Micro-ATX Chassis from SilverStone supports motherboards with Micro-ATX, Mini-DTX and Mini-ITX form factors. It has 2x 5.25" and 1x 3.5" external drive bays in addition to 5x 3.5" and 1x 2.5" internal drive bays. Also available are four expansion slots, 2x front USB 3.0 ports, 1x front audio port and 1x front mic port. Expansion cards cannot be longer than 13.5" in length and 6.69" in width. Standard PS/2 ATX power supplies are also supported. This chassis is cooled using 2x 120mm front fans that operate at 950 rpm with a noise level of 18 dBA, with an additional rear 120mm fan slot also available.
SilverStone's vaulted positive pressure design is utilized here with easily removable filters on both the fans and the power supply to prevent dust buildup. Please note that the power supply and optical drive's combined allowable total length is 15.7", including connectors, which may take up an additional 0.8". SilverStone recommends a maximum PSU length of 7.1". UPC: 844761008123 In the Box SilverStone Precision Series PS07 Micro-ATX Chassis (Black) Limited 1-Year Warranty in North America & Australia Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Precision Series PS07 Micro-ATX Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone PS07B Specs | | | Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 5 x 3.5"
1 x 2.5" | | Expansion Slots | 4 x Full Height | | Maximum GPU Length | 13.5" / 34.3 cm | | CPU Cooler Height | 6.5" / 16.5 cm | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Rear) | 1 x 120 mm
| | Fans Included (Front) | 2 x 120 mm (950 rpm) | | Noise Level | 18 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 8.3 x 14.7 x 15.7" / 210.0 x 374.0 x 400.0 mm | | Weight | 11.5 lb / 5.2 kg | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 19.8 x 18.3 x 12.2" |
