User Manual for SilverStone Raven RV05 Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone Raven RV05 Mid-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Raven RV05 Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

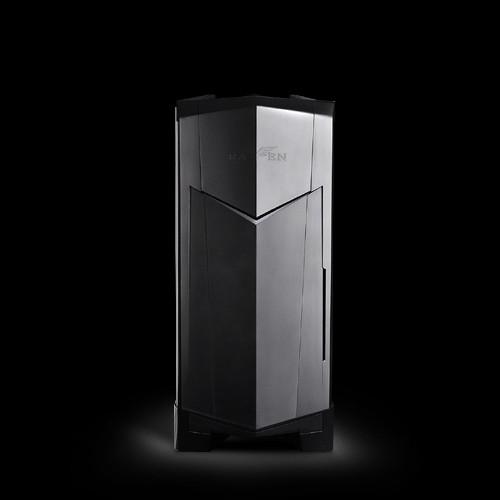

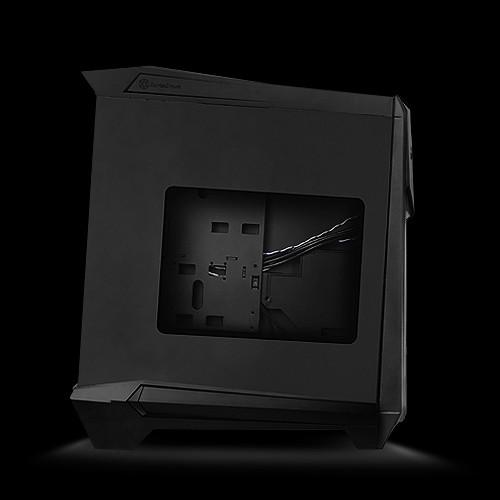

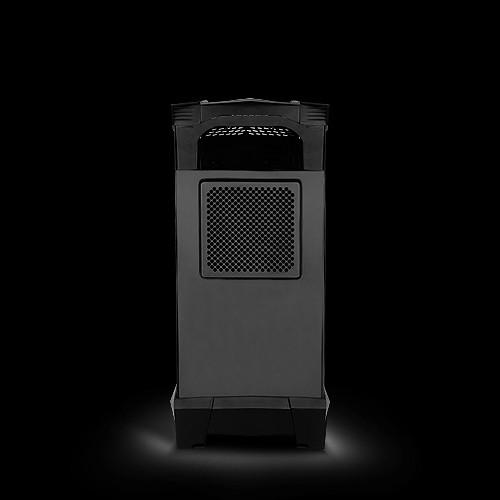

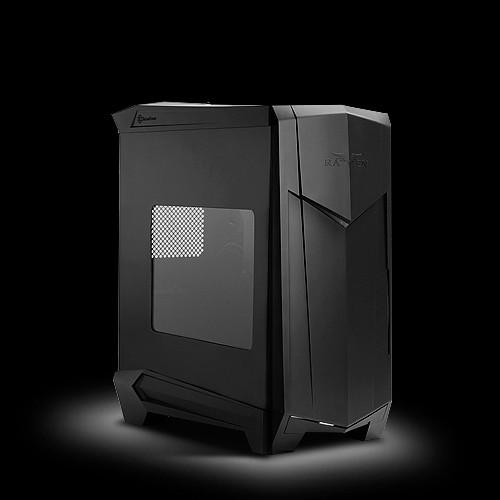

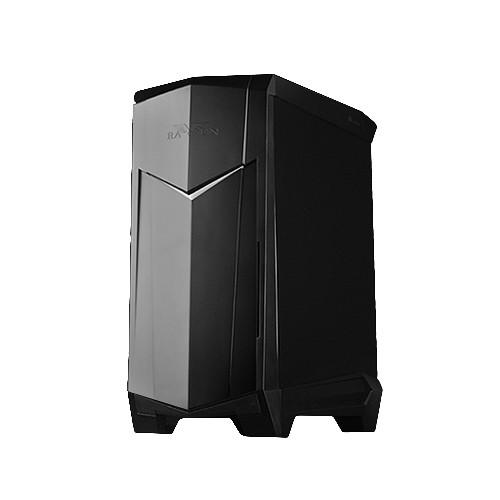

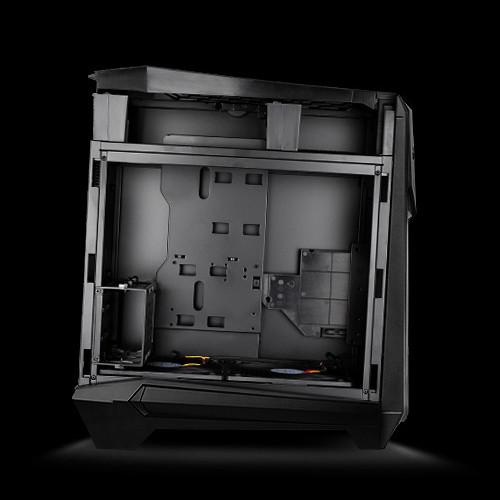

Product description The Raven RV05 Mid-Tower Case from SilverStone features a compartmentalized layout and the signature Raven 90 degree motherboard mounting layout. Included with the RV05 are two Air Penetrator AP181 fans. The latest revision of Air Penetrator fans includes three-speed switches and delivers powerful airflow to aid stack cooling for eliminating heat.The RV05 is equipped with two USB 3.0 ports, one mic jack, one audio jack, and seven expansion slots. Compatible with SSI-CEB, ATX, and micro-ATX motherboards as well as ATX power supplies, it also supports up to one slim slot-loading optical drive, two 3.5", and two 2.5" drives for increased expandability. Users who are looking to install larger or longer components should note that the RV05 can accommodate expansion cards up to 12.3" long and 6.57" wide as well as CPU coolers up to 162mm tall.In addition, there are plenty of ergonomic touches, such as quick access filters, easy-access hard drive bays, CPU back-plate cutout, and optimized cable-routing paths to enable easy maintenance. -
- Signature RAVEN styling touches
- 90-degree motherboard mounting
- 5.25"-bay-free space-saving design
- Air Penetrator fans for performance and quietness
- Positive air pressure design for cooling, quietness, and dust prevention
- Quick release latch for fast side panel removal
- Front access to main filter for easy maintenance
- Supports for various liquid cooling radiator sizes
UPC: 844761011543 In the Box SilverStone Raven RV05 Mid-Tower Case (Window) Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Raven RV05 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RV05B-W Specs | | | Motherboard Support | SSI-CEB, ATX, Micro-ATX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 12.3" / 31.2 cm | | CPU Cooler Height | 6.4" / 16.2 cm | | Supported PSU Size | ATX | | | | Fan Mounting (Top) | 1 x 120 mm
| | Fans Included (Bottom) | 2 x 180 mm (Variable rpm) | | Noise Level | 17 to 34 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.5 x 20.8 x 19.6" / 242.0 x 529.0 x 498.0 mm | | Weight | 16.8 lb / 7.6 kg | | | | Package Weight | 22.6 lb | | Box Dimensions (LxWxH) | 23.5 x 21.5 x 11.5" |
