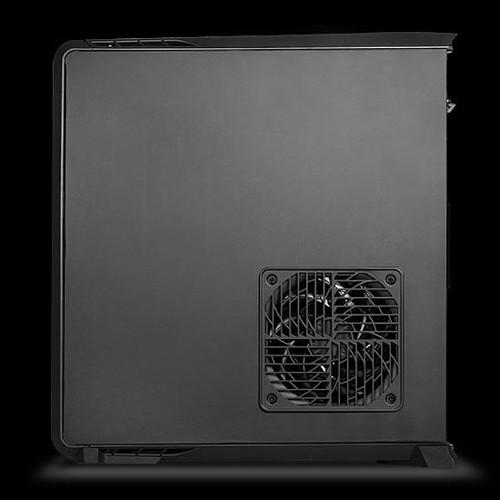

User Manual for SilverStone Raven RVZ01B Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone Raven RVZ01B Mini-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Raven RVZ01B Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

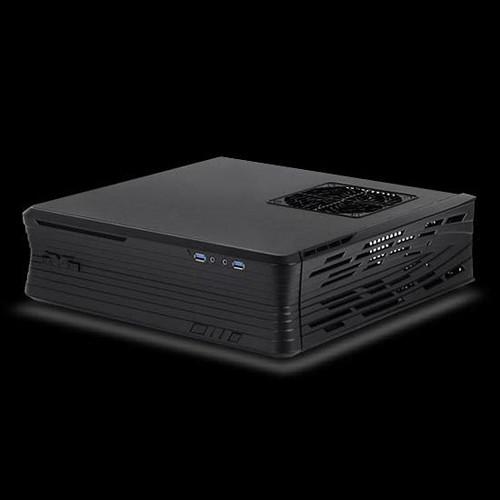

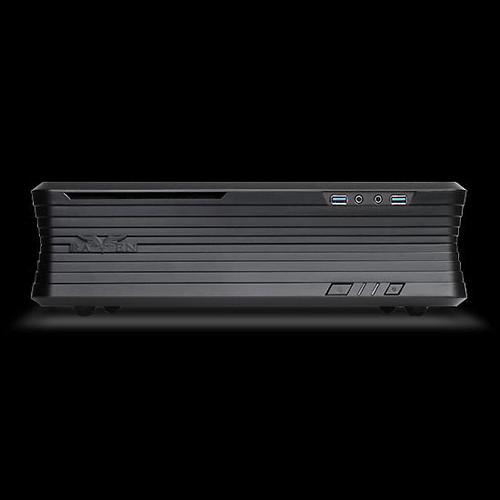

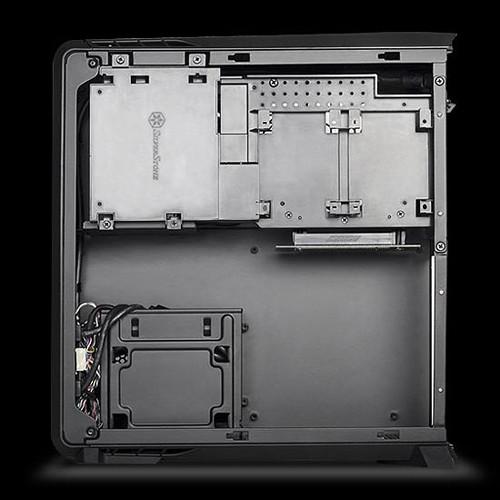

Product description The Raven RVZ01B Mini-ITX Chassis from SilverStone is a small chassis that supports Mini-DTX and Mini-ITX motherboards. Although it's small, it uses a PCIe riser to house big consumer graphics cards while providing air cooling and liquid cooling support. Liquid cooling support is limited to components that fit within the RVZ01’s predefined dimensions – for detailed information, please refer to the manual.With either a horizontal or vertical orientation, the RVZ01 can be placed in any space-constrained environment that requires a powerful PC. It is equipped with two USB 3.0 ports, one mic jack, one audio jack, two expansion slots, one slim slot-loading optical drive, one 3.5" drive bay, and three 2.5" drive bays. Users who are planning to install larger or longer components should note that the RVZ01 can fit graphic cards up to 13" long and 5.88" wide as well as CPU coolers up to 83mm tall. -
- Signature RAVEN styling touches
- Supports two Kensington locks
- Supports graphics card up to 13 inches
- Compatible with Mini-ITX motherboards & SFX PSUs
- Slim form factor with support for liquid cooling
- Positive air pressure design for cooling, quietness, and dust prevention

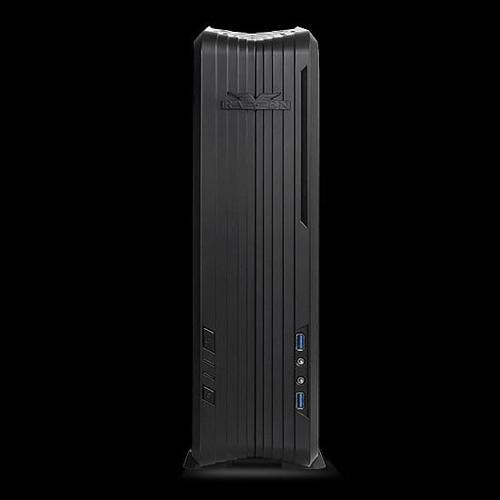

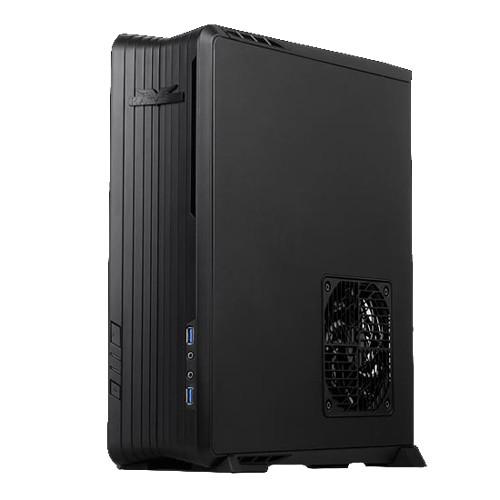

- Can be used in either horizontal or vertical orientation
UPC: 844761011154 In the Box SilverStone Raven RVZ01B Mini-Tower Case Screw Kit Limited 1-Year Warranty User Manual PDF 5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Raven RVZ01B Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RVZ01B Specs | | | Motherboard Support | Mini-ITX, Mini-DTX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 1 x 3.5"
3 x 2.5" | | Maximum GPU Length | 13" / 33 cm | | CPU Cooler Height | 3.3" / 8.5 cm | | Supported PSU Size | SFX | | | | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Top) | 1 x 120 mm (1500 rpm) | | Fans Included (Bottom) | 1 x 120 mm (1500 rpm) | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 15.0 x 4.1 x 13.8" / 382.0 x 105.0 x 350.0 mm | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 17.3 x 16.7 x 6.9" |
