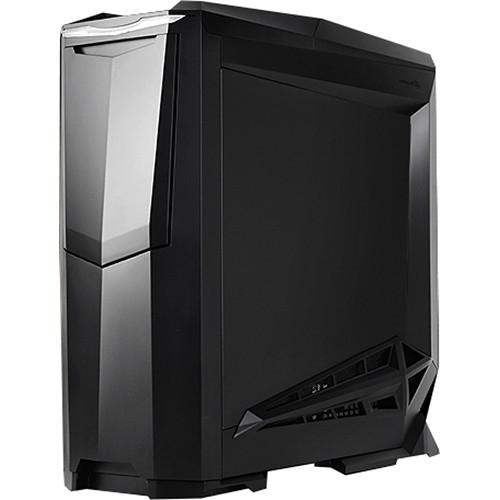

Product description Designed with a reinforced plastic outer shell and a steel body, the matte black Raven Series RV01 Window Chassis with USB 3.0 from SilverStone supports motherboards with SSI-EEB, SSI-CEB, Extended ATX, ATX, and Micro-ATX form factors. It also has 6 x 5.25" external drive bays and 6 x internal drive bays that support both 3.5" and 2.5" drives. The chassis is cooled using 1 x 120mm top exhaust fan that has a rotational speed of 950 rpm and a noise level of 18 dBA, as well as 2 x 180mm bottom intake fans that have a rotational speed of 700 rpm and a noise level of 18 dBA. It is equipped with 2 x USB 3.0 ports, 1 x audio port, and 1 x mic port, all of which are front mounted, and its seven expansion slots are compatible with expansion cards up to 13.3", with a maximum width of 7.09". It is powered using a standard PS2 (ATX) power supply and includes one hot-swap SATA adapter. - Equipped with SilverStone OEM Aero Slots to help improve graphics card cooling

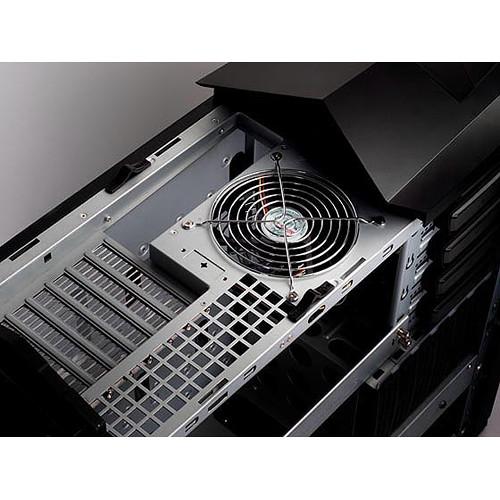

- Top 120mm exhaust fan with reduced noise helps to complement overall airflow

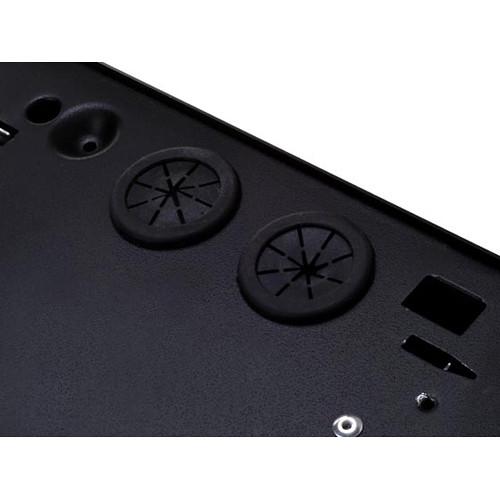

- Detached slots and tabs for cable management
- Bottom vent for optional power supply placement to help isolate airflow

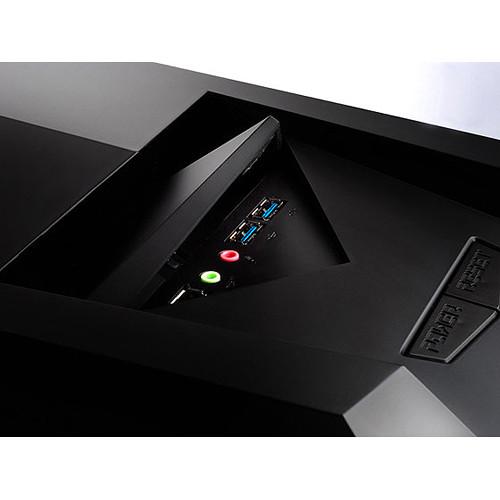

- Top stealth-mounted I/O ports for quick and convenient access
- 90° motherboard mounting enables a stacking effect for natural heat convection
- All black outer design combined with a sliding front door prevents components from affecting the exterior styling of the RV01

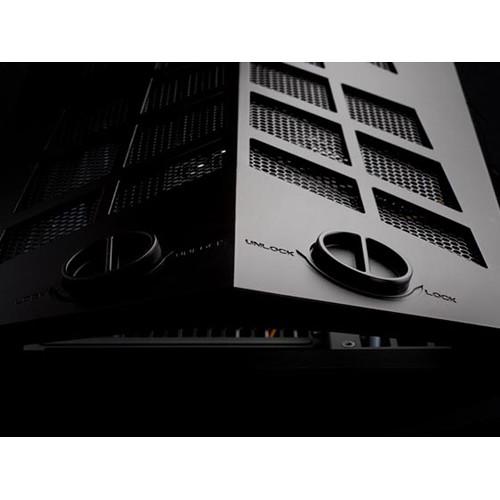

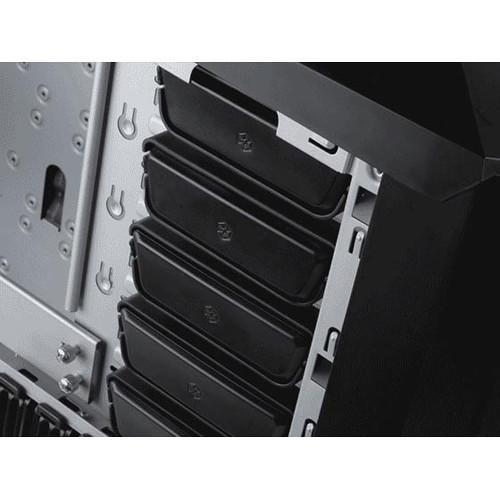

- Push button 5.25" drive bay locks for tool-free assembly

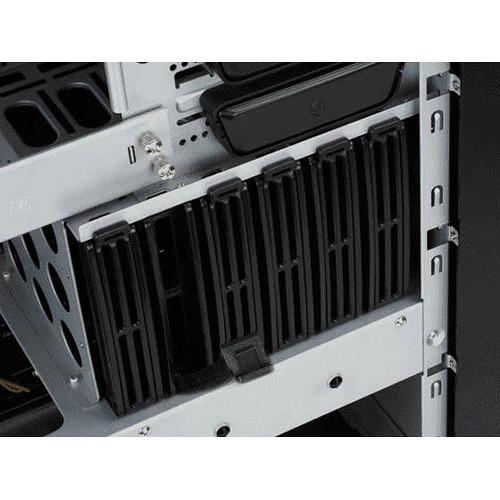

- Six removable hard drive trays with vibration dampening mounts and hot-swap capability (one CP05 hot-swap SATA adapter included)

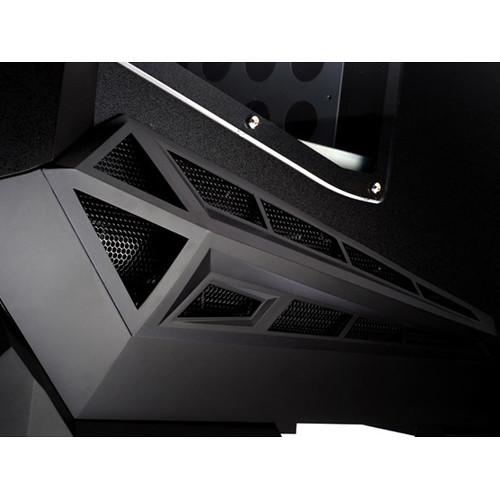

- Designed for the RV01's positive pressure layout, two 180mm intake fans are fitted for cooling performance and quietness
- RAD support included for optional liquid cooling
UPC: 844761008413 In the Box SilverStone Raven Series RV01 Window Chassis with USB 3.0 (Black) CP05 Hot-Swap SATA Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Raven Series RV01 Window Chassis with USB 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RV01B-W-USB3.0 Specs | | | Motherboard Support | SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX | | External Drive Bays | 5 x 5.25" | | Internal Drive Bays | 6 x 2.5" | | Maximum GPU Length | 13.3" / 33.8 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Supported PSU Size | ATX | | | | Fans Included (Top) | 1 x 120 mm (950 rpm) | | Fans Included (Bottom) | 2 x 180 mm (700 rpm) | | Noise Level | 18 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 11.0 x 24.3 x 26.0" / 280.0 x 616.0 x 660.0 mm | | Weight | 30.4 lb / 13.8 kg | | | | Package Weight | 41.3 lb | | Box Dimensions (LxWxH) | 30.0 x 27.5 x 15.0" |
