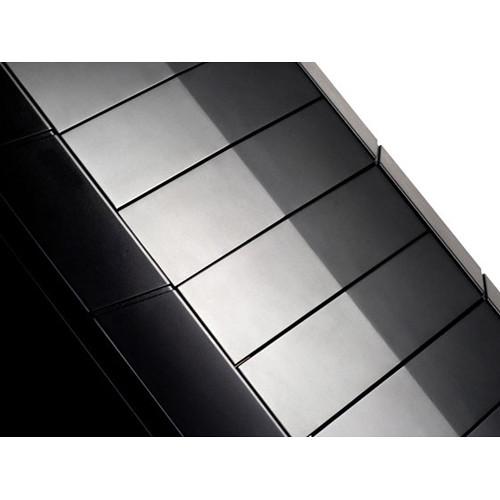

User Manual for SilverStone Raven Series RV02-E Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone Raven Series RV02-E Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Raven Series RV02-E Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

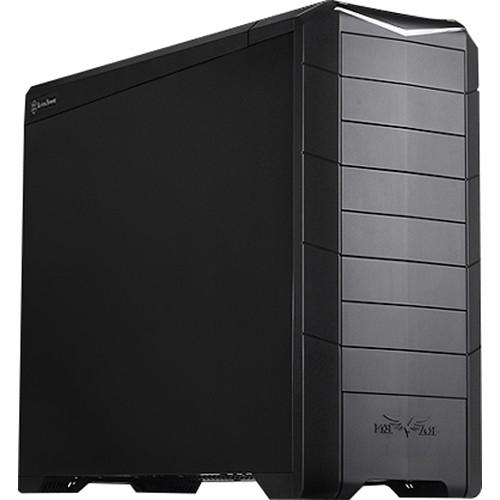

Product description Designed with a reinforced plastic outer shell and a steel body, the matte black Raven Series RV02-E Tower Case from SilverStone supports motherboards with SSI-CEB, ATX, and Micro-ATX form factors. It has five 5.25" external drive bays, five 3.5"/2.5" internal drive bays, and one 2.5" internal drive bay. The case is cooled using a 120mm top exhaust fan that has a rotational speed of 950 rpm and a noise level of 18 dBA, as well as three 180mm bottom intake fans with rotational speeds of 700 and 1200 rpm, as well as noise levels of 18 and 34 dBA. It is equipped with two USB 3.0 ports, one audio port, and one mic port, all of which are front mounted, and its seven expansion slots are compatible with expansion cards up to 12.2 x 6.85". It is powered using a standard PS2 (ATX) power supply (not included) and includes one hot-swap SATA adapter. - Top exhausting 120mm fan to assist RAVEN RV01-inspired stack effect cooling and also help eliminate heat dead spots

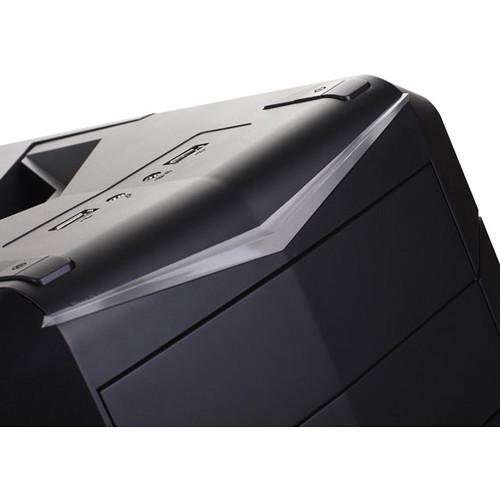

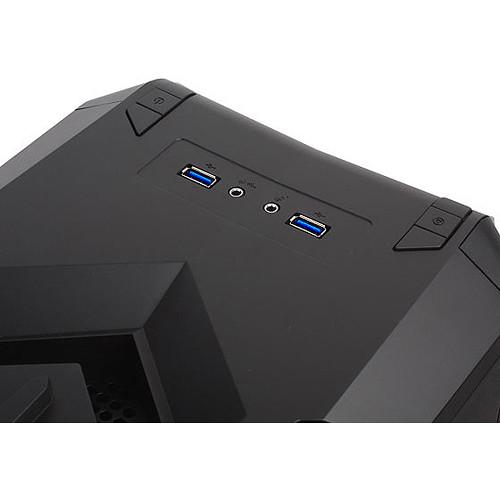

- Top I/O port design with support for ClearCMOS installation for excellent ease of use
- Support for 2.5" hard drive or SSD (solid state disk) installation at a unique location

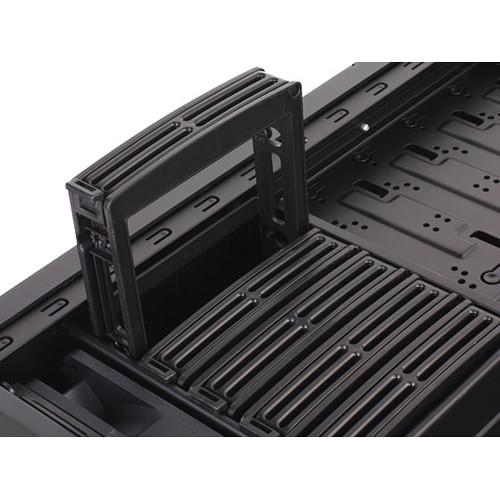

- Supports five easy access drive bays with a thumb screw design
- Hot-swappable hard drive cage (One CP05 included for a single hot-swappable SATA hard drive)

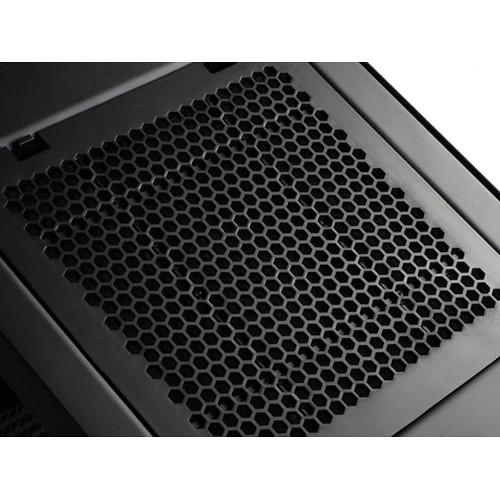

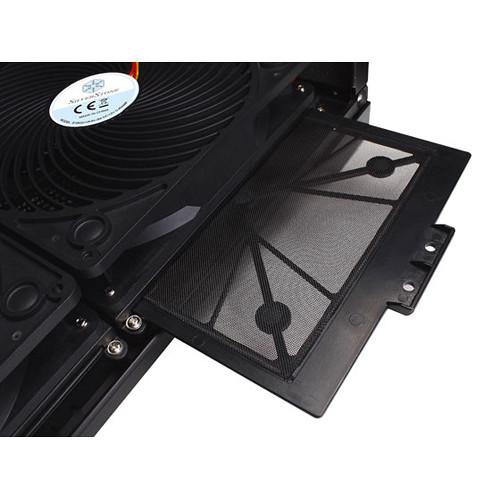

- Positive air pressure design with a filter on all intake vents for dust reduction
- Large motherboard tray cut-out to assist in CPU cooler installation
- Wire- and cable-routing pathways
- Support for radiator mounting and liquid cooling radiator mounting

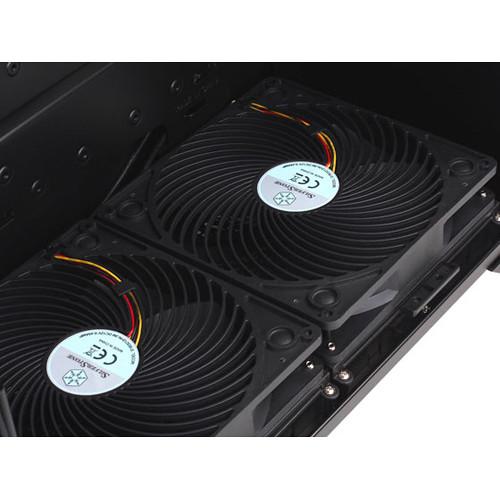

- Three 180mm fans in alignment for positive pressure and stack effect cooling, as well as quietness performance. The 32mm thick fans can be adjusted independently to run at 700 rpm or 1,000 rpm

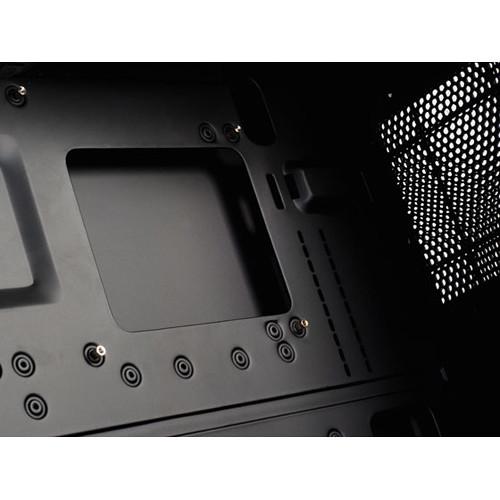

- Motherboard back plate opening behind the CPU area for quick cooler assembly
- Supports 11" wide ATX motherboards
UPC: 844761008451 In the Box SilverStone Raven Series RV02-E Tower Case CP05 Hot-Swap SATA Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Raven Series RV02-E Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RV02B-EW-USB3.0 Specs | | | Motherboard Support | SSI-CEB, ATX, Micro-ATX | | External Drive Bays | 5 x 5.25" | | Internal Drive Bays | 5 x 2.5"
1 x 2.5" | | Maximum GPU Length | 12.2" / 31 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Supported PSU Size | ATX | | | | Fans Included (Top) | 1 x 120 mm (950 rpm) | | Fans Included (Bottom) | 3 x 180 mm (Variable rpm) | | Noise Level | 18 to 34 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 8.3 x 19.8 x 25.3" / 212.0 x 503.0 x 643.0 mm | | Weight | 27.3 lb / 12.4 kg | | | | Package Weight | 34.7 lb | | Box Dimensions (LxWxH) | 29.5 x 23.0 x 12.5" |
