User Manual for SilverStone Raven Series RV03 Case Click to enlarge the picture
Contents of the user manual for the SilverStone Raven Series RV03 Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Raven Series RV03 Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

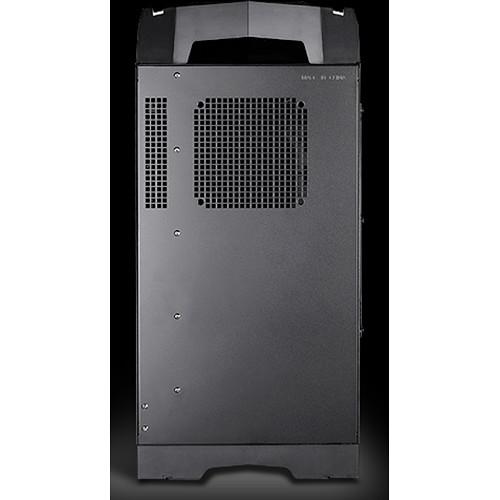

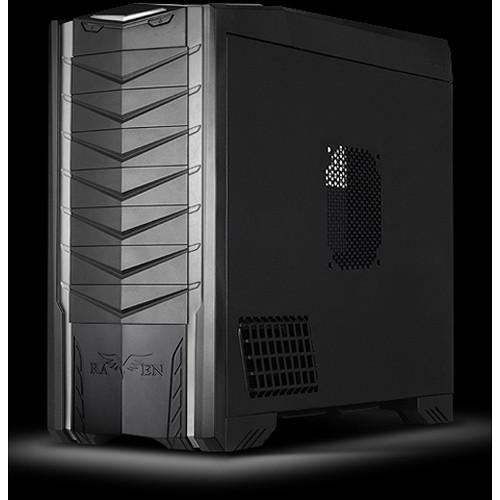

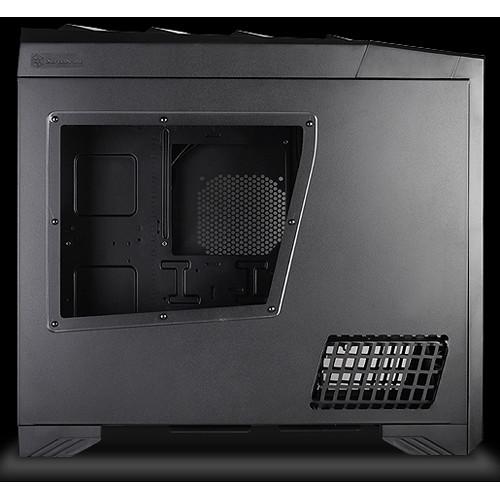

Product description Designed with a reinforced plastic outer shell and a steel body, the matte black with black and grey trim Raven Series RV03 Case from SilverStone supports motherboards with SSI-EEB, SSI-CEB, Extended ATX, ATX, and Micro-ATX form factors. It also has seven 5.25" external drive bays or ten 3.5" internal drive bays (six from 5.25" adapters) as well as two 2.5" drive bays. The case is cooled using one 120mm top exhaust fan that has a rotational speed of 900 rpm and a noise level of 18 dBA as well as two 180mm bottom AP181 fans that have a rotational speeds of 700 or 1200 rpm and a noise level of 18 or 34 dBA. There are also an additional six 120mm fan slots available on the front, rear, and side of the case. The Raven Series RV03 is equipped with two USB 3.0 ports, one audio port, and one mic port, all of which are front mounted, and its eight expansion slots are compatible with expansion cards up to 13.58 x 6.61". It is powered using a standard PS2 (ATX) power supply, not included. - Top-mounted stealth I/O ports include microphone, audio, and two USB 3.0 ports
- Supports eight expansion slots and graphics cards of any length

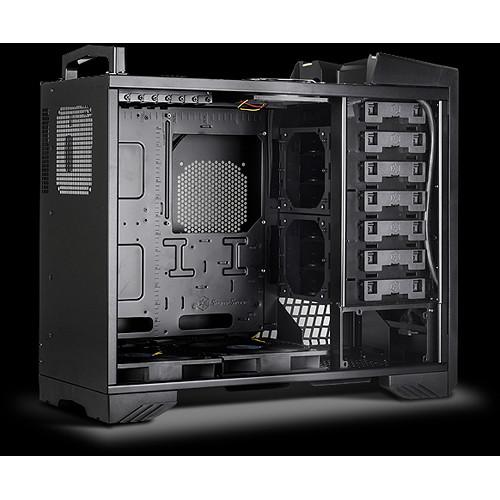

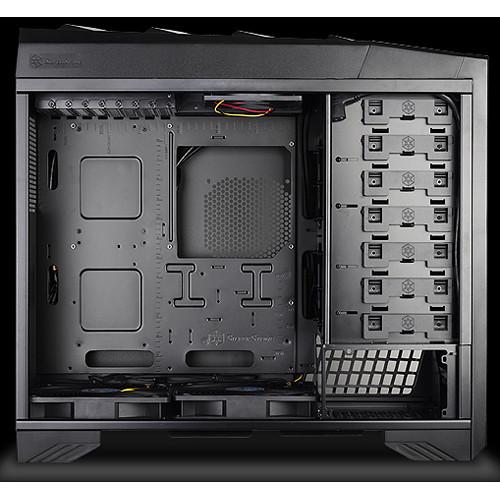

- 90° motherboard mounting promotes stack effect and more efficient cooling. The motherboard tray also has Extended ATX motherboard compatibility
- Independent hard drive compartments with isolated cooling zones behind the motherboard tray further aids cable management
- Large motherboard tray cut-out to enable more access to motherboard backside for swapping CPU cooler backplates
- Supports up to seven 120mm fans for exceptional cooling flexibility

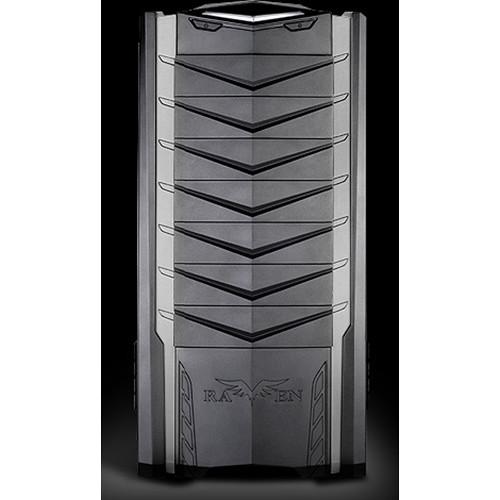

- Dual-purpose front panel bezels help achieve maximum cooling with low noise levels
- Mandatory cable management design with multiple pass-through holes and extra room behind the motherboard tray
- Space-efficient PSU placement aids cable management and reduces the chassis' footprint (PSU depth limit is 7.1" / 180.0mm)
- Includes two Air Penetrator 180mm fans for a combination of cooling performance and quietness
In the Box SilverStone Raven Series RV03 Case (Black + Gray Trim) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Raven Series RV03 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RV03B-WA Specs | | | Motherboard Support | SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX | | External Drive Bays | 7 x 5.25" | | Internal Drive Bays | 4 x 3.5"
2 x 2.5" | | Maximum GPU Length | 13.6" / 34.5 cm | | CPU Cooler Height | 6.4" / 16.2 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Front) | 4 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | 1 x 120 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Top) | 1 x 120 mm (900 rpm) | | Fans Included (Bottom) | 2 x 180 mm (Variable rpm) | | Noise Level | 18 to 34 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.3 x 20.6 x 22.4" / 235.0 x 522.0 x 570.0 mm | | Weight | 27.6 lb / 12.5 kg | | | | Package Weight | 34.15 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 13.0" |
