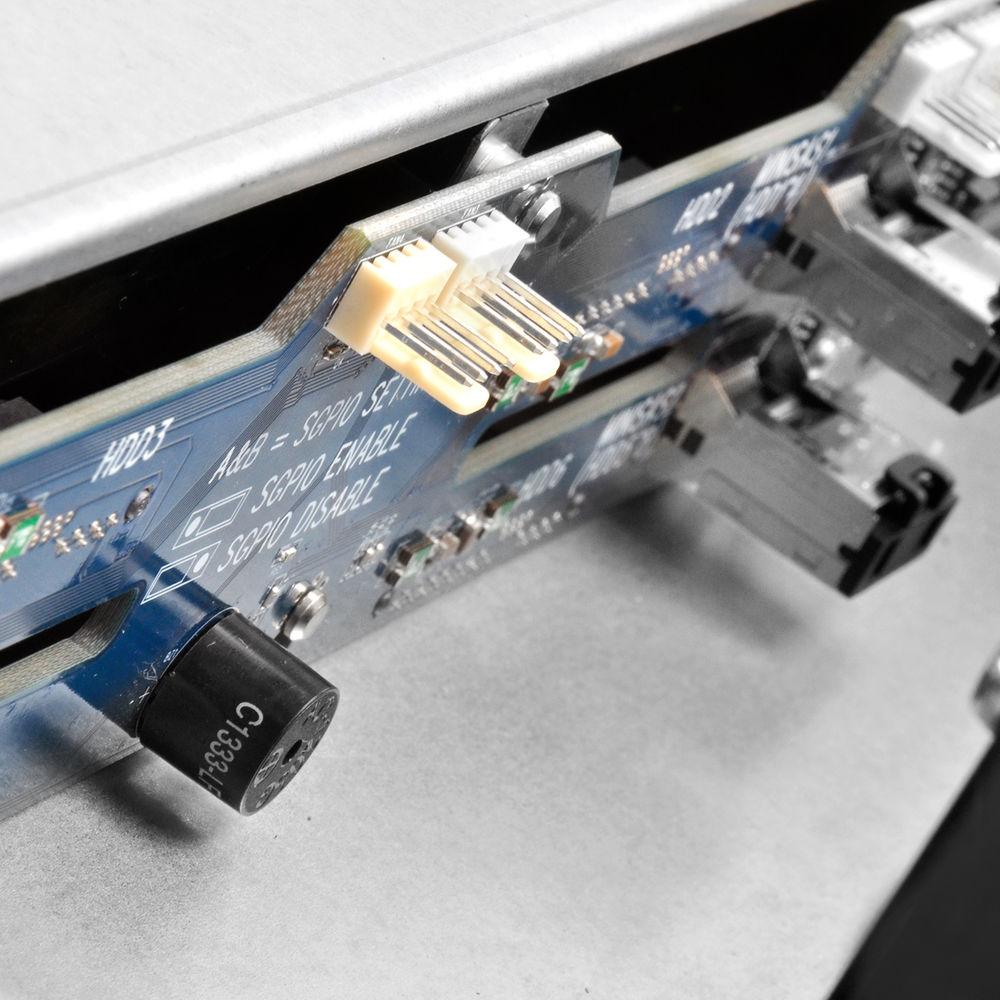

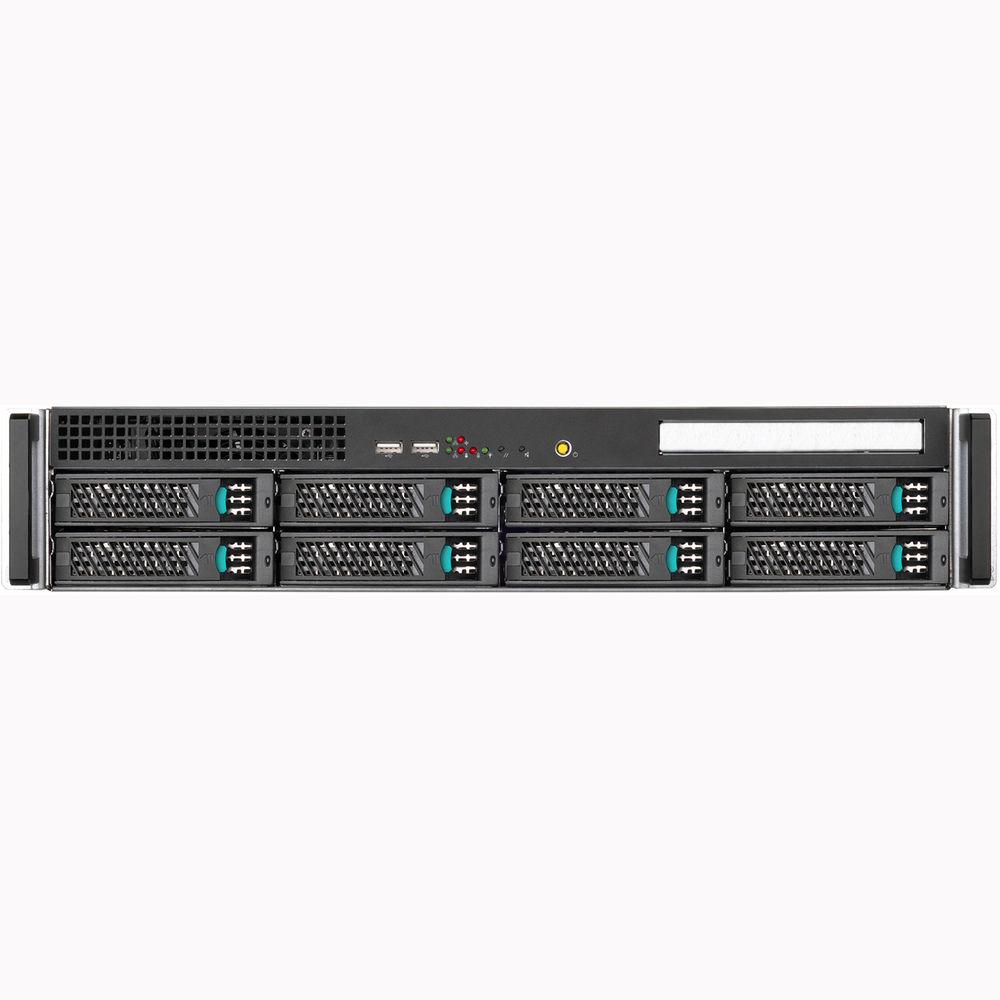

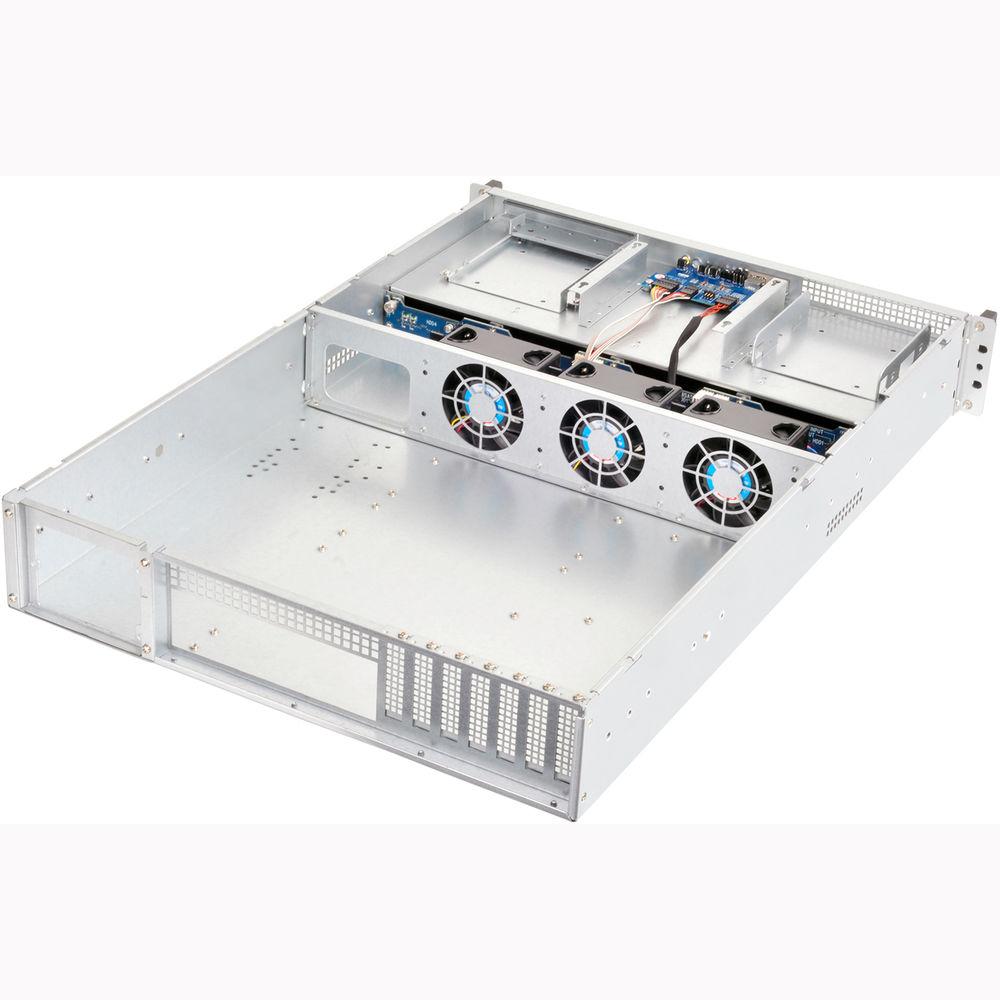

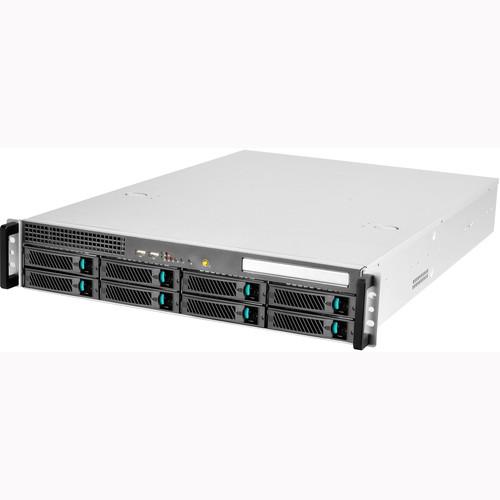

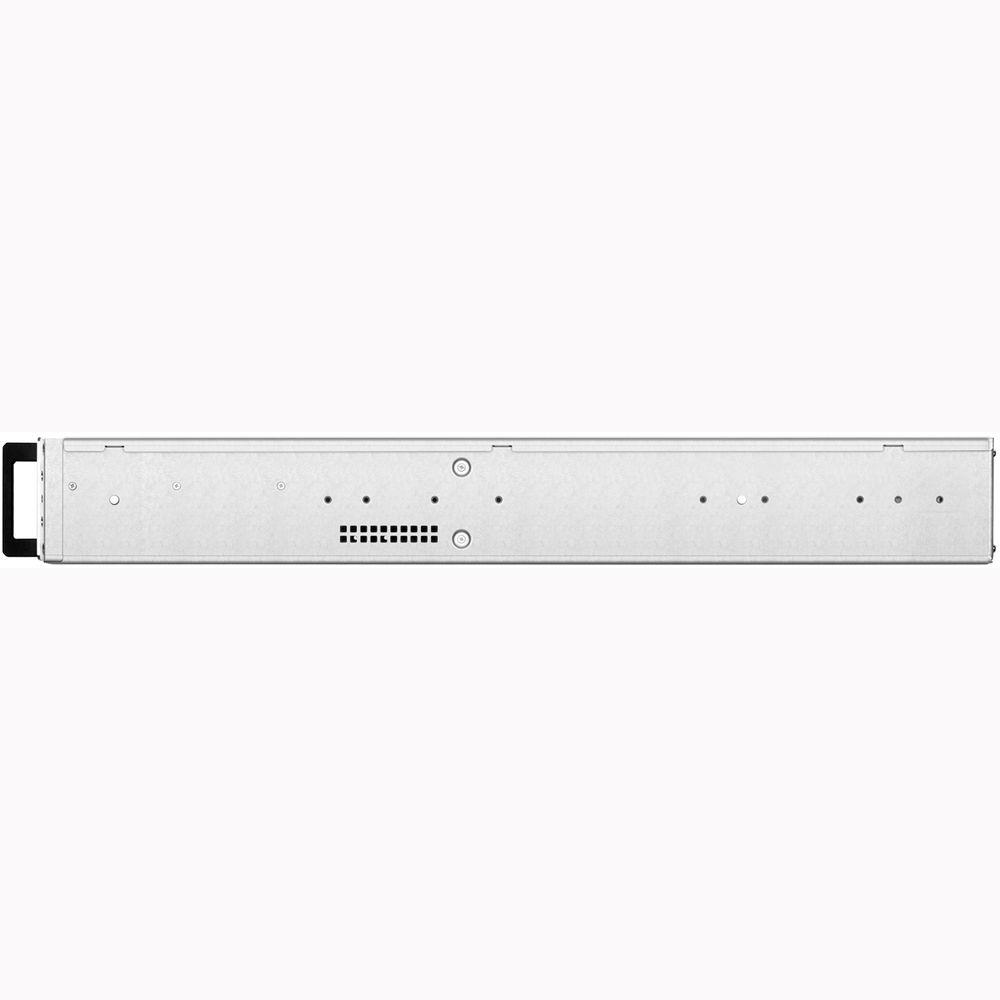

Product description The RM208 8-Bay 3.5" Server Chassis from SilverStone features a 2 RU form factor and supports Extended-ATX and SSI-EEB motherboards, so you can build a server that is designed to fit into a rack cabinet. The RM208 comes with eight storage bays that are designed to hold 3.5" hard drives as well as a backplane to quickly connect SAS- or SATA-based storage drives. The backplane sports eight connectors for your drives and has two SFF8087 ports, which connect to an optional HBA card. Other notable bays include one internal 3.5" bay along with one external bay that can support an optical drive or a 2.5" storage drive.

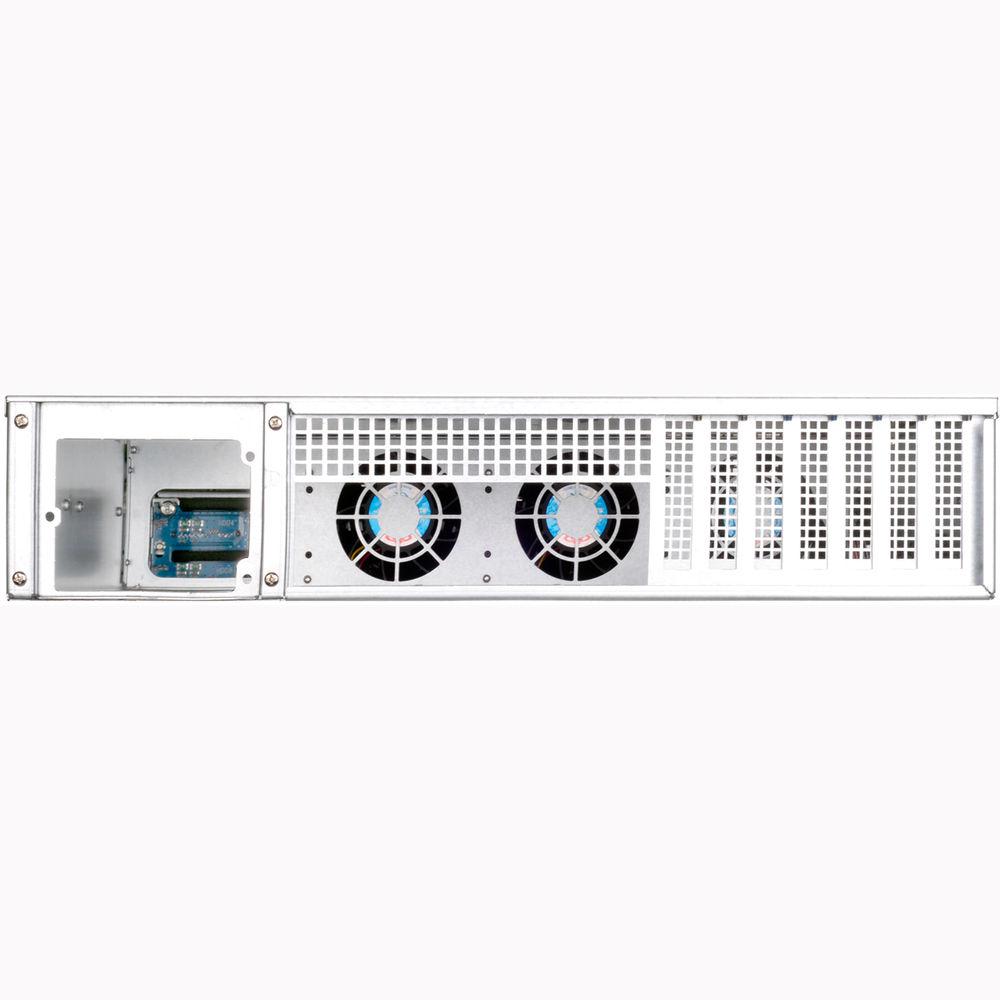

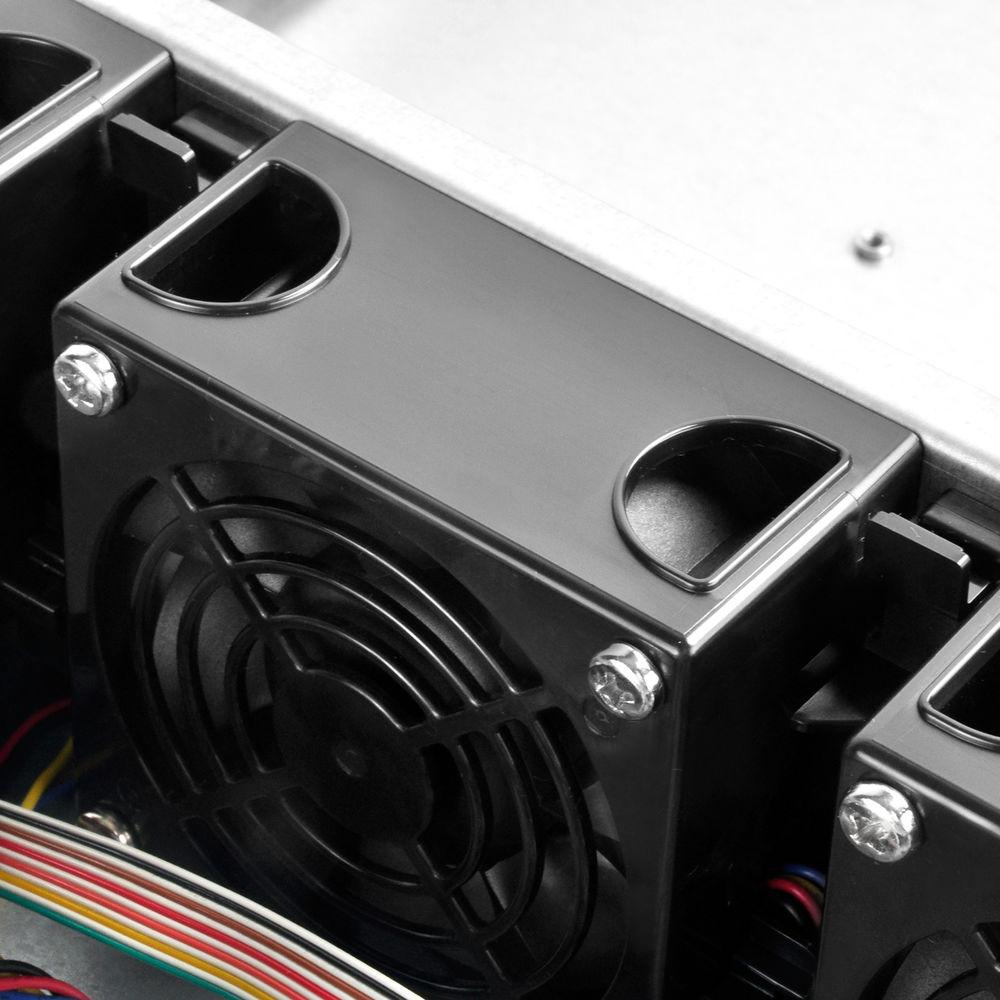

Aside from drive support, the RM208 is armed with three hot-swappable 80mm PWM fans for cooling your internal components. This chassis can accommodate up to two 2U power supplies and seven low-profile PCI/PCIe adapter cards. There are also two USB 2.0 ports located on the front of the RM208 server chassis for easy access to thumb drives, input peripherals, and other devices. Additionally, an optional rail kit is available, offering you easy sliding access to the server for maintenance. - Backplane support for 8 SAS/SATA drives and two SFF8087 with SGPIO
- Includes three hot-swappable 80 x 38mm PWM fans
- Supports E-ATX or SSI-EEB motherboard

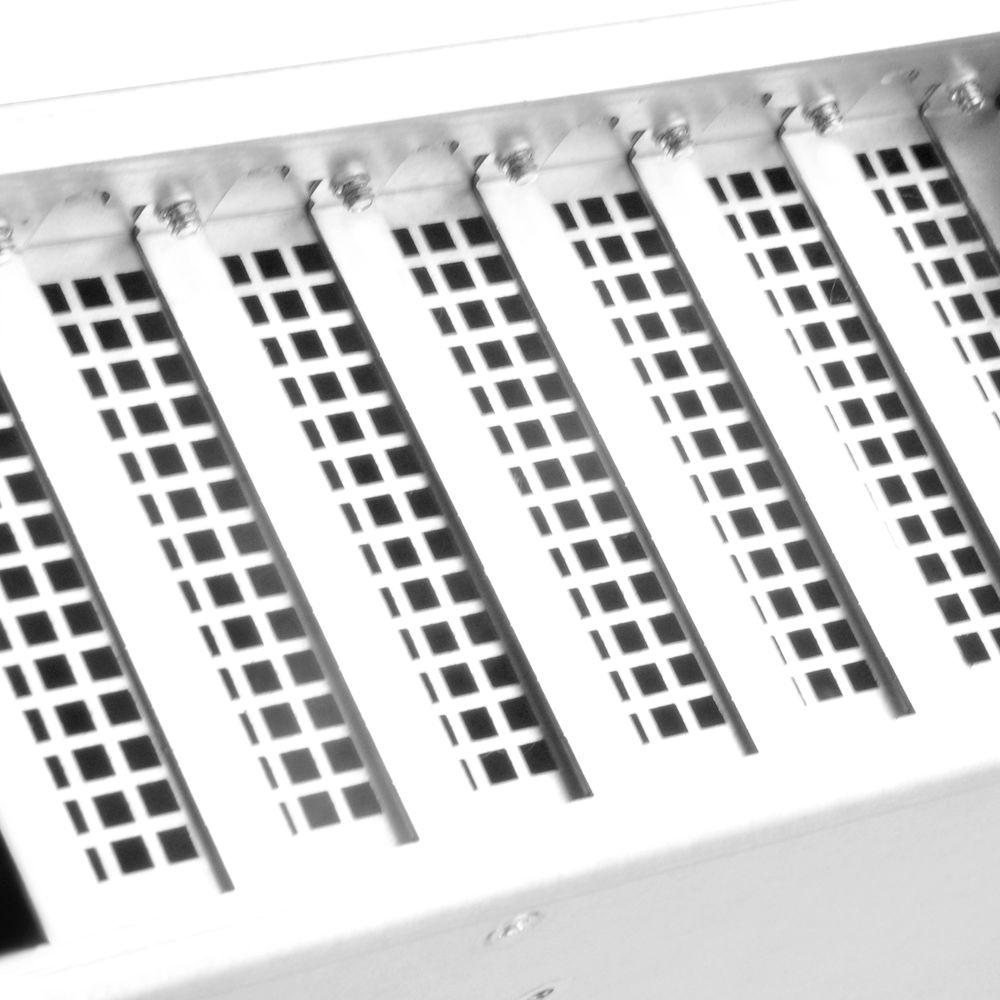

- Offers seven low-profile PCI/PCIe slots
- standard PCI/PCIe riser card available for purchase

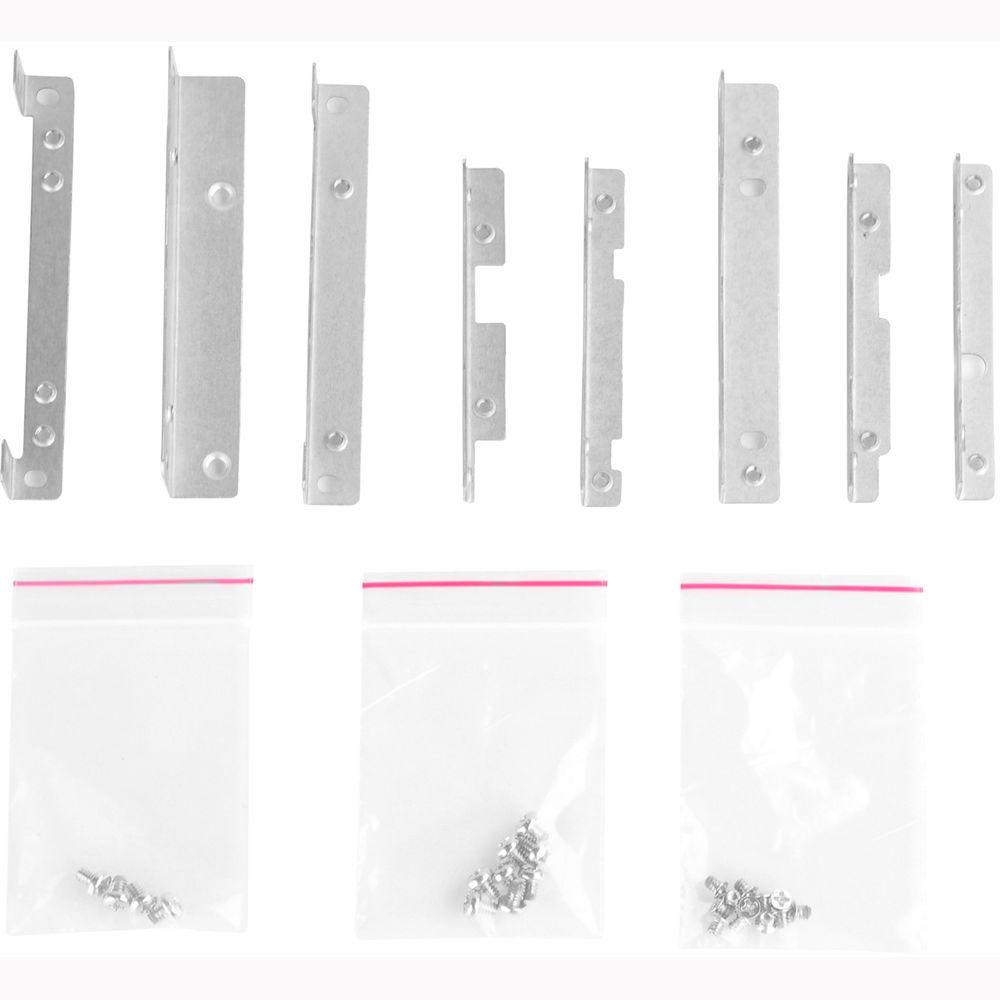

UPC: 844761011604 In the Box SilverStone RM208 8-Bay 3.5" Server Chassis Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone RM208 8-Bay 3.5" Server Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RM208 Specs | Form Factor | 2 RU | | Motherboard Support | E-ATX, SSI-EEB 12 x 13" / 30.5 x 33 cm | | Drive Bays | External: 8 x 3.5" hot-swap, 1 x slim optical (or one 2.5" drive)
Internal: 1 x 3.5" | | Power Supply Support | 2U single or redundant | | Cooling | 3 x hot-swap 80 x 38 mm PWM fans | | Expansion Slots | 7 x low-profile PCI/PCIe
Supports an optional stand-profile PCI/PCIe riser card | | Ports | Front: 2 x USB 2.0 | | Buttons | Power ON/OFF, Reset, Alarm Reset | | Backplane | 8-port SAS/SATA to 2 x SFF8087 with SGPIO | | Main Metal Thickness | 0.05" / 1.2 mm | | Dimensions (W x H x D) | 17.3 x 3.4 x 26" / 438.5 x 87.5 x 660 mm | | Weight | 22 lb / 10 kg |
