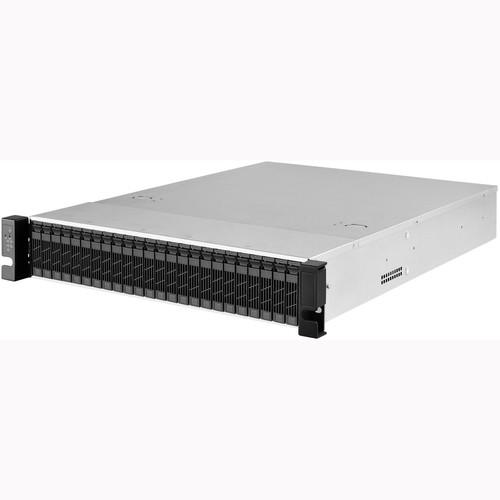

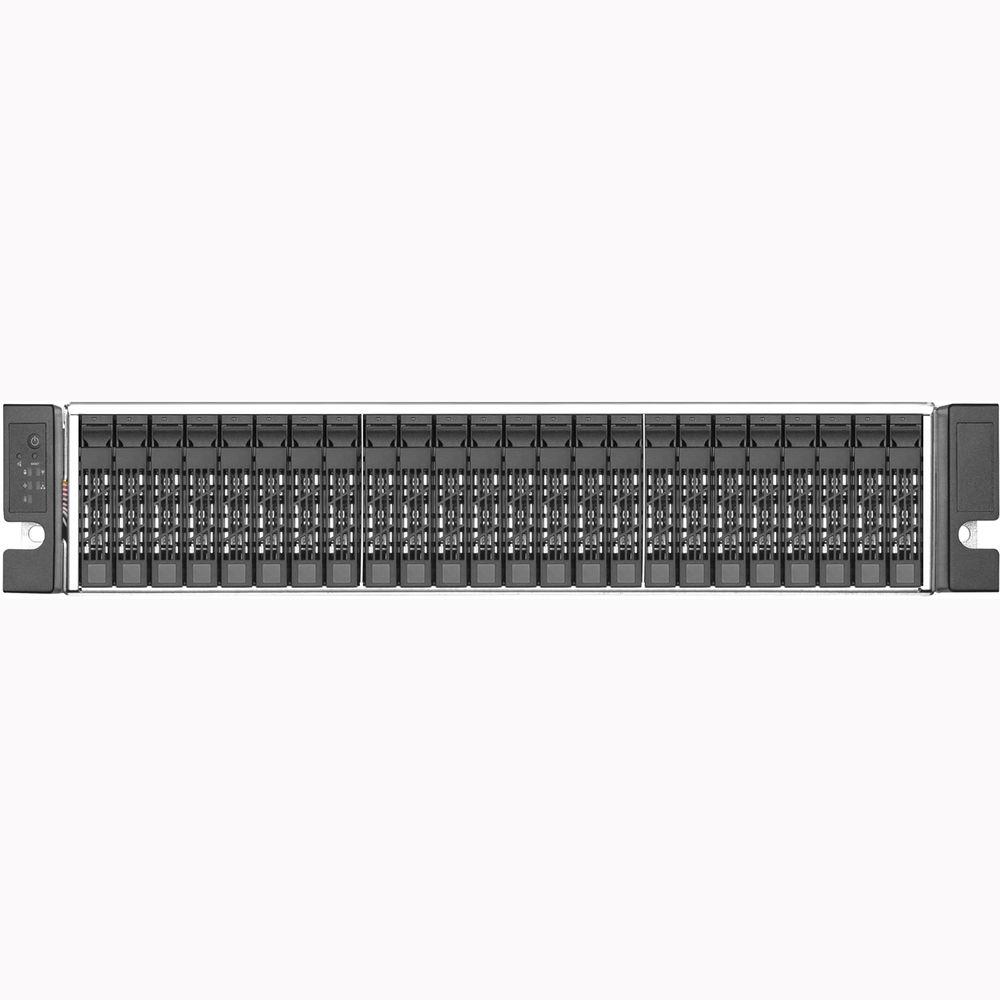

User Manual for SilverStone RM224 24-Bay 2.5" Server Chassis Click to enlarge the picture
Contents of the user manual for the SilverStone RM224 24-Bay 2.5" Server Chassis
- Product category: NAS Enclosures SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone NAS Enclosures
 |
User manual for the SilverStone RM224 24-Bay 2.5" Server Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

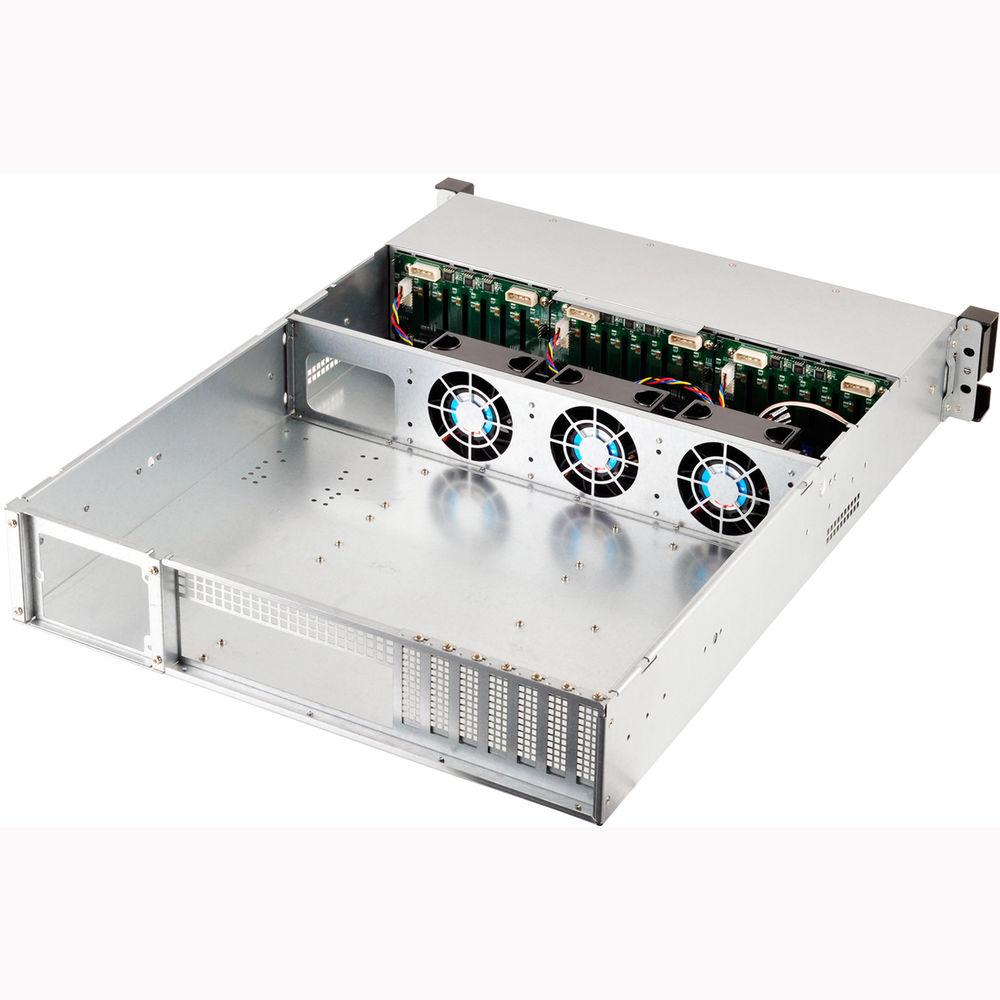

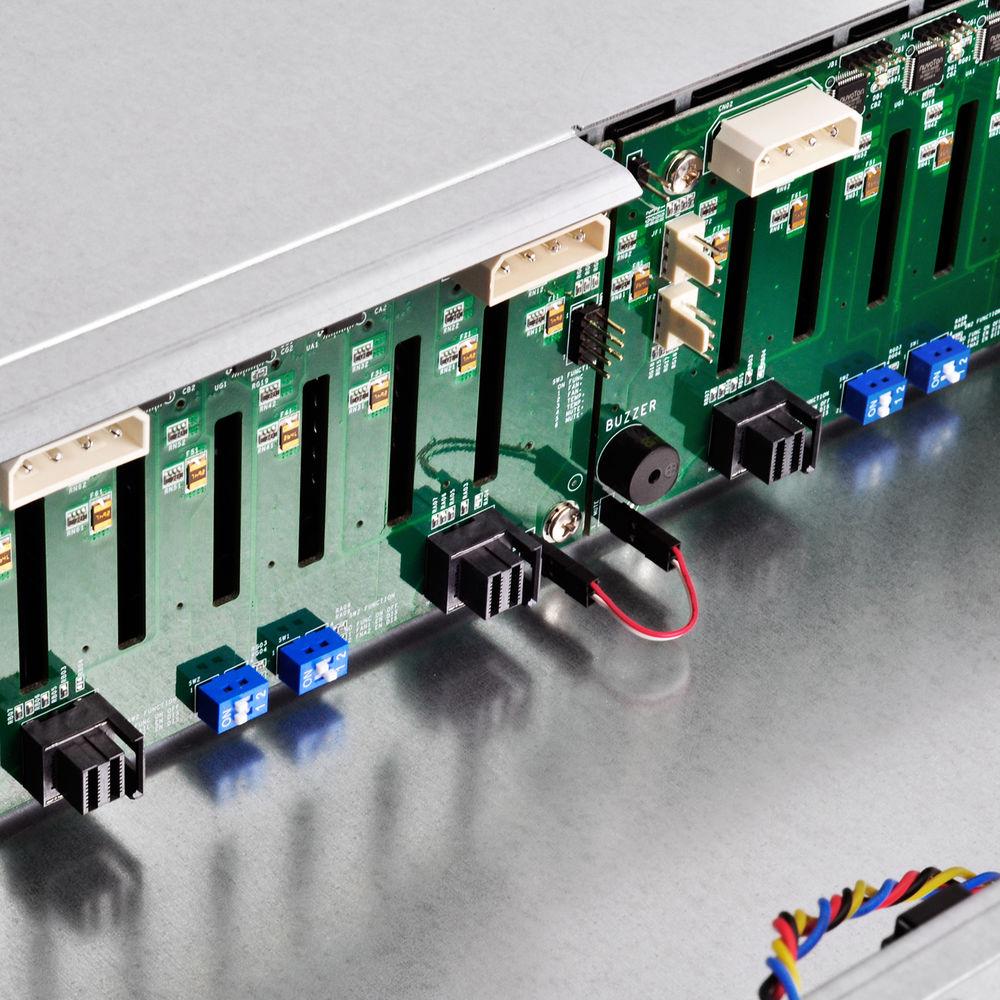

Product description The RM224 24-Bay 2.5" Server Chassis from SilverStone features a 2 RU form factor and supports Extended-ATX and SSI-EEB motherboards, so you can build a server that is designed to fit into a rack cabinet. The RM224 comes with twenty-four storage bays that are designed to hold 2.5" hard drives as well as a backplane to quickly connect SAS- or SATA-based storage drives. The backplane sports twenty-four connectors for your drives and has six SFF8087 ports, which connect to optional HBA cards.

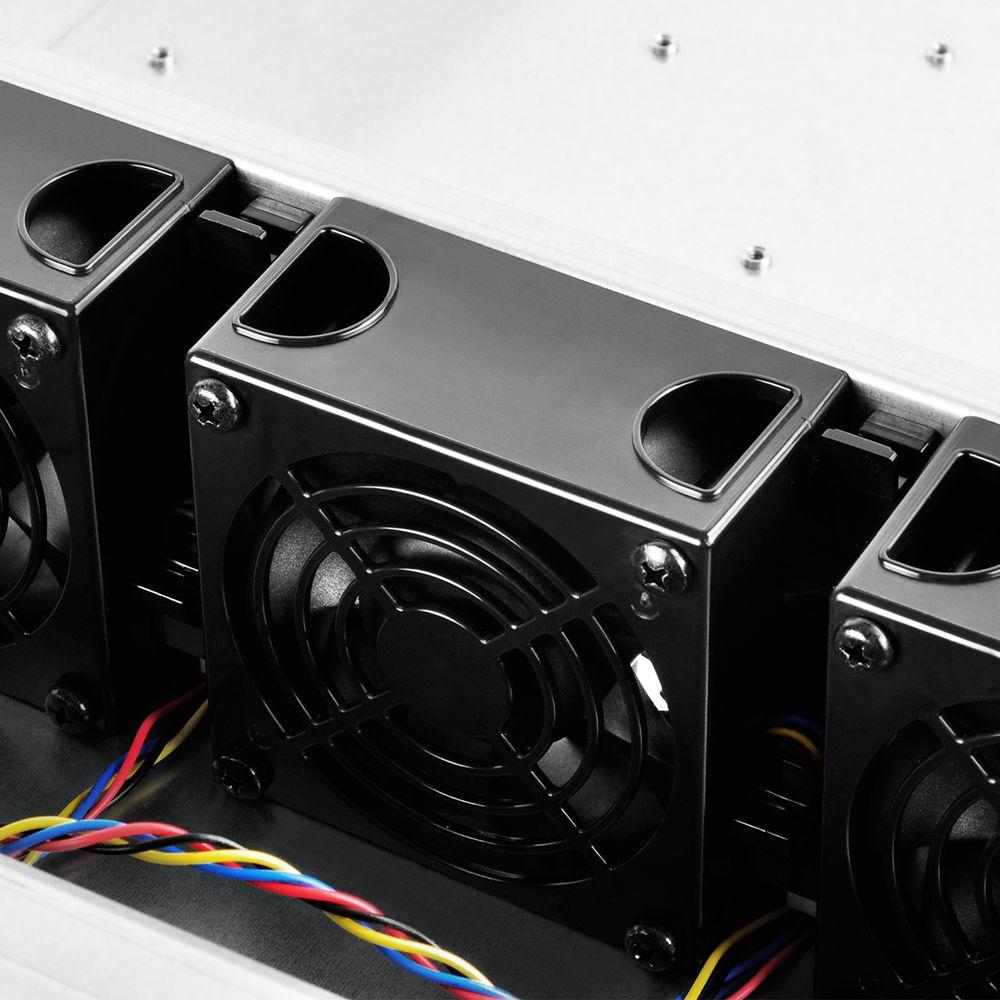

Aside from drive support, the RM224 is armed with three hot-swappable 80mm PWM fans for cooling your internal components. This chassis can accommodate up to two 2U power supplies and seven low-profile PCI/PCIe adapter cards. Additionally, an optional rail kit is available, offering you easy sliding access to the server for maintenance. - Backplane support for up to 24 SAS/SATA drives and six SFF8087 with SGPIO
- Includes three hot-swappable 80 x 38mm PWM fans
- Supports E-ATX or SSI-EEB motherboard

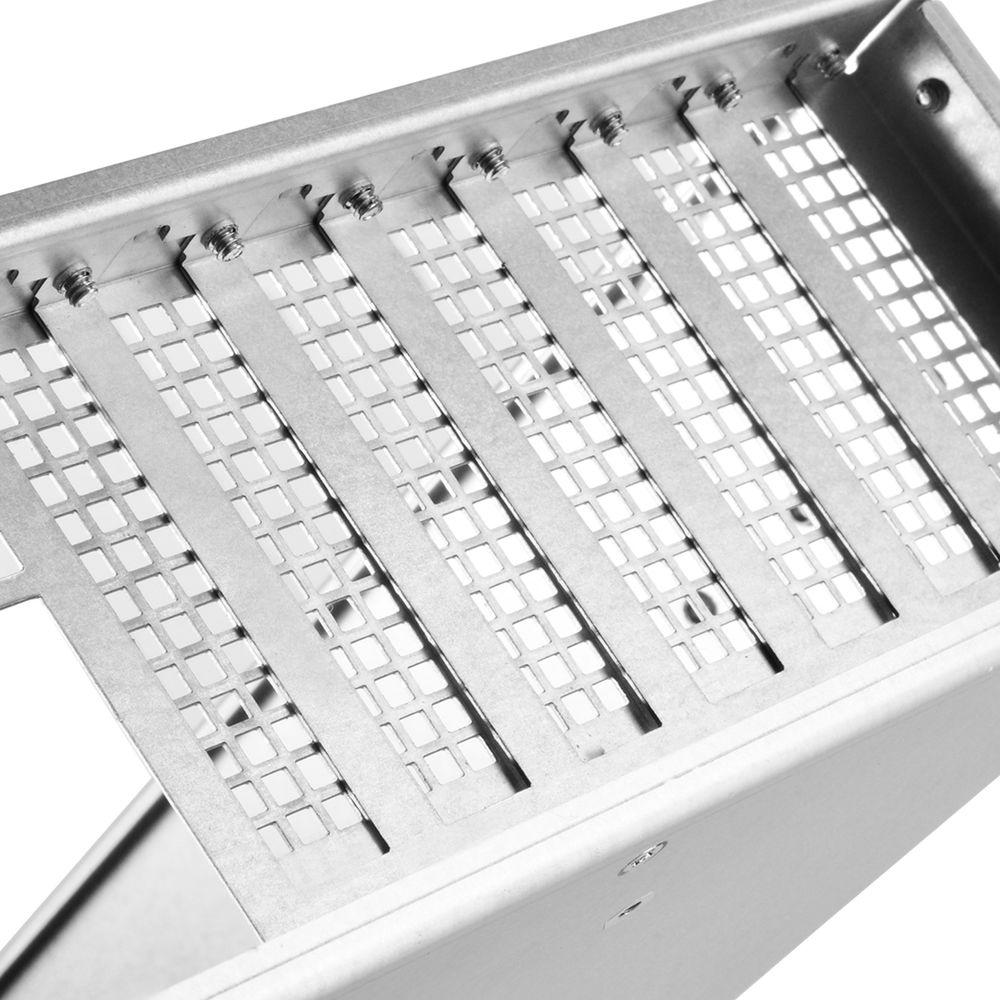

- Offers seven low-profile PCI/PCIe slots
- Standard PCI/PCIe riser card available for purchase
UPC: 844761012748 In the Box SilverStone RM224 24-Bay 2.5" Server Chassis Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone RM224 24-Bay 2.5" Server Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RM224 Specs | Form Factor | 2 RU | | Motherboard Support | E-ATX, SSI-EEB | | Drive Bays | External: 24 x 2.5" hot-swap | | Power Supply Support | 2U single or redundant | | Cooling | 3 x hot-swap 80 mm PWM fans | | Expansion Slots | 7 x low-profile PCI/PCIe
Supports an optional stand-profile PCI/PCIe riser card | | Buttons | Power ON/OFF, System Reset, Alarm Mute | | Backplane | 24-port SAS/SATA to 6 x SFF8087 with SGPIO | | Main Metal Thickness | 0.05" / 1.2 mm | | Dimensions (W x H x D) | 17.3 x 3.4 x 26" / 438.5 x 87.5 x 660 mm | | Weight | 22.5 lb / 10.2 kg |
