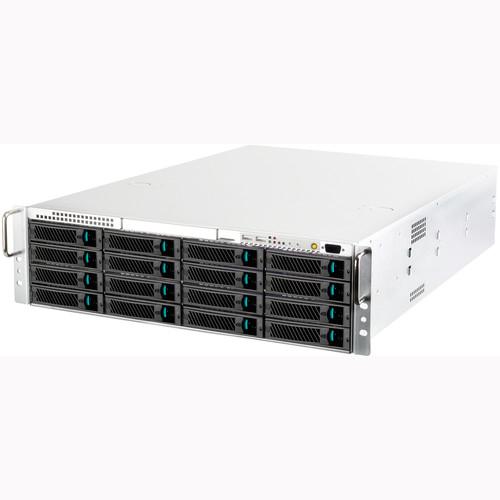

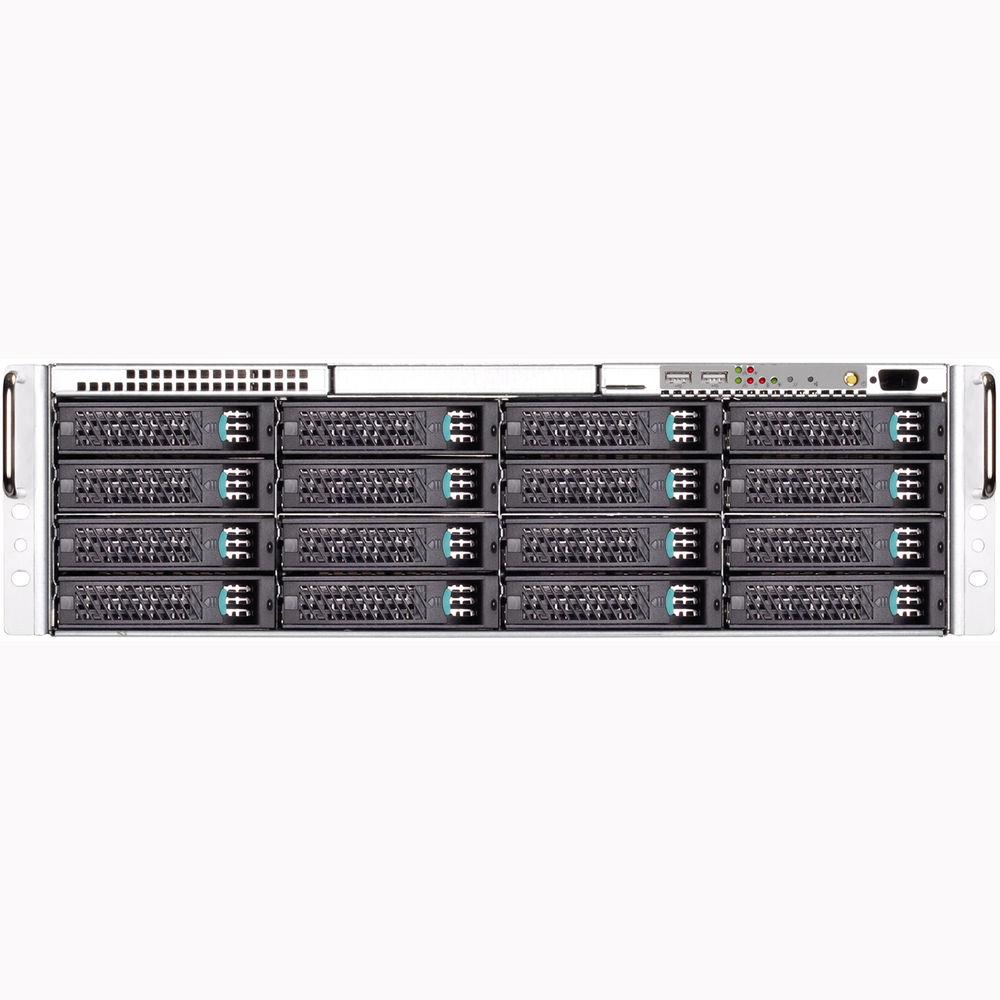

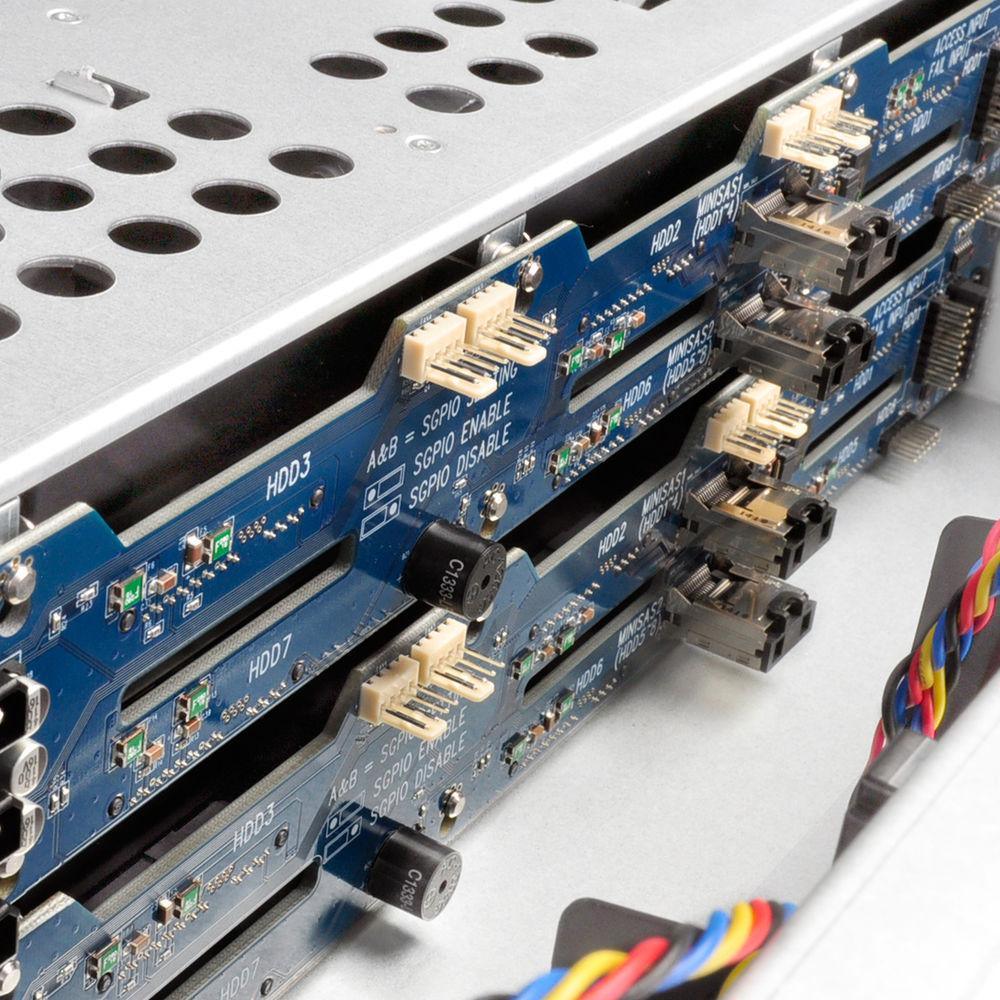

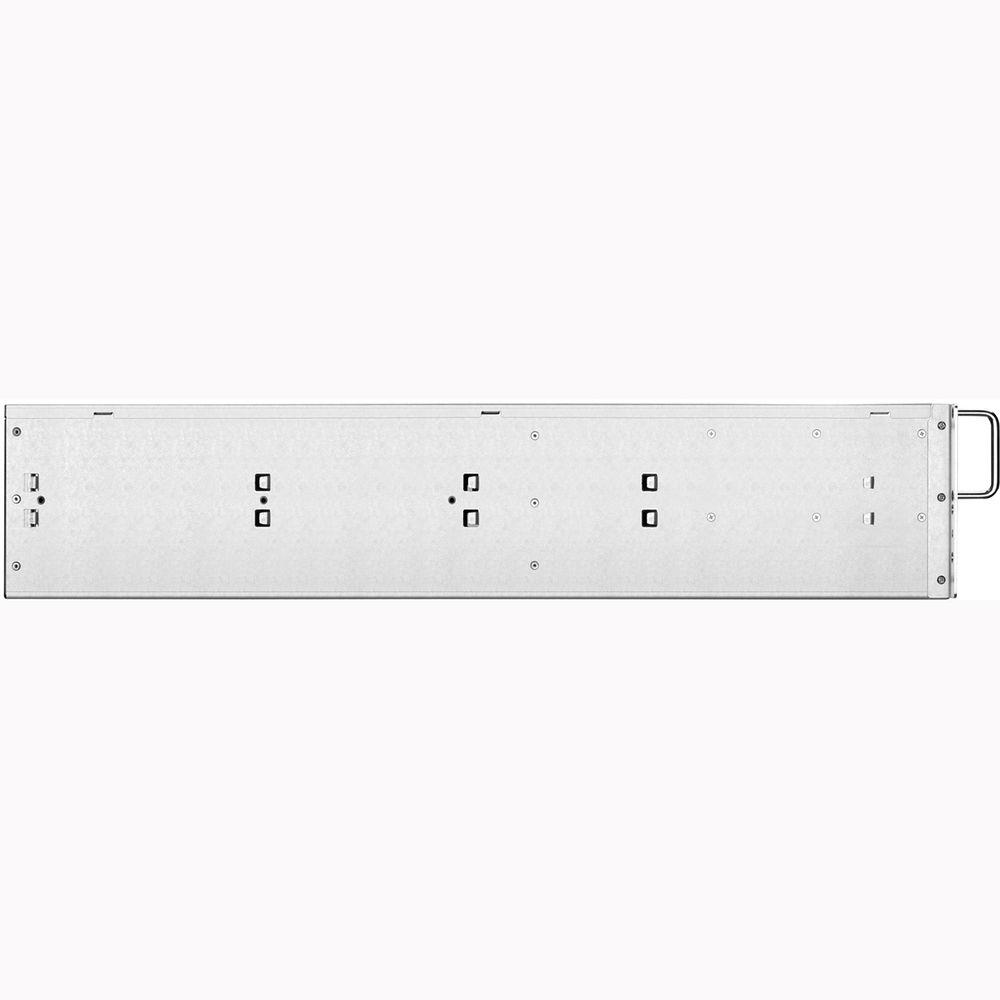

Product description The RM316 16-Bay 3.5" Server Chassis from SilverStone features a 3 RU form factor and supports Extended-ATX and SSI-EEB motherboards, so you can build a server that is designed to fit into a rack cabinet. The RM316 comes with sixteen storage bays that are designed to hold 3.5" hard drives as well as a backplane to quickly connect SAS- or SATA-based storage drives. The backplane sports sixteen connectors for your drives and has four SFF8087 ports, which connect to optional HBA cards. Other notable bays include one internal 2.5" bay along with one external bay that can support an optical drive.

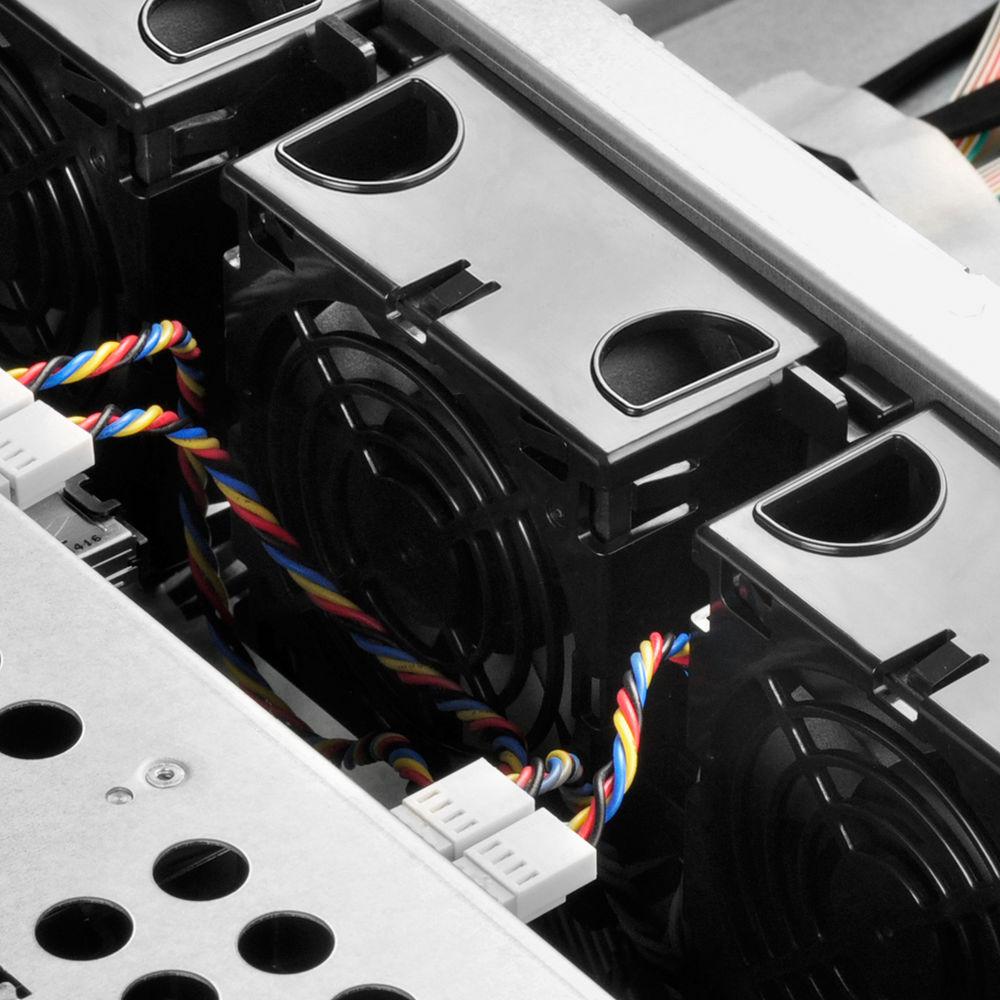

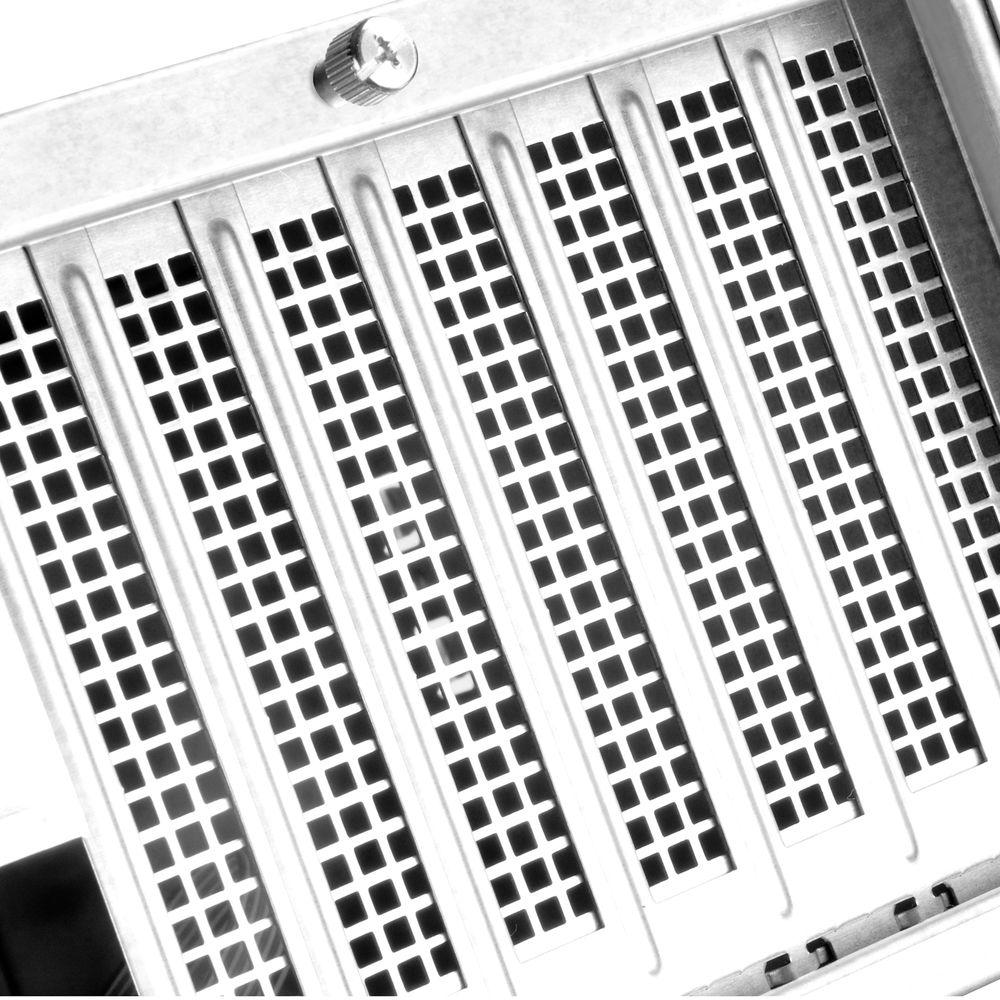

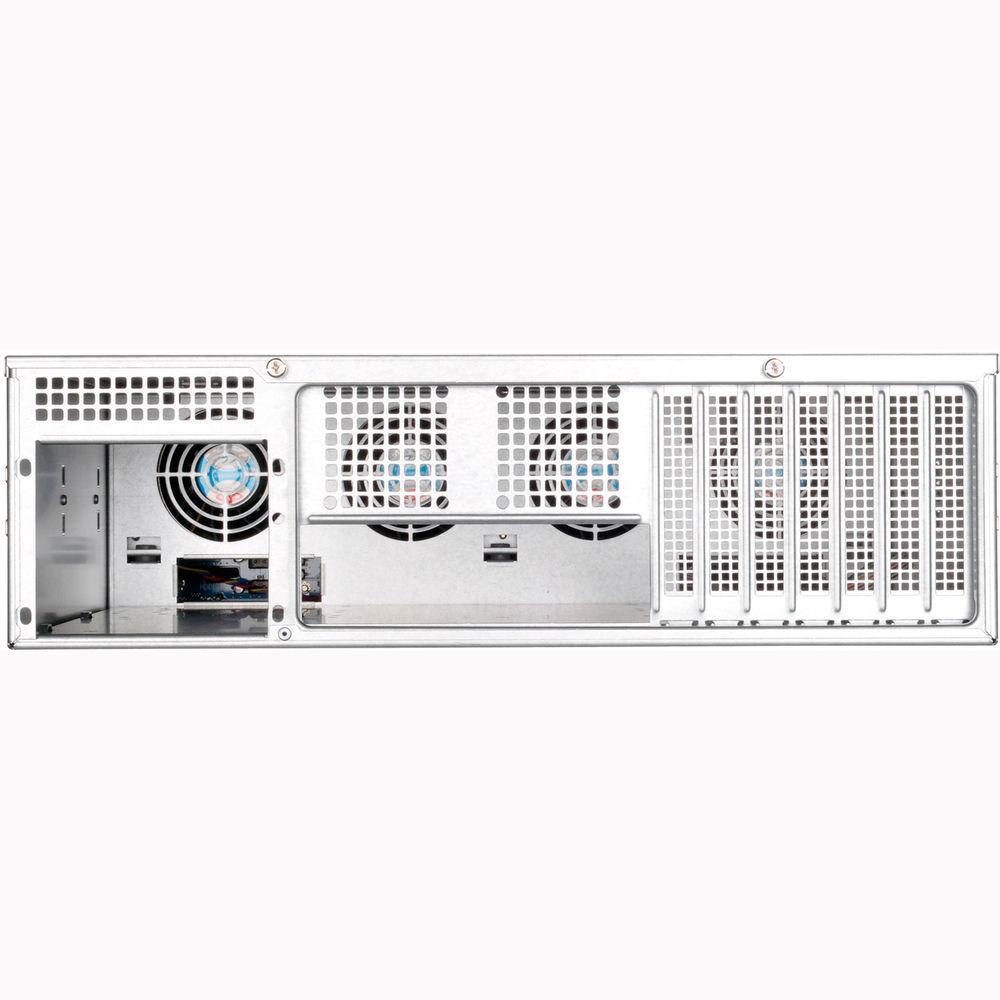

Aside from drive support, the RM316 is armed with four hot-swappable 80mm PWM fans for cooling your internal components. This chassis can accommodate up to two 2U power supplies and seven standard-profile PCI/PCIe adapter cards. There are also two USB 2.0 ports located on the front of the RM316 server chassis for easy access to thumb drives, input peripherals, and other devices. Additionally, an optional rail kit is available, offering you easy sliding access to the server for maintenance. - Backplane support for 16 SAS/SATA drives and four SFF8087 ports with SGPIO
- Includes four hot-swappable 80 x 38mm PWM fans
- Supports E-ATX or SSI-EEB motherboard
- Offers seven PCI/PCIe slots
UPC: 844761011611 In the Box SilverStone RM316 16-Bay 3.5" Server Chassis Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone RM316 16-Bay 3.5" Server Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone RM316 Specs | Form Factor | 3 RU | | Motherboard Support | E-ATX, SSI-EEB (12 x 13" / 30.5 x 33 cm) | | Drive Bays | External: 16 x 3.5" hot-swap, 1 x slim optical
Internal: 1 x 2.5" | | Power Supply Support | 2U single or redundant | | Cooling | 4 x hot-swap 80 x 38 mm PWM fans | | Expansion Slots | 7 x standard-profile | | Ports | Front: 2 x USB 2.0 | | Buttons | Power ON/OFF, System Reset, Alarm Reset | | Backplane | 16-port SAS/SATA to 4 x SFF8087 with SGPIO | | Main Metal Thickness | 0.05" / 1.2 mm | | Dimensions (W x H x D) | 17.3 x 5.2 x 26" / 438.5 x 131 x 660 mm | | Weight | 33.1 lb / 15 kg |
