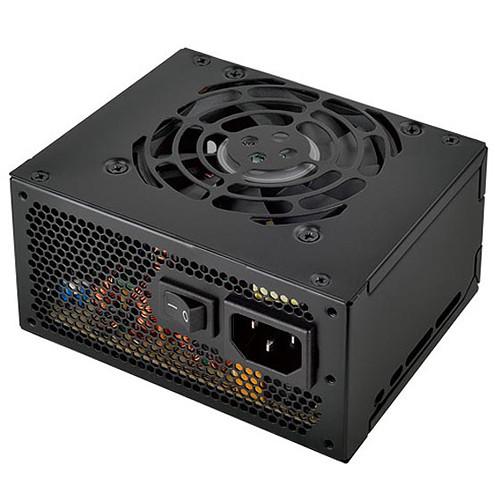

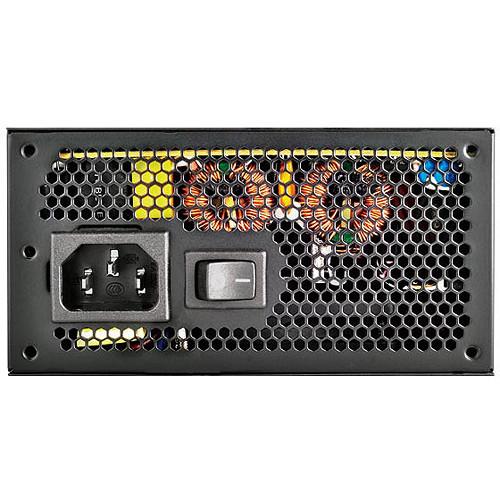

User Manual for SilverStone SFX Series 300W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone SFX Series 300W 80 Plus
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone SFX Series 300W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

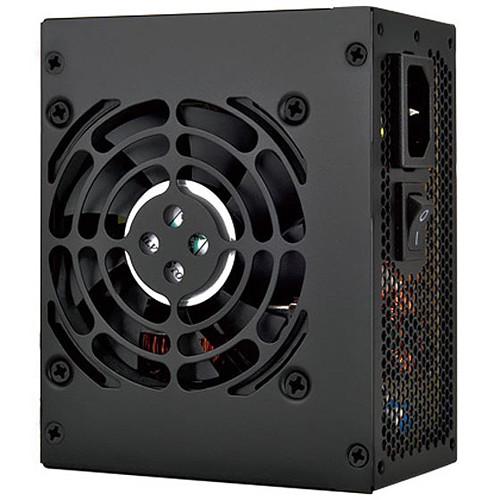

Product description This SFX Series 300W 80 Plus Bronze Power Supply from SilverStone features a 300W power output and an 80 Plus Bronze certification with 82~85% efficiency at 20 to 100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 122°F / 50°C. Its power density per liter is 378W and its 80mm fan helps to provide cooling with a noise level of 18 dBA. It uses fixed cables, and other features include a single +12V rail with 22A, support for SFX and ATX form factors, active PFC, and single PCIe 6-pin connection support.
The SFX Series ST30SF Power Supply has a noise level of 0-38 dBA. It supports select NVIDIA and AMD GPUs, as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of at least 100mm. Included is an SFX to ATX mounting bracket. - Intelligent semi-fanless operation
- Supports the standard SFX form factor and the ATX form factor via an included bracket
- 300W continuous power output at 50℃ operating temperature rated for 24/7 operation
- 80 Plus Bronze level efficiency (82~85% efficiency at 20 to 100% loading)
- Single +12V rail with 22A

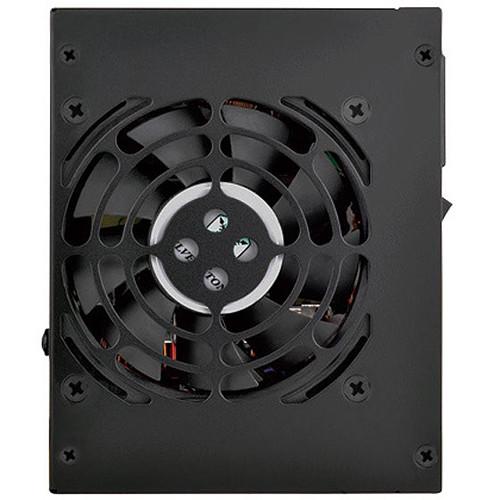

- 80mm fan with 18 dBA minimum noise level
- Single PCIe 6-pin connector support
GPU Support UPC: 844761010386 In the Box SilverStone SFX Series 300W 80 Plus Bronze Power Supply SFX to ATX Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone SFX Series 300W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

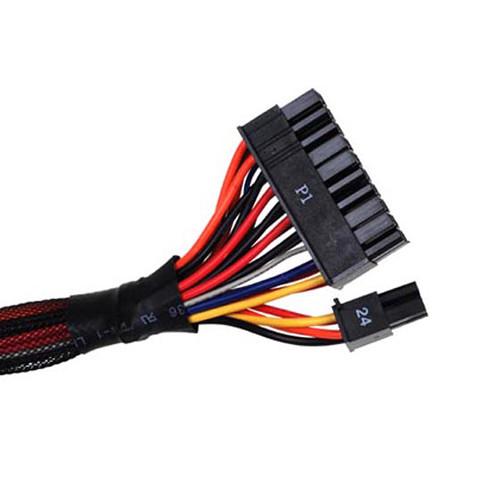

Technical parametersSilverStone ST30SF Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 6-Pin PCIe
3 x 15-Pin SATA
2 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 15.7" / 400 mm | | SATA Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
23.6" / 600 mm | | Peripheral Connector Distances | 11.8" / 300 mm
19.7" / 500 mm | | Floppy Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
27.6" / 700 mm | | ATX Connector Distance | 11.8" / 300 mm | | EPS Connector Distances | 15.7" / 400 mm | | | | Total Wattage | 300 W | | Combined Power for +12 V | 264 W | | Max Load for +12 V | 0.5 to 22 A | | Combined Power for +3.3/+5 V | 103 W | | Max Load for +3.3 V | 0.1 to 21 A | | Max Load for +5 V | 0.2 to 20 A | | Max Load for +5 Vsb | 2.5 A | | Max Load for -12 V | 0.5 A | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
