User Manual for SilverStone SFX Series 700W 80 Plus Platinum Modular SFX-L Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone SFX Series 700W 80 Plus
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone SFX Series 700W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

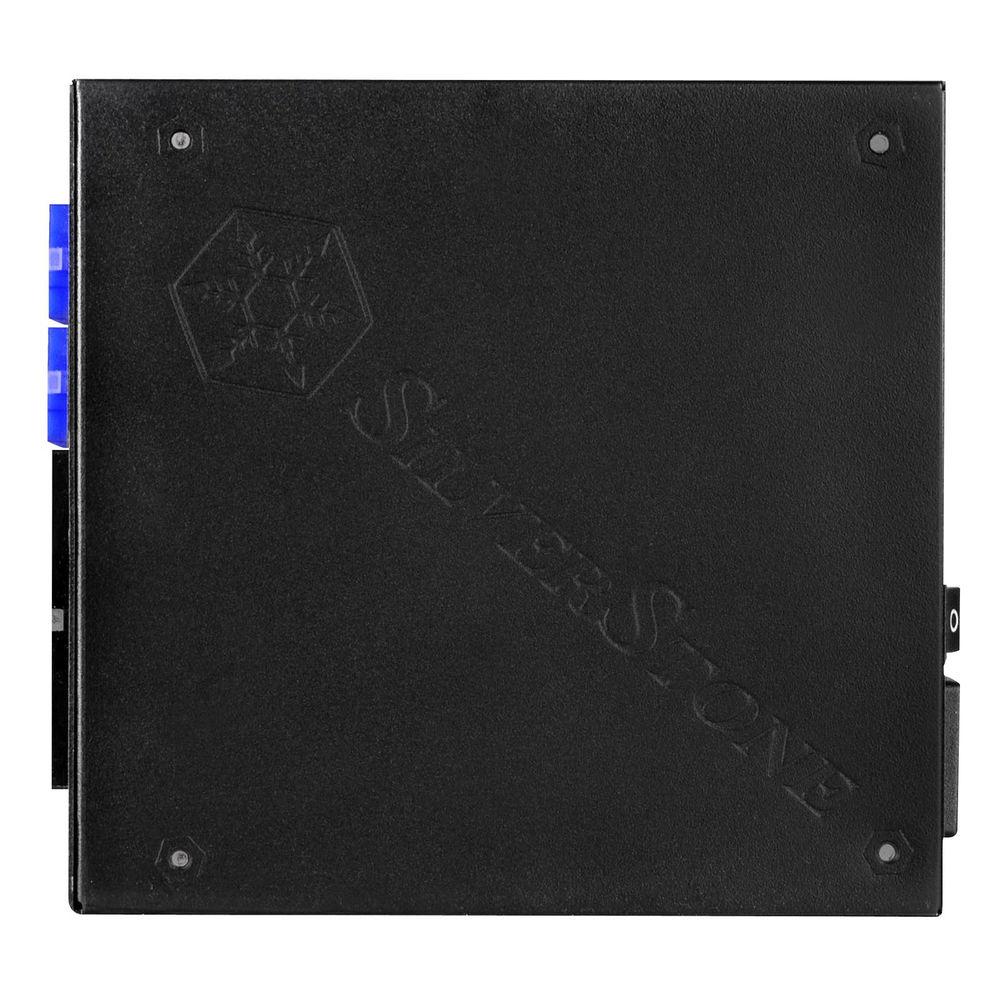

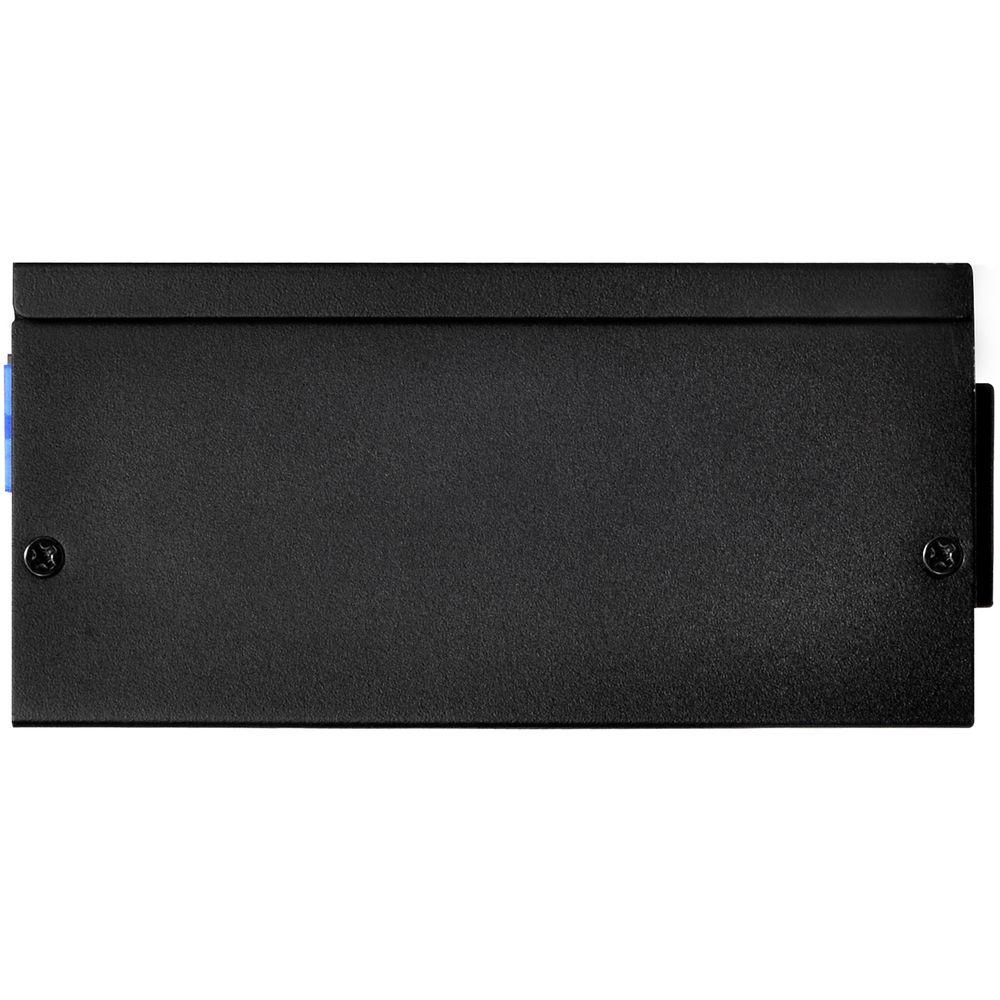

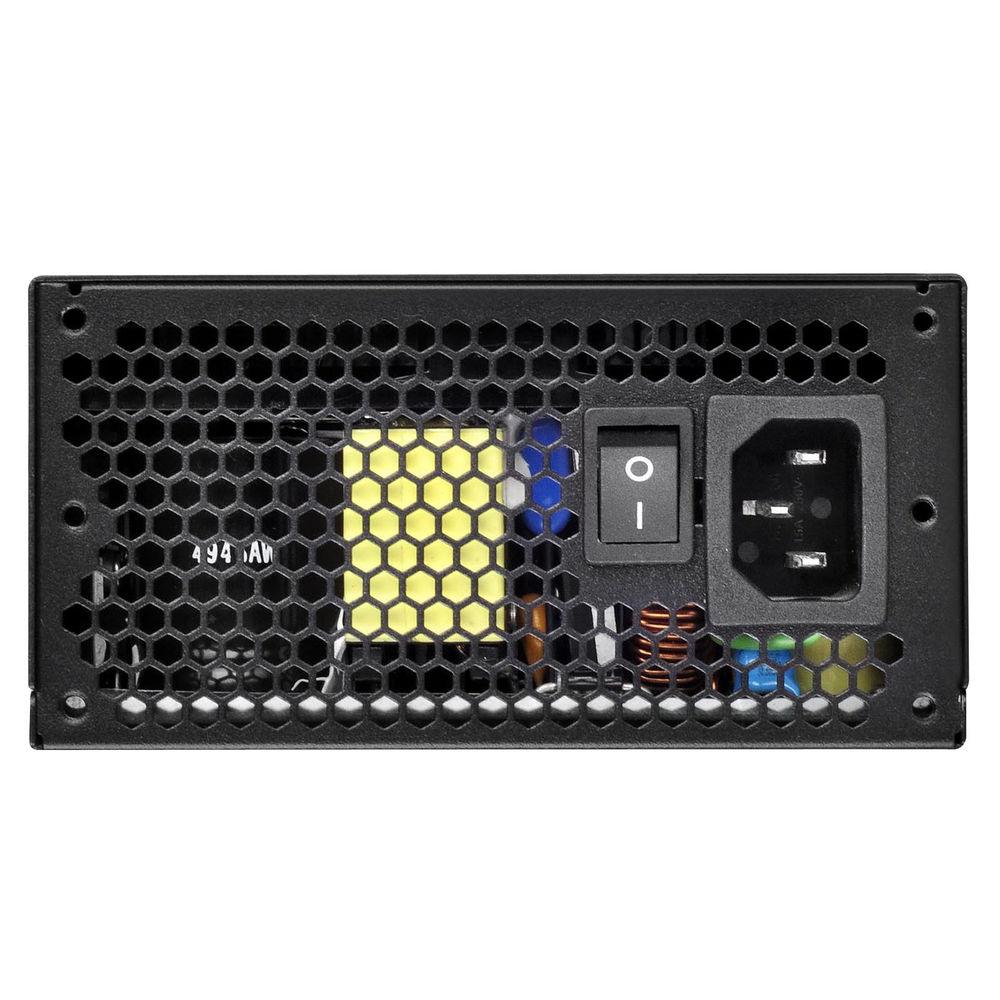

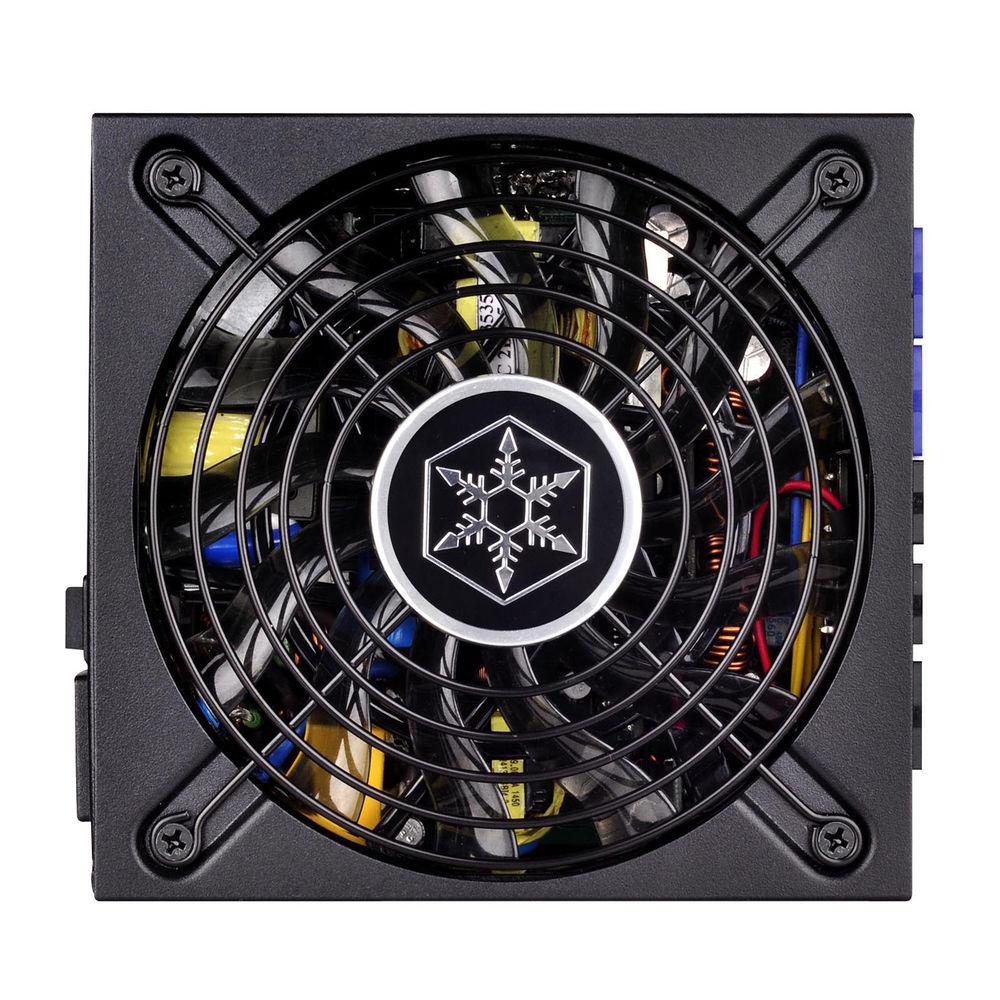

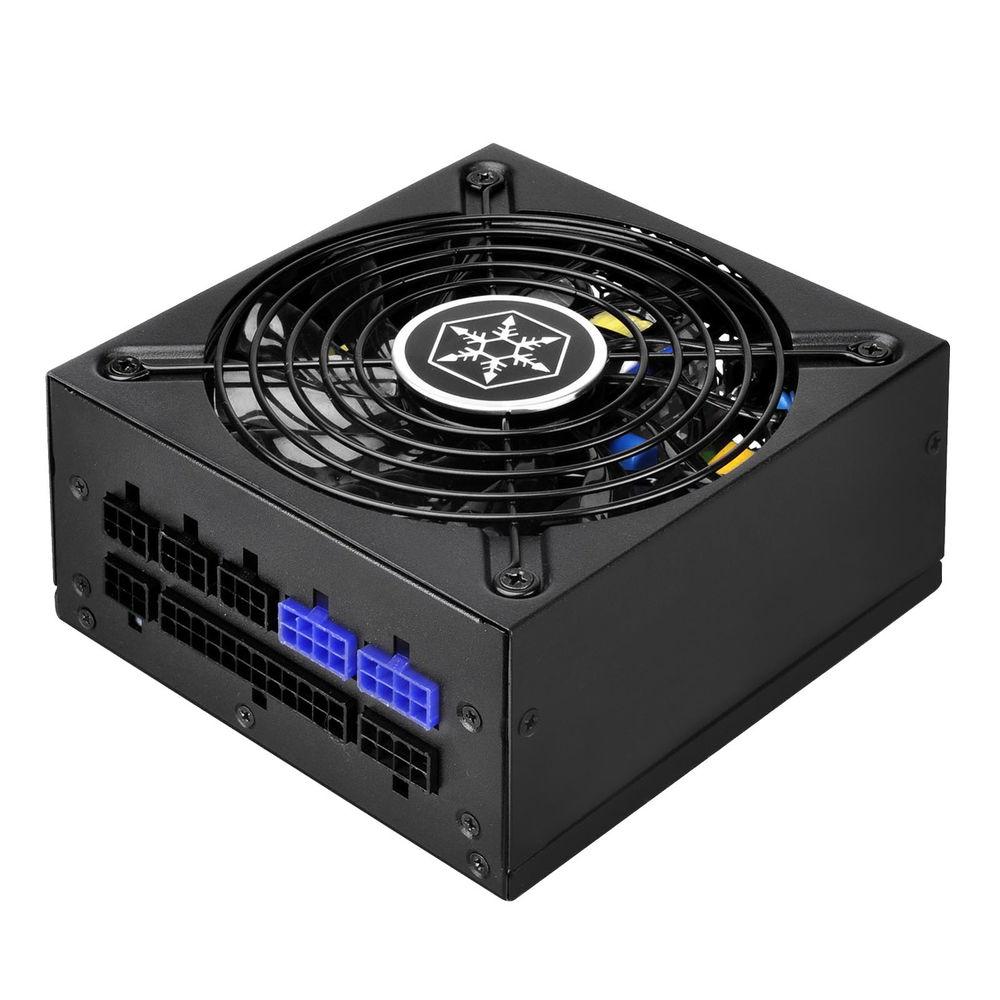

Product description The SFX Series 700W 80 Plus Platinum Modular SFX-L Power Supply from SilverStone is a powerful and efficient SFX-L power supply designed for small form factor computers. Its single +12 V rail offers stable power and compatibility among current generation hardware. Built with multiple heavy-duty protection features, it also has a modular design that allows you to connect only the cables you need. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 120mm fan operates silently and provides additional heat dissipation. - Silent running 120mm fan with intelligent semi-fanless operation
- Supports the SFX-L form factor for use in small form factor computers
- High efficiency with 80 Plus Platinum certification
- Flat cables for greater flexibility and better cable mangement
- Single +12V rail with 58.4A
- Strict ±3% voltage regulation and low ripple & noise
- Supports dual PCI-E 8/6pin connectors
- Active PFC
-
- Over Current Protection
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Under voltage protection
- Over Temperature Protection
UPC: 844761013271 In the Box SilverStone SFX Series 700W 80 Plus Platinum Modular SFX-L Power Supply 24-/20-Pin Motherboard Connector 8-/4-Pin EPS / ATX12V Connector 4 x 8-/6-Pin PCIe Connector 9 x SATA Connector 3 x 4-Pin Peripheral Connector 4-Pin Floppy Adapter Connector Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone SFX Series 700W 80 Plus Platinum Modular SFX-L Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

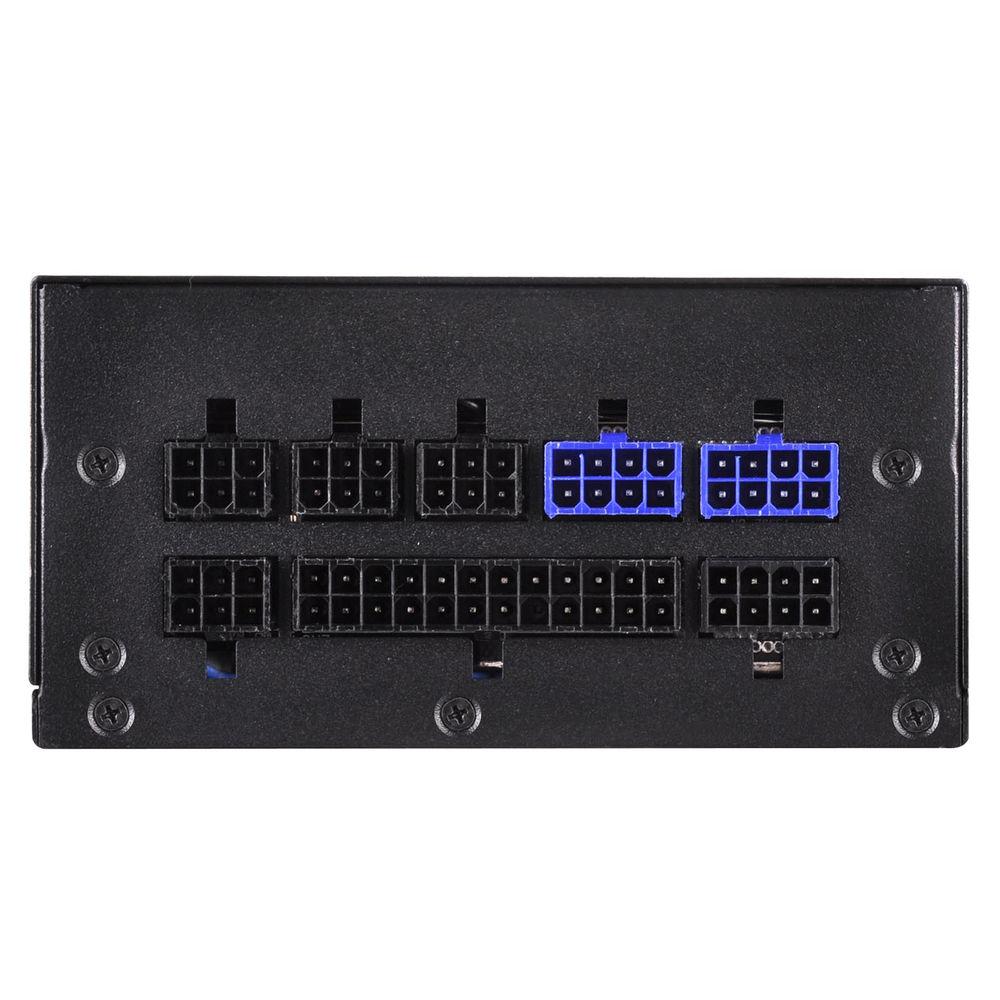

Technical parametersSilverStone SX700-LPT Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
9 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 15.7" / 400 mm
21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
23.6" / 600 mm
29.5" / 750 mm
35.4" / 900 mm | | Peripheral Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
27.6" / 700 mm | | Floppy Connector Distances | 3.9" / 100 mm | | ATX Connector Distance | 11.8" / 300 mm | | EPS Connector Distances | 15.7" / 400 mm | | | | Total Wattage | 700 W | | Combined Power for +12 V | 700 W | | Max Load for +12 V | 58.4 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 22 A | | Max Load for +5 V | 22 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.3 A | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
