User Manual for SilverStone SST-DS380B SFF Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone SST-DS380B SFF Mini-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone SST-DS380B SFF Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

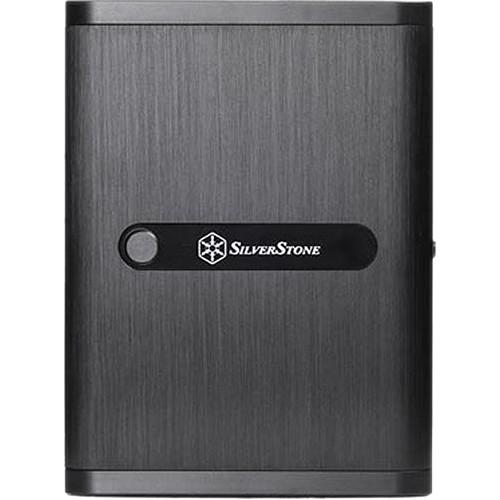

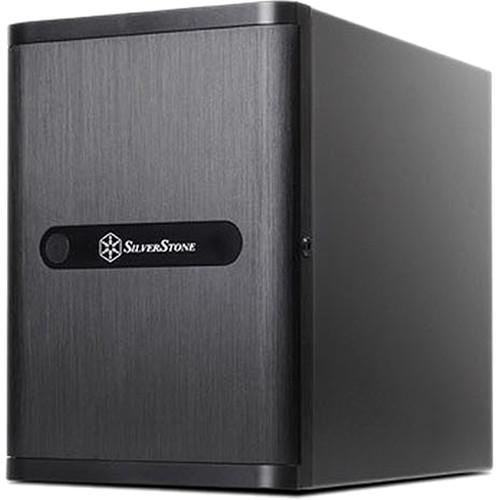

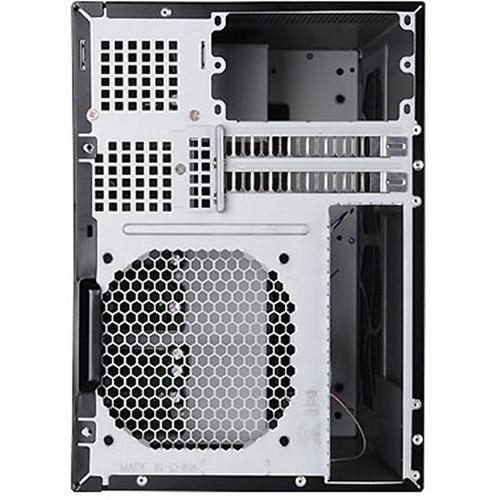

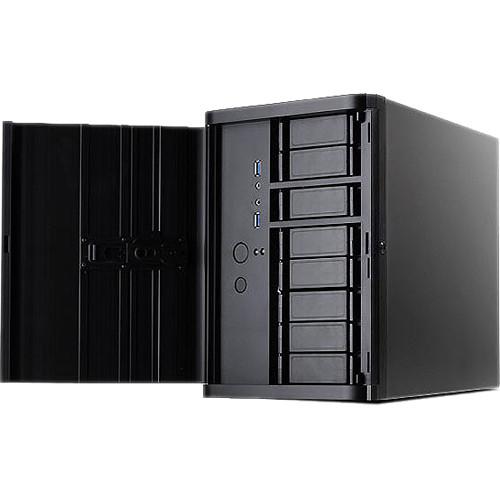

Product description The SilverStone SST-DS380B SFF Mini-Tower Case features a total of 12 drive bays in a small-form factor chassis, so you can build a HTPC storage system or a NAS for home or office. It comes with an 8-bay drive cage with a backplate that provides hot-swapping capabilities for your 2.5" or 3.5" drives. You can also easily upgrade or replace any of the eight drives from the front of the case. In addition, this case can hold another four 2.5" drives.
The DS380B SFF desktop case can accommodate a mini-ITX motherboard and an SFX power supply. The front of the case has two USB 3.0 ports, two audio jacks, and a lockable door, which prevents the system from being turned on or the removal of your drives. SilverStone has outfitted this case with two expansion slots, so you can install a graphics card up to 11" long by converting the 3rd drive bay with the included expansion card support bracket. To cool your components, SilverStone also gives you three 120mm cooling fans and removable dust filters that keep out dust. - Supports 12 total drives with 8 hot-swappable 3.5" or 2.5" SAS/SATA and 4 fixed 2.5" drives
- Storage space and versatility with a small-form factor chassis
- Brushed-aluminum front door with lock
- Supports graphics card up to 11"
- Includes three 120mm fans with filtered intake vents
UPC: 844761011048 In the Box SilverStone SST-DS380B SFF Mini-Tower Case Screw Kit VGA Support Bracket Key Cable Tie Limited 1-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone SST-DS380B SFF Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone DS380B Specs | | | Motherboard Support | Mini-ITX, Mini-DTX | | External Drive Bays | 8 x 3.5" | | Internal Drive Bays | 8 x 2.5"
4 x 2.5" | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 11" / 27.9 cm | | CPU Cooler Height | 2.2" / 5.7 cm | | Supported PSU Size | SFX | | | | Fans Included (Rear) | 1 x 120 mm (1200 rpm) | | Fans Included (Side) | 2 x 120 mm (1200 rpm) | | Noise Level | 22 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 8.3 x 11.2 x 14.2" / 211.0 x 285.0 x 361.0 mm | | | | Package Weight | 16.7 lb | | Box Dimensions (LxWxH) | 18.8 x 16.3 x 12.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
