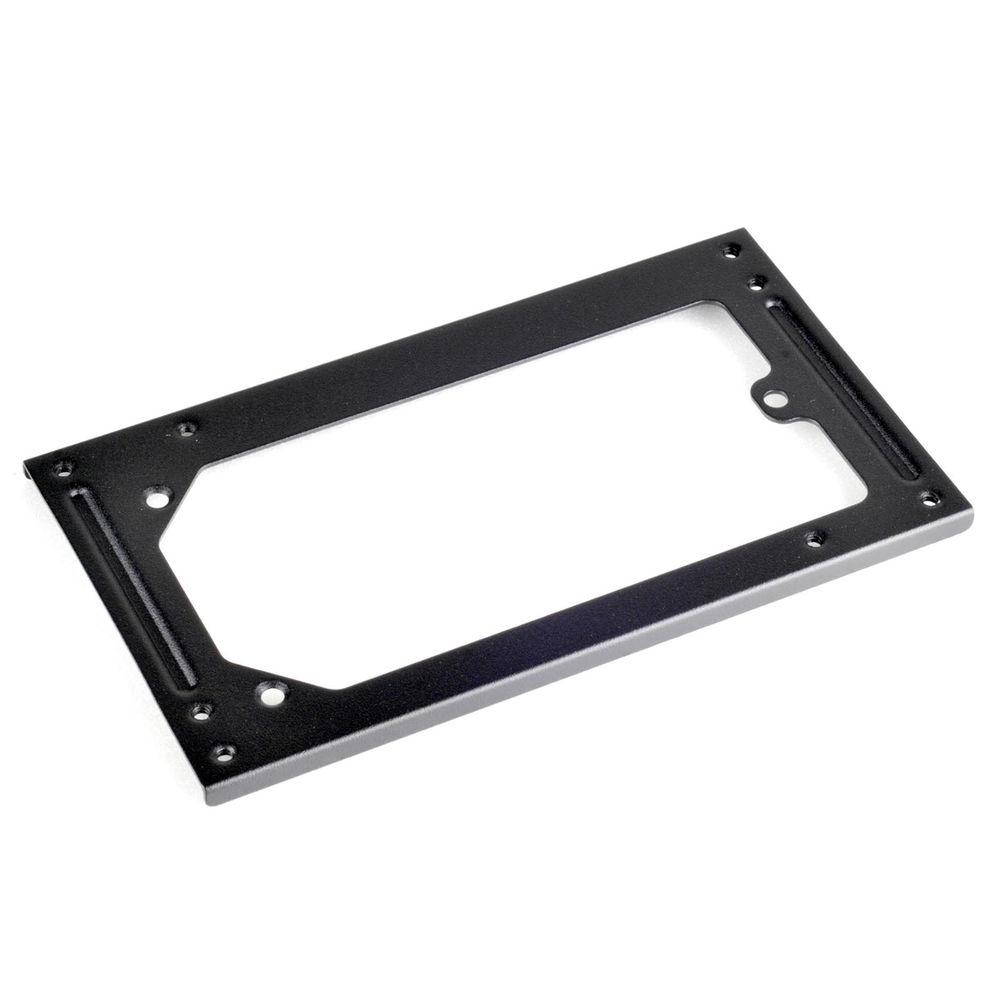

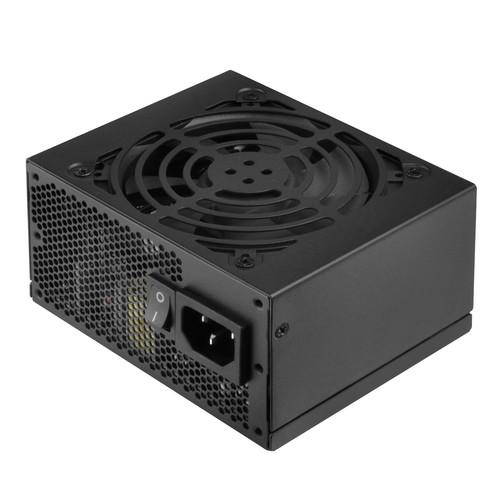

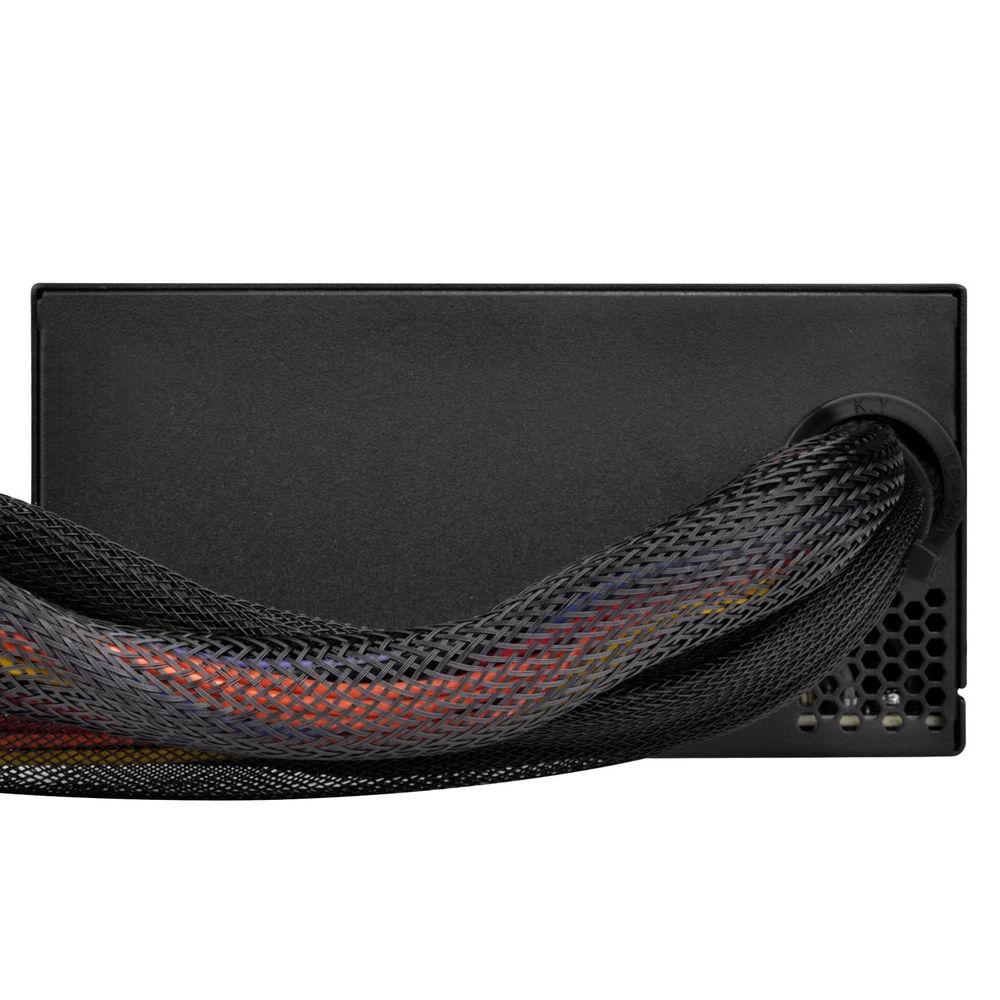

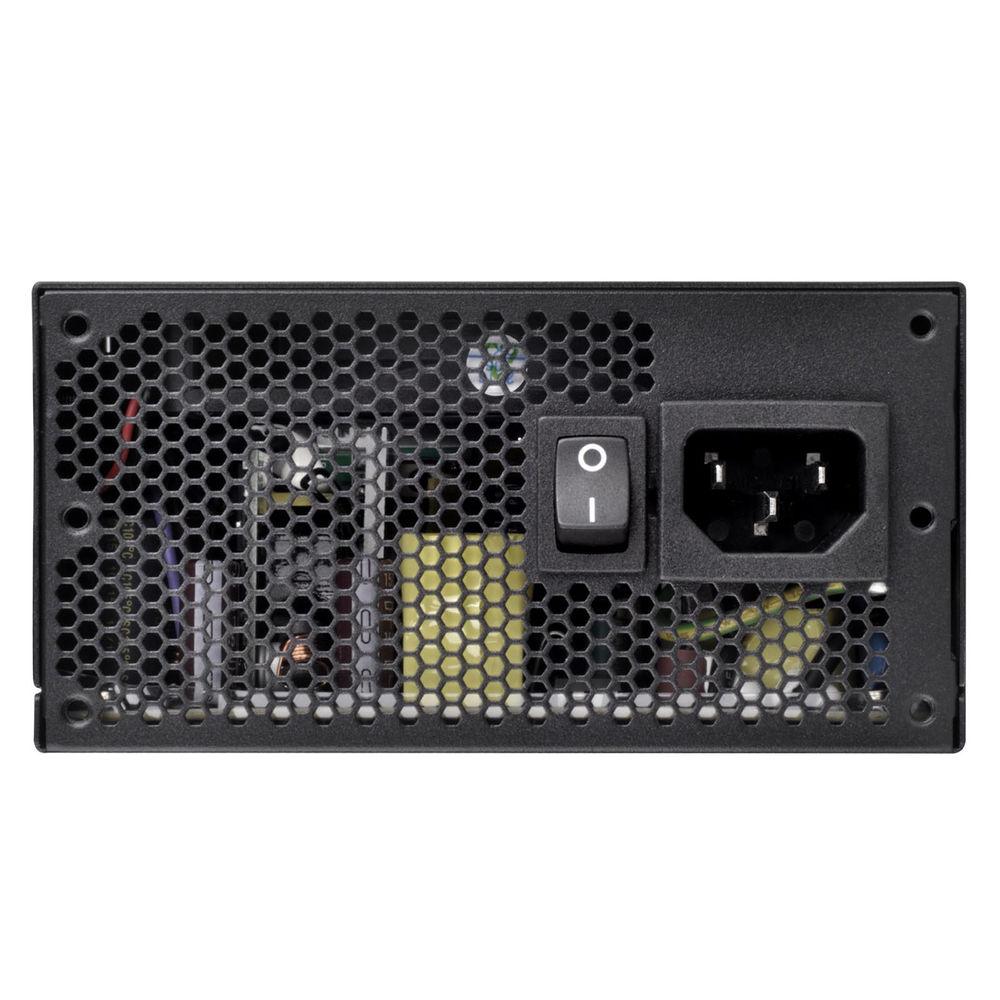

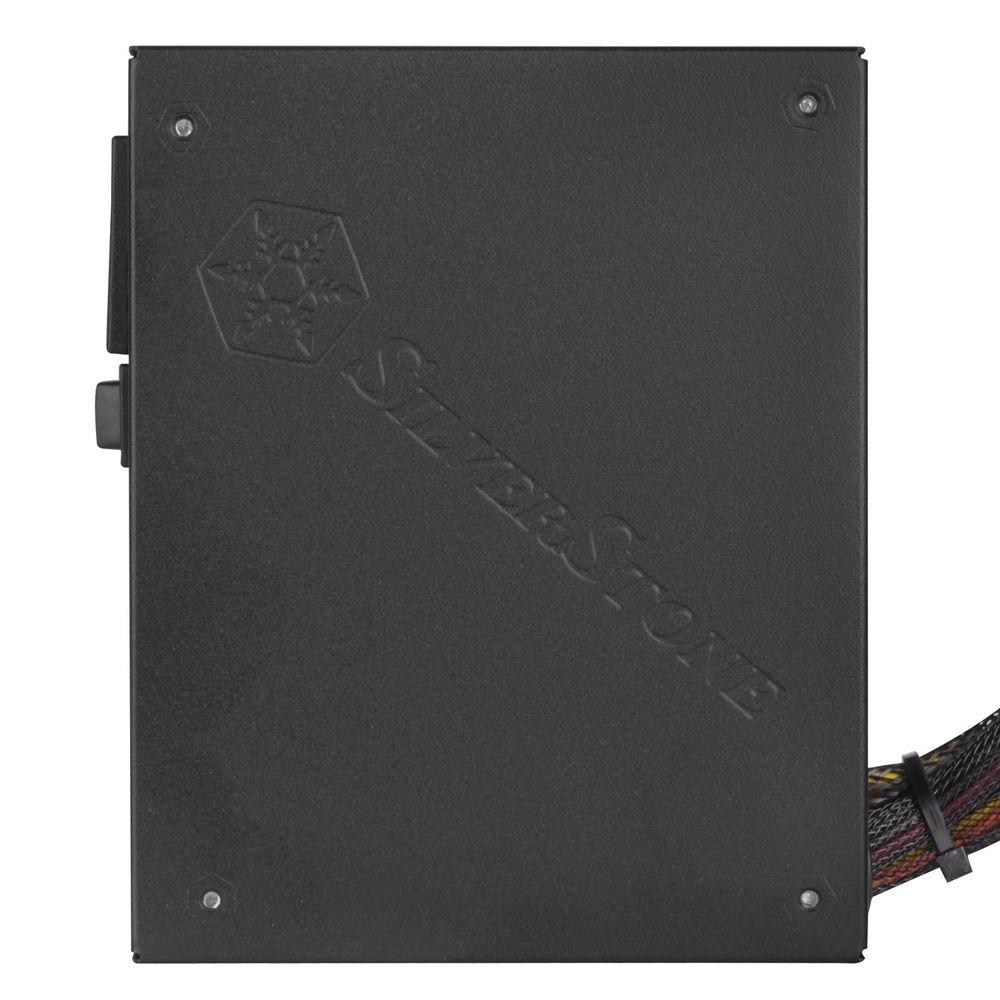

Product description This ST30SF v2 300W 80 Plus Bronze SFX Power Supply from SilverStone is a compact power supply with an SFX form factor designed for smaller systems such as HTPCs. It's able to provide up to 300W of continuous power with its single +12V rail and is cooled by a 92mm fan. Since all of the cables are fixed on this unit, cable management will be a bit tricky; however, due to the limited amount of cables, it shouldn't be a big issue. Moreover, an SFX-to-ATX bracket is included should you decide to use this unit in an ATX case. - Supports the standard SFX form factor and the ATX form factor via an included bracket
- 300W continuous power output at 40℃ operating temperature rated for 24/7 operation
- 80 Plus Bronze level efficiency (82~85% efficiency at 20 to 100% loading)
- Single +12V rail with 25A

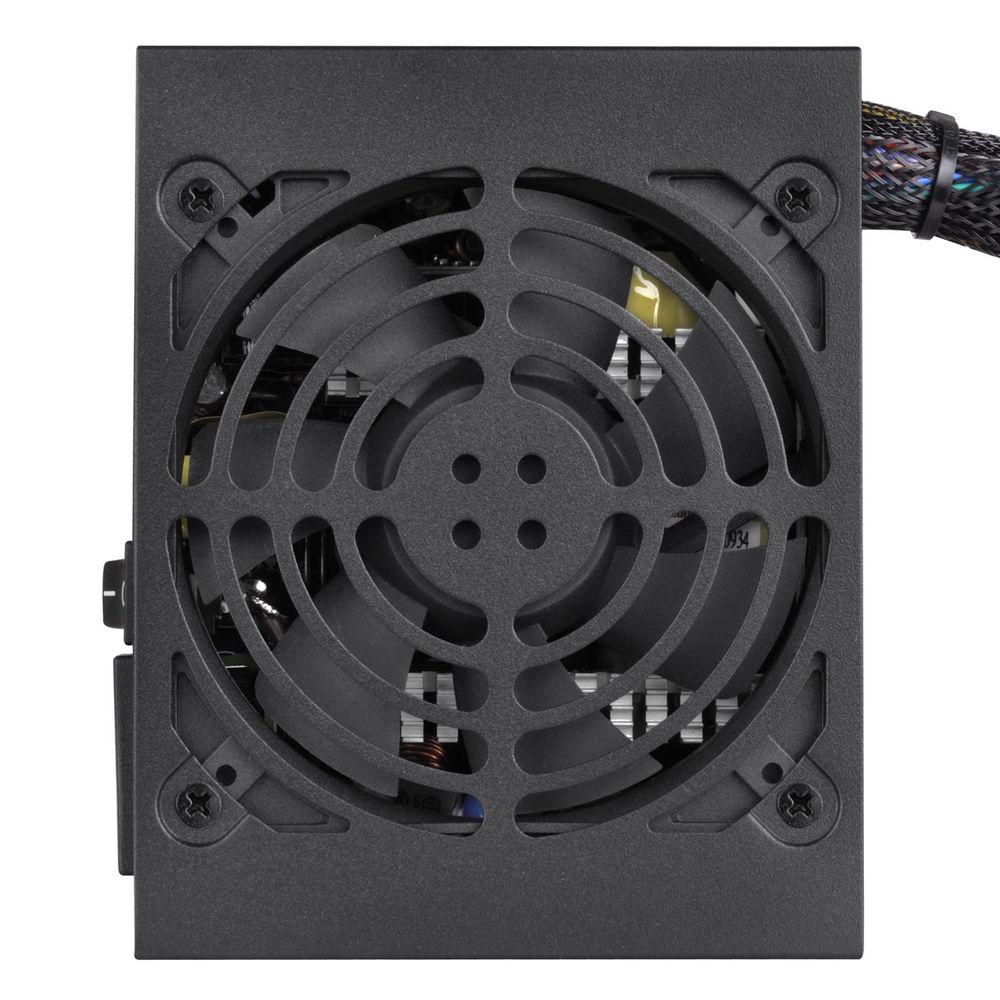

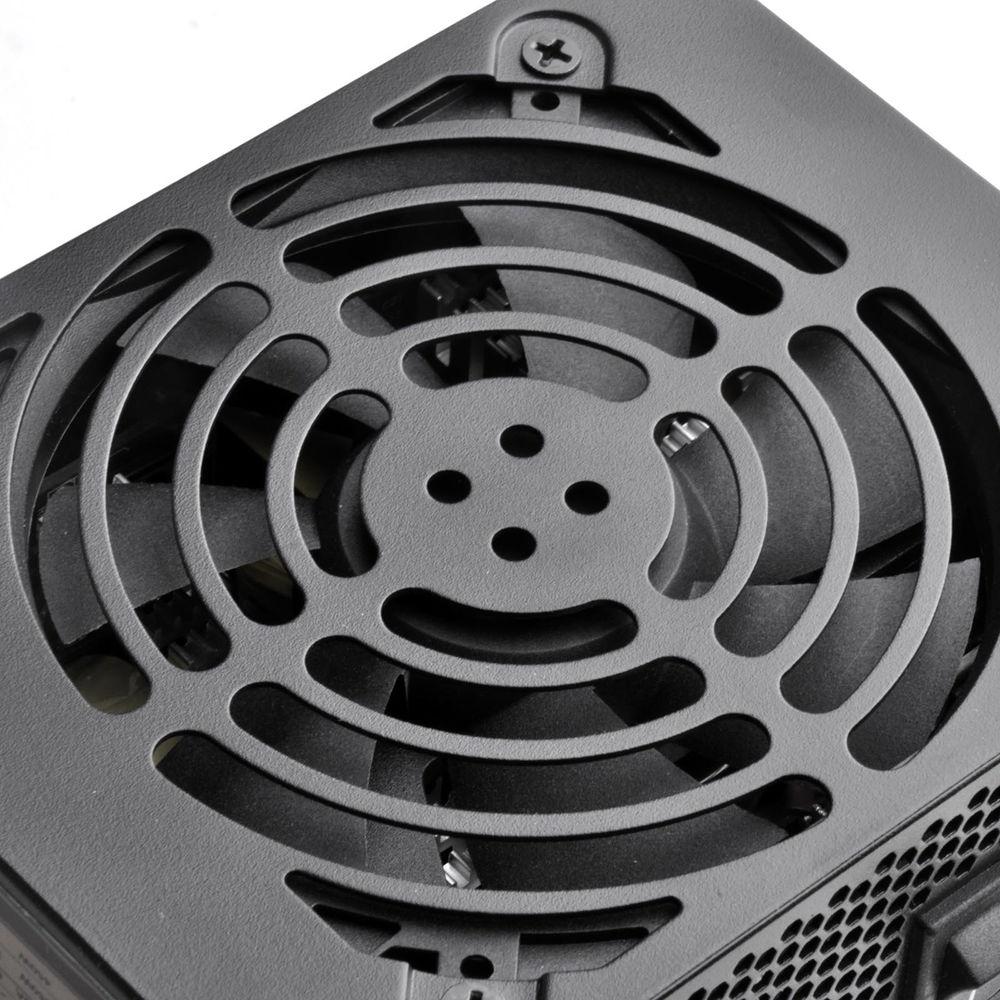

- 92mm fan with 18 dBA minimum noise level
- Single PCIe 6-pin connector support
UPC: 844761014308 In the Box SilverStone ST30SF v2 300W 80 Plus Bronze SFX Power Supply 24/20-Pin Motherboard Connector 8/4-Pin EPS / ATX 12V Connector 6-Pin PCIe Connector 3 x SATA Connector 2 x 4-Pin Peripheral Connector 4-Pin Floppy Connector SFX to ATX Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone ST30SF v2 300W 80 Plus Bronze SFX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

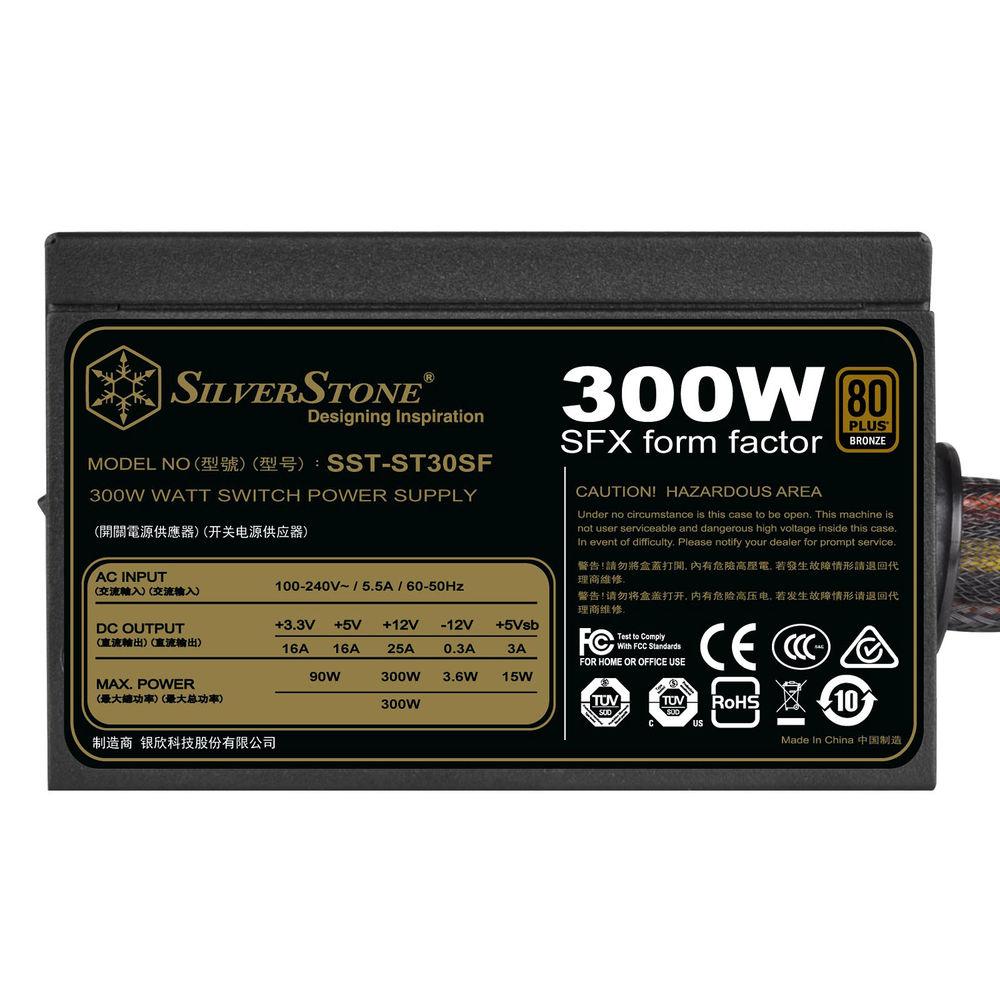

Technical parametersSilverStone ST30SF-V2 Specs | Total Connectors | 1 x 20+4-Pin Motherboard 1 x 4+4-Pin EPS 1 x 6-Pin PCIe 3 x 15-Pin SATA 2 x 4-Pin Peripheral / Molex 1 x 4-Pin Floppy | PCIe Connector Distances | 15.7" / 400 mm | SATA Connector Distances | 11.8" / 300 mm 19.7" / 500 mm 23.6" / 600 mm | Peripheral Connector Distances | 11.8" / 300 mm 19.7" / 500 mm | Floppy Connector Distances | 11.8" / 300 mm 19.7" / 500 mm 27.6" / 700 mm | ATX Connector Distance | 11.8" / 300 mm | EPS Connector Distances | 15.7" / 400 mm | | Total Wattage | 300 W | Combined Power for +12 V | 300 W | Max Load for +12 V | 0.3 to 25 A | Combined Power for +3.3/+5 V | 90 W | Max Load for +3.3 V | 16 A | Max Load for +5 V | 16 A | Max Load for +5 Vsb | 3 A | Max Load for -12 V | 0.3 A | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | Voltage Regulation | +3.3 V:
