SilverStone ST45SF V3 450W 80 Plus

Search your instruction manual in PDF to download

User Manual for SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply

Click to enlarge the picture
SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply Contents of the user manual for the SilverStone ST45SF V3 450W 80 Plus
  • Product category: Power Supplies SilverStone
  • Brand: SilverStone
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SilverStone Power Supplies

SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply
User manual for the SilverStone ST45SF V3 450W 80 Plus contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SilverStone product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!



Product description

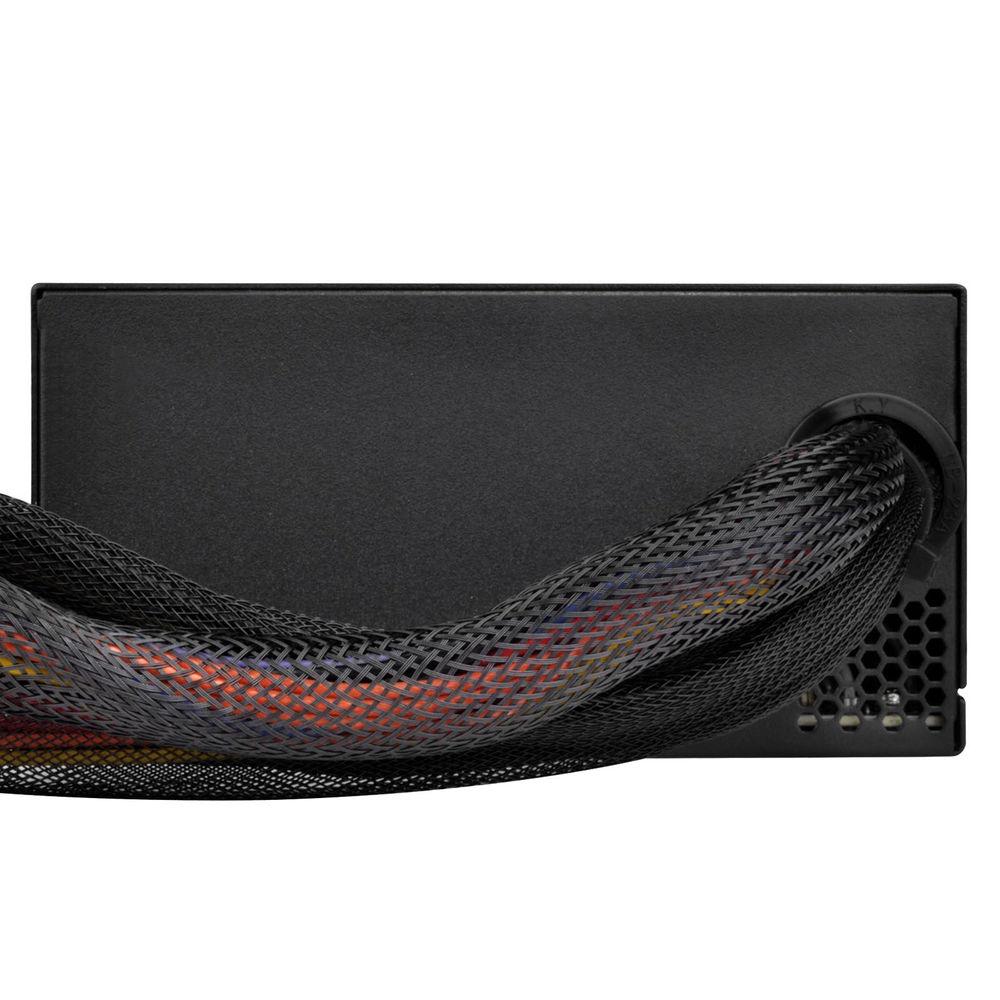

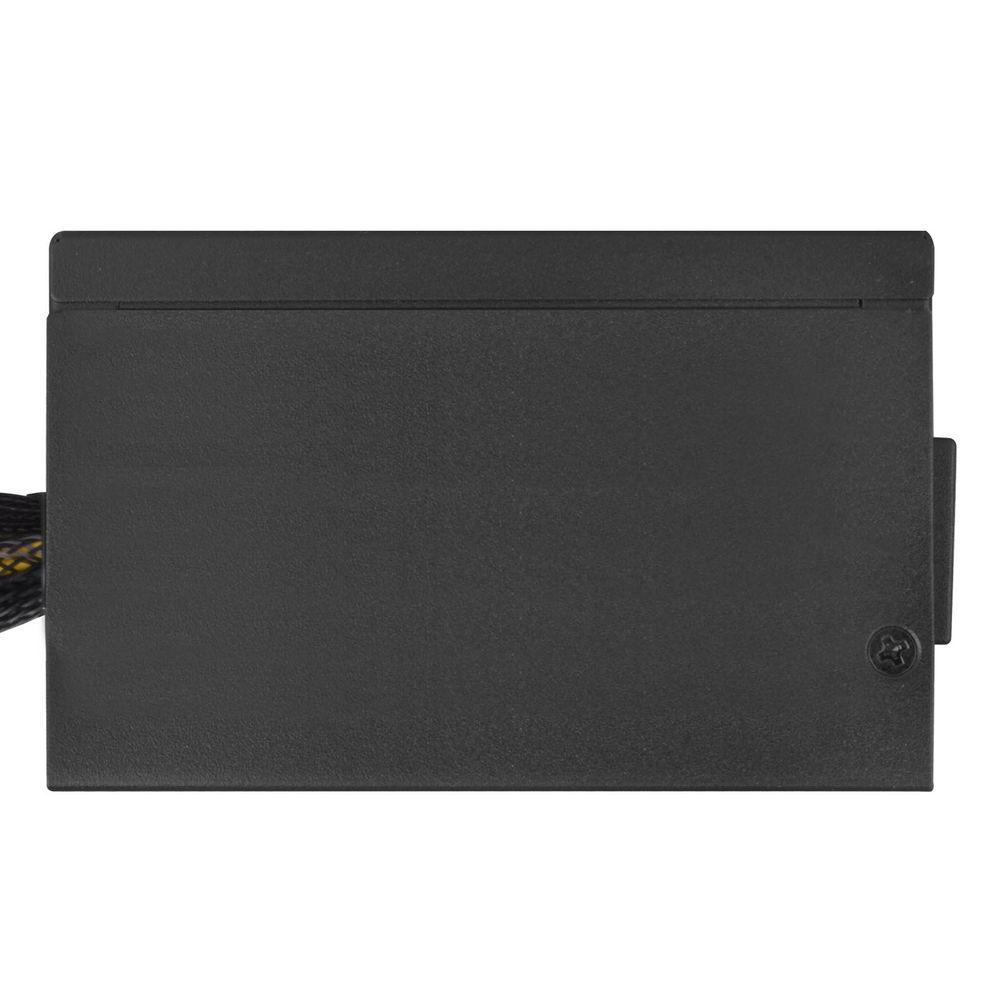

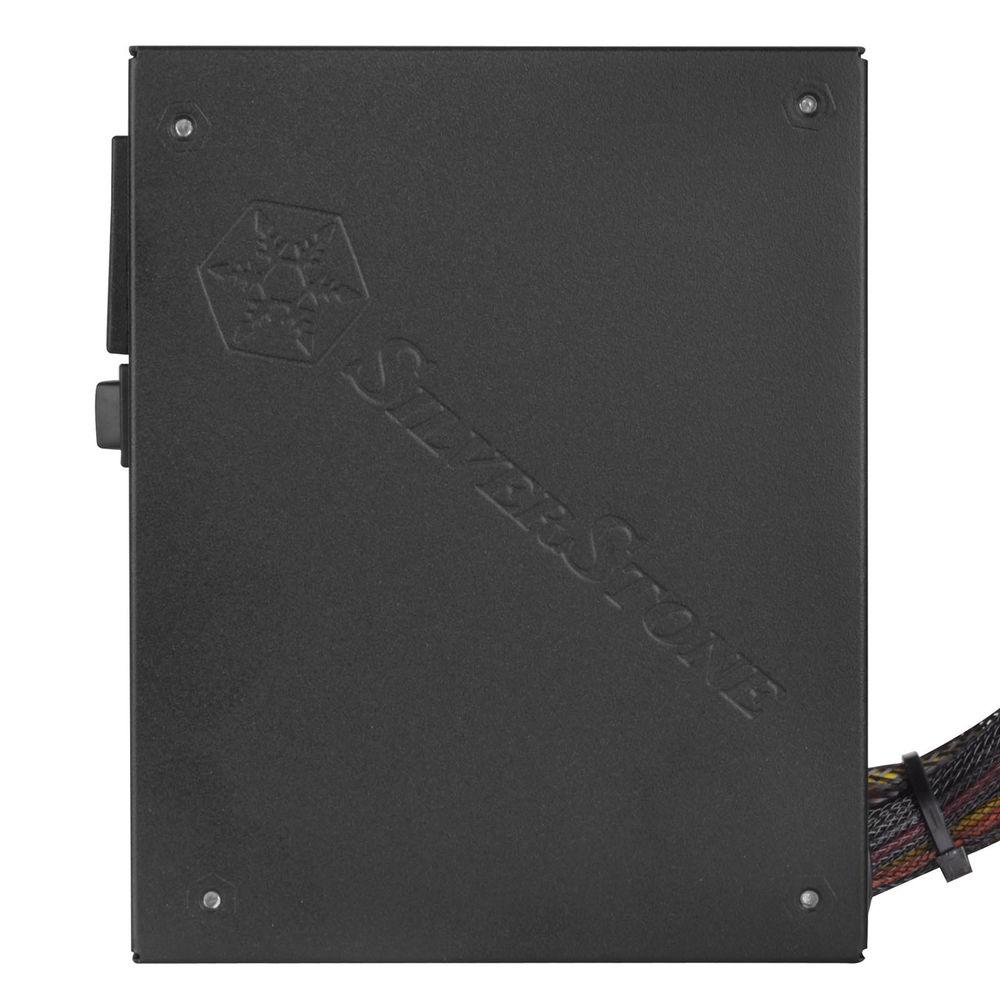

This ST45SF V3 450W 80 Plus Bronze SFX Power Supply from SilverStone is a compact power supply with an SFX form factor designed for smaller systems such as HTPCs. It's able to provide up to 450W of continuous power with its single +12V rail and is cooled by a 92mm fan. Since all of the cables are fixed on this unit, cable management will be a bit tricky; however, due to the limited amount of cables, it shouldn't be a big issue. Moreover, an SFX-to-ATX bracket is included should you decide to use this unit in an ATX case.
  • Supports the standard SFX form factor and the ATX form factor via an included bracket
  • 450W continuous power output at 40℃ operating temperature rated for 24/7 operation
  • 80 Plus Bronze level efficiency (82~85% efficiency at 20 to 100% loading)
  • Single +12V rail with 37.5A

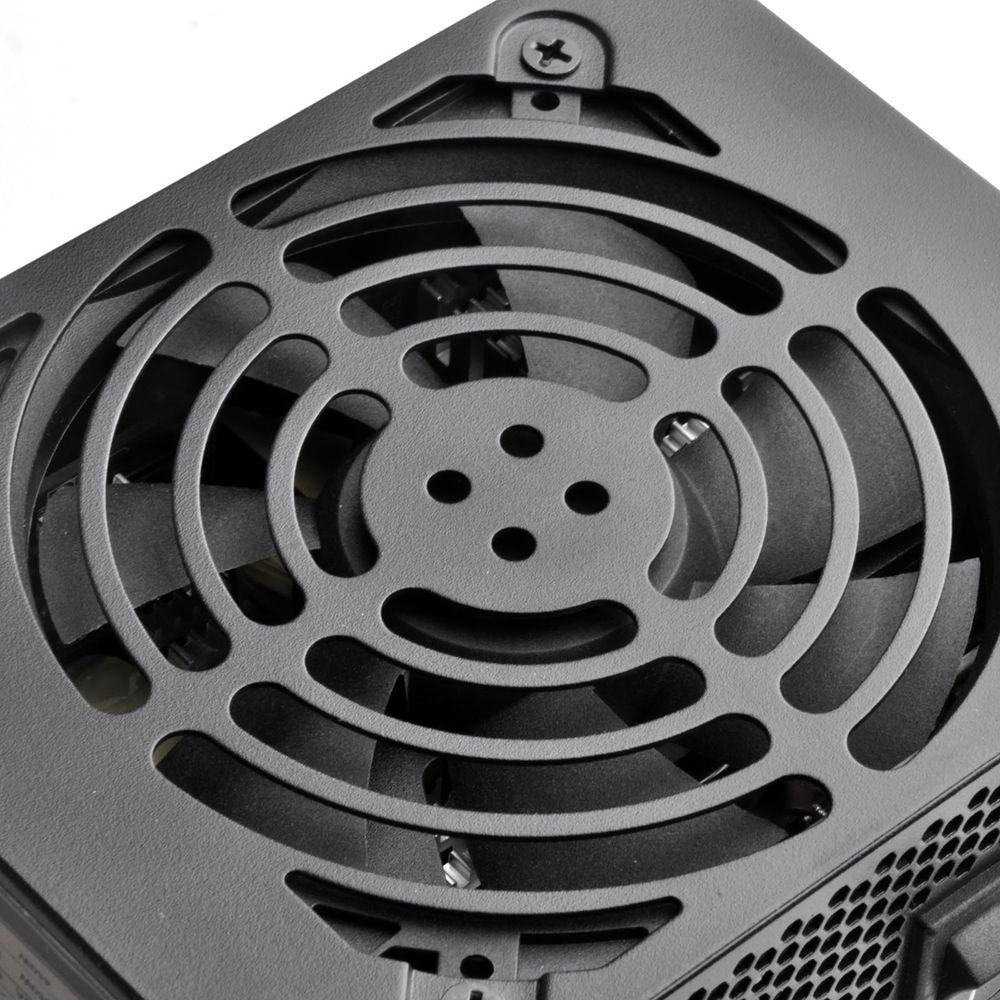

  • 92mm fan with 18 dBA minimum noise level
  • Single PCIe 8-pin and dual 6-pin connector support
  • Active PFC
UPC: 844761014292 In the Box SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply
  • 24/20-Pin Motherboard Connector
  • 8/4-Pin EPS / ATX 12V Connector
  • 8/6-Pin PCIe Connector
  • 6-Pin PCIe Connector
  • 3 x SATA Connector
  • 2 x 4-Pin Peripheral Connector
  • 4-Pin Floppy Connector

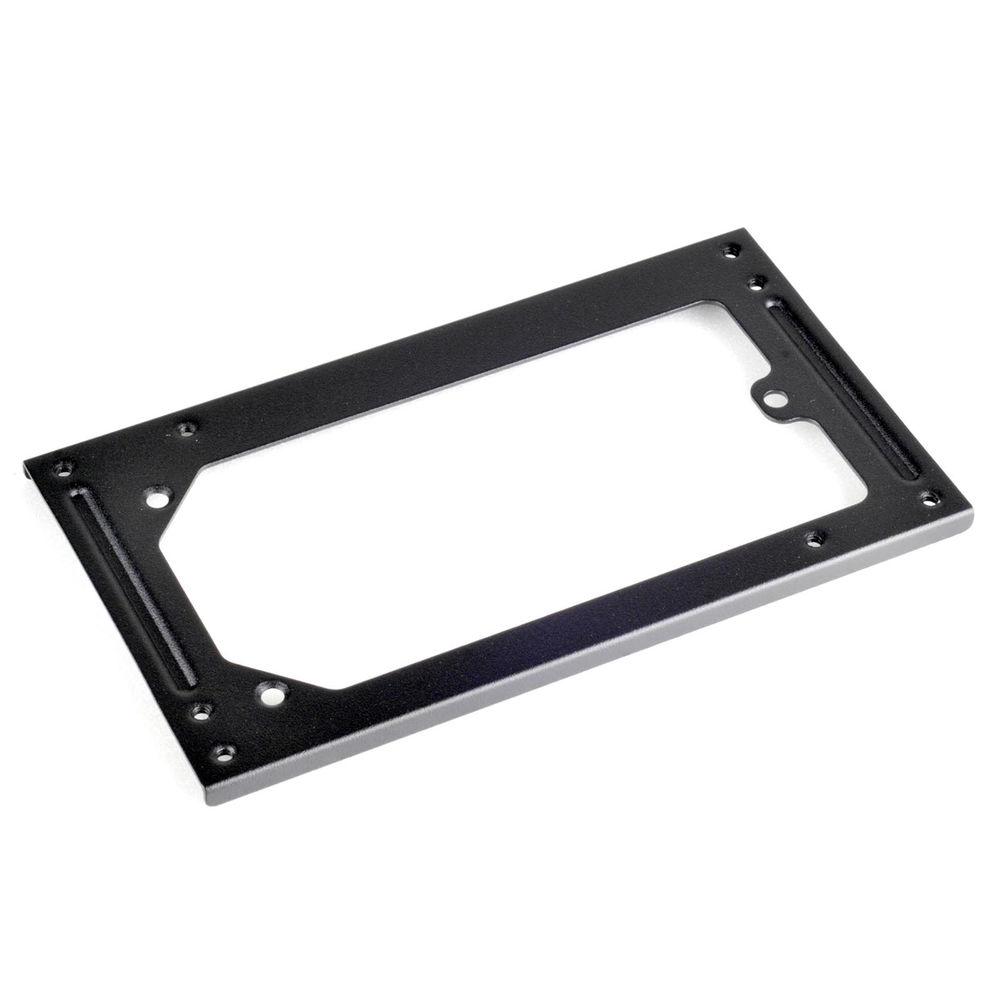

  • SFX to ATX Mounting Bracket
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the SilverStone ST45SF V3 450W 80 Plus Bronze SFX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    SilverStone ST45SF-V3 Specs

    Total Connectors 1 x 20+4-Pin Motherboard
    1 x 4+4-Pin EPS
    1 x 6+2-Pin PCIe
    1 x 6-Pin PCIe
    3 x 15-Pin SATA
    2 x 4-Pin Peripheral / Molex
    1 x 4-Pin Floppy
    PCIe Connector Distances 15.7" / 400 mm
    21.7" / 550 mm
    SATA Connector Distances 11.8" / 300 mm
    19.7" / 500 mm
    23.6" / 600 mm
    Peripheral Connector Distances 11.8" / 300 mm
    19.7" / 500 mm
    Floppy Connector Distances 11.8" / 300 mm
    19.7" / 500 mm
    27.6" / 700 mm
    ATX Connector Distance 11.8" / 300 mm
    EPS Connector Distances 15.7" / 400 mm

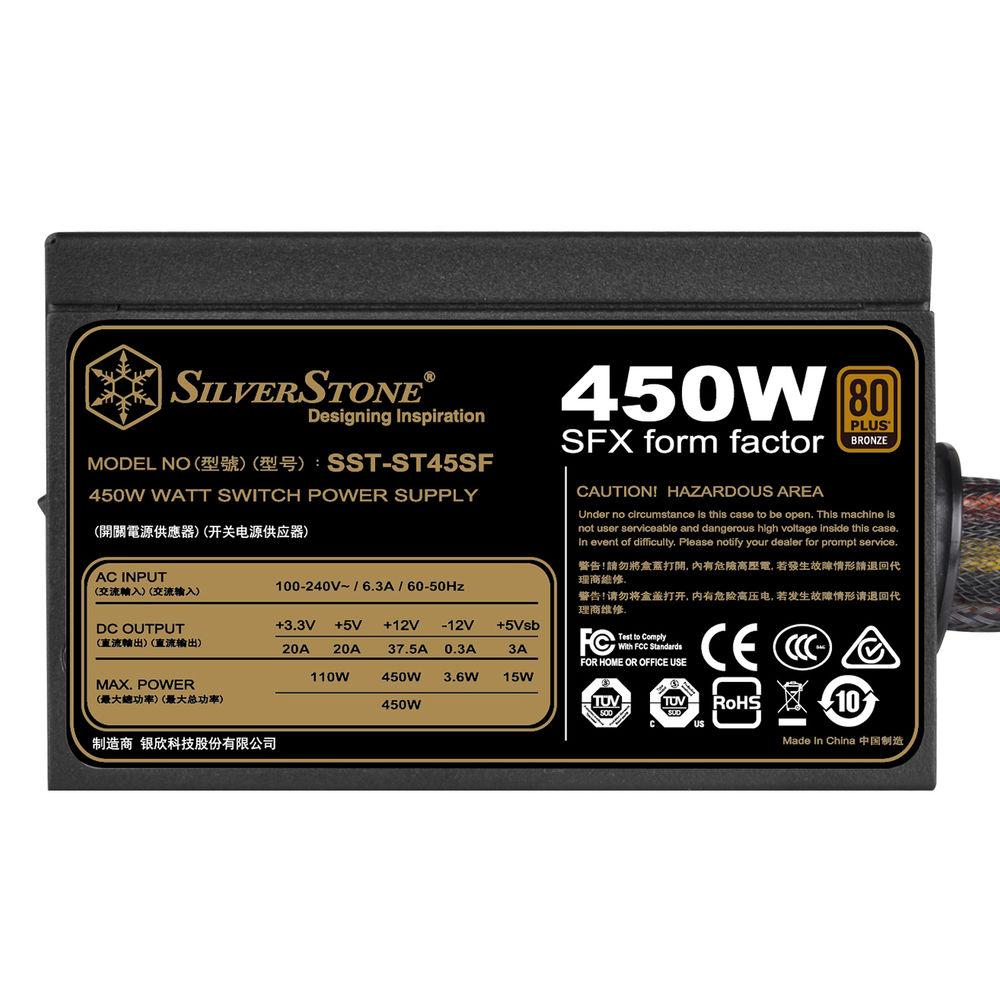

    Total Wattage 450 W
    Combined Power for +12 V 450 W
    Max Load for +12 V 0.3 to 37.5 A
    Combined Power for +3.3/+5 V 110 W
    Max Load for +3.3 V 20 A
    Max Load for +5 V 20 A
    Max Load for +5 Vsb 3 A
    Max Load for -12 V 0.3 A

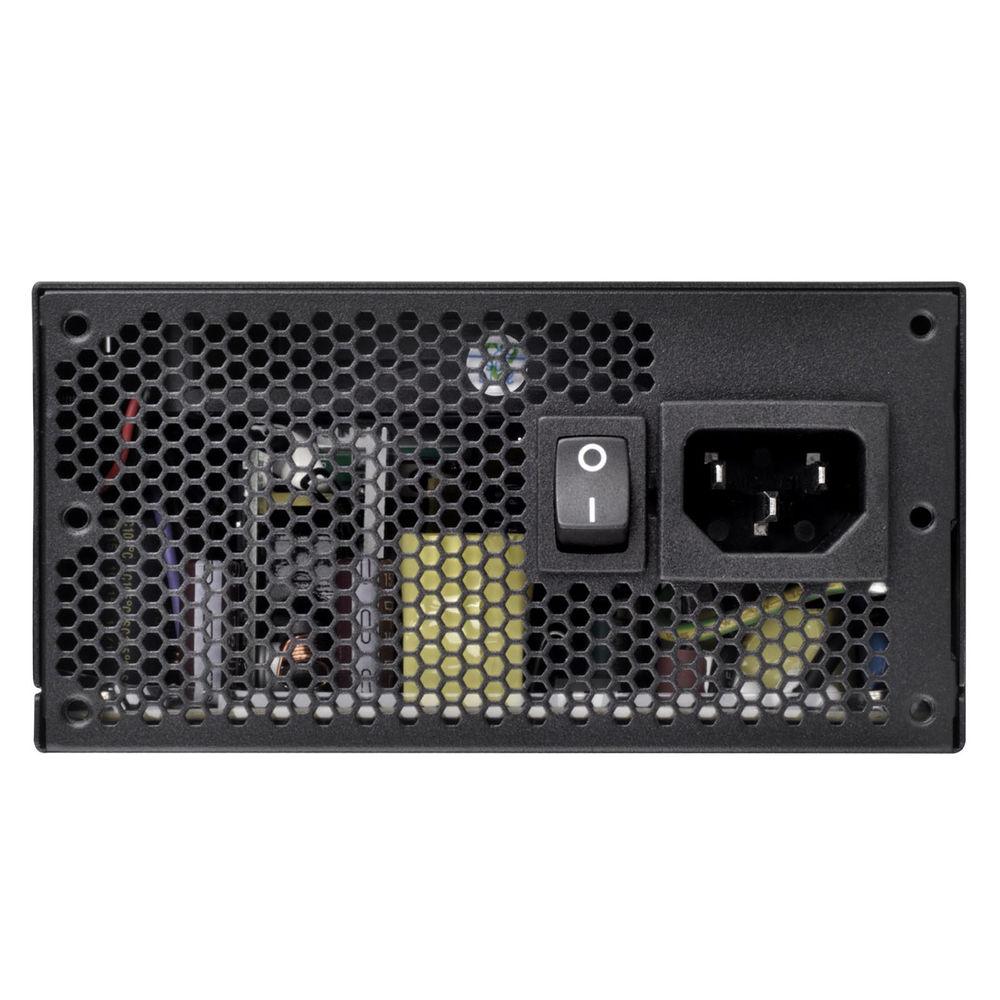

    AC Input Power 90 to 264 VAC, 50 / 60 Hz
    Voltage Regulation +3.3 V:
