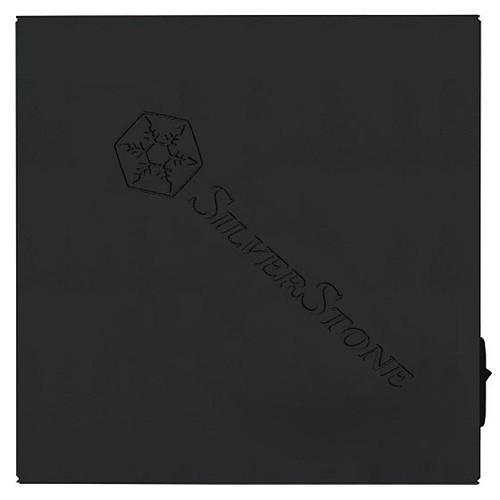

User Manual for SilverStone Strider Gold S Series ST85F-GS Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Strider Gold S Series ST85F-GS
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone Strider Gold S Series ST85F-GS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

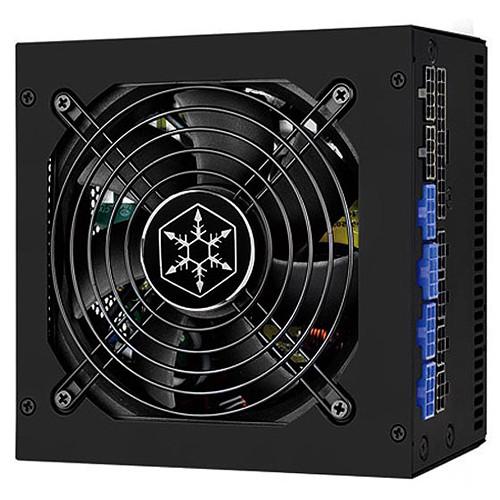

Product description The Strider Gold S Series ST85F-GS Power Supply from SilverStone features an 850W power output (peak 900W) and an 80 PLUS Gold certification with 88~91% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density per liter is 439W and its 120mm fan helps to provide cooling with a noise level of 18 dBA. Other features include a single +12V rail with 70A, a strict ±3% voltage regulation and low ripple & noise, support for the ATX form factor, active PFC, and support for PCIe connectors.
The Strider Series ST85F-GS Power Supply supports select NVIDIA and AMD GPUs, as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of up to 150mm. - Compact design with a depth of 150mm for easy integration
- 80 PLUS Gold certification
- 24/7 continuous power output with 104°F / 40°C operating temperature
- Strict ±3% voltage regulation and low ripple & noise

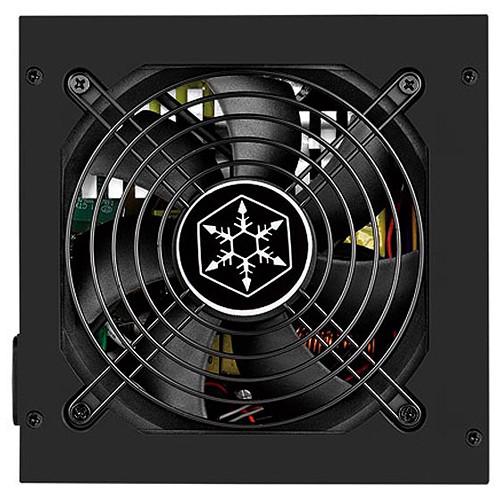

- Silent running 120mm fan with 18 dBA minimum noise level
GPU Support - NVIDIA
- GTX980
GTXTITANZ
GTXTITAN
GTX780
GTX690
GTX660 - AMD
- R9 290X
R9 290
HD7990
HD7970 UPC: 844761010515 In the Box SilverStone Strider Gold S Series ST85F-GS Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Gold S Series ST85F-GS Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

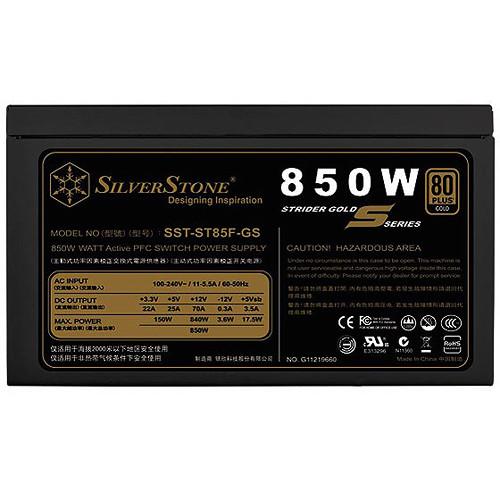

Technical parametersSilverStone ST85F-GS Specs | Model Number | SST-ST85F-GS | | Max. DC Output | 850 W (Peak 900 W) | | Power Device | 439 W per liter | | Load Range | +3.3 V
Max Amps: 22 A
Min Amps: 0.5 A
Range: ±3%
Line Reg. ±1%
Ripple (mVp-p): 50 mV
+5 V
Max Amps: 25 A
Min Amps: 0.3 A
Range: ±3%
Line Reg. ±1%
Ripple (mVp-p): 50 mV
+12 V
Max Amps: 70 A
Min Amps: 1 A
Range: ±3%
Line Reg. ±1%
Ripple (mVp-p): 120 mV
+5 VSB
Max Amps: 3.5 A
Min Amps: 0.1 A
Range: ±5%
Line Reg. ±1%
Ripple (mVp-p): 50 mV
-12 V
Max Amps: 0.3 A
Min Amps: 0 A
Range: ±10%
Line Reg. ±1%
Ripple (mVp-p): 120 mV | | Color | Black (lead-free paint) | | Combined +3.3, +5 V | 150 W | | Combined +12 V | 840 W | | Input Voltage | 90 ~ 264 V | | Input Frequency Range | 47 ~ 63 Hz | | PFC (Power Factor Correction) | Active PFC (PF > 0.95 at Full Load) | | Efficiency | 88 ~ 91% at 20 ~ 100% loading | | MTBF | 100,000 hours | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Protection | Over Current protection
Over Power protection
Over Voltage protection
Over Temperature Protection
Under Voltage protection

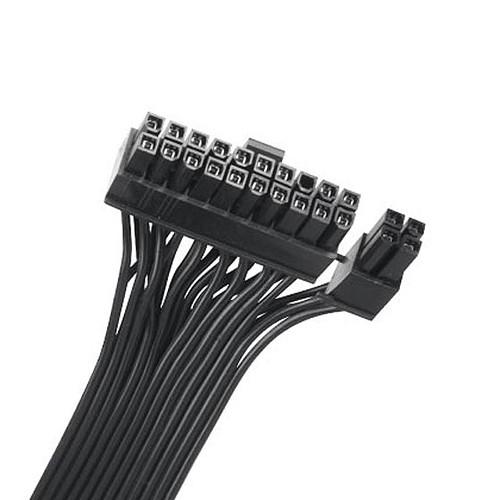

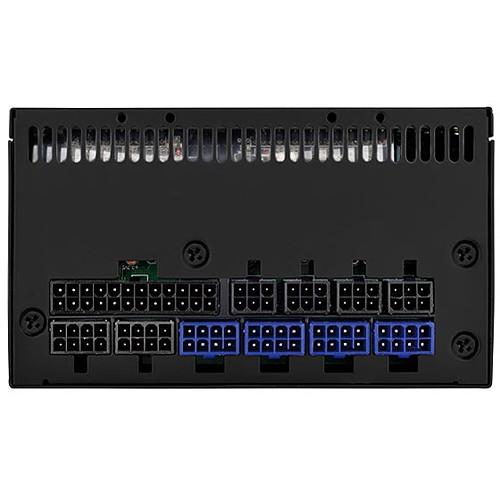

Short Circuit protection | | Connectors | 1 x 24/20-pin motherboard connector (550 mm)

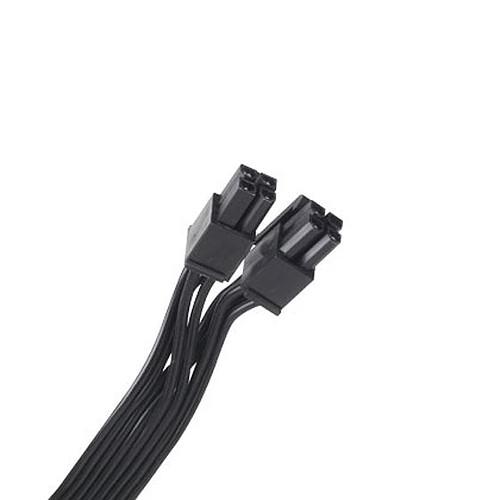

1 x 8/4-pin EPS / ATX 12 V connector (750 mm)
1 x 8/4-pin EPS / ATX 12 V connector (550 mm)

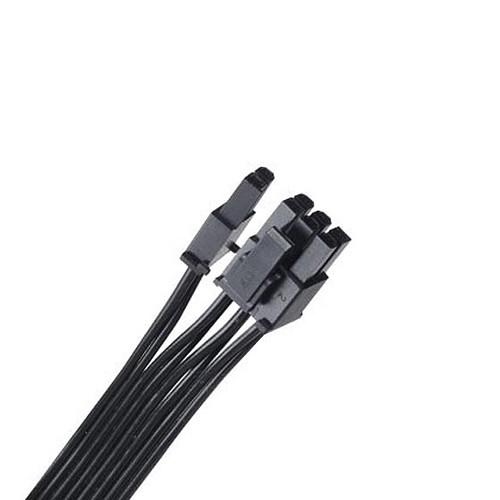

4 x 8/6-pin PCIe connectors (550 mm)
8 x SATA connectors (600 / 150 / 150 / 150 mm x 2)
6 x 4-pin Peripheral connectors (600 / 150 / 150 mm x 2)
2 x 4-pin Floppy connectors (600 / 150 / 150 / 150 mm x 2) | | Cooling System | Single 120 mm silent fan | | Noise Level | 18 dBA minimum | | Form Factor | ATX | | Certification | 80 PLUS Gold | | Other | Compatible with ATX12 V v2.4 | | Dimensions | 5.9 x 3.4 x 5.9" / 150.0 x 86.0 x 150.0 mm | | Weight | 5.51 lb / 2.50 kg | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 12.4 x 7.9 x 4.1" |
