User Manual for SilverStone Strider Series 1500W 80 Plus Silver Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Strider Series 1500W 80 Plus
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone Strider Series 1500W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

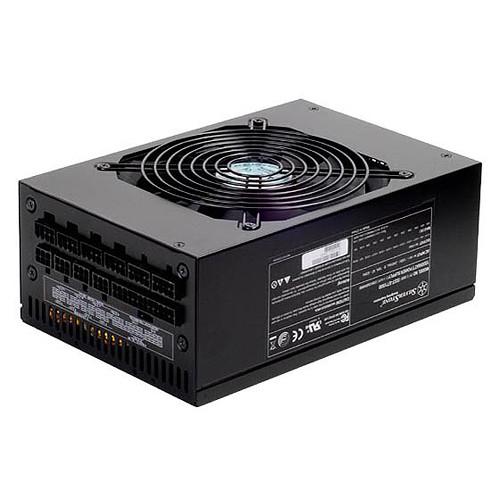

Product description The Strider Series 1500W 80 Plus Silver Modular Power Supply from SilverStone features peak power output of 1600W and an operating temperature of 104°F / 40°C. Its power density per liter is 529W, and its 135mm fan helps to provide cooling and has a noise level of 19 dBA. Other built-in features include 100% modular cables, eight +12V rails with 110A (120A peak), a strict ±3% voltage regulation, Japanese main capacitors, and a number of modular connectors.
The ST1000-P has a noise level of 19-34 dBA. It supports select NVIDIA and AMD GPUs as well as ATX12V 2.3 & 2.4 and EPS12V. This power supply is able to fit into systems with a depth of up to 8.6". It is 85-88% efficient at 20-100% loading. - 1500W continuous and 1600W peak power output with a 104°F / 40°C operating temperature
- 100% modular cables with cable bag
- 85~88% efficiency at 20~100% loading with 80 Plus Silver certification
- Eight +12V rails with 110A (Peak up to 120A)
- Strict ±3% voltage regulation

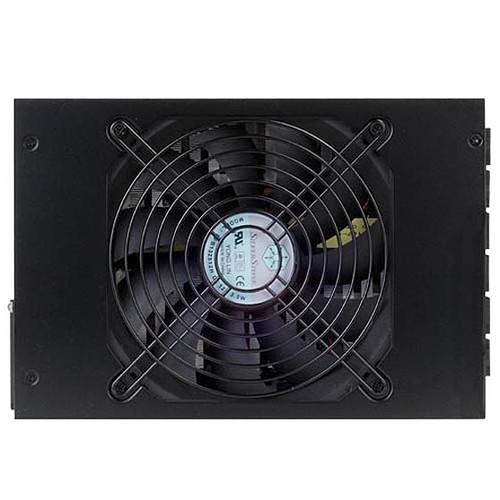

- 135mm fan with 19 dBA minimum

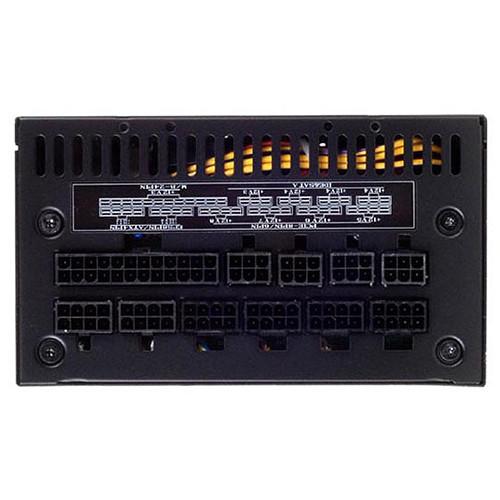

- Support for four PCIe 8- or 6-pin, four PCIe 6-pin, and twelve SATA connectors
- Supports ATX 12 V 2.3 / 2.4 & EPS 12 V
GPU Support - NVIDIA
- GTX980
GTXTITANZ
GTXTITAN
GTX780
GTX690 - AMD
- R9 290X
HD7990

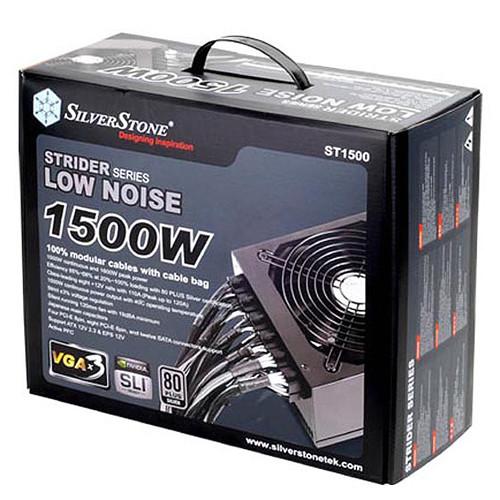

HD7970 UPC: 844761006020 In the Box SilverStone Strider Series 1500W 80 Plus Silver Modular Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Series 1500W 80 Plus Silver Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone ST1500 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 8-Pin EPS
4 x 6+2-Pin PCIe
4 x 6-Pin PCIe
12 x 15-Pin SATA
12 x 4-Pin Peripheral / Molex
4 x 4-Pin Floppy | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 19.7" / 500 mm
29.5" / 750 mm
39.4" / 1000 mm | | Peripheral Connector Distances | 19.7" / 500 mm
29.5" / 750 mm
39.4" / 1000 mm | | Floppy Connector Distances | 19.7" / 500 mm
29.5" / 750 mm
39.4" / 1000 mm
45.3" / 1150 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 29.5" / 750 mm | | | | Total Wattage | 1500 W | | Number of +12 V Rails | 8 | | Combined Power for +12 V | 1320 W | | Max Load for +12 V | 0.1 to 25 A (Per Rail) | | Combined Power for +3.3/+5 V | 280 W | | Max Load for +3.3 V | 0.8 to 40 A | | Max Load for +5 V | 0.5 to 40 A | | Max Load for +5 Vsb | 6 A | | Max Load for -12 V | 0.5 A | | Peak Power | 1600 W | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
