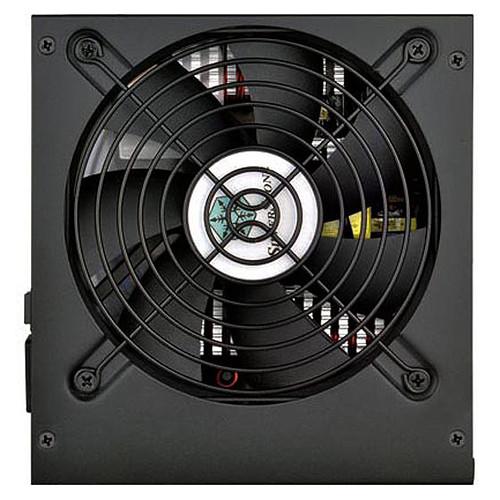

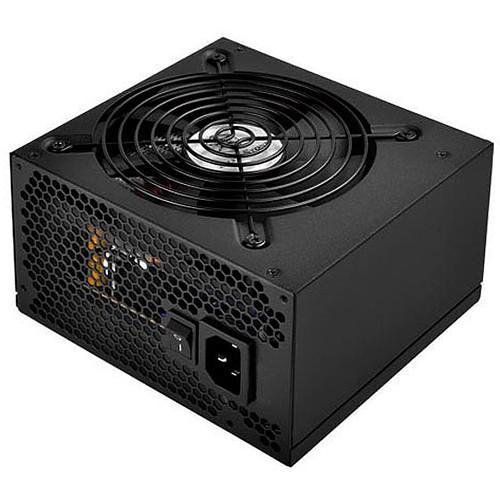

User Manual for SilverStone Strider Series 600W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Strider Series 600W 80 Plus
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone Strider Series 600W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

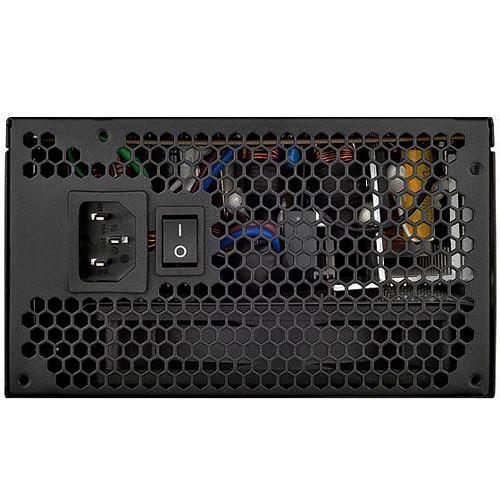

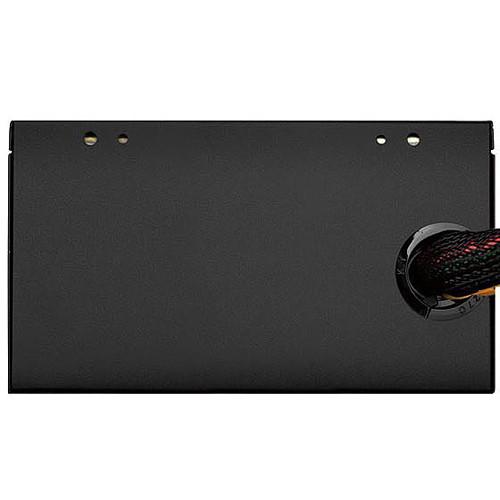

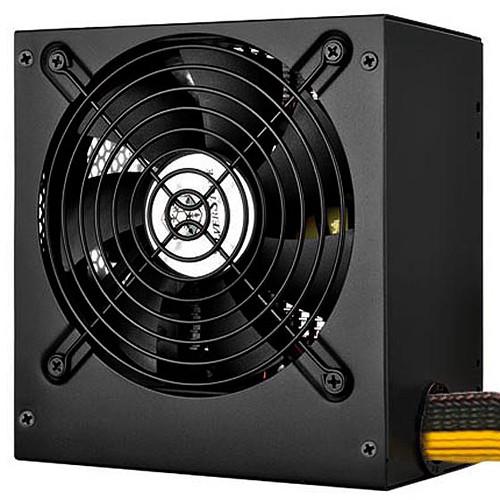

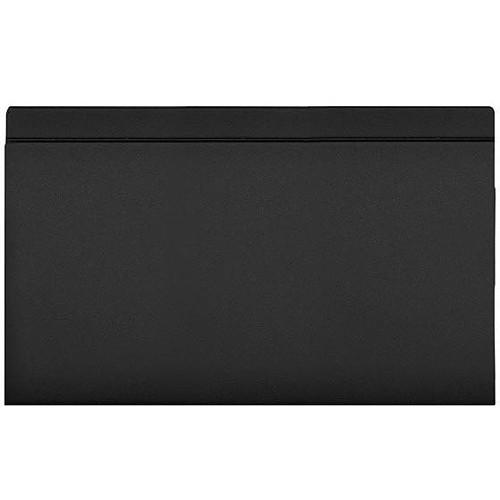

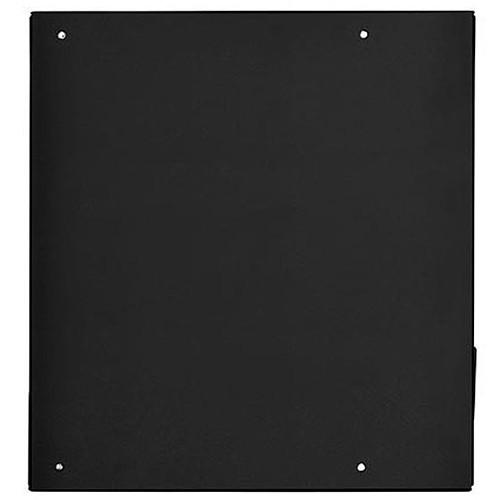

Product description The Strider Series 600W 80 Plus Bronze Power Supply from SilverStone features 82~85% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density per liter is 332W, and its 120mm fan helps to provide cooling with a noise level of 18 dBA. Other features include a single +12V rail with 45A, support for the ATX form factor, active PFC, and support for PCIe 8-pin & PCIe 6-pin connectors.
The ST60F-ESB Power Supply supports select NVIDIA and AMD GPUs as well as ATX12V v2.3 & 2.4. This power supply is able to fit into systems with a depth of up to 5.5". - 80 Plus Bronze certification
- 24/7 continuous power output with 104°F / 40°C operating temperature
- Multiple protection circuitry
- 120mm fan with 18 dBA noise level
- PCIe 8-pin and PCIe 6-pin connection support
GPU Support - NVIDIA
- GTX980
GTXTITAN
GTX780
GTX760
GTX690 - AMD
- R9 290
R9 270X
HD7970
HD7770 UPC: 844761009250 In the Box SilverStone Strider Series 600W 80 Plus Bronze Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Series 600W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

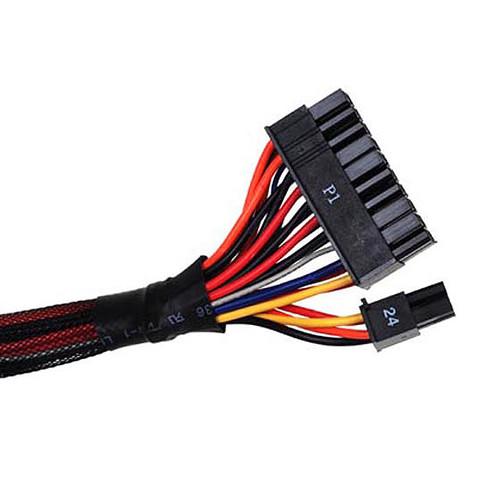

Technical parametersSilverStone ST60F-ESB Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 6+2-Pin PCIe
3 x 6-Pin PCIe
6 x 15-Pin SATA

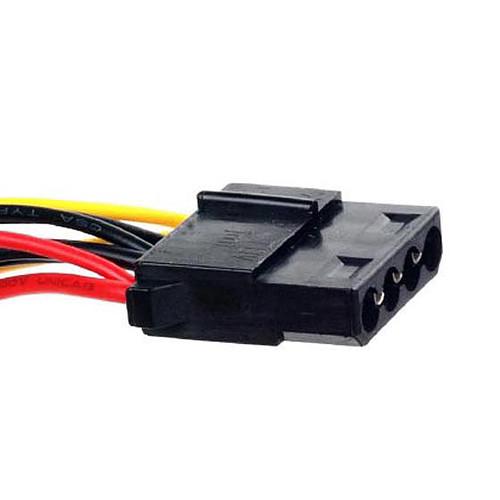

3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 19.7" / 500 mm
25.6" / 650 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm
37.4" / 950 mm | | Peripheral Connector Distances | 23.6" / 600 mm
29.5" / 750 mm
35.4" / 900 mm | | Floppy Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm

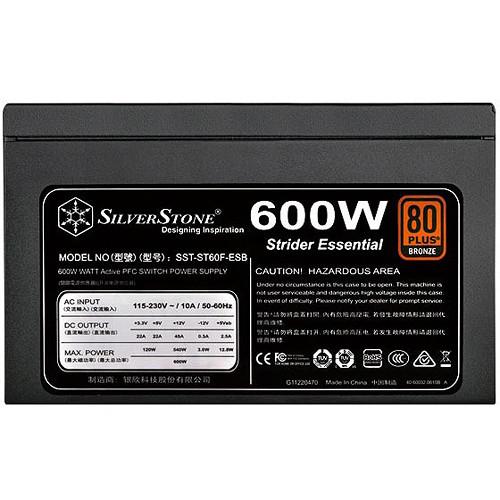

37.4" / 950 mm | | ATX Connector Distance | 19.7" / 500 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 600 W | | Combined Power for +12 V | 540 W | | Max Load for +12 V | 0.6 to 45 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 0.1 to 22 A | | Max Load for +5 V | 0.2 to 22 A | | Max Load for +5 Vsb | 2.5 A | | Max Load for -12 V | 0.3 A | | Voltage Regulation | +3.3 V:
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
