User Manual for SilverStone Strider Series 600W 80 Plus Silver Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Strider Series 600W 80 Plus
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone Strider Series 600W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

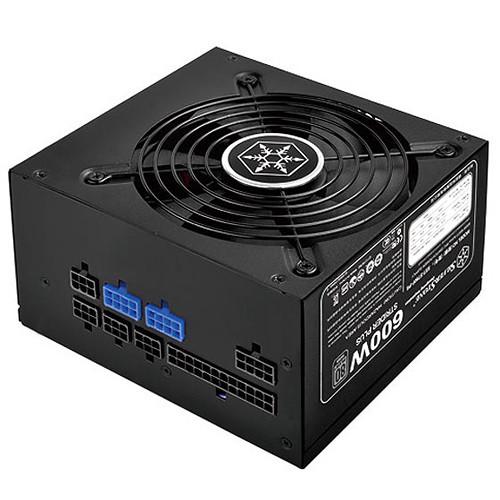

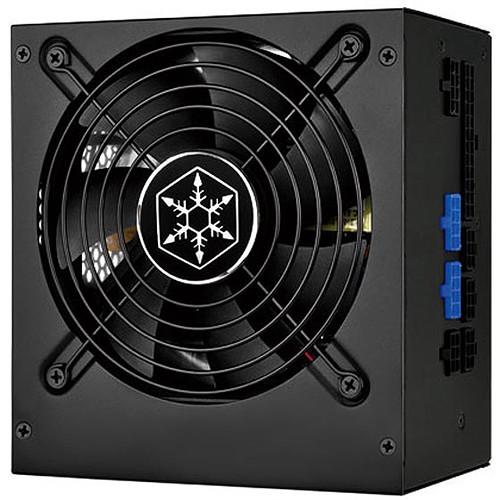

Product description The Strider Series 600W 80 Plus Silver Modular Power Supply from SilverStone features a 24/7 continuous 600W power output with a peak of 700W with an operating temperature of 104°F / 40°C. Though it is 80 Plus Silver certified, it operates with an 80 Plus Gold level of efficiency when running at 230 VAC. Its power density per liter is 332W, and its 120mm fan helps to provide cooling and has a noise level of 18 dBA. Other built-in features include 100% modular cables, a +12V rail with 49A, a strict ±3% voltage regulation with low ripple & noise, and multiple sets of PCIe cables.
This PSU supports select NVIDIA and AMD GPUs as well as ATX12V v2.4. It has an ATX form factor and is able to fit into systems with a depth of up to 5.5". It is 85-88% efficient at 20-100% loading. - Compact design with a depth of 5.5" for easy integration
- 80 Plus Silver certification with 80 Plus Gold level efficiency at 230 VAC
- 600W 24/7 continuous power output with 104°F / 40°C operating temperature
- Single +12V rail with 49A

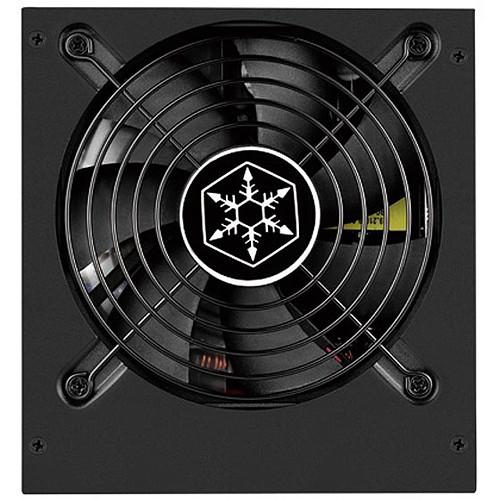

- Silent running 120mm fan with 18 dBA minimum noise level
GPU Support - NVIDIA
- GTX980
GTXTITAN
GTX780
GTX760 - AMD
- R9 290X
R9 270X
HD7990
HD7950 UPC: 844761010751 In the Box SilverStone Strider Series 600W 80 Plus Silver Modular Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Series 600W 80 Plus Silver Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

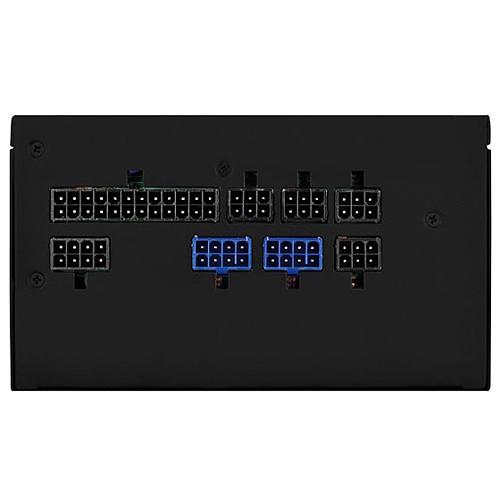

Technical parametersSilverStone ST60F-PS Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
4 x 6-Pin PCIe
8 x 15-Pin SATA

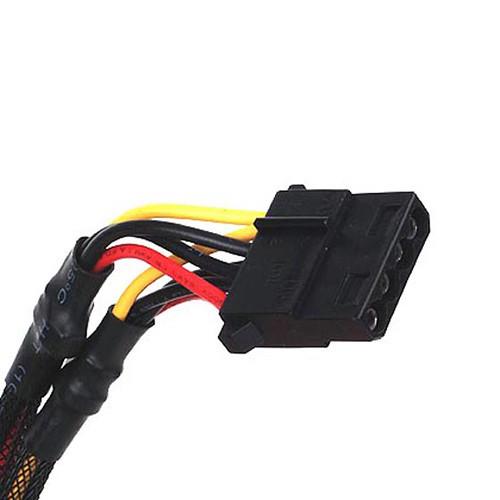

6 x 4-Pin Peripheral / Molex
2 x 4-Pin Floppy | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm
37.4" / 950 mm | | Peripheral Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
32.5" / 800 mm | | Floppy Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm
37.4" / 950 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 600 W | | Combined Power for +12 V | 588 W | | Max Load for +12 V | 49 A | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 0.1 to 20 A | | Max Load for +5 V | 0.2 to 20 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.5 A | | Peak Power | 700 W | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
