User Manual for SilverStone Strider Series 700W 80 Plus Titanium Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Strider Series 700W 80 Plus
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
|
User manual for the SilverStone Strider Series 700W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

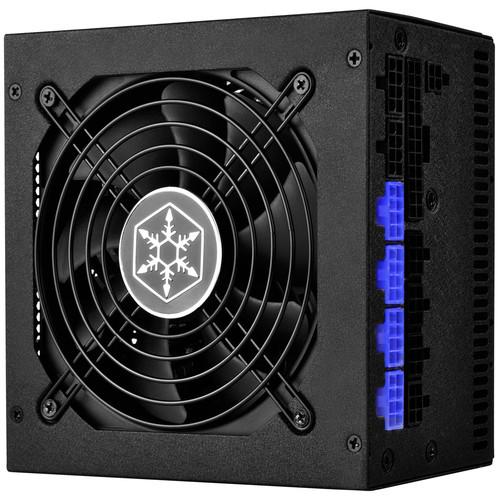

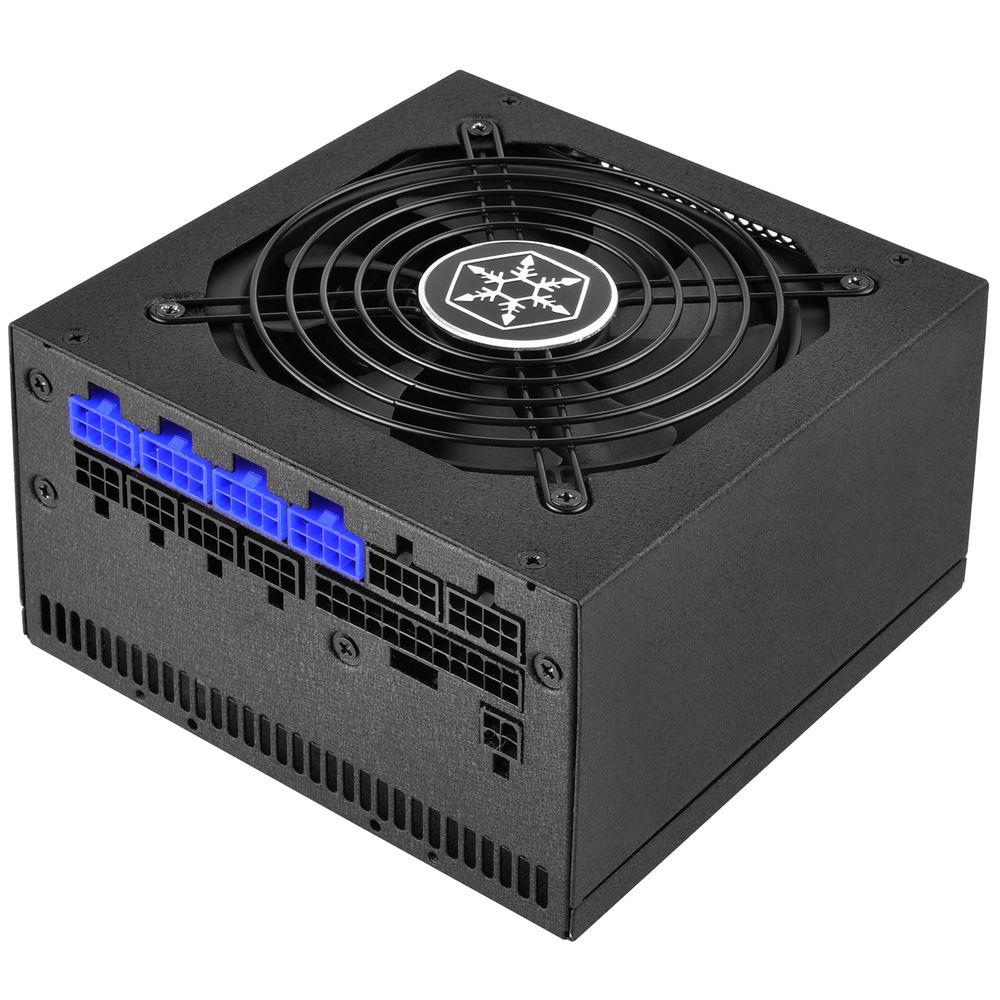

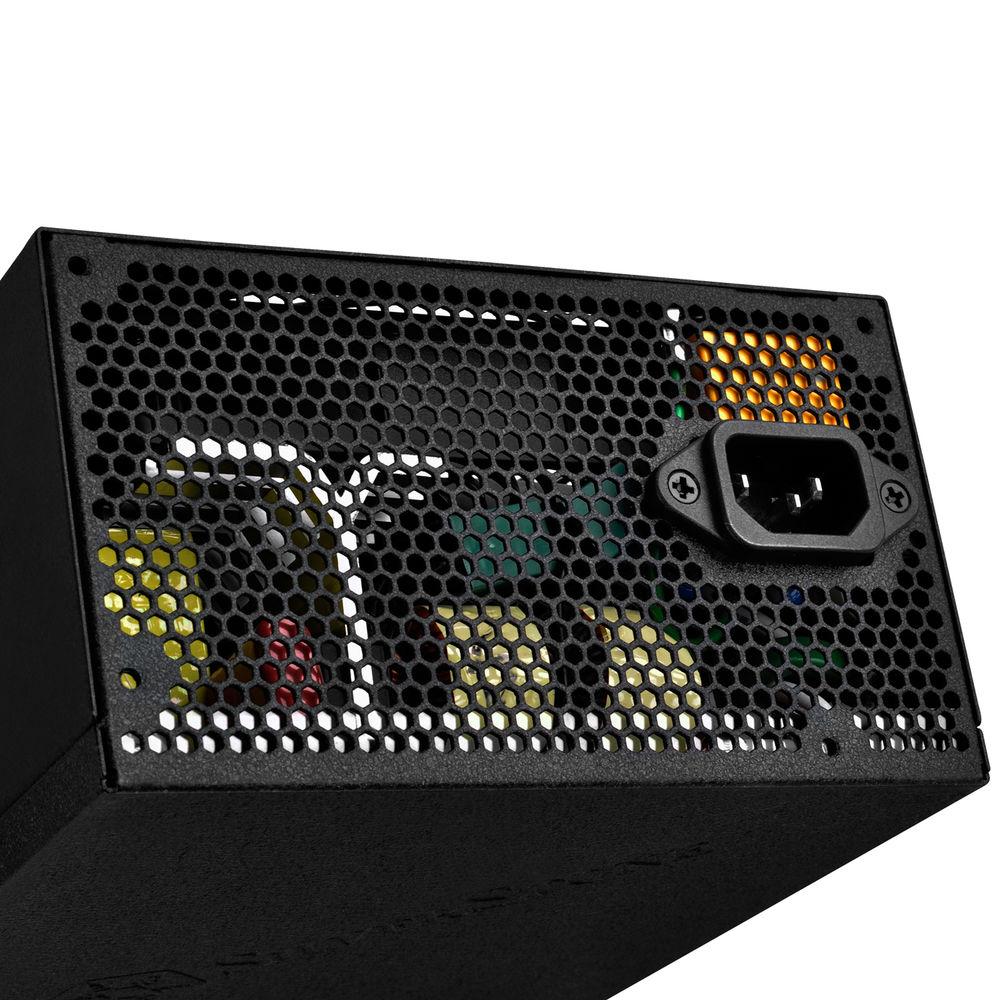

Product description The Strider Series 700W 80 Plus Titanium Modular Power Supply from SilverStone is a powerful and efficient modular ATX power supply designed with a single +12 V rail for stability and compatibility among current generation hardware. It's built with multiple heavy-duty protection features and the modular design allows you to connect only the cables you need. The power supply comes with plenty of cables for multi-GPU setups and peripherals. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 120mm fan operates silently and provides additional heat dissipation. - Designed for 80 Plus Titanium level of efficiency to reduce wasted heat and save on electricity
- 100% modular design for easy cable installation and removal
- Flat cables with greater flexibility for better cable management
- 150mm depth makes it compatible with more cases

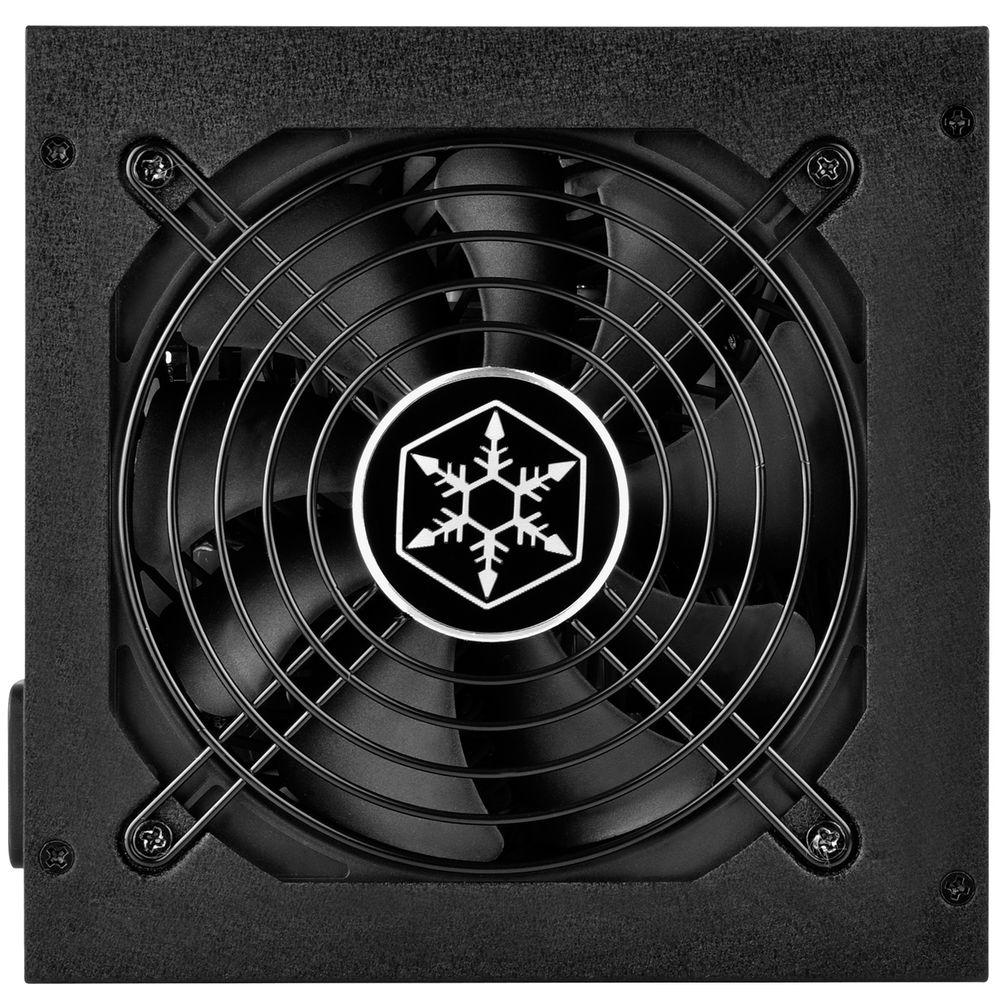

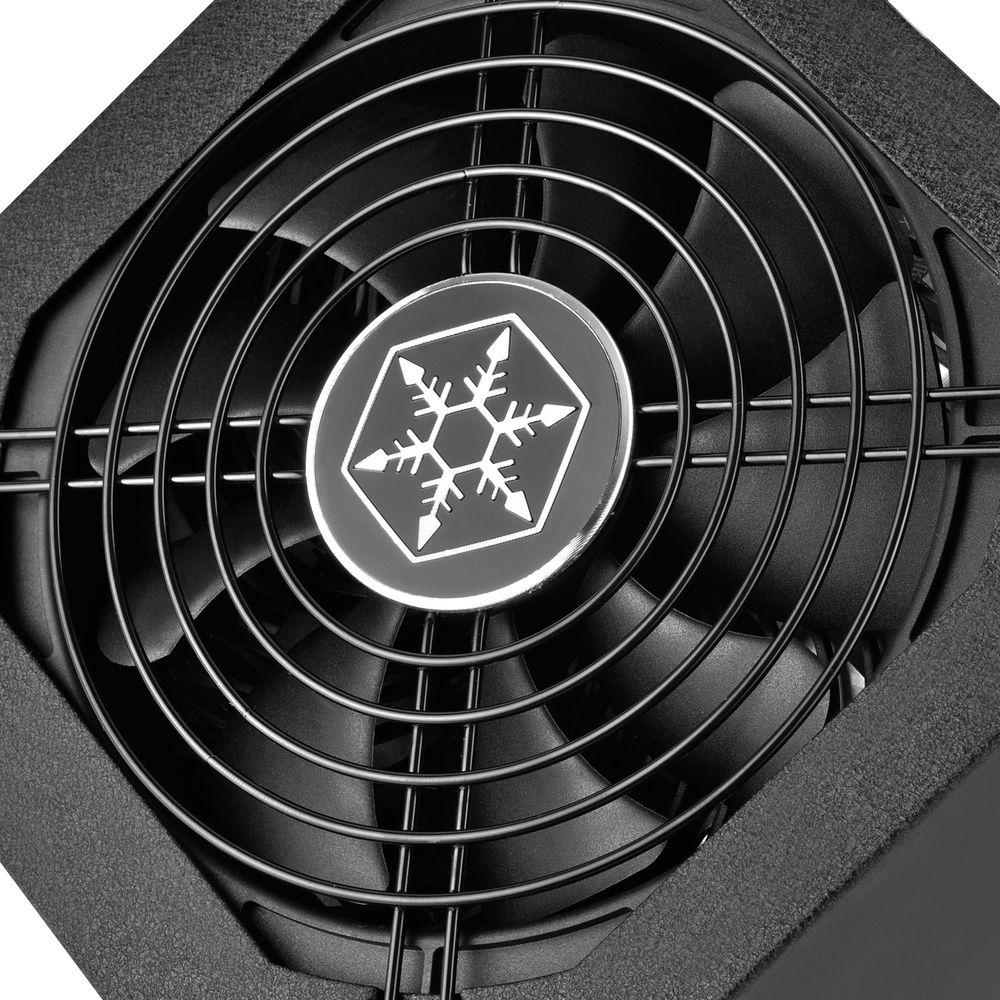

- Quiet 120mm fan with intelligent RPM control ensures cool and silent operation
- Powerful single +12V rail for high-end components and overclocking
- ±3% regulation and low ripple & noise performance for high stability
- Included fan filter helps to reduce dust buildup and installs easily

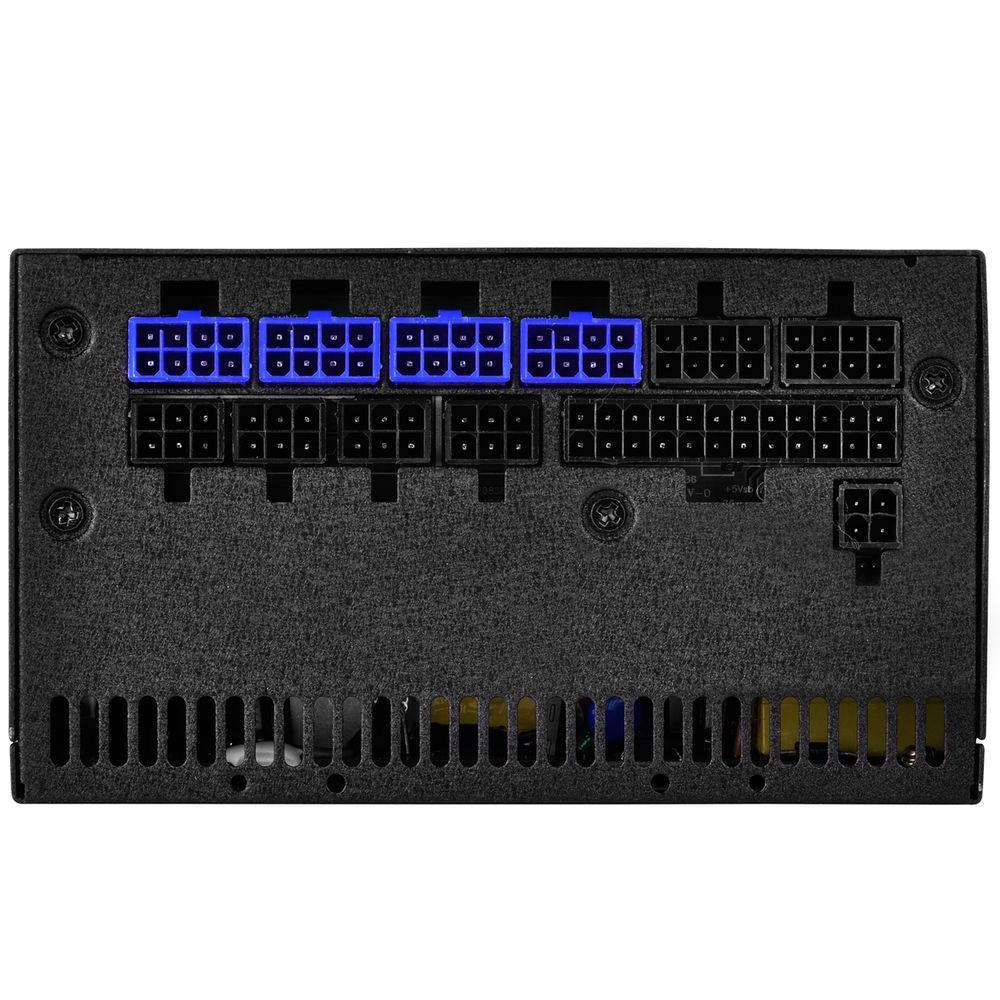

UPC: 844761012861 In the Box SilverStone Strider Series 700W 80 Plus Titanium Modular Power Supply 24/20-Pin Motherboard Connector 2 x 8/4-Pin EPS/ATX 12V Connector 4 x 8/6-Pin PCIe Connector 12 x SATA Connector 3 x 4-Pin Peripheral/Molex Connector 4-Pin Floppy Adapter Connector Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Series 700W 80 Plus Titanium Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

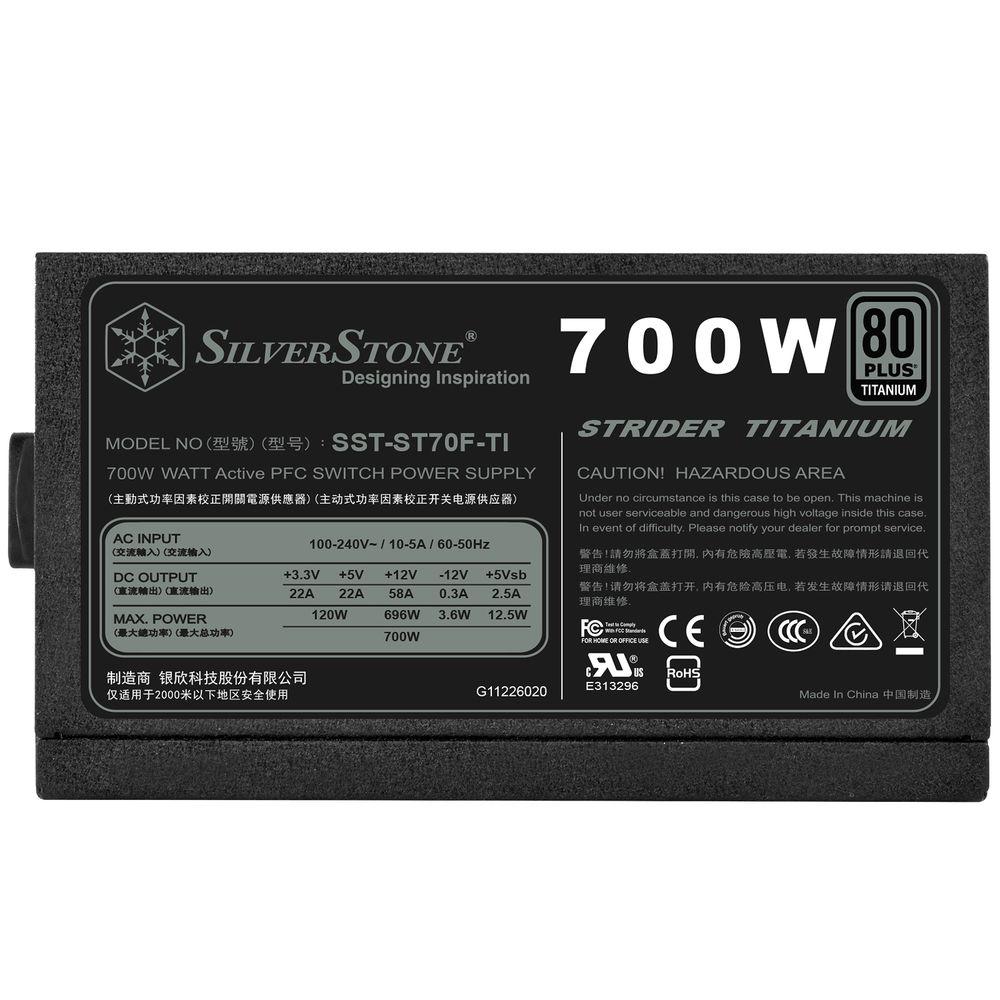

Technical parametersSilverStone ST70F-TI Specs | Total Connectors | 1 x 20+4-Pin Motherboard 2 x 4+4-Pin EPS 4 x 6+2-Pin PCIe 12 x 15-Pin SATA 3 x 4-Pin Peripheral / Molex 1 x 4-Pin Floppy | PCIe Connector Distances | 21.7" / 550 mm | SATA Connector Distances | 23.6" / 600 mm 29.5" / 750 mm 35.4" / 900 mm 41.3" / 1050 mm | Peripheral Connector Distances | 23.6" / 600 mm 29.5" / 750 mm 35.4" / 900 mm | Floppy Connector Distances | 3.9" / 100 mm | ATX Connector Distance | 21.7" / 550 mm | EPS Connector Distances | 21.7" / 550 mm 29.5" / 750 mm | | Total Wattage | 700 W | Combined Power for +12 V | 696 W | Max Load for +12 V | 0.15 to 58 A | Combined Power for +3.3/+5 V | 120 W | Max Load for +3.3 V | 0.1 to 22 A | Max Load for +5 V | 0.2 to 22 A | Max Load for +5 Vsb | 2.5 A | Max Load for -12 V | 0.3 A | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | Voltage Regulation | +3.3 V:
