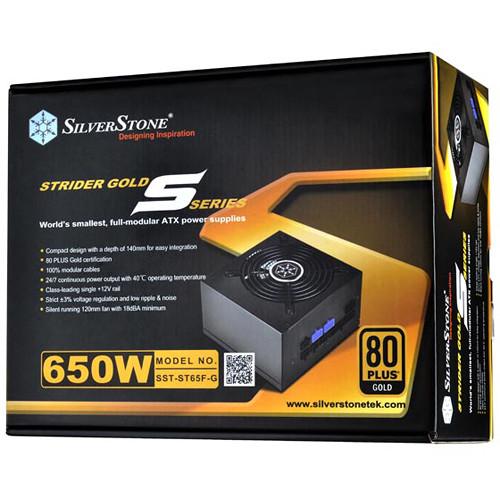

User Manual for SilverStone Strider Series ST65F-G Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Strider Series ST65F-G Power Supply
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone Strider Series ST65F-G Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

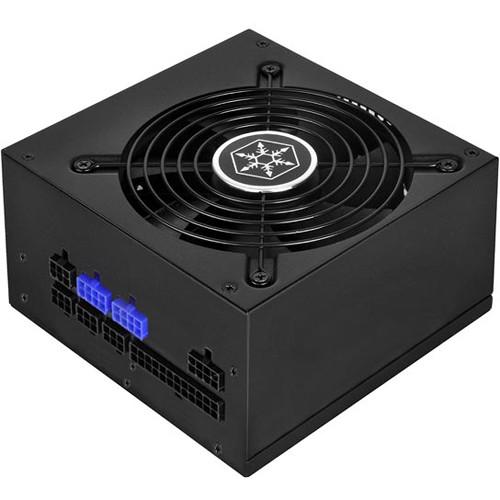

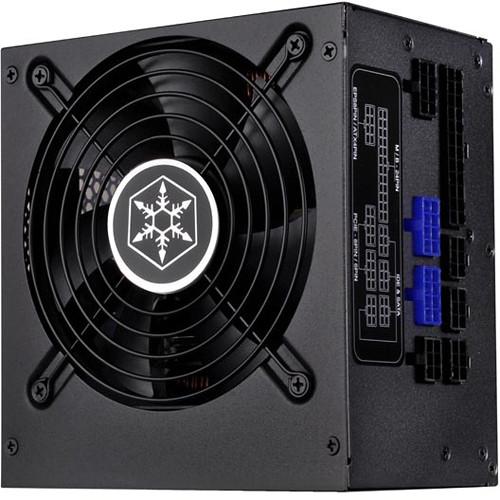

Product description The Strider Series ST65F-G Power Supply from SilverStone features a 650W power output and an 80 PLUS Gold certification. Its power density per liter is 360W and its 120mm fan helps to provide cooling. Other built-in features include 100% modular cables, a single +12V rail with 54A, strict ±3% voltage regulation, and low ripple & noise. Additionally, it has an MTBF of 100,000 hours, ATX 12V v2.4 compatibility, and several different built-in connectors.
The Strider Series ST65F-G Power Supply has a minimum noise level of 18 dBA. Its 140mm depth and compact size allows it to fit into virtually any system. - Compact design with a depth of 140mm for easy integration
- 80 Plus Gold certification with high efficiency 87~90% at 20~100% loading
- 650W (700W peak power) 24-hour fully continuous power output with 104°F / 40°C operating temperature
- Single +12V rail with 54A
- Strict ±3% voltage regulation and low ripple & noise

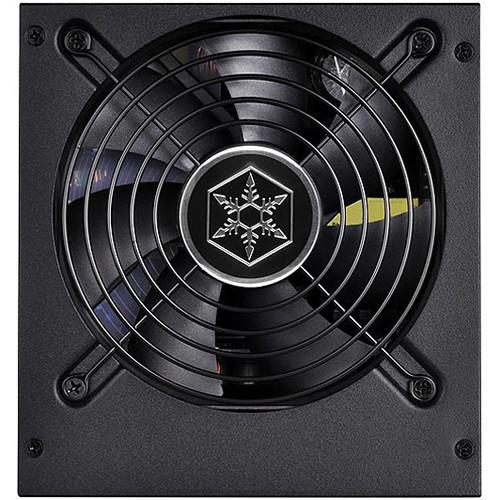

- Silent running 120mm fan with 18 dBA minimum
GPU Support - NVIDIA
- GTX 980
GTX TITAN
GTX 780
GTX 770
GTX 690 - AMD
- R9 290X
R9 270X
HD7990
HD7970 UPC: 844761009267 In the Box SilverStone Strider Series ST65F-G Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Series ST65F-G Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

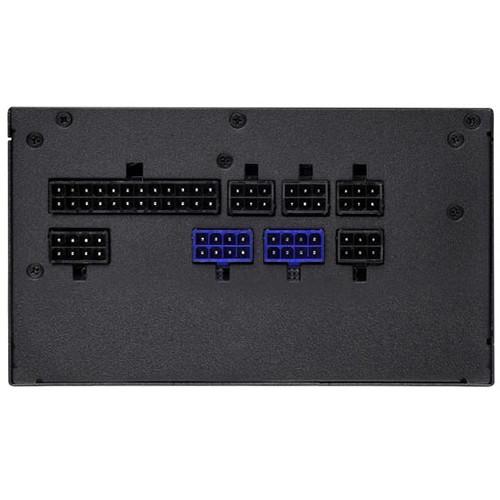

Technical parametersSilverStone ST65F-G Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
2 x 6-Pin PCIe
8 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
2 x 4-Pin Floppy | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Peripheral Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
32.5" / 800 mm | | Floppy Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm

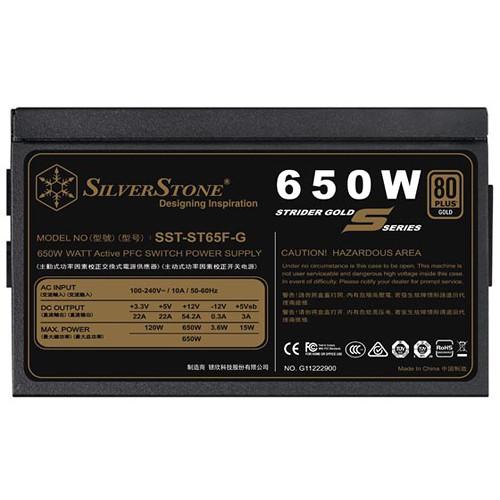

37.4" / 950 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 650 W | | Combined Power for +12 V | 648 W | | Max Load for +12 V | 0.3 to 54 A | | Combined Power for +3.3/+5 V | 150 W | | Max Load for +3.3 V | 0.2 to 22 A | | Max Load for +5 V | 0.2 to 20 A | | Max Load for +5 Vsb | 2.5 A | | Max Load for -12 V | 0.3 A | | Peak Power | 700 W | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
