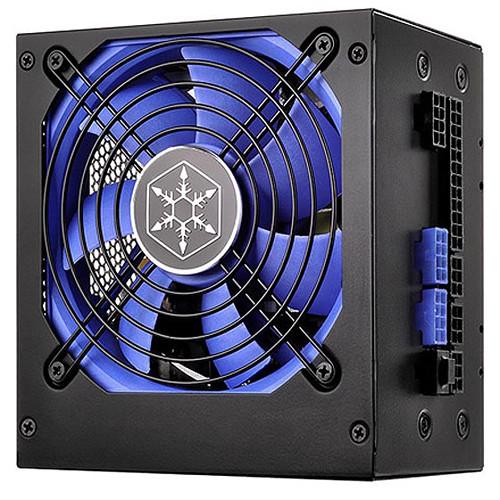

Product description The Strider Series ST70F-PB Power Supply from SilverStone features a 700W power output (peak 750W) and an 80 PLUS Bronze certification with 82~85% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density per liter is 388W and its 120mm fan helps to provide cooling with a noise level of 18 dBA. Other features include a single +12V rail with 54A, a strict ±3% voltage regulation and low ripple & noise, support for the ATX form factor, active PFC, and support for PCIe 8-pin & PCIe 6-pin connectors.
The Strider Series ST70F-PB Power Supply supports select NVIDIA and AMD GPUs, as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of up to 140mm. - 80 PLUS Bronze certification
- 24/7 continuous power output with 104°F / 40°C operating temperature
- Single +12V rail with 54A
- Strict ±3% voltage regulation and low ripple & noise
- 120mm fan with 18 dBA noise level
- PCIe 8-pin and PCIe 6-pin connection support
GPU Support - NVIDIA
- GTX980
GTXTITAN
GTX780
GTX760
GTX680 - AMD
- R9 290X
R9 270X
HD7990
HD7950 In the Box SilverStone Strider Series ST70F-PB Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Strider Series ST70F-PB Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

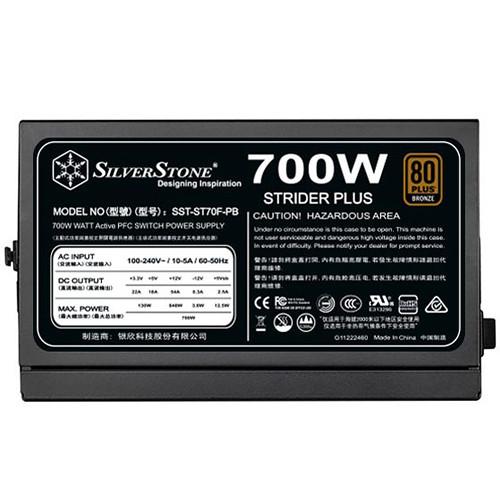

Technical parametersSilverStone ST70F-PB Specs | Model Number | SST-ST70F-PB | | Max. DC Output | 700 W (Peak 750 W) | | Power Device | 388 W per liter | | Load Range | +3.3 V
Max Amps: 22 A
Peak Amps: n/a
Min Amps: 0.1 A
Range: ±3%
Line Reg. ±1%
Ripple (mVp-p): 50 mV
+5 V
Max Amps: 18 A
Peak Amps: n/a
Min Amps: 0.2 A
Range: ±3%
Line Reg. ±1%
Ripple (mVp-p): 50 mV
+12 V
Max Amps: 54 A
Peak Amps: n/a A
Min Amps: 0.5 A
Range: ±3%
Line Reg. ±1%
Ripple (mVp-p): 120 mV
+5 VSB
Max Amps: 2.5 A
Peak Amps: n/a
Min Amps: 0 A
Range: ±5%
Line Reg. ±1%
Ripple (mVp-p): 50 mV
-12 V
Max Amps: 0.3 A
Peak Amps: n/a
Min Amps: 0 A
Range: ±10%
Line Reg. ±1%
Ripple (mVp-p): 120 mV | | Color | Black (lead-free paint) | | Combined +3.3, +5 V | 130 W | | Combined +12 V | 648 W | | Input Voltage | 90 ~ 264 V | | Input Frequency Range | 47 ~ 63 Hz | | PFC (Power Factor Correction) | Active PFC (PF > 0.9 at Full Load) | | Efficiency | 85 ~ 85% at 20 ~ 100% loading | | MTBF | 100,000 hours | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Protection | Over Current Protection
Over Power Protection
Over Voltage Protection

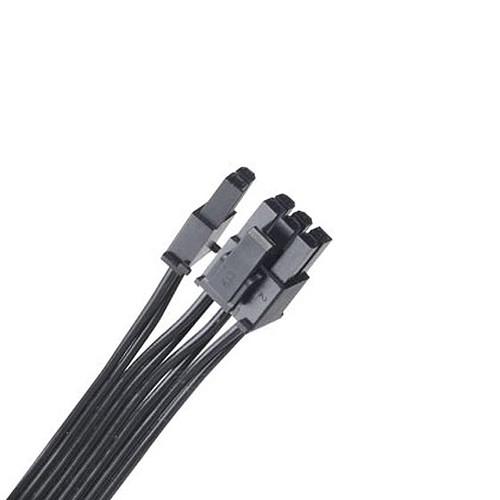

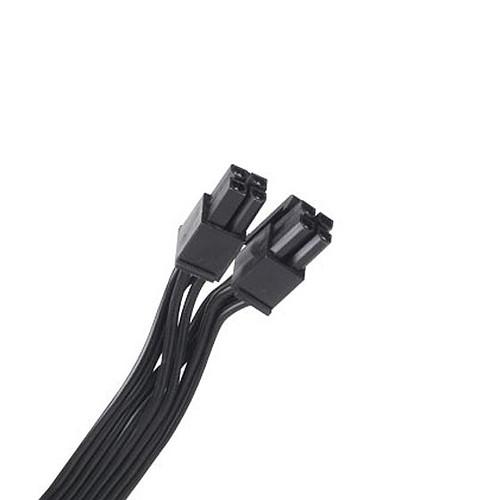

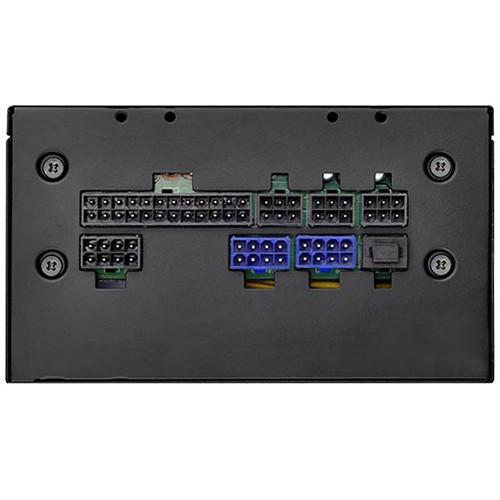

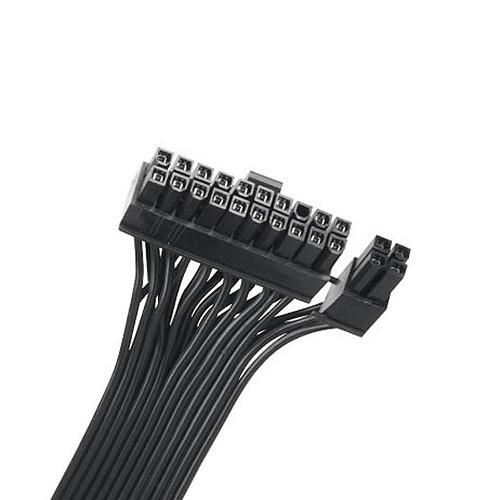

Over Temperature Protection | | Connectors | 1 x 24/20-pin motherboard connector (500 mm)
1 x 8/4-pin EPS / ATX 12 V connector (750 mm)
4 x 8/6-pin PCIe connectors (550 / 150 mm x 2)
8 x SATA connectors (600 / 150 / 150 / 150 mm x 2)
3 x 4-pin Peripheral connectors (600 / 150 / 150 mm)

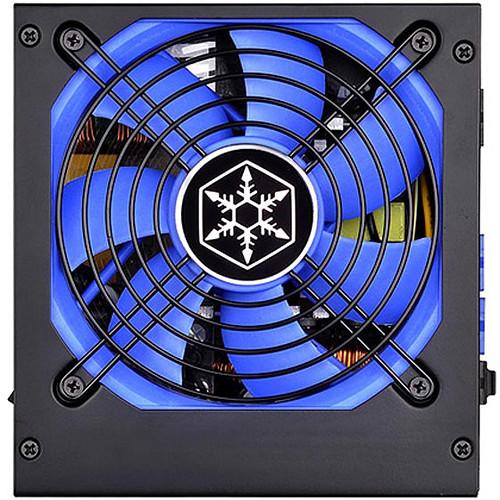

1 x 4-pin Floppy connector (600 / 150 / 150 / 150 mm) | | Cooling System | Single 120 mm silent fan | | Noise Level | 18 dBA minimum | | Form Factor | ATX | | Certification | 80 PLUS Bronze | | Other | Compatible with ATX12 V v2.4 | | Dimensions | 5.9 x 3.4 x 5.5" / 150.0 x 86.0 x 140.0 mm | | Weight | 4.41 lb / 2.00 kg |
