User Manual for SilverStone Sugo Series SG05 Desktop Case with 300W Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone Sugo Series SG05 Desktop Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Sugo Series SG05 Desktop Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

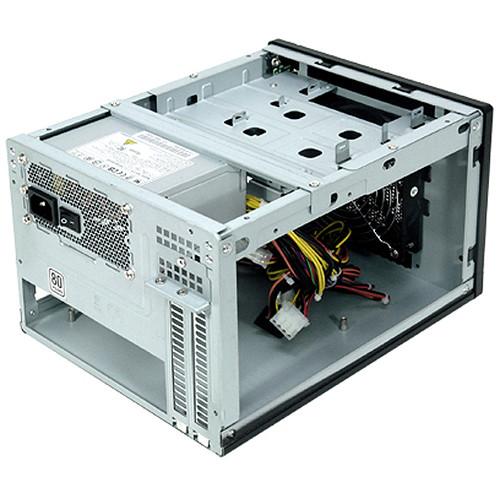

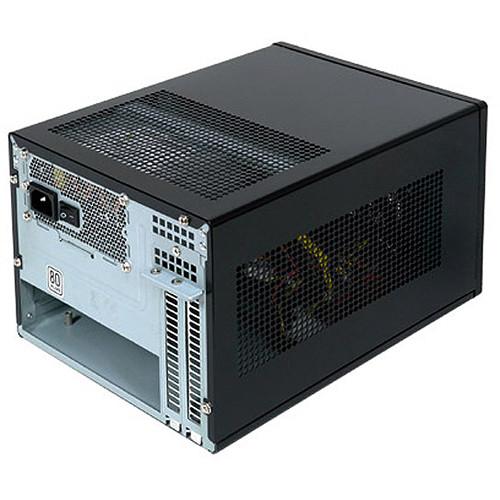

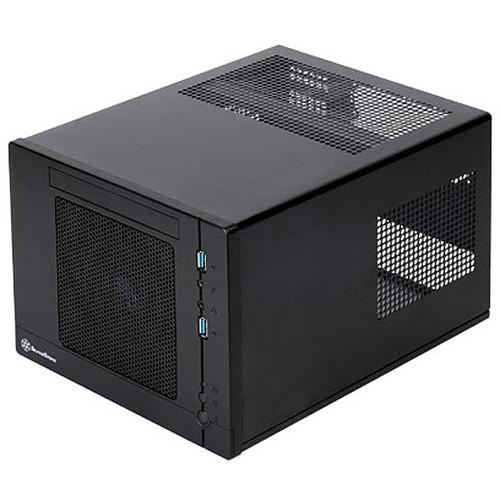

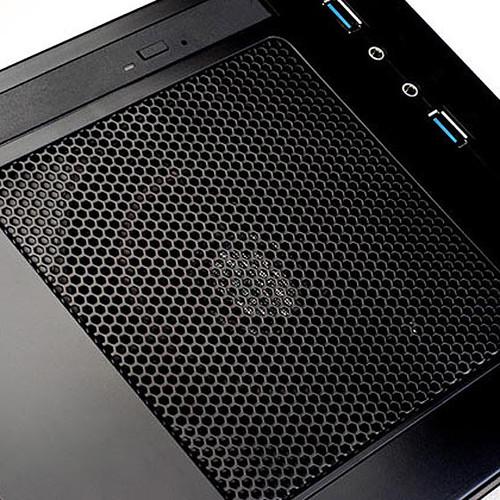

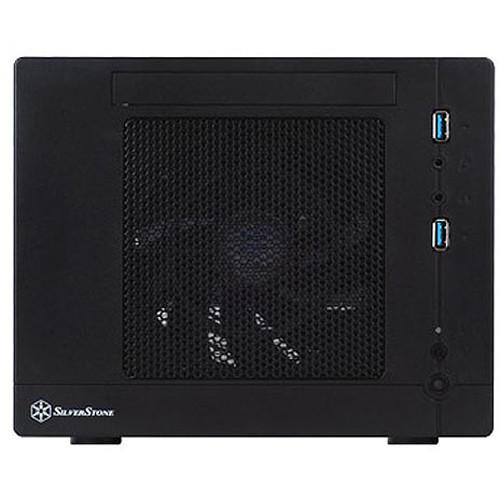

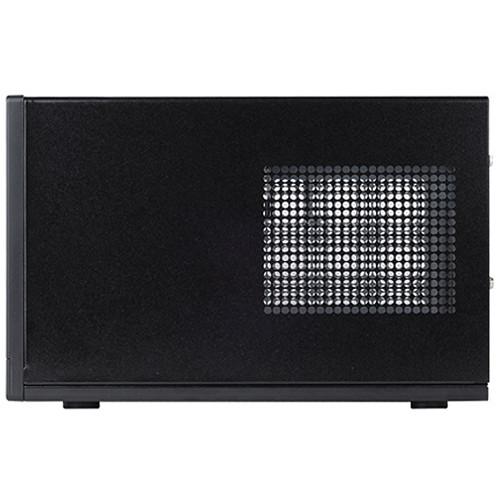

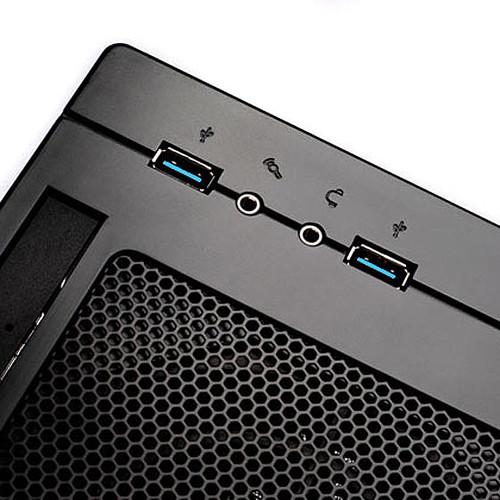

Product description The black SilverStone Sugo Series SG05 Desktop Case with 300W Power Supply includes an SFX form-factor power supply and supports mini-DTX and mini-ITX motherboards. It lets you build a compact PC that can house a graphics card up to 10' long. You can install a slim optical drive along with a 2.5" drive and a 3.5" drive. For cooling, it comes with a 120mm front intake fan as well as over-sized vents. Additionally, SilverStone has designed this case with two USB 3.0 and two audio ports.

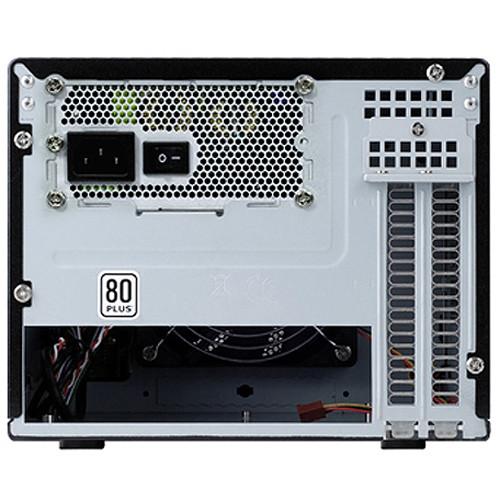

SilverStone offers you a 300W PSU that powers your components and most PCI graphics cards. It comes with protections and is ATX 12V v2.4 compatible. With an 80 PLUS certification, it utilizes the energy efficiently to save you money. UPC: 844761008468 In the Box SilverStone Sugo Series SG05 Desktop Case with 300W Power Supply (Black) Screw Kit Power Cord Rubber Feet Kit Slim Optical Adapter Wire Tie Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Sugo Series SG05 Desktop Case with 300W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone SG05B-USB3.0 Specs | | | Motherboard Support | Mini-ITX, Mini-DTX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 1 x 3.5"
1 x 2.5" | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 10" / 25.4 cm | | CPU Cooler Height | 3.2" / 8.2 cm | | Supported PSU Size | ATX | | | | Fans Included (Front) | 1 x 120 mm (1200 rpm) | | Noise Level | 19 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Connectors | 1 x 24-Pin ATX
1 x 4-Pin ATX
1 x 6-Pin PCIe
3 x 15-Pin SATA
2 x 4-Pin Molex
1 x 4-Pin Floppy | | Wattage | 300 W SFX | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 8.7 x 6.9 x 10.9" / 222.0 x 176.0 x 276.0 mm | | Weight | 7.8 lb / 3.5 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 15.5 x 11.9 x 10.0" |
