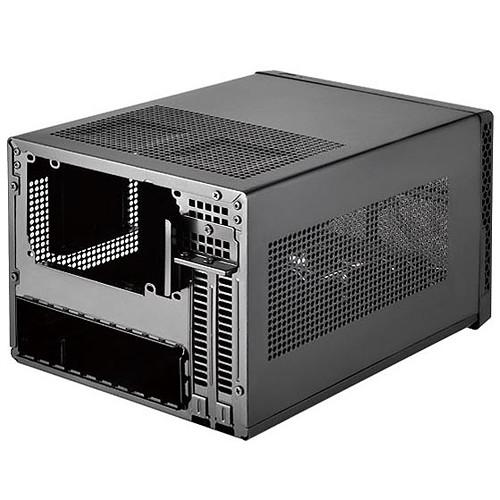

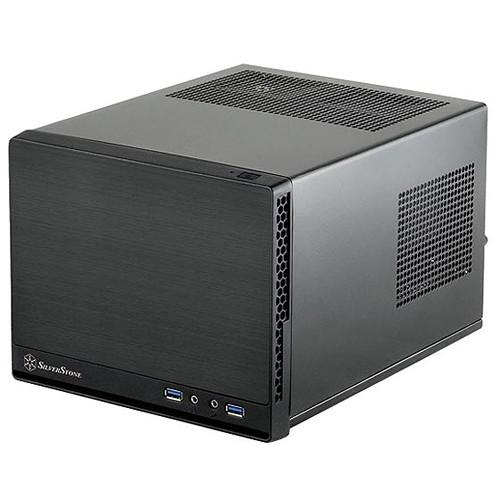

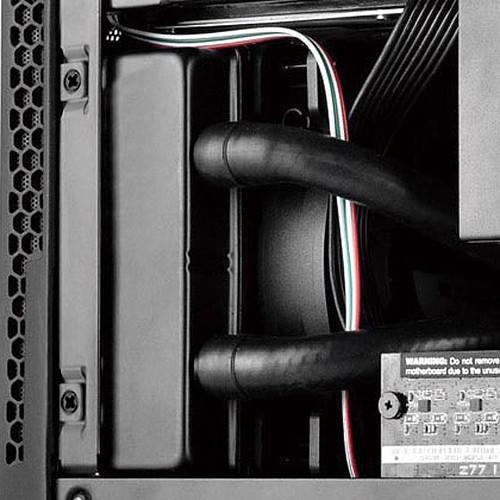

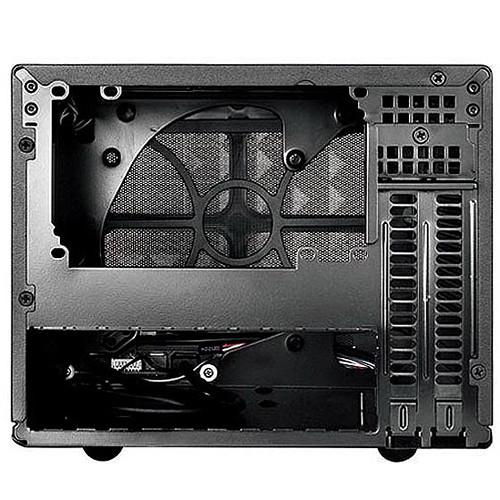

Product description The Sugo SG13B-Q Mini-Tower Case from SilverStone is a small case that supports Mini-DTX and Mini-ITX motherboards. Due to its compact size, this case does not have any room for optical drives, and it can only fit storage configurations of either one 3.5" and one 2.5" drive or three 2.5" drives. Users who are looking to install larger or longer components should note that the SG13 can fit expansion cards up to 10.5" long and 5.11" wide as well as CPU coolers up to 2.4" tall.Even with the limited space, you can install an all-in-one liquid CPU cooler in the 120/140mm fan slot. Installing a larger 140mm radiator or fan requires removing the upper drive cage, shrinking the available room for a graphics card to 9.3” (minus the thickness of the radiator). Silverstone recommends using a 140mm PSU due to varying connector locations on PSUs and the unique structure of SG13. -

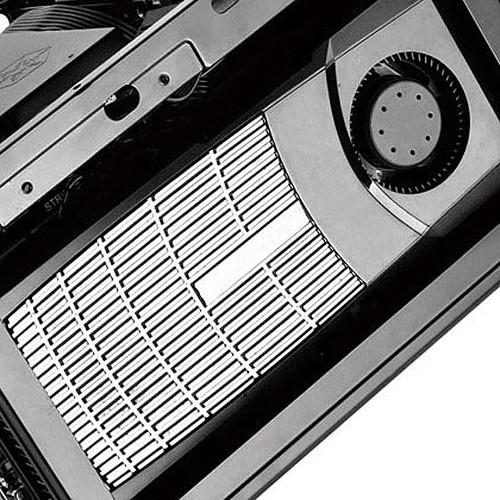

- Supports standard-length expansion cards of 10.5 inches
- Supports Mini-DTX / Mini-ITX motherboards and ATX PSUs

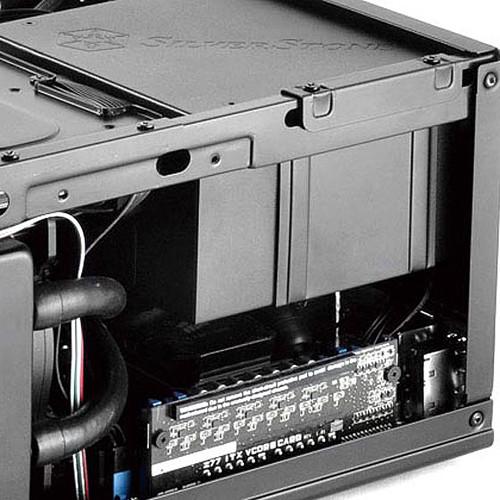

- Supports 120mm or 140mm single fan all-in-one liquid coolers

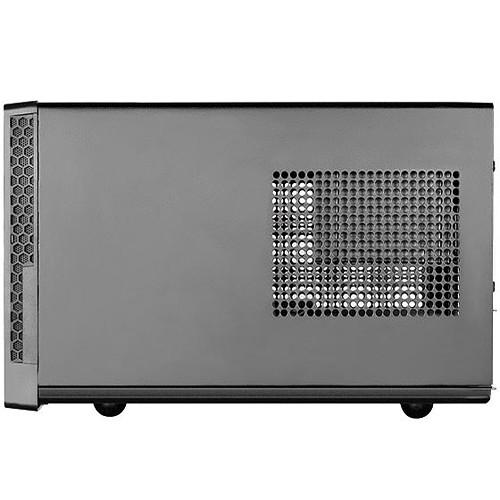

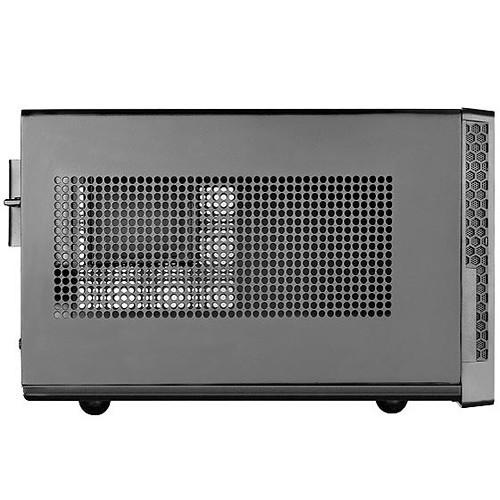

- Over-sized vents for heat dissipation
- Elevated standoff for motherboard back side components
UPC: 844761011994 In the Box SilverStone Sugo SG13B-Q Mini-Tower Case Screw Kit Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Sugo SG13B-Q Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the SilverStone Sugo SG13B-Q Mini-Tower Case can be downloaded in PDF format at the link stated below.
Technical parametersSilverStone SG13B-Q Specs | | | Motherboard Support | Mini-DTX, Mini-ITX | | Internal Drive Bays | 1 x 2.5/3.5"
1 x 2.5" | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 10.5" / 26.7 cm | | CPU Cooler Height | 2.4" / 6.1 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 5.9" / 15 cm | | | | Fan Mounting (Front) | 1 x 120 mm
Or
1 x 140 mm

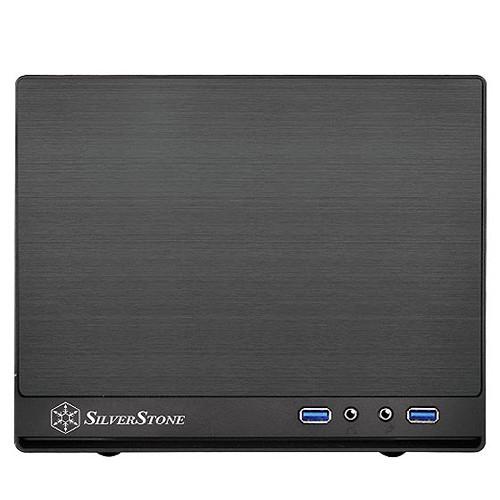

| | Fan Mounting (Rear) | None | | Fan Mounting (Side) | None | | Fan Mounting (Top) | None | | Fan Mounting (Bottom) | None | | Fans Included (Front) | None | | Maximum Radiator Size (Front) | 1 x 140 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | Filter Locations | None | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 8.7 x 7.1 x 11.2" / 222.0 x 181.0 x 285.0 mm | | Weight | 5.4 lb / 2.4 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 13.6 x 11.2 x 10.0" |
