User Manual for SilverStone Temjin TJ11B-W Full-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone Temjin TJ11B-W Full-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Temjin TJ11B-W Full-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

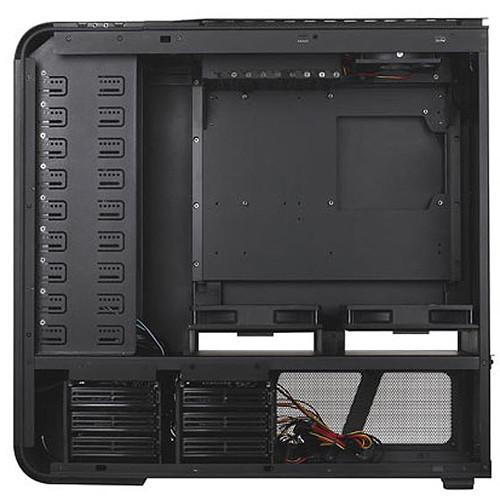

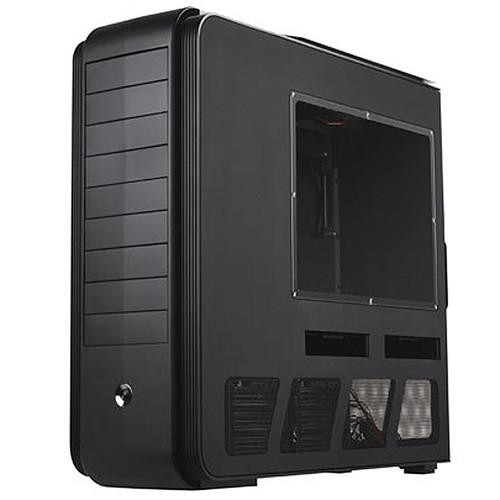

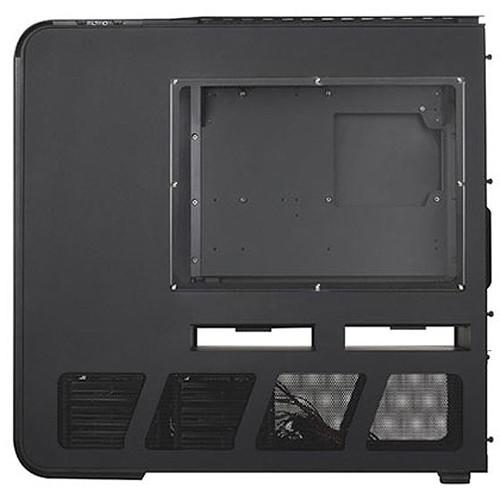

Product description The Temjin TJ11B-W Full-Tower Chassis from SilverStone is a large case that possess all the most notable features from the past SilverStone flagship products. It features a compartmentalized layout, see-through air ducts, and a 90 degree motherboard mounting layout. Included with the TJ11 are two Air Penetrator AP181 fans, two Air Penetrator AP121 fans, and one 120mm exhaust fan. These fans deliver powerful airflow to aid stack cooling for eliminating heat.The TJ11 is equipped with two USB 3.0 ports, two USB 2.0 ports, one mic jack, one audio jack, and ten expansion slots. Compatible with SSI-CEB, XL-ATX, ATX, micro-ATX motherboards, and two ATX power supplies, it also supports up to nine 5.25", six 2.5"/3.5", and three 2.5" drives for increased expandability. Users who are looking to install larger or longer components should note that the TJ11 can accommodate expansion cards up to 12.4" long and 6.93" wide, and CPU coolers up to 171mm tall.In addition, there are plenty of ergonomic touches such as quick access filters, hot-swappable hard drive bays, removable motherboard tray, CPU back plate cutout, and optimized cable routing paths to enable easy maintenance. -
- Compartmentalized layout
- See-through air duct
- 90 degree motherboard mounting
- Includes two Air Penetrator AP181 fans to aid stack cooling
- Room for fitting powerful water cooling equipment
- Motherboard back plate opening behind CPU area for quick cooler assembly
- Supports 11” wide ATX motherboard
- Dual power supply support

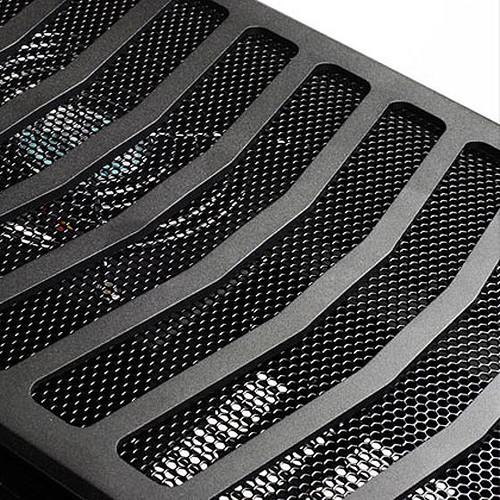

- Extra large venting area for 10th expansion slot
- Rivet free construction for maximum serviceability and modding
- All aluminum construction with anodized sand-blasted finish
UPC: 844761007454 In the Box SilverStone Temjin TJ11B-W Full-Tower Case (Window, Black) Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Temjin TJ11B-W Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

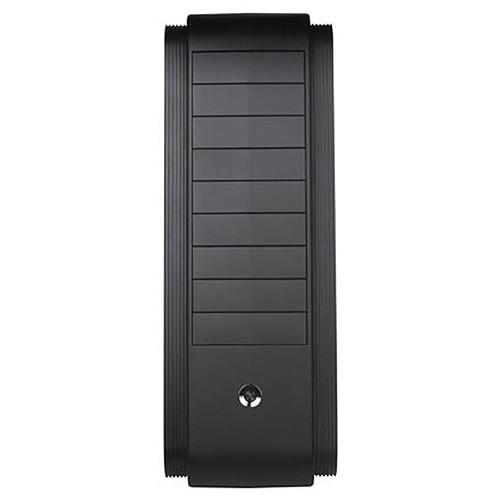

Technical parametersSilverStone TJ11B-W Specs | Material | Dual Aluminum unibody frame, 2 mm aluminum body | | Motherboard Supported | SSI-CEB, XL-ATX, ATX (maximum 13.6” x 11”), Micro-ATX | | Drive Bays | External: 9 x 5.25"
Internal: 6 x 2.5"/3.5" and 3 x 2.5" | | Cooling System | Side: 2 x 180 mm AP181 fan, 700/1200rpm at 18/34 dBA (included)
Top: 1 x 120 mm exhaust fan, 900 rpm at 18 dBA (included)

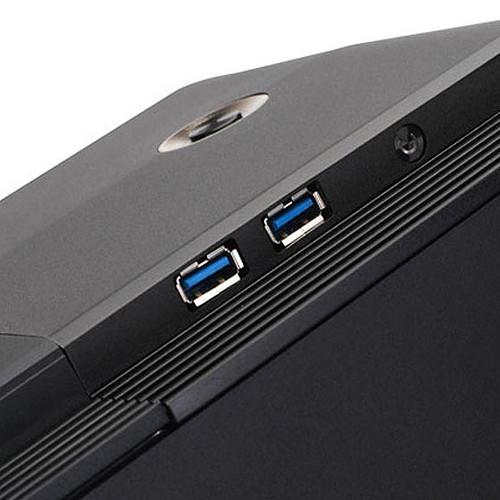

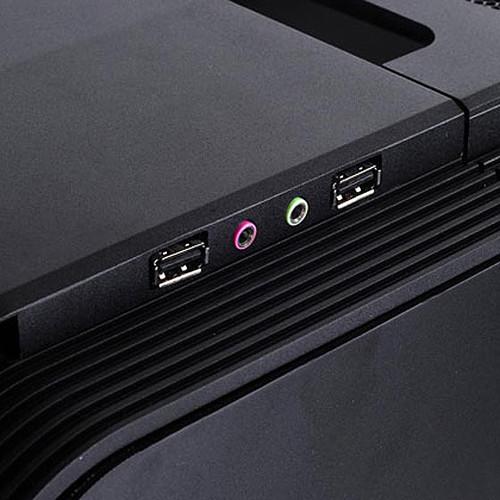

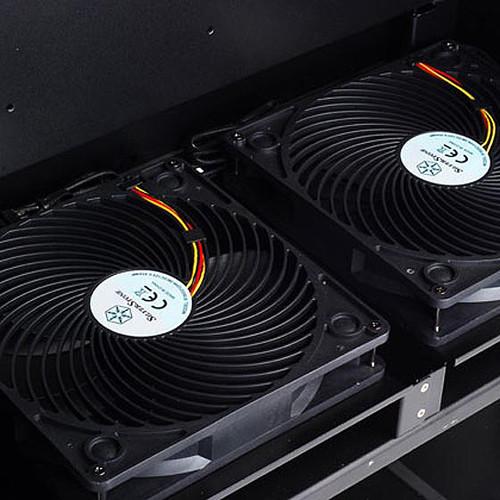

Bottom: 2 x 120 mm AP121 intake fan, 1200rpm at 19dBA (included) | | Expansion Slots | 9+1 | | Front I/O Ports | 2 x USB 2.0 Type-A
2 x USB 3.0 Type-A
1 x Audio
1 x Mic | | Power Supply Compatibility | 2 x Standard ATX or 1 x Redundant ATX | | Compatibility | GPUs up to 12.4" / 315 mm long and 6.93" / 176 mm wide
CPU Cooler up to 6.7" / 171 mm tall | | Dimensions (W x H x D) | 8.8 x 25.3 x 25.9" / 224 x 642 x 657 mm | | Weight | 38.4 lb / 17.4 kg | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 30.3 x 29.4 x 13.5" |
