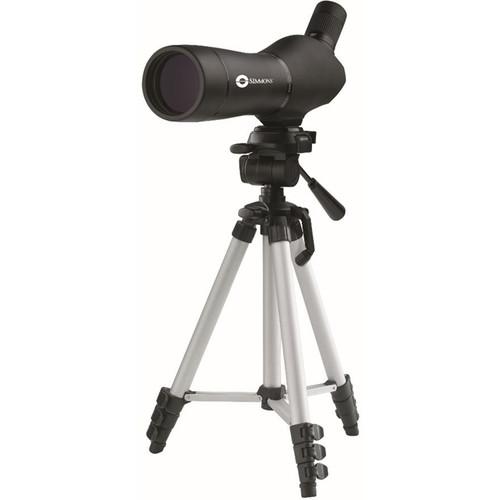

User Manual for Simmons 20-60x60 Blazer Spotting Scope Click to enlarge the picture
Contents of the user manual for the Simmons 20-60x60 Blazer Spotting Scope
- Product category: Spotting Scopes Simmons
- Brand: Simmons
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Simmons Spotting Scopes
|
User manual for the Simmons 20-60x60 Blazer Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Simmons product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Simmons user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Simmons product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The Simmons 20-60x60 Blazer Spotting Scope is a powerful observation tool optimized for long-range use. The wide zoom range allows you to view large areas at low magnification, then dial up the power to maximum and reveal fine details. Its large objective and anti-reflection coatings draw in the light required to ensure views remain bright even when observing at extreme long ranges at high magnifications. To make it easier to use, the eyepiece is set at a 45° angle to the scope body, which places your head in a comfortable position whether you're sitting, standing, or lying prone. To get you out and observing right out the box, Simmons includes a highly compact tripod with a versatile pan/tilt head. - Optical Performance
-
- Powerful 20-60x magnification is ideal for long-range observations
- 60mm objective lens extends the usability from dawn to dusk and ensures images remain bright when observing long-range subjects at high magnification
- BK7 Porro prism light path prevents internal interference to maintain image contrast and clarity
- Anti-reflection fully coated optics improve light transmission through the objective lens system for more accurate color representation and better resolution and contrast
- 115-foot field of view at 1000 yards on 20x, 52-foot at 60x
- Use and Handling
-
- Eyepiece set at a 45° angle to the scope body to place your head in a more comfortable position while sitting, standing, or lying prone
- Textured zoom collar and focus knob enable precise magnification and focus settings
- Fold-down rubber eyecup for comfortable viewing with or without eyewear
- Exceptional 18mm eye relief at 20x for effortless viewing with reduced eyestrain
- 3mm exit pupil at 20x
- Construction Details
-
- Matte-black rubber armoring reduces reflections while offering protection from bumps and providing a slip-resistant grip for sure handling during setup and breakdown
- Standard 1/4"-20 tripod mount is compatible with most photo/video/field tripods, heads, and quick release plates—like the one included
- Retractable sunshade helps to prevent lens flare when pointing the scope toward the sun
- Includes carrying case and compact tripod
- Tripod and Head
- Head:
- Pan-tilt design makes finding and tracking subjects simple, while ensuring the eyepiece is placed in the perfect viewing position
- Quick release plate for faster setup and breakdown
- Pan arm makes tracking moving subjects easier with more precision and less vibration
- Side-tilt and vertical axis locks set the head position for observing stationary subjects like targets or decoys
- Built-in bull's-eye bubble level
Tripod:- Highly compact aluminum tripod for effortless packing and carrying in the field
- Three leg sections with easy-to-use snap locks for opening and adjusting, even with one hand
- Extendable center column adds extra height if required while keeping the overall folded form factor compact
- Folding crank handle allows the center column to be precisely raised for the perfect viewing height
- Maximum tripod height of 44" (112cm)
UPC: 045618120603 In the Box Simmons 20-60x60 Blazer Spotting Scope (Angled Viewing) Tripod Carrying Case Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Simmons 20-60x60 Blazer Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSimmons Blazer Specs | | | Viewing Angle | Angled | | Prism Type | Porro (BK7) | | | | Magnification | 20 to 60x | | Objective Lens Diameter | 60 mm | | Field of View | 20x: 115.0' @ 1000 yd / 38.2 m @ 1000 m
60x: 52.0' @ 1000 yd / 17.3 m @ 1000 m | | Minimum Focus Distance | 20x: 19.5' / 5.9 m
60x: 23.0' / 7.0 m | | Exit Pupil Diameter | 20x: 3 mm
60x: 1 mm | | Eye Relief | 18.0 to 13.5 mm | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.0 x H: 5.9" / L: 35.6 x H: 15.0 cm | | Weight | 28.0 oz / 794.0 g | | | | Package Weight | 4.21 lb | | Box Dimensions (LxWxH) | 16.3 x 7.1 x 6.0" |
