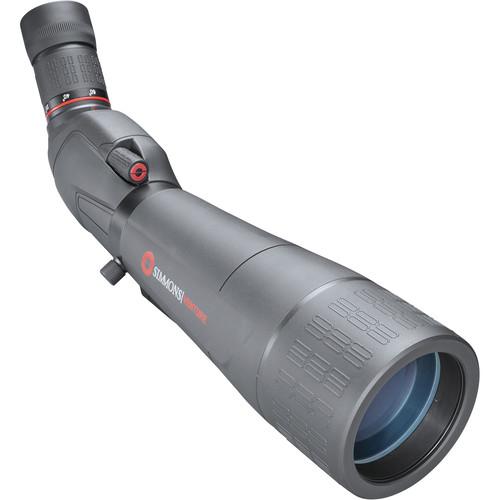

User Manual for Simmons 20-60x80 Venture Spotting Scope Click to enlarge the picture
Contents of the user manual for the Simmons 20-60x80 Venture Spotting Scope
- Product category: Spotting Scopes Simmons
- Brand: Simmons
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Simmons Spotting Scopes
|
User manual for the Simmons 20-60x80 Venture Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Simmons product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Simmons user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Simmons product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More ytaacvfwdqwcyufqctvtddzbtrtssqzd The Simmons 20-60x80 Venture Spotting Scope is a powerful observation tool optimized for long-range use from dawn to dusk. The powerful zoom allows you to scan across broad areas to find your subject at 20x magnification, then dial up the power to maximum and reveal fine details. Its large objective and anti-reflection coatings draw in the light required to ensure views remain bright even when observing at extreme long ranges at high magnifications. To make it easier to use, the eyepiece is set at a 45° angle to the scope body, which places your head in a comfortable position whether you're sitting, standing, or lying prone. The Venture is supplied with a tabletop tripod with an integrated window mount that allows you to put it just about anywhere and start observing. - Optical Performance
-
- Powerful 20-60x magnification is ideal for long-range observations without giving your position away
- Large 80mm objective lens extends the usability from dawn to dusk and keeps views bright—even when observing extreme long-range subjects at high magnification
- Anti-reflection fully multi-coated optics improve light transmission through the objective lens system for more accurate color representation and better resolution and contrast
- 95-foot field of view at 1000 yards on 20x, 48-foot at 60x
- Use and Handling
-
- Eyepiece set at a 45° angle to the scope body to place your head in a more comfortable position while sitting, standing, or lying prone
- Textured zoom collar and focus knob enable precise magnification and focus settings
- Fold-down rubber eyecup for comfortable viewing with or without eyewear
- 15.2-12.7mm eye relief
- 4mm exit pupil at 20x will cover pupils as they open and dilate in low light, allowing easier viewing in challenging light conditions
- Construction Details
-
- Matte-black rubber armoring reduces reflections while offering protection from bumps and providing a slip-resistant grip for sure handling during setup and breakdown
- Tabletop tripod provides a solid base that can be set up just about anywhere, with integrated window mount for fast glassing from a car or truck
- Retractable sunshade helps to prevent lens flare when pointing the scope toward the sun
- Hard plastic carrying case protects the scope and tripod during transport and storage
- Easy-to-carry soft case holds scope and tripod in the field
UPC: 045618000189 In the Box Simmons 20-60x80 Venture Spotting Scope (Angled Viewing) Tabletop Tripod Hard Carrying Case Soft Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Simmons 20-60x80 Venture Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSimmons Venture Specs | | | Viewing Angle | Angled | | Prism Type | BK7 | | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Field of View | 20x: 95.0' @ 1000 yd / 31.5 m @ 1000 m
60x: 48.0' @ 1000 yd / 15.9 m @ 1000 m | | Minimum Focus Distance | 20x: 45.0' / 13.7 m
60x: 30.0' / 9.1 m | | Exit Pupil Diameter | 20x: 4 mm
60x: 1.3 mm | | Eye Relief | 15.2 to 12.7 mm | | | | Dimensions | L: 17.7" / L: 45.0 cm | | Weight | 51.1 oz / 1449.0 g |
