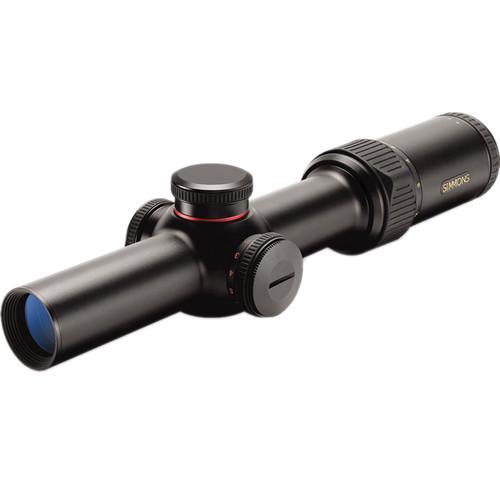

User Manual for Simmons Predator-Varmint 1-6x24 Riflescope Click to enlarge the picture
Contents of the user manual for the Simmons Predator-Varmint 1-6x24 Riflescope
- Product category: Riflescopes Simmons
- Brand: Simmons
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Simmons Riflescopes
|
User manual for the Simmons Predator-Varmint 1-6x24 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Simmons product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Simmons user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Simmons product will considerably shorten its lifespan!
|
Product description Calibrated for .223/5.56 loads, the Predator-Varmint 1-6x24 Riflescope from Simmons Optics is designed for short-to-medium range varmint and predictor hunting and features fully multicoated optics and an illuminated StrikeZone 223 Reticle. The multiple anti-glare coatings maximize light transmission and provide optimal color, sharpness and image contrast. To help you compensate for wind drift and ballistic bullet drop, the scope offers 60 MOA windage and elevation adjustment ranges with a 1/2 MOA impact point correction. Located in the second focal plane, the reticle will remain the same in size as you change zoom factor.
The aluminum housing is lightweight and durable, waterproof and fogproof. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is purged with nitrogen gas and sealed. Also included with the scope is a flip-up objective lens cover. - Optical Performance
-
- Fully multicoated
- 1-6x magnification
- 24mm objective
- 105-18' linear field of view
- 3.9" eye relief
- Reticle
-
- Strike Zone 223 ballistic reticle
- 2nd focal plane location keeps the reticle size the same
- Eleven brightness settings
- Use and Handling
-
- Calibrated for .223/5.56 loads
- 1/2 MOA mil impact point correction
- 60 MOA windage and elevation adjustment
- Construction Details
-
- 30mm single-piece main tube
- Capped turrets with knurled knobs
- Fast-focus eyepiece with low profile lever
- Waterproof and fogproof housing
UPC: 045618551247 In the Box Simmons Predator-Varmint 1-6x24 Riflescope (StrikeZone 223) - Flip-Up Objective Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Simmons Predator-Varmint 1-6x24 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSimmons 655124 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 105' @ 100 yd / 35 m @ 100 m
8x: 18' @ 100 yd / 6 m @ 100 m | | Exit Pupil Diameter | 1x: 11 mm
6x: 4 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | StrikeZone 223 Reticle (Second Focal Plane) | | Brightness Settings | Adjustable Brightness (11 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.7" / 272 mm | | Weight | 20.5 oz / 581 g | | | | Package Weight | 1.66 lb | | Box Dimensions (LxWxH) | 14.25 x 3.6 x 3.45" |
