Simmons ProDiamond 4x32 Shotgun Scope

Search your instruction manual in PDF to download

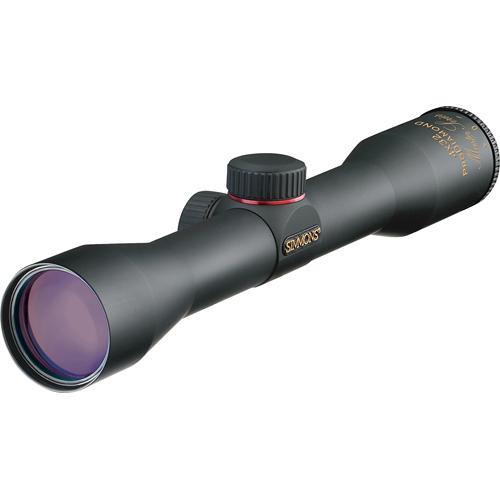

User Manual for Simmons ProDiamond 4x32 Shotgun Scope

Click to enlarge the picture
Simmons ProDiamond 4x32 Shotgun Scope Contents of the user manual for the Simmons ProDiamond 4x32 Shotgun Scope
  • Product category: Riflescopes Simmons
  • Brand: Simmons
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Simmons Riflescopes

User manual for the Simmons ProDiamond 4x32 Shotgun Scope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Simmons product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Simmons user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Simmons product will considerably shorten its lifespan!



Product description

For over twenty years, Simmons has cultivated a reputation as a leader in offering outdoor enthusiasts fine sport optics products. The ProDiamond 4x32 Shotgun Scope features the TrueZero erector system for enhanced repeatability, and fully coated optics with HydroShield protection for a clear and crisp sight picture - even when it's raining. Shotgunners and muzzleloaders will enjoy sighting through the ProDiamond 4x32. This compact and lightweight sighting solution features the ProDiamond reticle - its configuration assists the shooter in establishing the vital zone of wild turkeys and deer. Designed for rapid target acquisition at short ranges, the ProDiamond 4x32 is configured with 1/4 MOA clicks and 70 MOA of adjustments. This fine optic also boasts a generous FOV, and excellent twilight performance - dust off the decoys, break out the camo, tom's coming for dinner! A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation.
  • One-piece 1.0" main-tube
  • TrueZero flex erector system for repeatable accuracy
  • High-quality multicoated optical glass lens elements
  • Tactile rubberized SureGrip surfaces simplify adjustments
  • Quick Target Acquisition eyepiece with a constant 3.5" of eye relief
  • HydroShield lens coatings dissipate moisture droplets for a clear sight picture
    ProDiamond Reticle
  • Identifies a turkey's vital zone at 40 yd and a deer's vital zone at 75 yd
UPC: 045618177935 In the Box Simmons ProDiamond 4x32 Shotgun Scope (Matte Black)
  • Pair of Protective Lens Caps
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Simmons ProDiamond 4x32 Shotgun Scope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Simmons 517793 Specs

    Magnification 4x
    Objective Lens Diameter 32 mm
    Field of View 23.6' @ 100 yd / 7.6 m @ 100 m
    Exit Pupil Diameter 8 mm
    Eye Relief 4" / 102 mm
    Reticle Type ProDiamond Reticle
    Filter Thread 4"
    Impact Point Correction 1/2 MOA per Click
    Windage Adjustment 70 MOA
    Elevation Adjustment 70 MOA
    Water Resistance Waterproof
    Fogproof Yes
    Maintube Diameter 1"
    Battery None
    Dimensions Length: 9.5" / 24 cm
    Weight 8.8 oz / 250 g
    Package Weight 1.06 lb
    Box Dimensions (LxWxH) 14.8 x 3.8 x 3.45"

    Rating

    92% users recommend this product to others. And what about you?
    Rating: 4.6 of 5

    This product has already been rated by 23 owners. Add your rating and experience with the product.
