User Manual for SINCECAM SC128Pro 4K Action Camera Click to enlarge the picture
Contents of the user manual for the SINCECAM SC128Pro 4K Action Camera
- Product category: Sports & Action Cameras SINCECAM
- Brand: SINCECAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SINCECAM Sports & Action Cameras
 |
User manual for the SINCECAM SC128Pro 4K Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SINCECAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SINCECAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SINCECAM product will considerably shorten its lifespan!
|

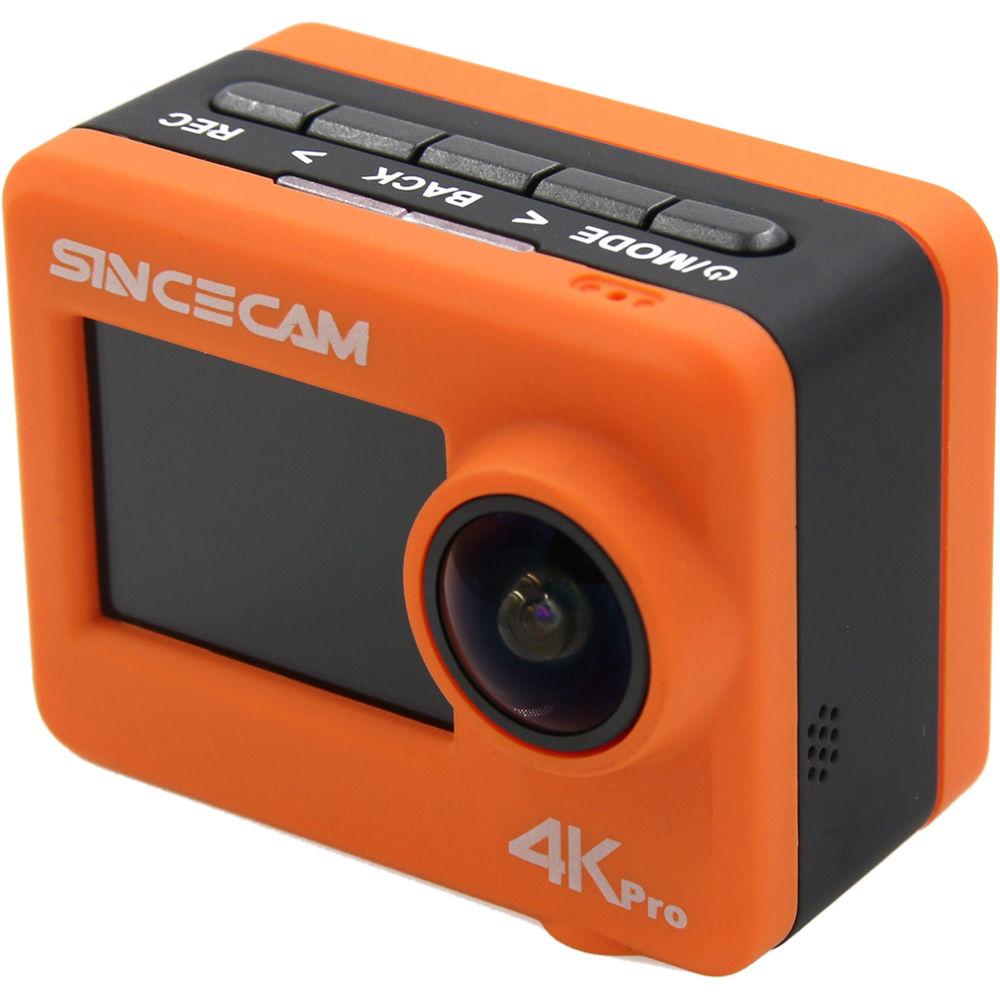

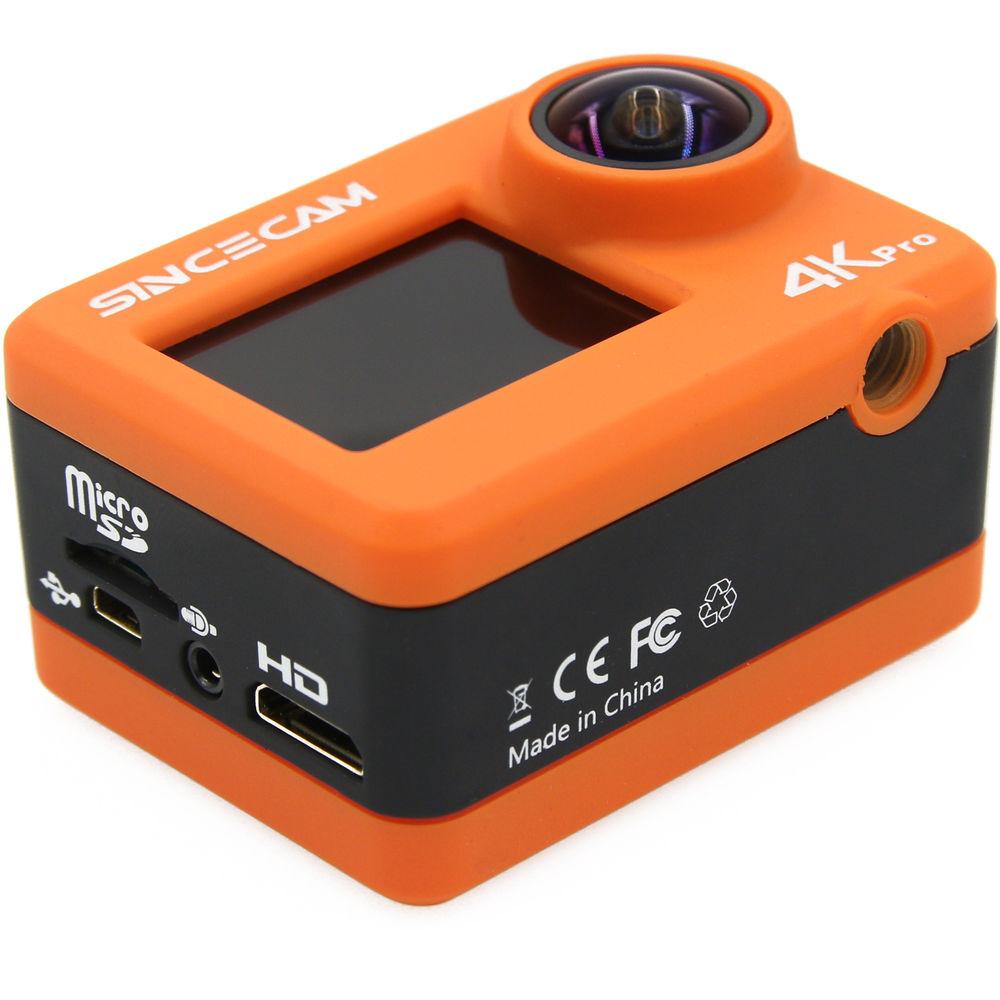

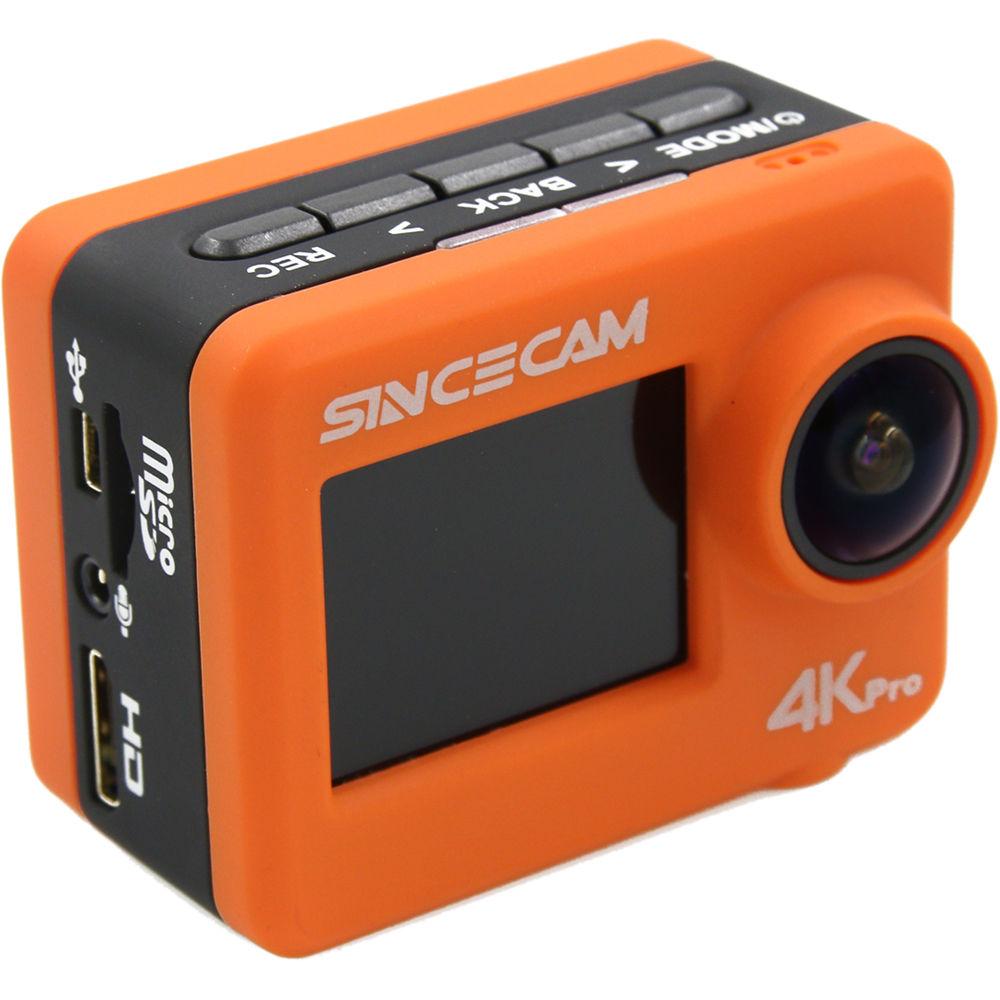

Product description The SINCECAM SC128Pro is a 4K action camera with a 1.5" LCD on the front so you can more easily capture selfie videos and photos of your adventures. Featuring a 12.4MP Sony image sensor, Ambarella processor, and 8-element all-glass, 166° ultra-wide angle lens, the camera records immersive images with crisp details.
Other resolution options include Full 1080p at up to 120 fps and 720p at up to 240 fps for high frame rate, slow motion capture. Up to 12MP photos (or up to 16MP interpolated) can be taken individually or in bursts of 3, 5, or 10 per second, and you can also set a self-timer to give you enough time to pose for a photo. You can also record photo, video, and simultaneous photo and video time lapses.
A 1200mAh lithium-ion battery provides you with approximately 100 minutes of runtime when recording 4K video at 30 fps, and up to 8 hours in stand-by. Everything is stored to up to 128GB microSD cards. The camera also has 360° omnidirectional dual microphones that record sound along with your video, and a built-in speaker so you can hear captured audio when playing back your recordings.
A waterproof dive case is included with a depth rating of 131 ft, and a variety of other accessories are supplied, such as curved and flat mounts for attaching the camera to pretty much any flat or curved object, such as a dashboard or helmet.
The SC128Pro is packed with special features for getting optimal quality images, including Lens Distortion Correction (LDC), Electronic Image Stabilization (EIS), 3D video noise cancellation, Loop Recording, Auto Low Light Adjustment, and Motion detection recording.
The SC128Pro also comes with an iOS/Android app that allows you to preview shots, start/stop recording, play back recordings, adjust camera settings, and easily share your videos and photos on social media. - Key Features
-
- Front-view LCD for easier selfies (can be turned off)
- Up to Ultra HD 4K video at 30/25 fps
- Slow-motion video in Full HD 1080p at 120 fps, 960p at 120 fps, and 720p at 240/120 fps
- Up to 12MP individual photos or in bursts of 3, 5, or 10 per second to record a progression of an event in still images
- Sony IMX117 CMOS image sensor
- Ambarella A12S75 SoC 792 MHz dual-core Cortest-A9 ARM processor
- Includes waterproof dive case with 131 ft depth rating
- Built-in Lens Distortion Correction (LDC) corrects image distortion that results from wide-angle lenses
- Electronic Image Stabilization (EIS) in Full HD 1080p (built-in 3-axis gyroscope and 3-axis accelerometer)
- Includes SINCECAM app (iOS/Android) for previews, playback, start/stop recording, camera settings adjustments, and easy sharing on social media
- 3D video noise cancellation
- Video time-lapse: Automatically creates video from photos captured at intervals of 1, 2, 5, 10, 30, or 60 seconds
- Photo time-lapse: Captures a series of photos at intervals of 3, 5, 10, 30, or 60 seconds (it's up to you what you do with the photos afterwards)
- Video + photo time-lapse: Simultaneously records Full HD video and captures time-lapse photos at intervals of 5, 10, 20, or 30 seconds
- Loop Recording: Continuously overwrites existing recordings until you save it (selectable video lengths of 1, 2, 3, and 5 minutes)
- 360° omnidirectional dual microphones record 48 kHz stereo audio
- Built-in speaker
- Records to microSD cards from 16-128GB (not included) (U3 microSD cards recommended for 4K video)
- Built-in Wi-Fi

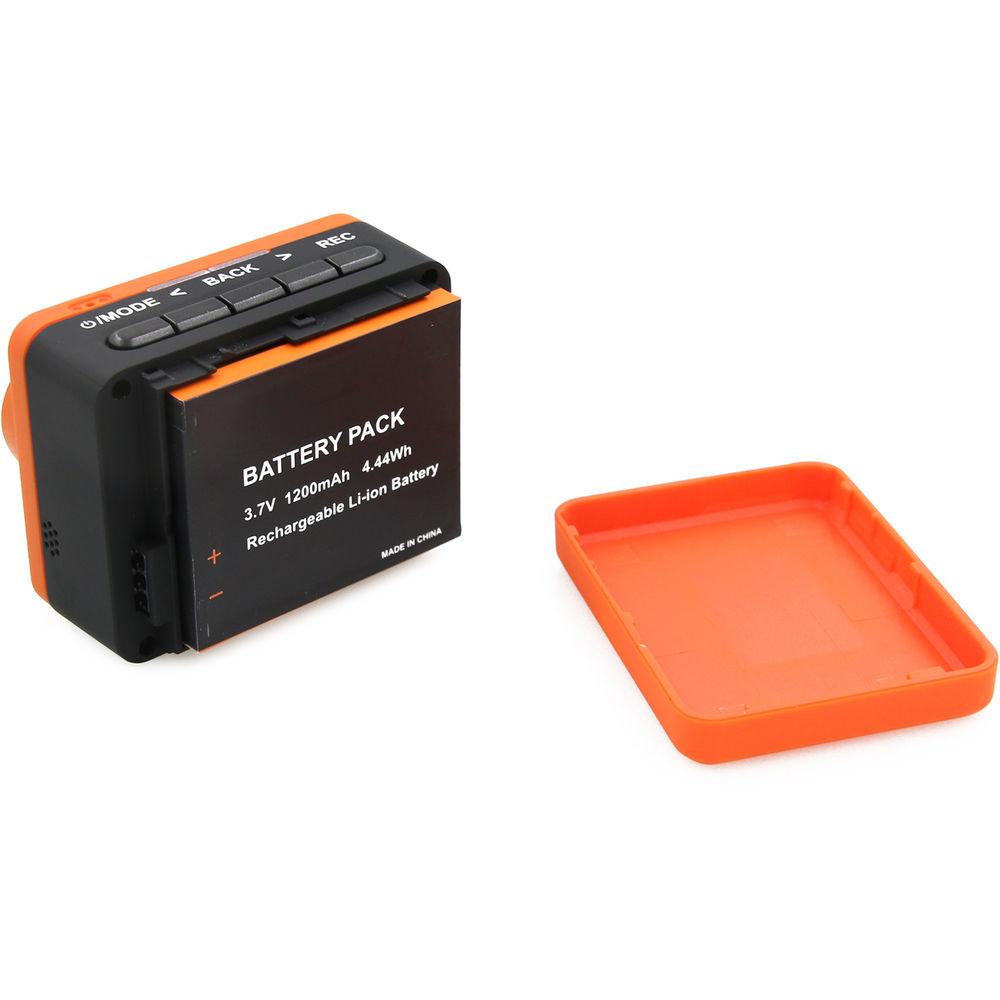

- 3.7V, 1200mAh lithium-ion battery (4K/30 fps video for up to 100 minutes; up to 8 hours of standby time)
- Photo-capture self-timer (Countdown: Off, 2, 3, 5, 10, 30, 60 seconds)
- Automatic adjustment of frame rates and other parameters at select resolutions to best match lighting conditions (assignable)
- H.264 encoding, MP4 file format, multiple-stream encoding
- 60 Mbps max bit rate
- Motion detection recording (Sensitivity: Off, Low, Medium, High)
- Shutter Settings: Off, 1/30, 1, 2, 5, 10, 30, 60 seconds
- Scene Modes: Normal, Flashlight, Night, Sport, Landscape, Face, Sunset
- Special Effects: Normal, Painting, Retro, Negative, Black & White, Color Boost, 70 Years

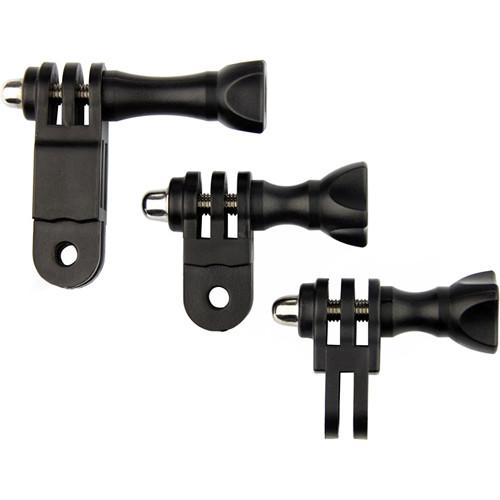

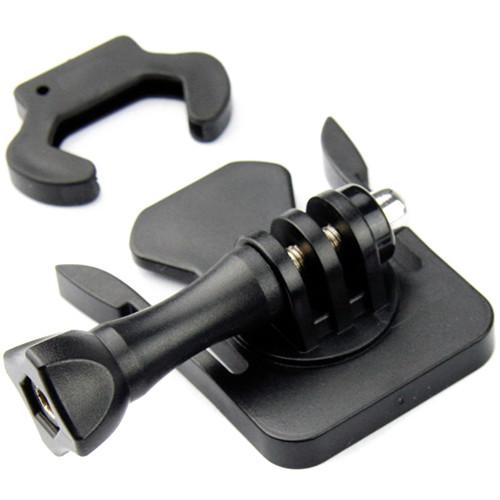

- Variety of accessories supplied, including flat and curved base mounts for attaching to helmets and other curved surfaces, and desktops/walls and other flat surfaces

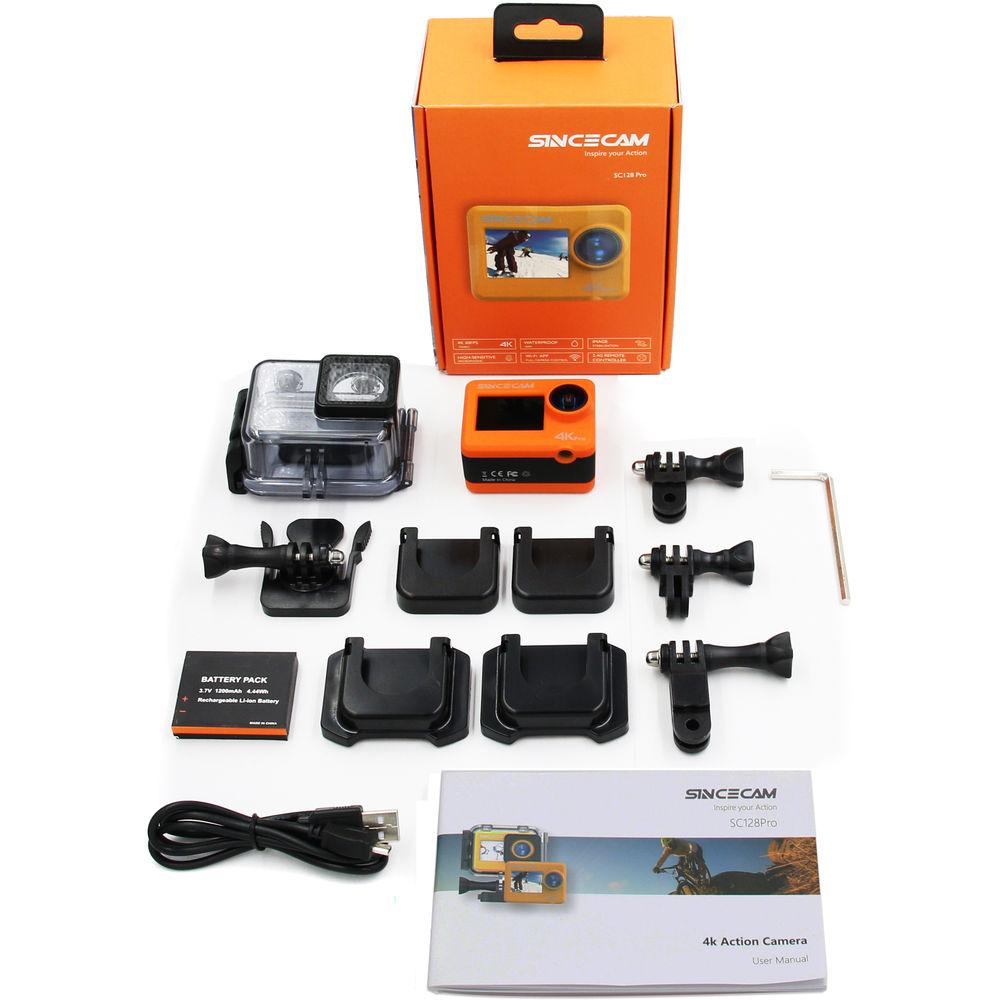

UPC: 606034543386 In the Box SINCECAM SC128Pro 4K Action Camera 8-Pin USB Cable Dive Case Flat Base with 3M Sticker Curved Base with 3M Sticker 2 x Vertical Angle Attachments Parallel Angle Attachment Female Tripod Screw Adapter Rubber Protection Kit Hex Wrench 1200mAh Lithium-Ion Battery Limited 1-Year Warranty User Manual PDF 45.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SINCECAM SC128Pro 4K Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSINCECAM SC128Pro Specs | | | Sensor | 1-Chip 1/2.3" CMOS | | Sensor Resolution | 12.4 MP | | | | Maximum Aperture | f/2.8 | | Lens Elements | 8 | | Fixed Focus | Yes | | Angle of View | Ultra Wide: 166° | | | | Recording Media | x microSD/HC/XC | | Video Format | 3840 x 2160 at 25/30 fps (MP4 via H.264)
2880 x 2160 at 25/30 fps (MP4 via H.264)
2704 x 2028 at 25/30 fps (MP4 via H.264)
2704 x 1520 at 25/30 fps (MP4 via H.264)
2560 x 1440 at 25/30/50/60 fps (MP4 via H.264)
1920 x 1440p at 25/30/50/60 fps (MP4 via H.264)
1920 x 1080p at 25/30/50/60/100/120 fps (MP4 via H.264)
1280 x 960p at 25/30/50/60/100/120 fps (MP4 via H.264)
1280 x 720p at 25/30/50/60/100/120/200/240 fps (MP4 via H.264) | | Aspect Ratio | 16:9
4:3 | | Slow Motion Mode | 120 fps Recorded at 1920 x 1080p
120 fps Recorded at 1280 x 960p
240 fps Recorded at 1280 x 720p
120 fps Recorded at 1280 x 720p | | Still Image Resolution | JPEG: 16 Megapixel, 4608 x 3456
JPEG: 14 Megapixel, 4254 x 3264
JPEG: 12 Megapixel, 4000 x 3000
JPEG: 8.3 Megapixel, 3840 x 2160
JPEG: 5 Megapixel, 2560 x 1920
JPEG: 3 Megapixel, 2048 x 1536 | | Microphone Recording Angle | 360° | | Channels | 2.0-Channel Stereo | | Audio Format | AAC | | Sampling Frequency | AAC: 48.0 kHz | | | | Display Type | LCD | | Screen Size | 1.5" | | Resolution | 480 x 240 | | | | Shutter Speed | 1/30 - 60 Second (Photo) | | Photo ISO Range | 100 - 1600 (Auto) | | Video ISO Range | 100 - 1600 (Auto) | | Burst Photo | 10 | | | | Image Stabilization | Digital | | Waterproof Depth Rating | 131.0' / 40.0 m (Waterproof Housing) | | White Balance Modes | Auto
Cloudy
Daylight
Flash
Fluorescent
Outdoors
Underwater | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | | | Supported Languages | Arabic
Dutch
English
French
German
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1200 mAh | | Charging Method | USB | | Dimensions (W x H x D) | 2.3 x 1.3 x 1.8" / 5.8 x 3.2 x 4.5 cm | | Weight | 3.03 oz / 86 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.3 x 4.4 x 2.9" |
