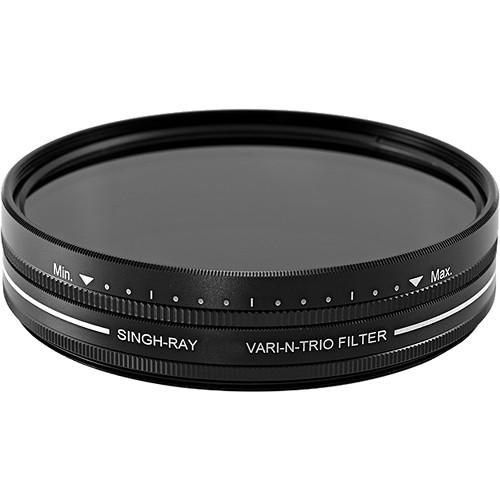

Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More The Singh-Ray 58mm Vari-N-Trio Variable Neutral Density, Warming Circular Polarizer, and Color Intensifier Filter is a filter that combines a solid variable neutral density element with a warming circular polarizer and color intensifier element. The solid variable neutral density element provides an exposure reduction of 4 to 8 stops. Its 1.2 to 2.4 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than would normally be required. The degree of density is easily controlled by rotating the rear filter ring, helping you to predetermine the additional exposure length required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.
Above this filter's solid variable neutral density element is an independently-rotating warming circular polarizer and color intensifier element. It can be applied to increase color contrast as it creates a warm cast over an entire image while helping to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter element arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
The Singh-Ray 58mm Vari-N-Trio Variable Neutral Density, Warming Circular Polarizer, and Color Intensifier Filter's warming and color intensifying effect can be obtained under daylight when this filter is used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected. It is intended to affect all colors of the visible spectrum passing through it, with an emphasis on wavelengths of light that are responsible for the appearance of green, yellow, orange, and red. Optical glass within aluminum-alloy filter rings that are durable while remaining lightweight is used for the construction of this filter. - Variable neutral density filter element that allows differing amounts of density from scene to scene combined with a warming circular polarizing and color intensifying element that can be applied to increase color contrast and create a warm cast over an entire image while helping to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- 1.2 to 2.4 neutral density filter element darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required
- Providing a reduction of 4 to 8 stops, variable neutral density filter element allows you to control depth of field and convey movement more easily
- Offers increased flexibility to use specific ISO settings or ISO films under bright ambient light
- Provides increased exposure flexibility while using cinema or video cameras within a designated film frame rate
- Polarizing filter element arranges, and filters, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Increases appearance of warmth as well as color contrast over an entire image with an emphasis on wavelengths of light that are responsible for the appearance of green, yellow, orange, and red
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Strongest polarizing effect when used at a 90° angle from the sun
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
- Lightweight and durable aluminum-alloy filter ring with 58mm front filter threads
- Leatherette pouch with microfiber interior for storage and transport
In the Box Singh-Ray 58mm Vari-N-Trio Variable Neutral Density, Warming Circular Polarizer, and Color Intensifier Filter Filter Pouch Limited Lifetime Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 eqbazcwexyqtbuuuxvrcvabdys How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Singh-Ray 58mm Vari-N-Trio Variable Neutral Density, Warming Circular Polarizer, and Color Intensifier Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSingh-Ray R-10045 Specs | Filter Type | Variable ND Combination | | Combination Type | Circular Polarizer, Color Intensifier, Warming | | Density | 1.2 (4 Stops) to 2.4 (8 Stops) | | Shape | Circle | | Circular Size | 58 mm | | Front Accessory Thread / Bayonet | 58 mm | | Filter Thickness | 0.68" / 17.3 mm | | Filter Material | Glass | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.5 x 4.2 x 1.1" |
