Product description

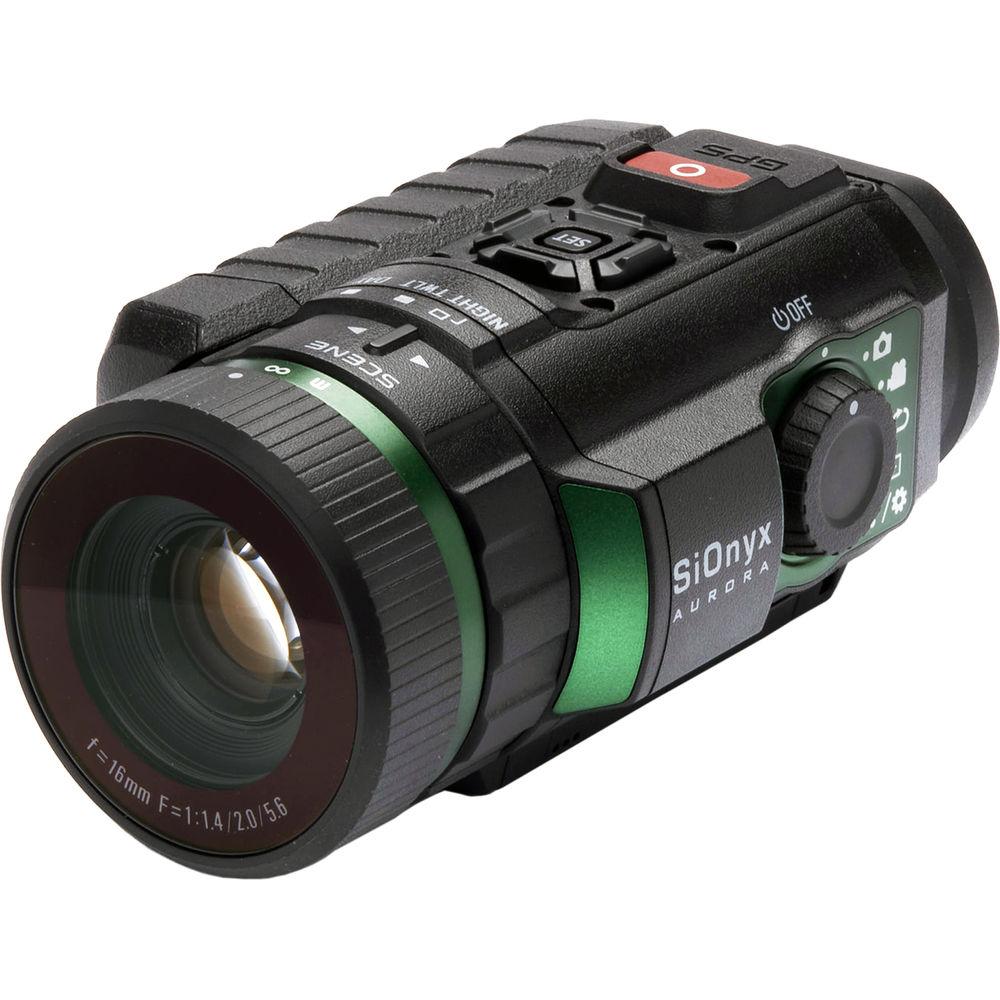

SiOnyx Aurora Night Vision Camera
SiOnyx Aurora - Unboxing
SiOnyx Aurora - First Use
iOnyx Aurora - Using the Camera
SiOnyx Aurora - Special Functions

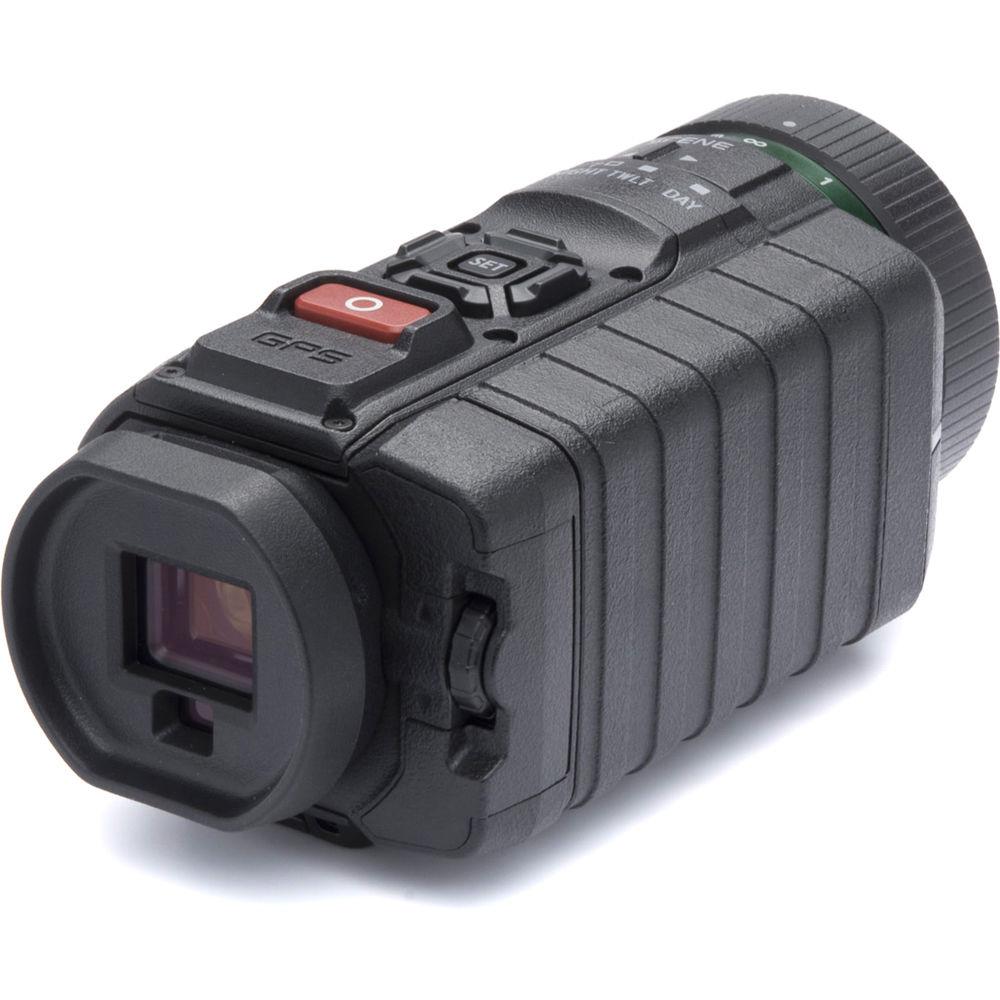

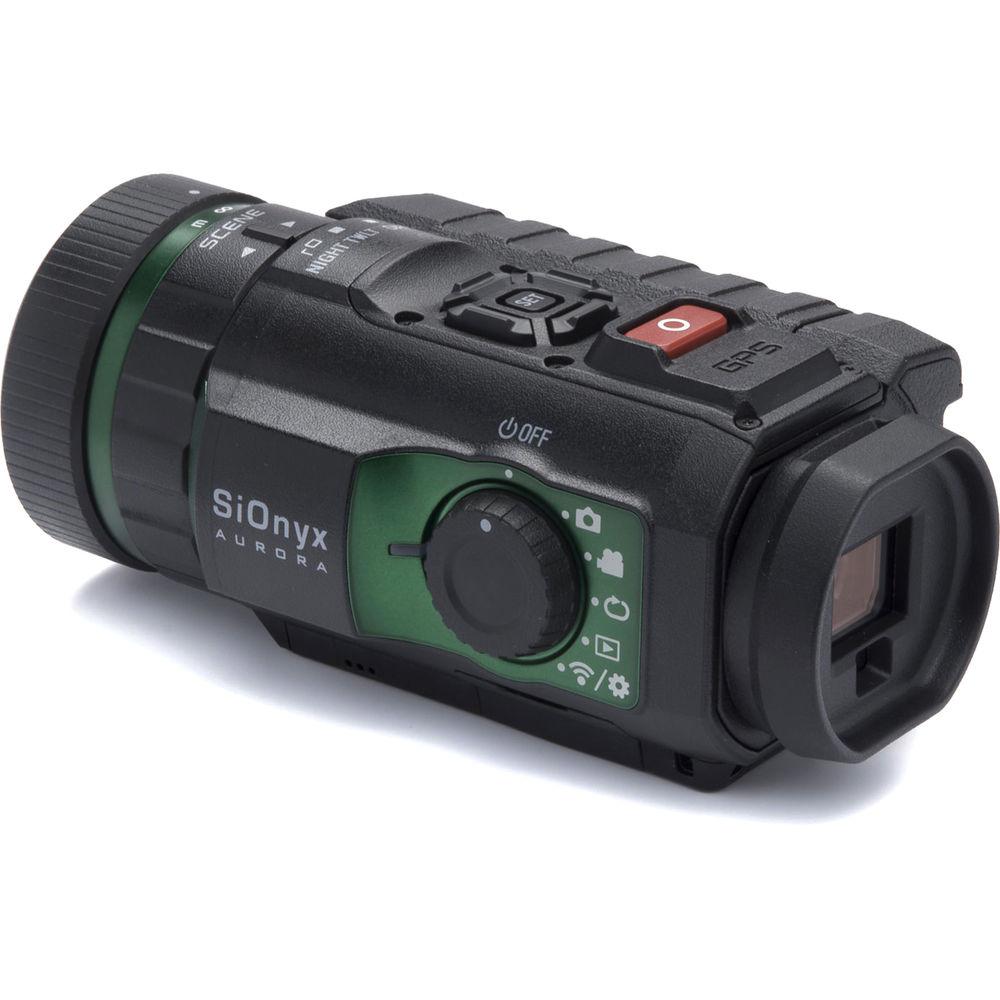

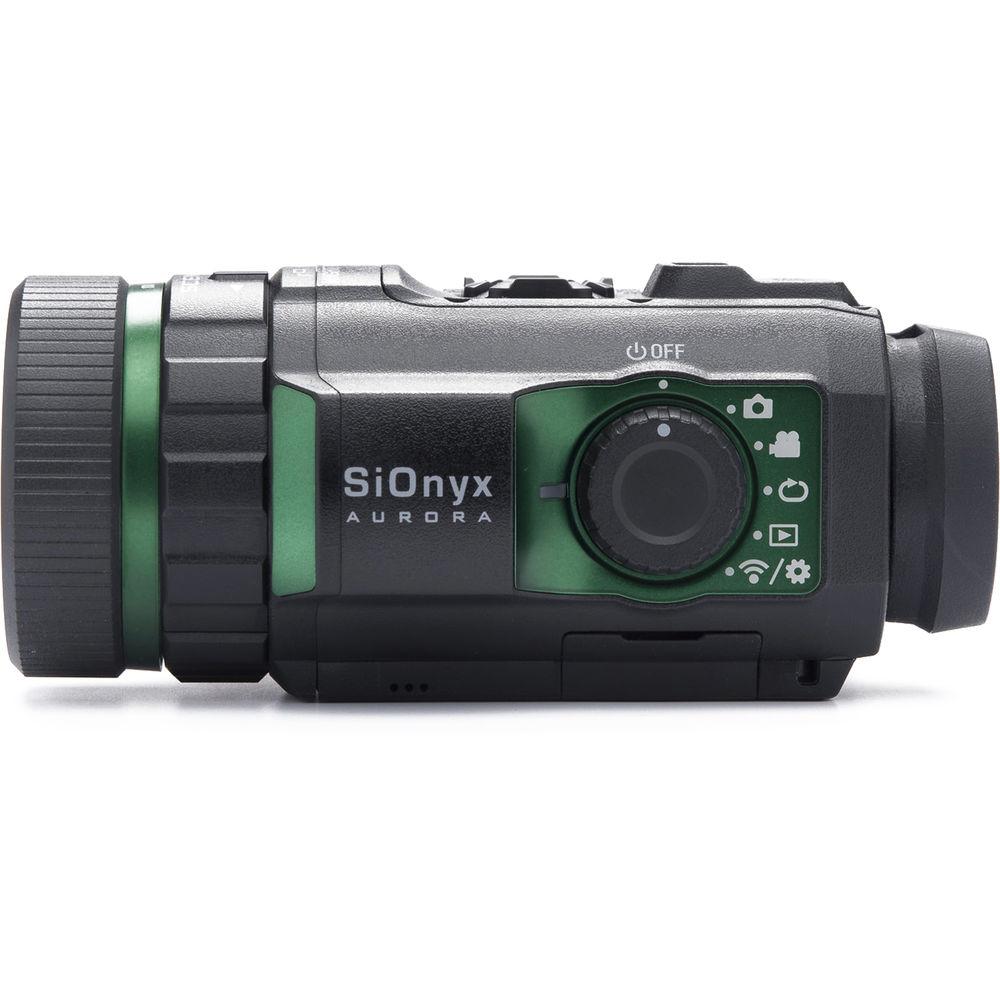

The SiOnyx Aurora IR Night Vision Camera Explorer Edition bundles the Aurora camera with key accessories used by hunting enthusiasts. The Aurora camera is a rugged action-style camera designed to capture your surroundings in extreme low-light conditions as well as under starlight, moonlight, and bright sunlight. The Aurora uses a 1" type CMOS sensor with large pixels that allow for clear image capture in low light. It records 720p video and 0.9MP stills to up to a 32GB microSD card. Video is captured at 8-60 fps selectable frame rates.

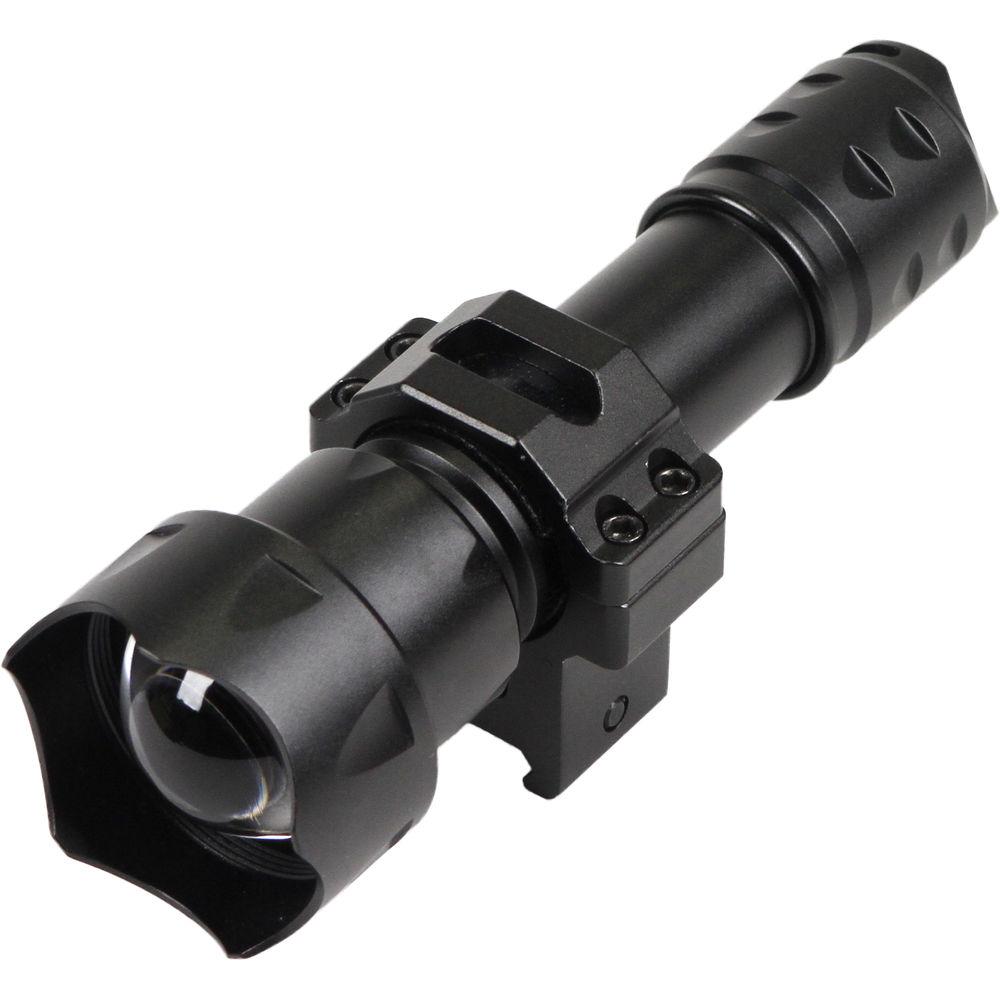

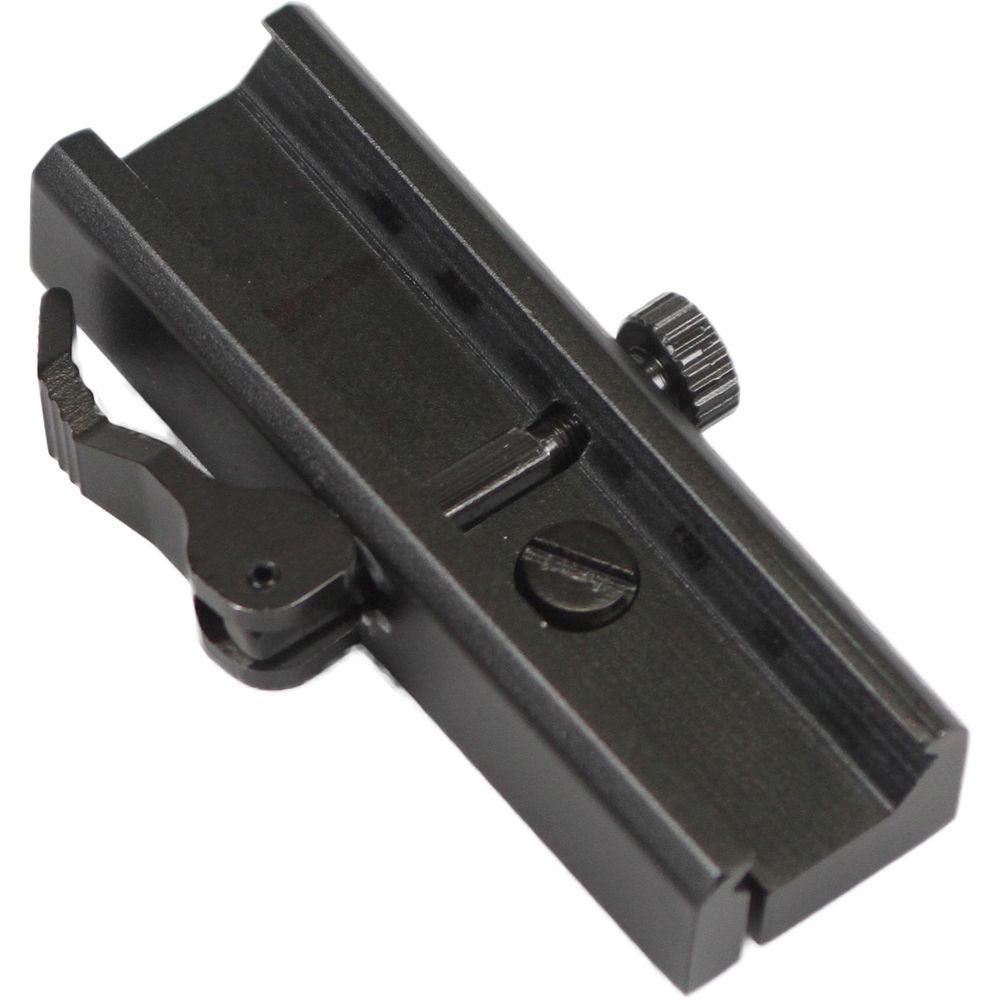

The bundled accessories complete the camera for the hunter. The Picatinny rail mount secures to the 1/4"-20 mount on the bottom of the camera and allows you to attach the 940nm IR Illuminator to your rifle. Two camera batteries and an Illuminator battery as well as chargers and a charging cable are supplied, and a 32GB microSD card is provided for storage. The camera and accessories are delivered in a robust, waterproof hard carry case that lets you keep everything organized in your adventures.

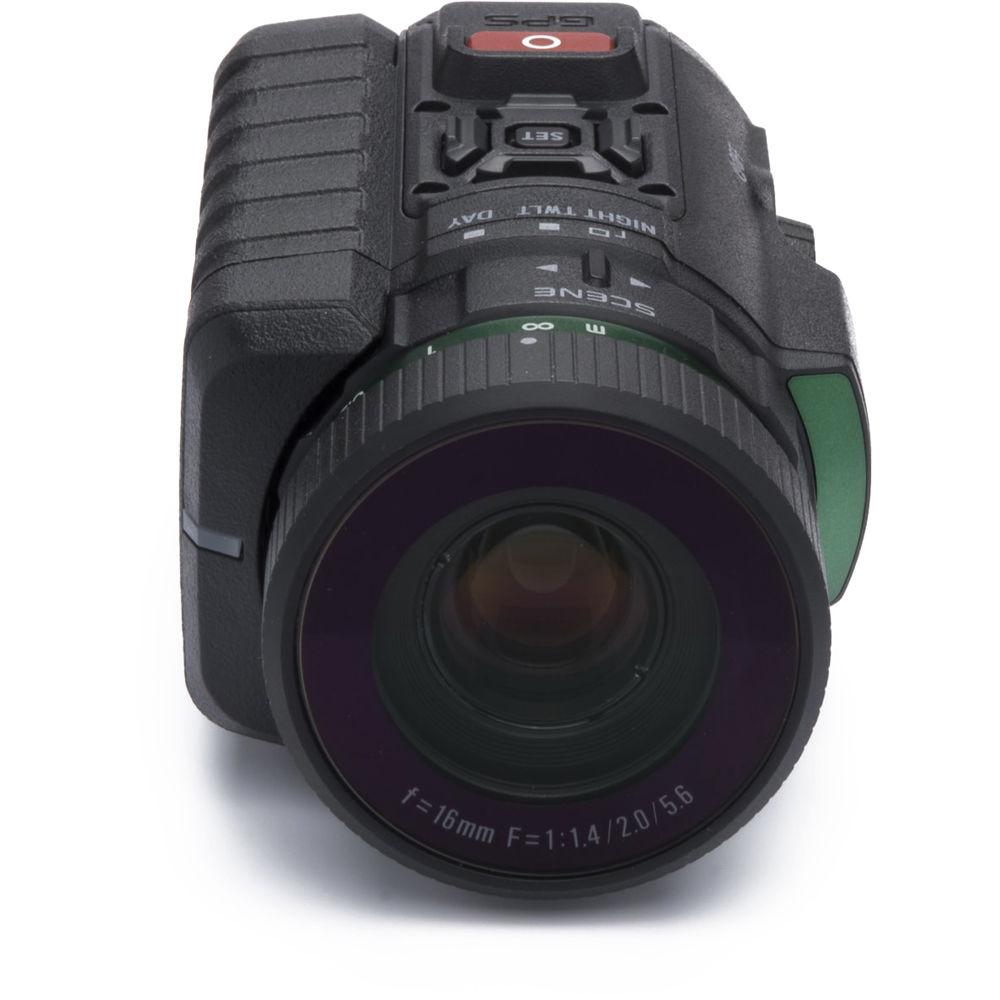

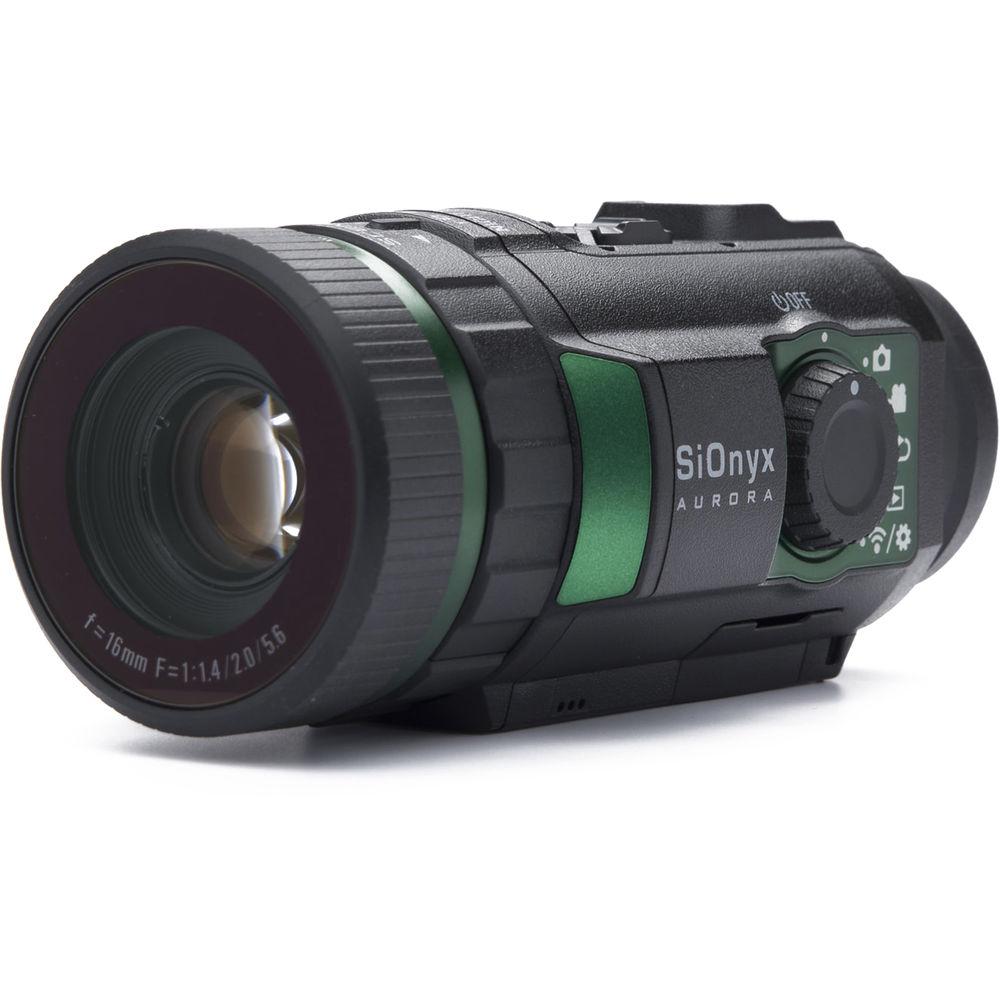

The Aurora camera features an all-glass 16mm lens with 3x digital zoom and f/1.4, 2.0, and 5.6 aperture settings. You can view your activities in color or monochrome using the OLED viewfinder. A diopter on the EVF offers a sharp view for users with and without corrective lenses. The camera offers Daytime, Twilight, and Night modes with the white balance set automatically to each mode. A focus peaking function and a manual focus ring are used to keep your images sharp. The Aurora also lets you live stream your content using the companion Aurora iOS/Android app.
The compact, lightweight Aurora has a waterproof rating of IP67, suiting it to hunting, boating, nature watching, and other outdoor activities. Additional features include GPS, an accelerometer, a compass, and a 1/4"-20 tripod mount thread. The included rechargeable lithium-ion batteries each provides a runtime of up to two hours.
Features
Aurora IR night vision camera plus accessories for the hunting enthusiast

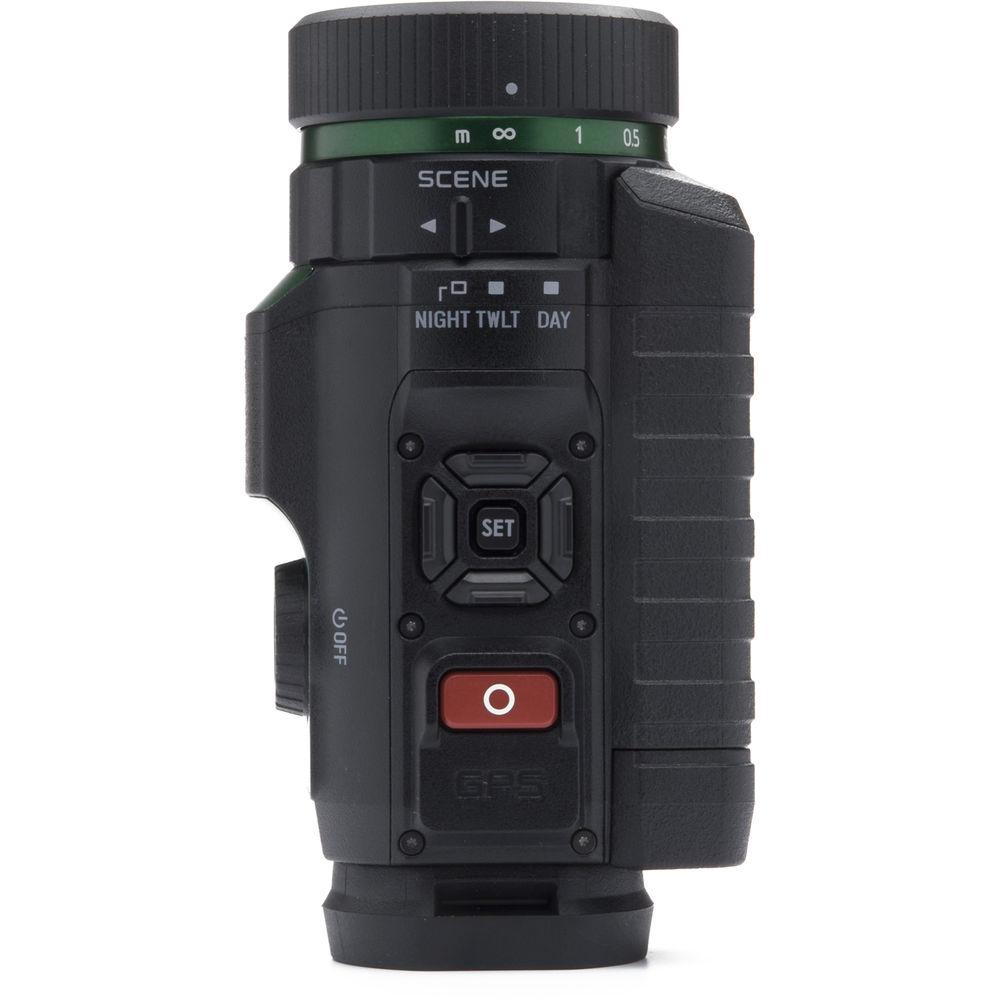

Daytime, Twilight, and Night modes
Capture video and stills in near dark, moonless, and starlight conditions
1" type CMOS sensor with large pixels for low-light imaging
720p video and 0.9MP still photos
ISO equivalent of over 812,000
An adjustable iris switches between f/5.6, f/2.0, and f/1.4 depending on available light
16mm all-glass lens with 3x digital zoom
OLED EVF with diopter
Live stream using the Aurora iOS/Android app
Selectable frame rates of 8, 15, 24, 30, and 60 fps
Time-lapse, image stabilization, digital zoom, and shutter functions
Focus peaking function and manual focus ring
EVF with color and monochrome settings, adjustable diopter, and auto-off to save power
Each included battery provides up to two hours of shooting time
GPS, accelerometer, and compass
1/4"-20 tripod mount thread
UPC: 811251020002 In the Box SiOnyx Aurora IR Night Vision Camera Explorer Edition
Aurora IR Night Vision Camera wdtxvtruawecrsybuyfuydxxsstvrrccvzyxx
Custom Aurora Picatinny Rail Mount
Illuminator Picatinny Rail Mount
Waterproof Hard Case
940nm IR Illuminator
2 x Camera Battery
Camera Battery Charger
Illuminator Battery Charger
32GB microSD Card
USB Charging/Data Cable
Lanyard
Limited 1-Year Warranty
Guides & Manuals Table of Contents
Upload User Manual
Have you got an user manual for the SiOnyx Aurora IR Night Vision Camera Explorer Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User Manual
The user manual for the SiOnyx Aurora IR Night Vision Camera Explorer Edition can be downloaded in PDF format at the link stated below.
1 x microSD/HC/XC (32 GB Maximum) Class 10 / UHS-1
Video Format
1280 x 720p at 8/15/24/30/60 fps (MOV)
Still Image Resolution
JPEG: .9 Megapixel
Display Type
OLED
IP Rating
IP67
White Balance Modes
Daylight Night Twilight
Built-In Mic
Yes
Built-In Speaker
Yes
Wi-Fi
Yes
Tripod Mount
1/4" - 20
Inputs
1 x USB Micro-B Charging
Outputs
1 x USB Micro-B Download
Microphone Input
None
Headphone Jack
No
Battery
Rechargeable Battery Pack Max Runtime: 2 Hours per Charge
Charging Method
USB
Dimensions (W x H x D)
8.3 x 3.9 x 3.7" / 21.0 x 10.0 x 9.5 cm
Weight
9.63 oz / 273 g
Package Weight
5.875 lb
Box Dimensions (LxWxH)
11.3 x 10.9 x 5.8"
