Product description

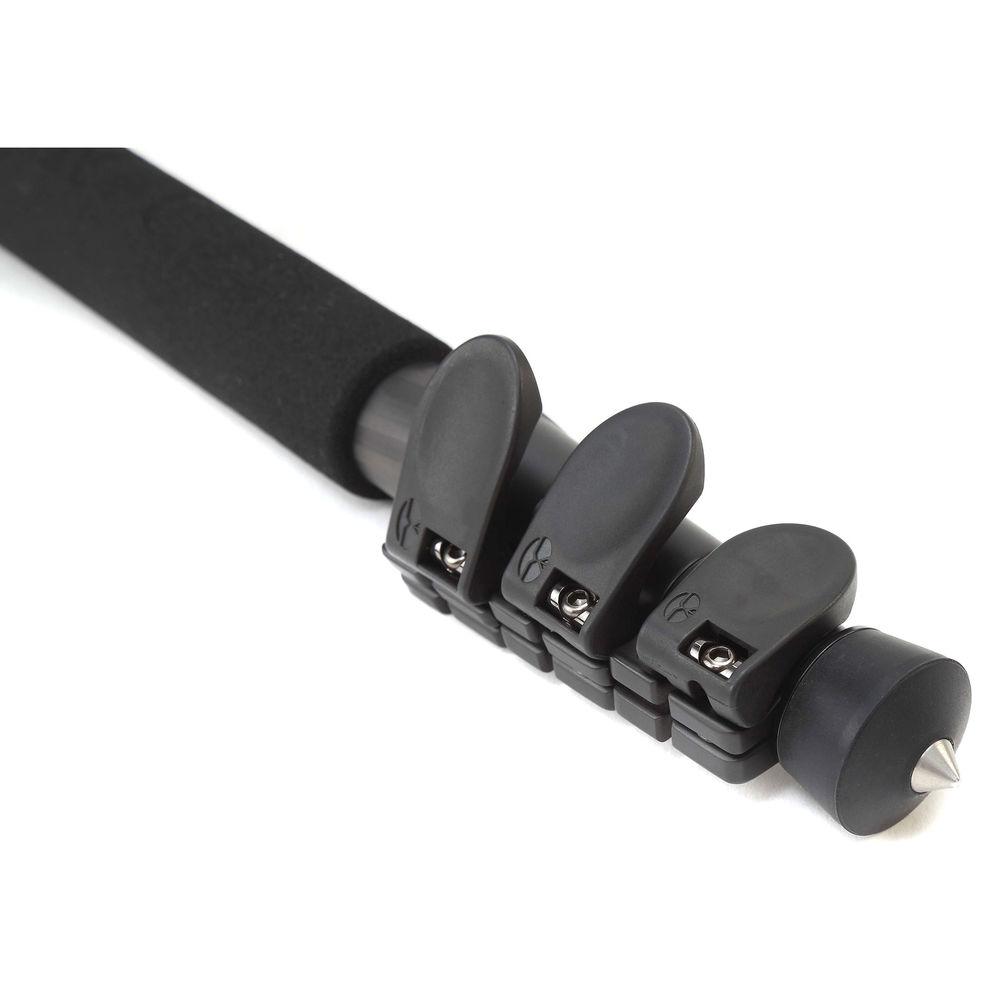

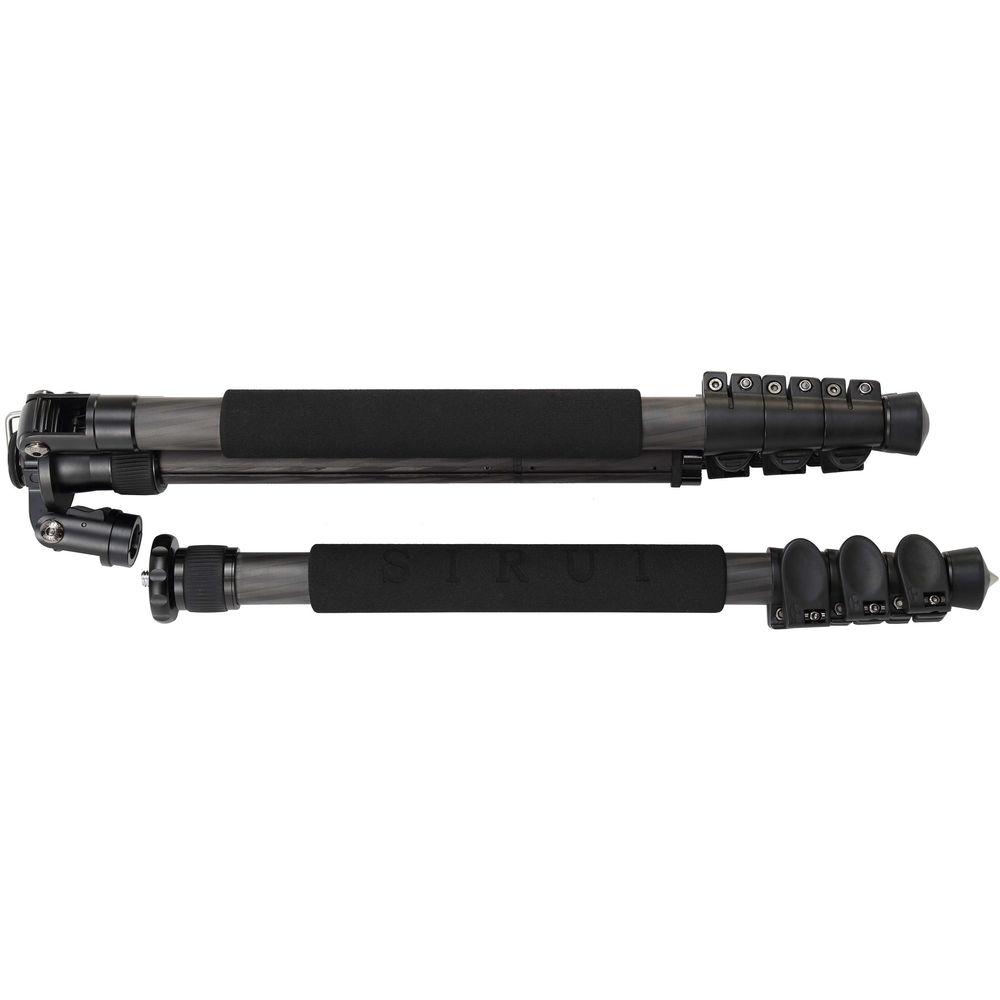

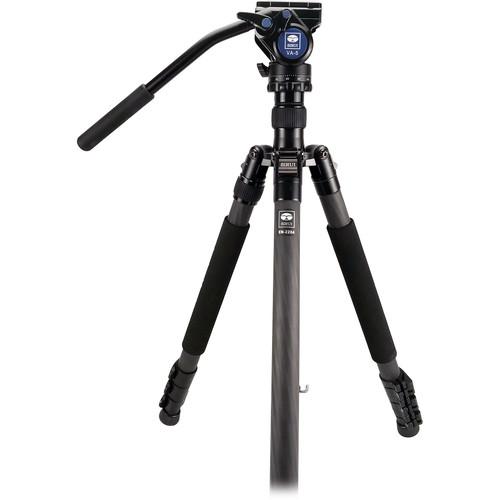

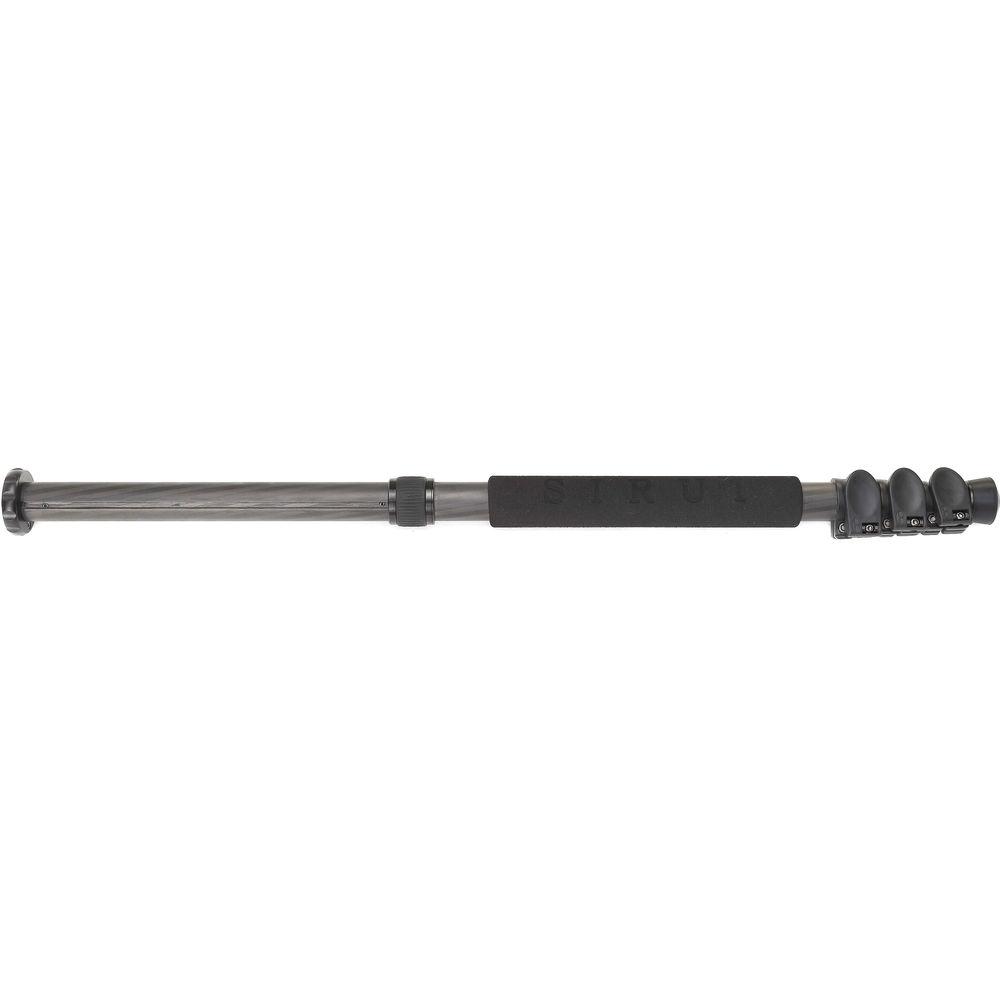

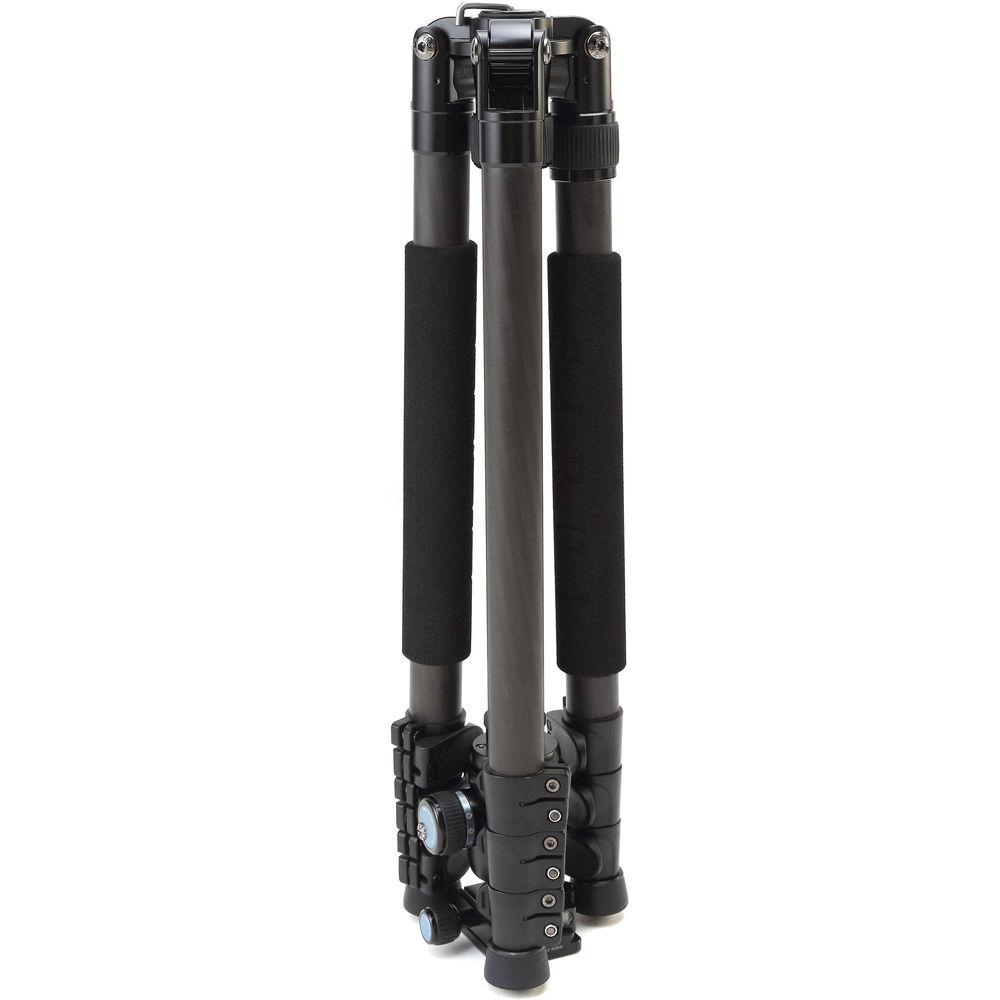

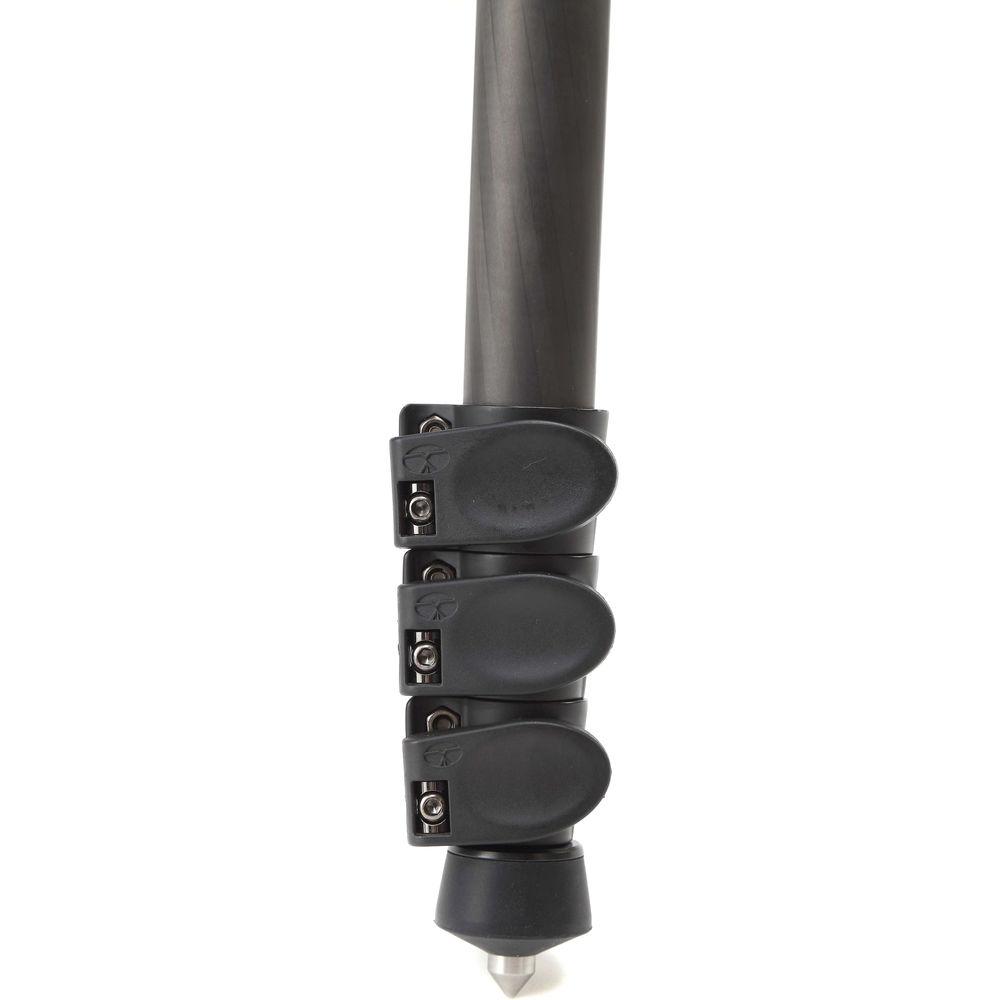

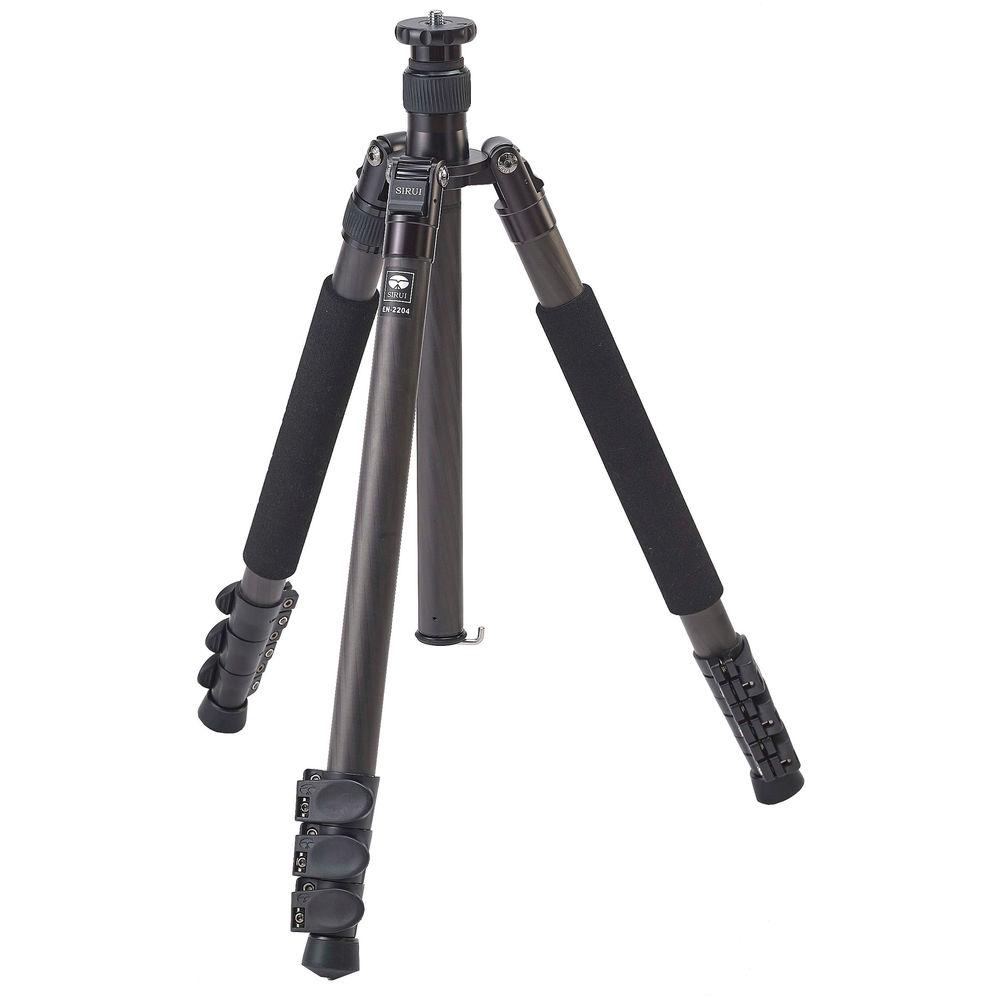

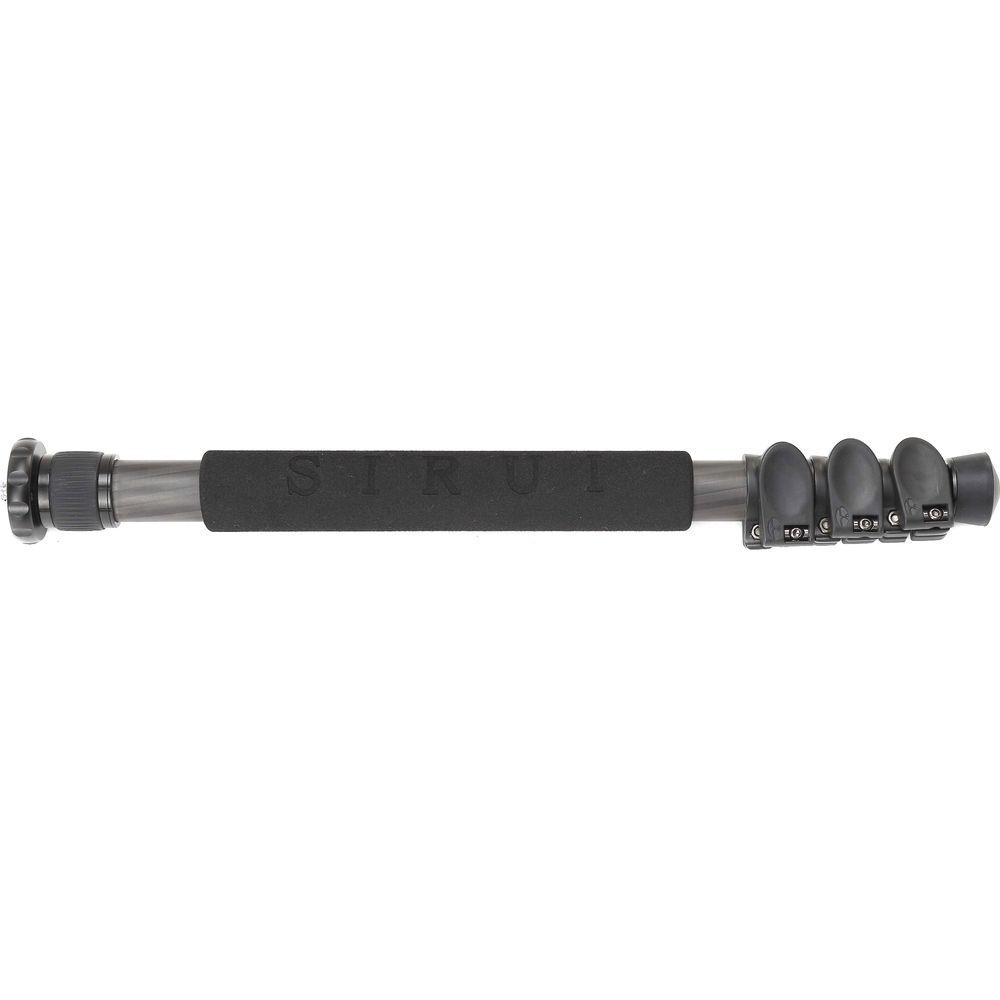

• EN-2204 Carbon Fiber Tripod The EN-2204 Carbon Fiber Tripod from Sirui is a full-size four-section carbon fiber tripod that can convert into a monopod for versatile applications. With the center column extended, the tripod's maximum height is 65" and as a monopod its maximum height is 64". The tripod weighs just 3.3 lb and can support up to 31 lb. The split center column allows for easy changeover to a short column for low angle shots. Also, the center column can be reversed to shoot from under the tripod.The four-section legs feature flip locks for easy adjustment and each leg can be independently placed at three position angles and automatically lock in place for secure shooting on uneven ground. Retractable spiked feet supply additional stability when shooting outdoors. The legs on the EN-2204 fold up 180º for compact storage and transport; its folded length is just 19". The tripod's rugged spider is made from forged aluminum alloy and the legs are made from 8-layer 100% carbon fiber for stability, performance and longevity.
• VA-5 Ultra-Compact Video Head The SIRUI VA-5 Ultra-Compact Video Head uses a fluid system to produce smooth pans and tilts for DSLRs and compact video cameras weighing up to 6.6 lb. It features independent pan and tilt locks and uses an internal spring-assisted counterbalance mechanism for smoother tilt movements with heavier cameras. A TY-70A quick-release plate comes included, for forward/backward adjustment possible when attached to the head to help balance your camera. A dual safety lock system prevents the plate and your camera from falling off the head when the primary locking mechanism is loosened. To release the plate, simply press the secondary release button. To assist in horizontal alignment of your shots, the head has two bubble levels: one on the base of the head to align the tripod and one on the top of the head to align the camera. One pan handle comes included.
  • • For DSLRs or compact video cameras up to 6.6 lb
    • Fluid system for smooth pan and tilts
    • Internal spring-loaded counterbalance mechanism
    • Quick-release plate with forward/backward adjustment
    • Dual safety lock system prevents plate from slipping off head
    • Two bubble levels: one at base of head, one a top of head
    • Accepts SIRUI TY-50/60/70/70-2 and LP-40/75 and many Arca-compatible quick release plates

• Split Center Column

• Custom Padded Case

• Shoulder Strap

• Adjustment Tool

• Spring Loaded Hook

• Wrist Strap

• 2 x Extra 1/4"-20 and 3/8"-16 Tripod Screw

• Limited 6-Year Warranty

• TY-70A Quick-Release Plate

• Pan Handle

• Limited 6-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EN-2204 Carbon Fiber Tripod

  Load Capacity	31 lb / 14.1 kg
  Maximum Working Height	65" / 165.1 cm
  Max Height without Center Column	53" / 134.6 cm
  Minimum Working Height	6" / 15.2 cm
  Folded Length	19" / 48.3 cm
  Head Mount Type	1/4"-20 Screw, 3/8"-16 Screw
  Weight	3.2 lb / 1.5 kg
  Materials	Carbon Fiber

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Spiked, Retractable

  Center Column Features	Split
  Center Column Sections	2
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	21.5 x 5.7 x 5.5"

• VA-5 Ultra-Compact Video Head

  Camera Plate Features	Sliding Balance Plate
  Camera Plate Type	TY-70A

  Base Mount	3/8"-16 Thread

  Drag Control	Fixed

  Counter Balance	Fixed
  Bubble Level	1
  Dimensions	11.8 x 4.7 x 3.3" / 30 x 12 x 8.3 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	10.9 x 5.3 x 3.7"
