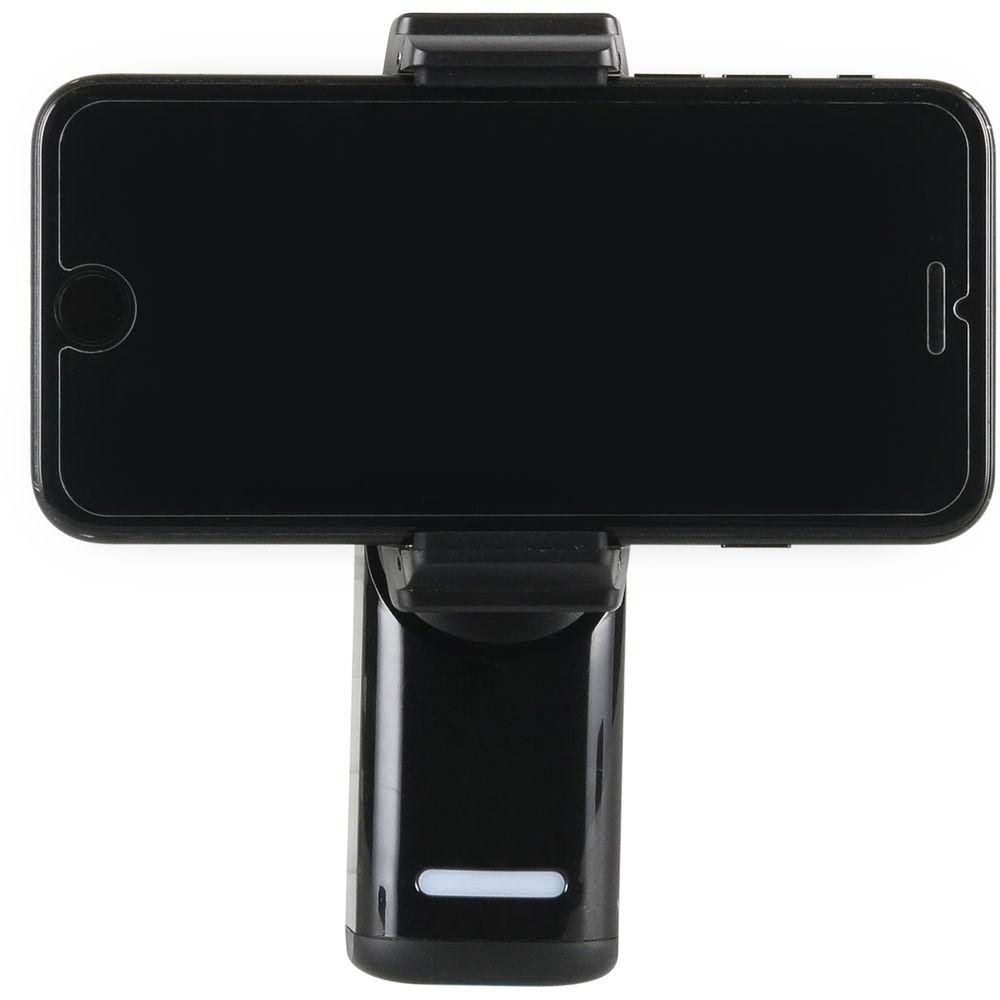

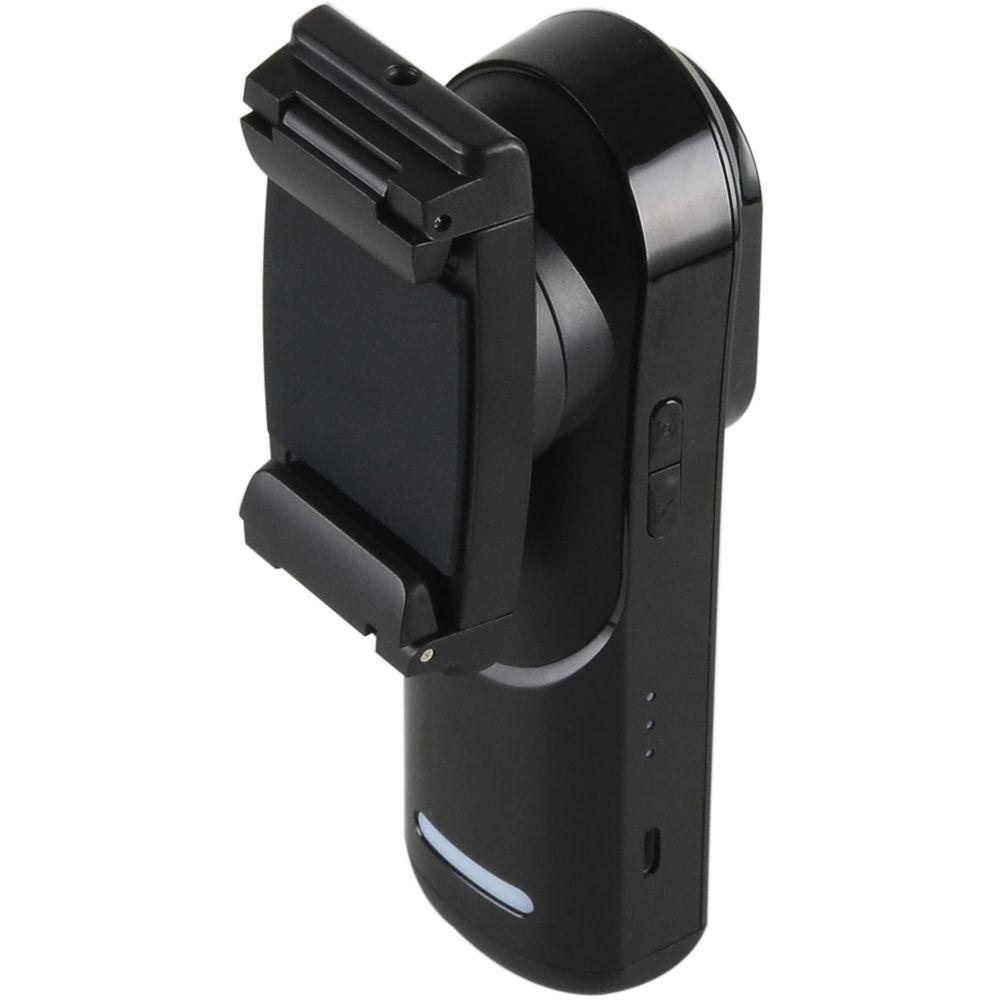

User Manual for Sirui ES-01 Pocket Stabilizer Click to enlarge the picture
Contents of the user manual for the Sirui ES-01 Pocket Stabilizer
- Product category: Grips & Support Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Grips & Support
 |
User manual for the Sirui ES-01 Pocket Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|
Product description Buying Guide: Smartphone Stabilizing Devices Read More - Sirui ES 01 Pocket Stabilizer

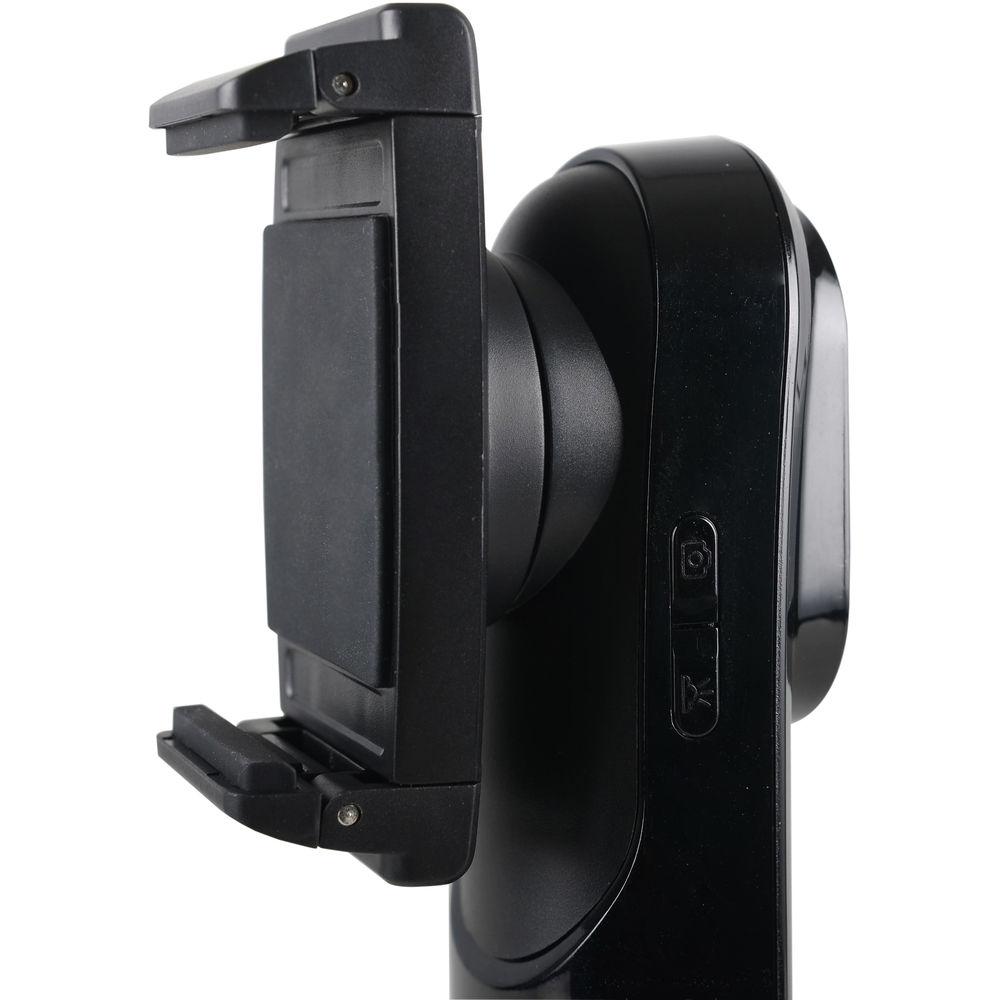

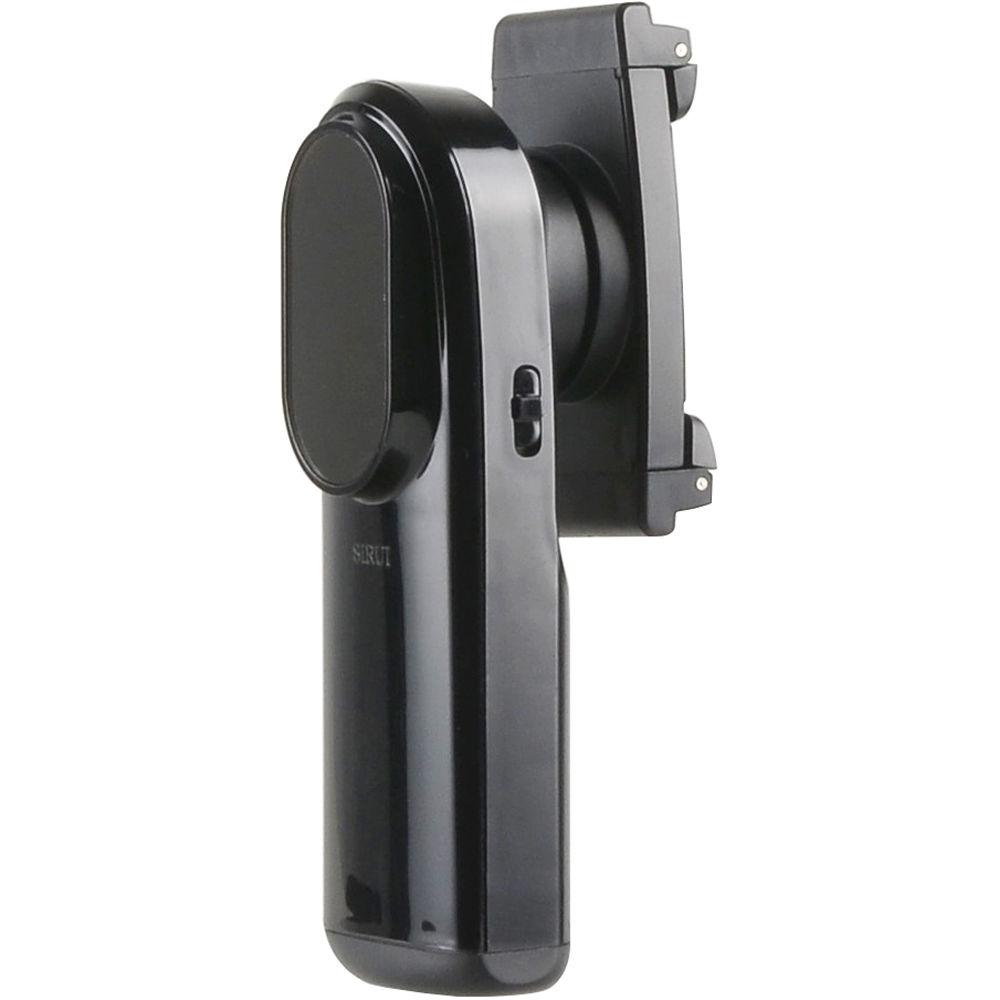

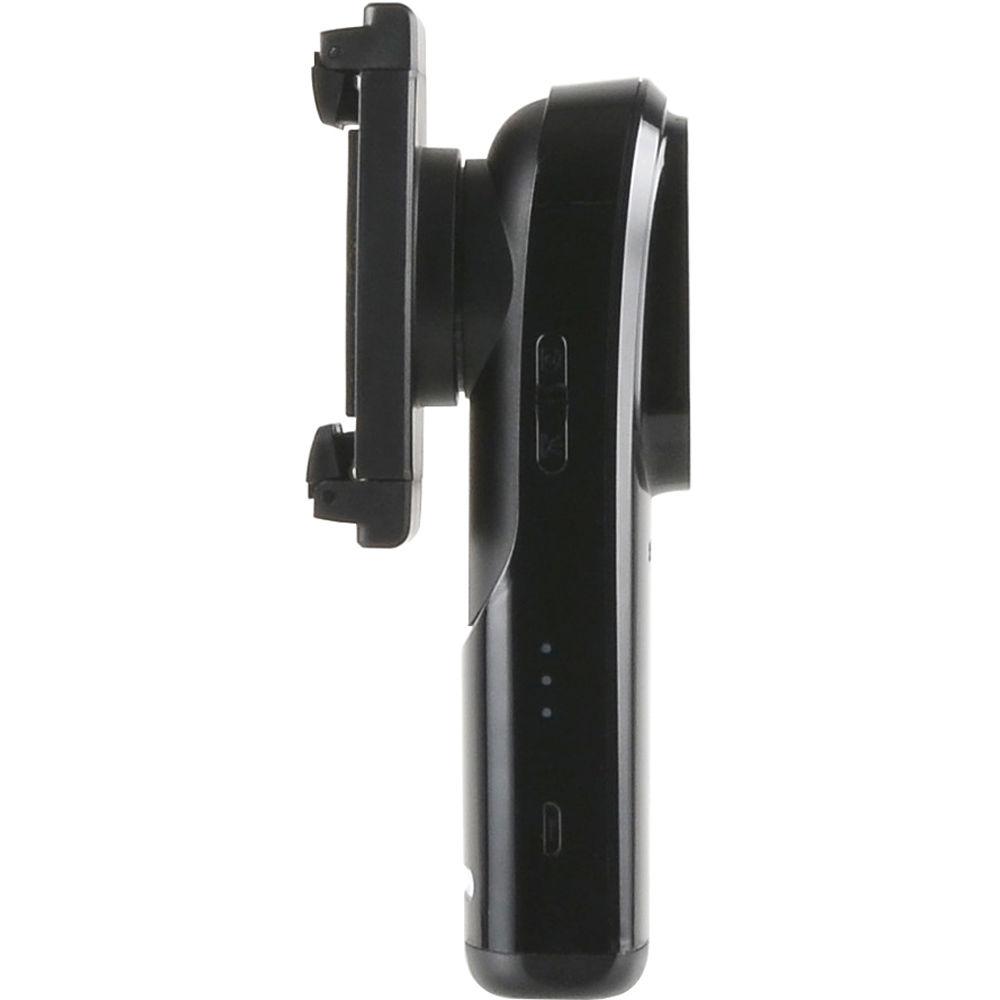

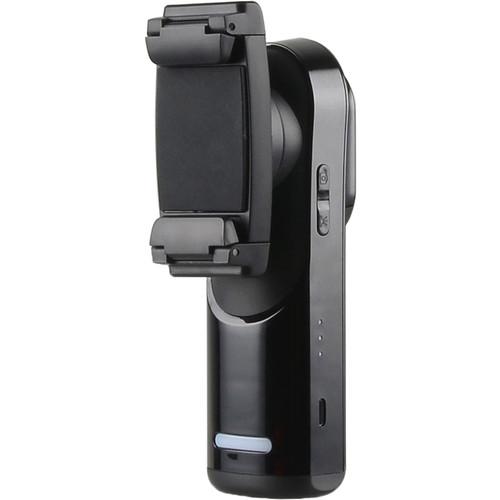

Designed for taking photos, videos, and live broadcasting with your smartphone, the black ES-01 Pocket Stabilizer from Sirui helps reduce shaking to avoid image blur. It can accommodate smartphones up to 5.5" wide with an external lens attached and uses Bluetooth connectivity to control your device's camera via a mobile shutter release. Additionally, an integrated fill light helps brighten selfie shots in dark environments, while a mirror helps to better frame and capture shots, even when using the rear lens of a dual camera system.

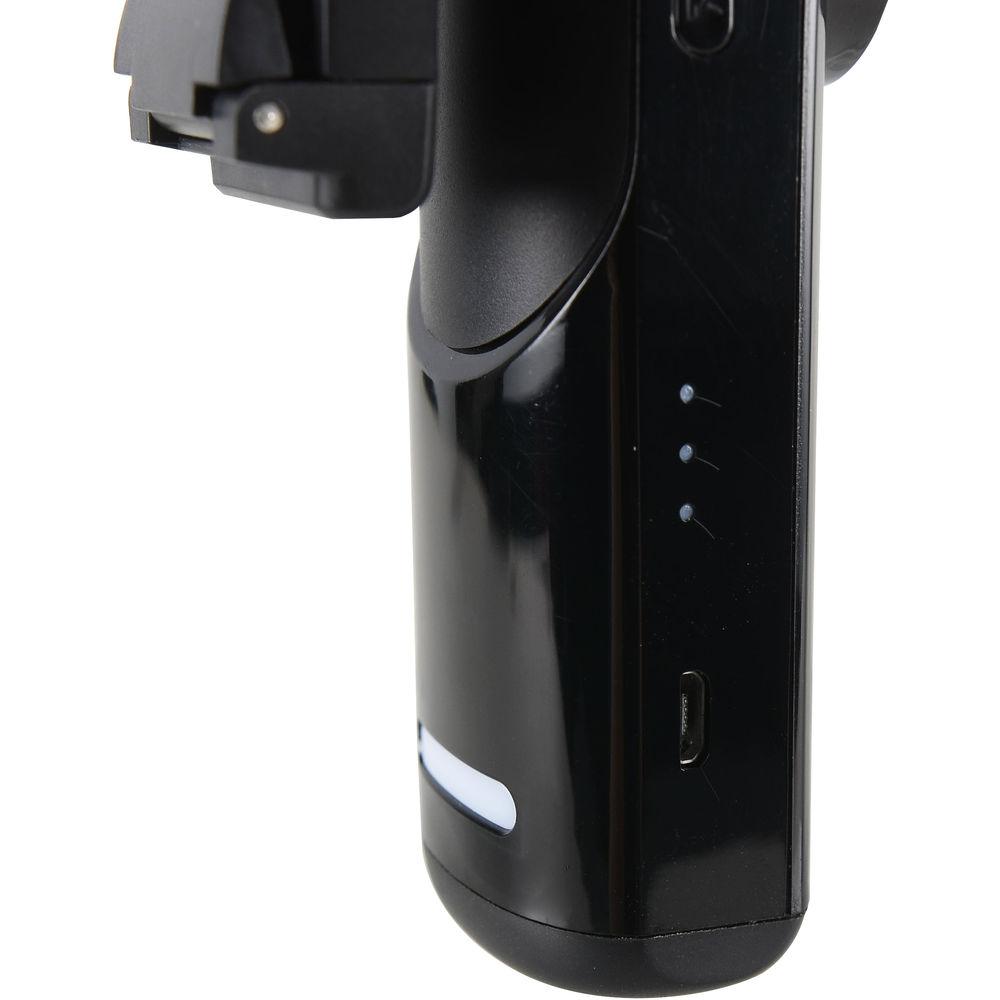

The ES-01 is portable and can fit in your pocket and features a stability augmentation angle from 0 to 330° with an accuracy of 0.1°. It secures itself to your device using a built-in locking pin, its integrated 1000mAh battery lasts for around 2 hours, and recharges in 1.5 hours using an integrated micro-USB port.
Do not force turn the mobile clamp 360°. This will cause damage to the stabilizer. General Features - Lightweight & Portable
- The Sirui ES-01 Pocket Stabilizer is specially designed for taking photos, videos, or live broadcasting with smartphones. It can help to effectively reduce camera shake and the resulting image blur. It's also portable and can fit in your pocket.
- Strong Engine for Keeping Stability
- A strong engine is included for keeping the stabilizer stable, even when using a 5.5" smartphone and Sirui's 18-WA2 wide-angle lens.
- Bluetooth Connection for Fast Control
- Sirui's Pocket Stabilizer can control your device's camera shutter release when paired via Bluetooth.

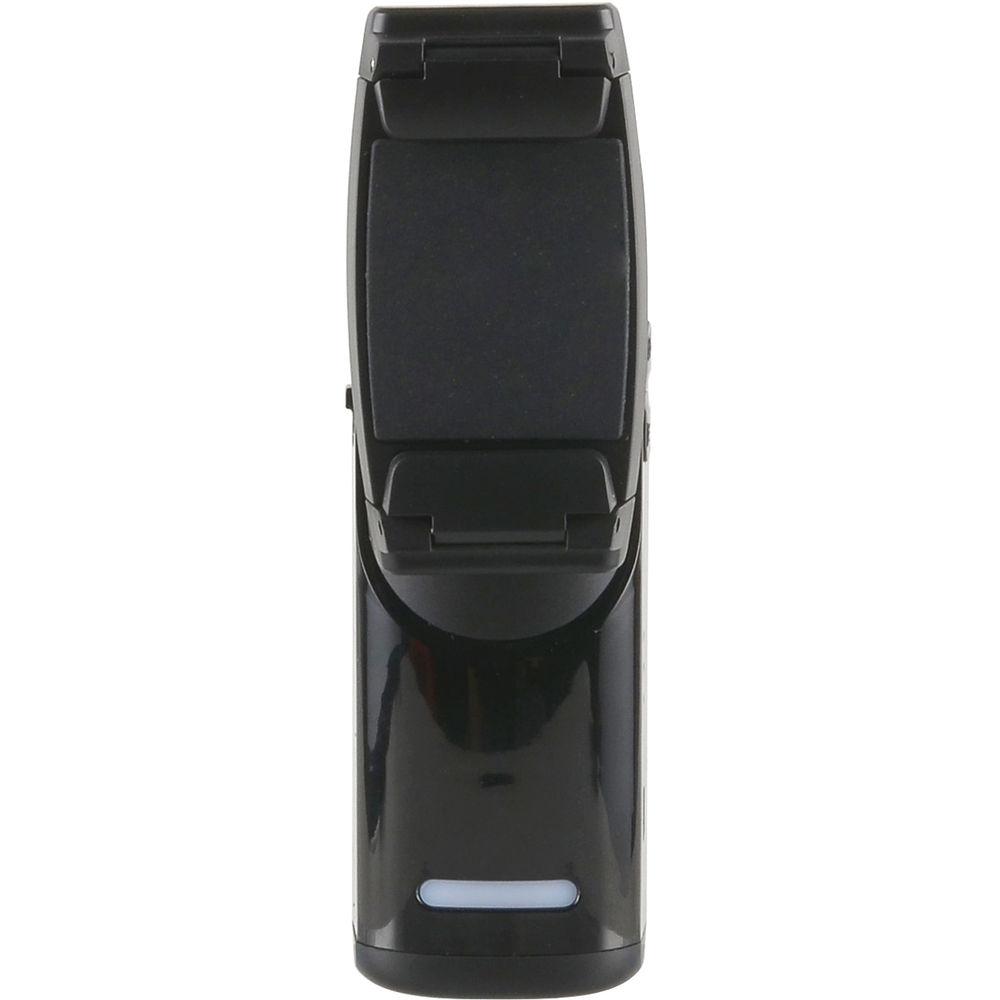

- Fill Light with Three Levels of Brightness
- A built-in fill light has three levels of brightness and its good illuminating selfie shots in dark environments.

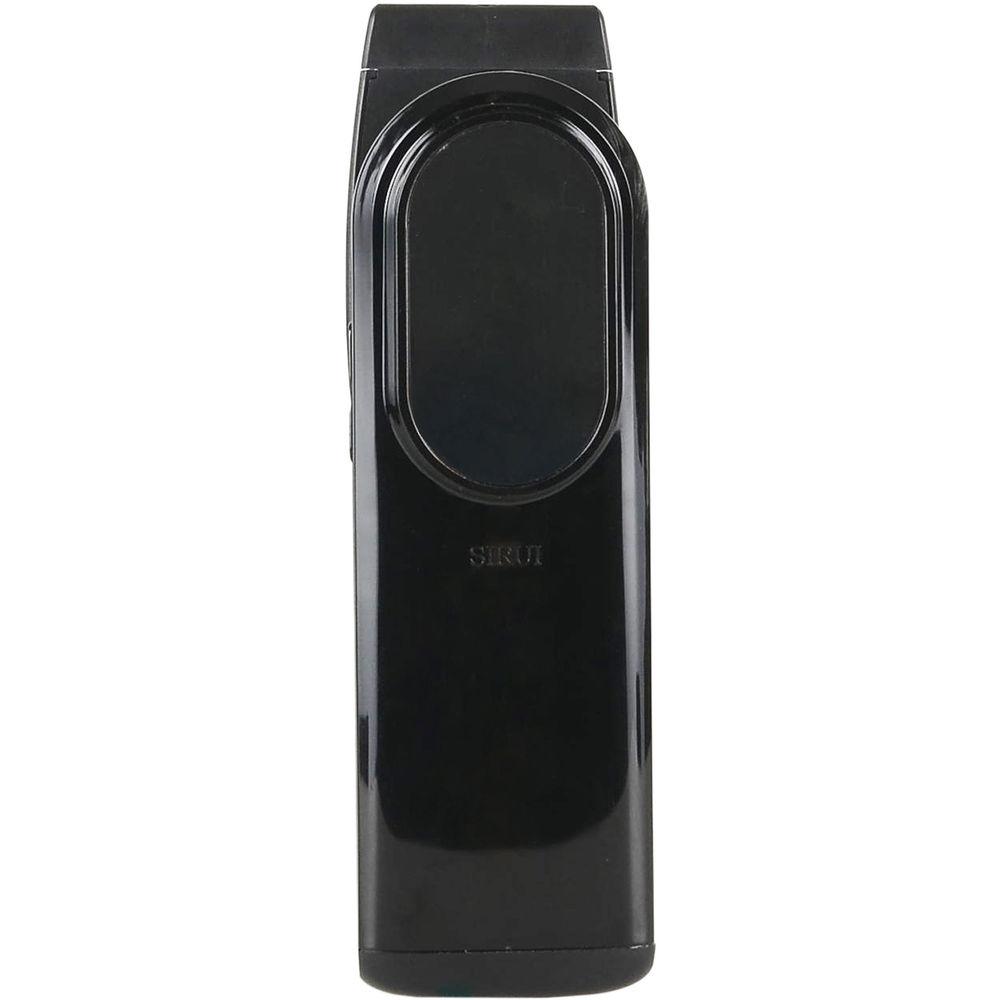

- Selfie Mirror
- A wide mirror on the stabilizer helps capture portrait shots, even when using the rear lens.

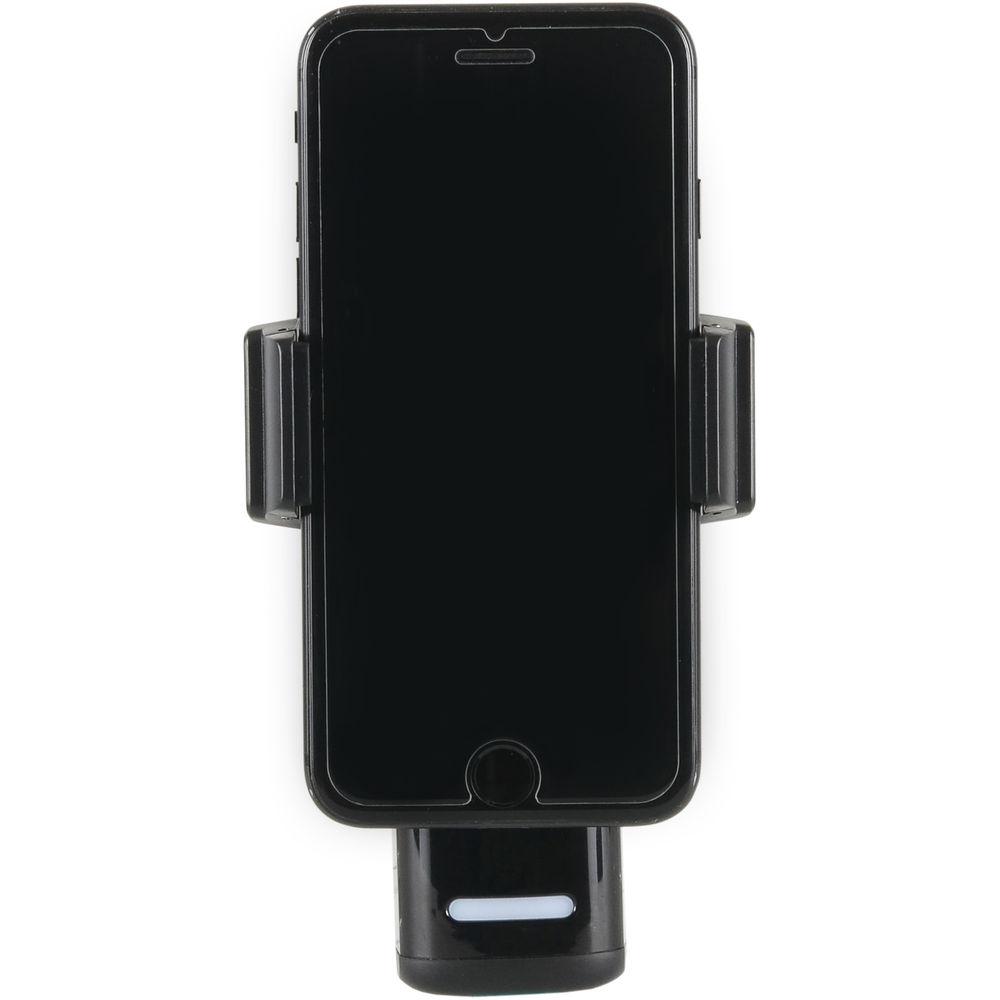

Operation - Properly Attach the mobile phone to the stabilizer as instructed.
Note: Do not turn on the stabilizer before attaching the mobile phone and adjusting the balance of the attached phone, otherwise the working life of the stabilizer could be reduced. - Horizontal adjustment - move the mobile phone to the left or right until it's horizontally balanced on the clamp.
- Vertical adjustment - move the mobile phone up or down until it's horizontally balanced on the clamp.
- Turn on the stabilizer after the steps above are completed.
Note: When the stabilizer is on and the adjusted mobile phone can be balanced automatically, you can start to take photos or videos. Also, switching between landscape and portrait mode can be done by manually adjust the direction of the phone and holding it in place for 3 seconds. In the Box Sirui ES-01 Pocket Stabilizer (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui ES-01 Pocket Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui ES01K Specs | Stability Augmentation Angle | 0 to 330° | | Stability Augmentation Accuracy | 0.1° | | Battery Capacity | 1000 mAh | | Working Hours | 2 hours | | Charging Time | 1.5 hours | | Charging | 5 V / 0.5 A | | Ports | 1 x micro-USB | | Static Power | 60 μA | | Operational Temperature | -4 to 140°F / -20 to 60°C | | Color | Black | | Dimensions | 5.51 x 1.65 x 2.04" / 140 x 41.9 x 51.8 mm (folded) | | Weight | 0.352 lb / 0.16 kg | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 6.6 x 3.2 x 2.5" |
