User Manual for Sirui K-20x Ball Head Click to enlarge the picture
Contents of the user manual for the Sirui K-20x Ball Head
- Product category: Tripod Heads Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Tripod Heads
 |
User manual for the Sirui K-20x Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

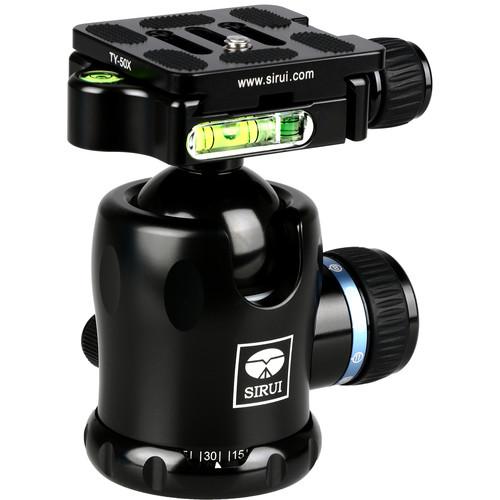

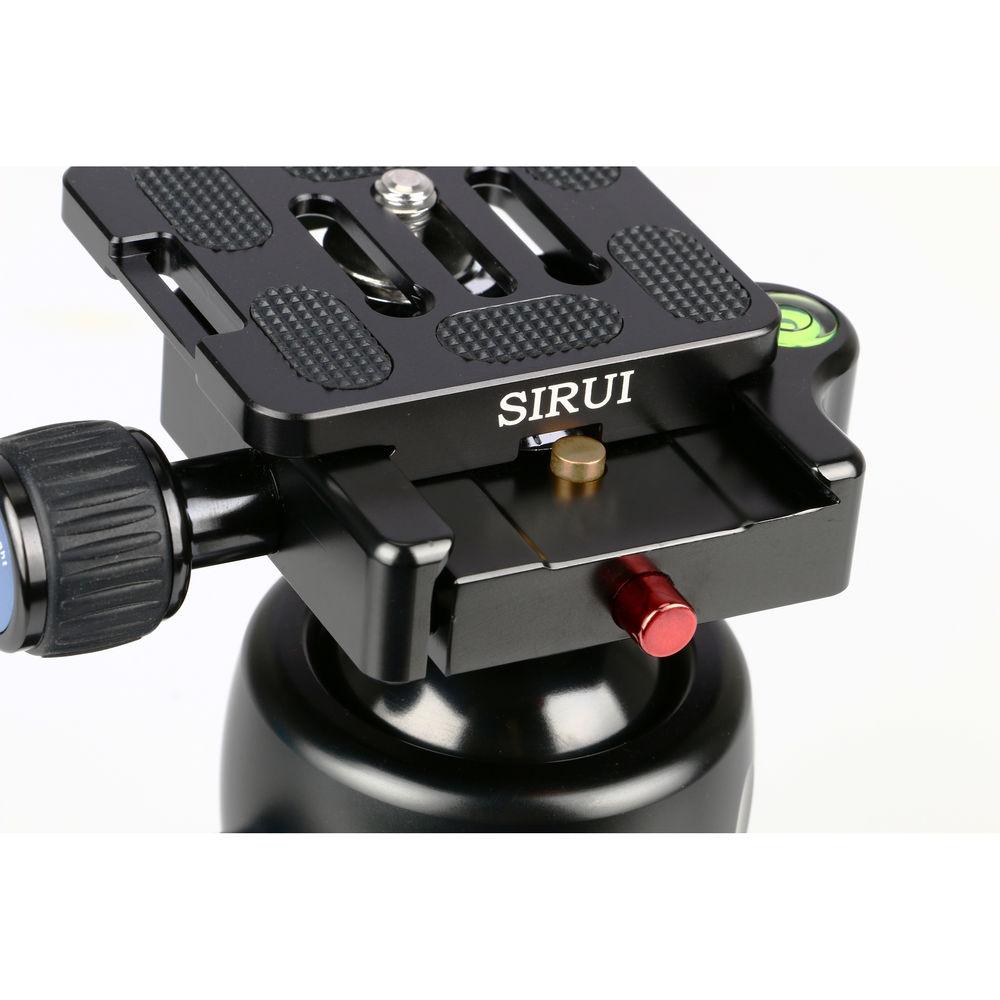

Product description The Sirui K-20x Ball Head is an extremely sturdy head with control knobs for pan, tilt, and tension, plus an Arca-style clamp for the included quick-release plate. The pan, tilt, and quick-release knobs are all separate, while the tension knob is integrated into the ball-locking (tilt) knob. The head tilts 90° for portrait orientation. The interior ball locking of the K-20x head has a sphere tolerance of 0.01mm, and it's equipped with an orientation-memory locking dial. This helps yield a high load capacity of 55 lb. The quick-release clamp features a secondary release button that prevents any inadvertent disengagement of the camera/plate from the clamp, thereby adding to the head's overall security & stability. The Arca-style platform conforms to standard sizes, so you can use compatible plates from other manufacturers. The three control knobs allow a photographer to exercise extremely fine control over the orientation of the camera, whether it's a DSLR, 35mm, medium-format camera, or even a camcorder. Pan, for instance, can be adjusted while the tilt stays locked, enabling precise movement that's measurable – there are degree markers at the panning base for panoramic photography. The K-20x is CNC-machined from an aircraft-grade aluminum alloy and anodized with an oxidation treatment that ensures a durable, high-quality finish. - Arca-style quick-release clamp with secondary safety lock

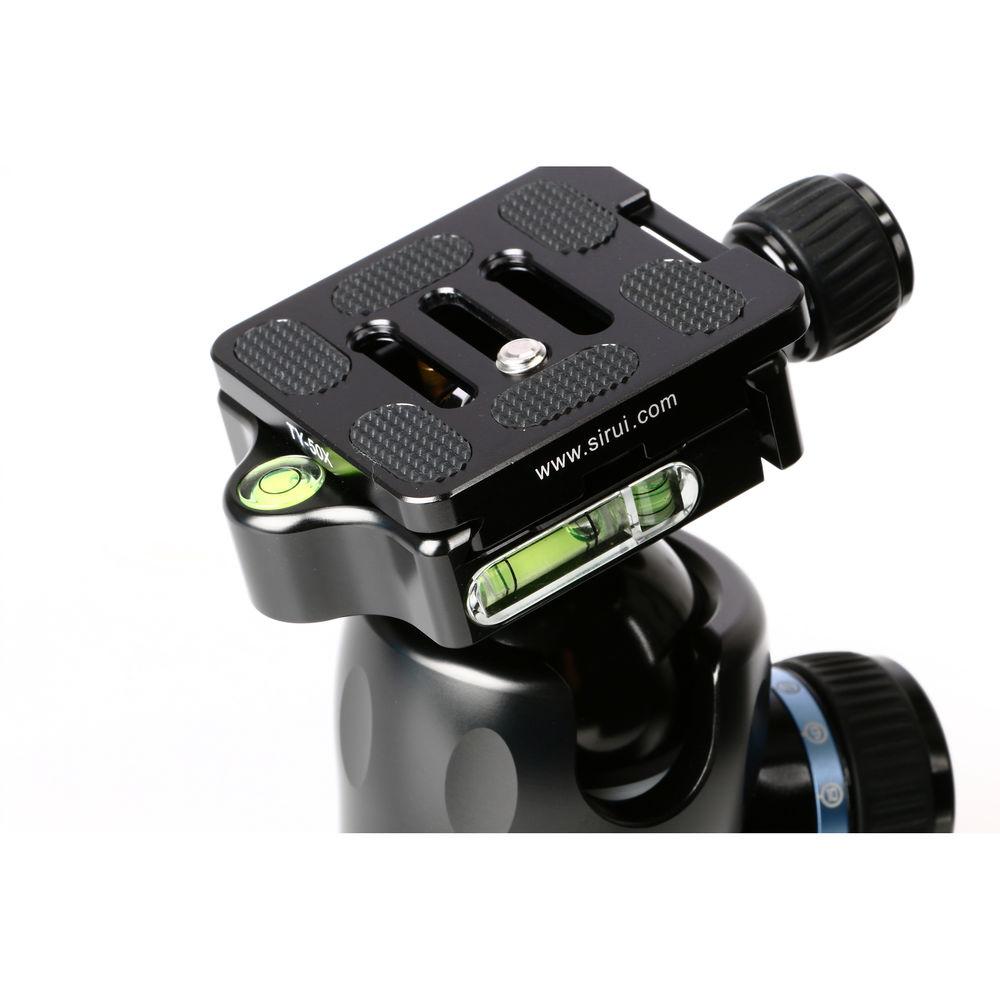

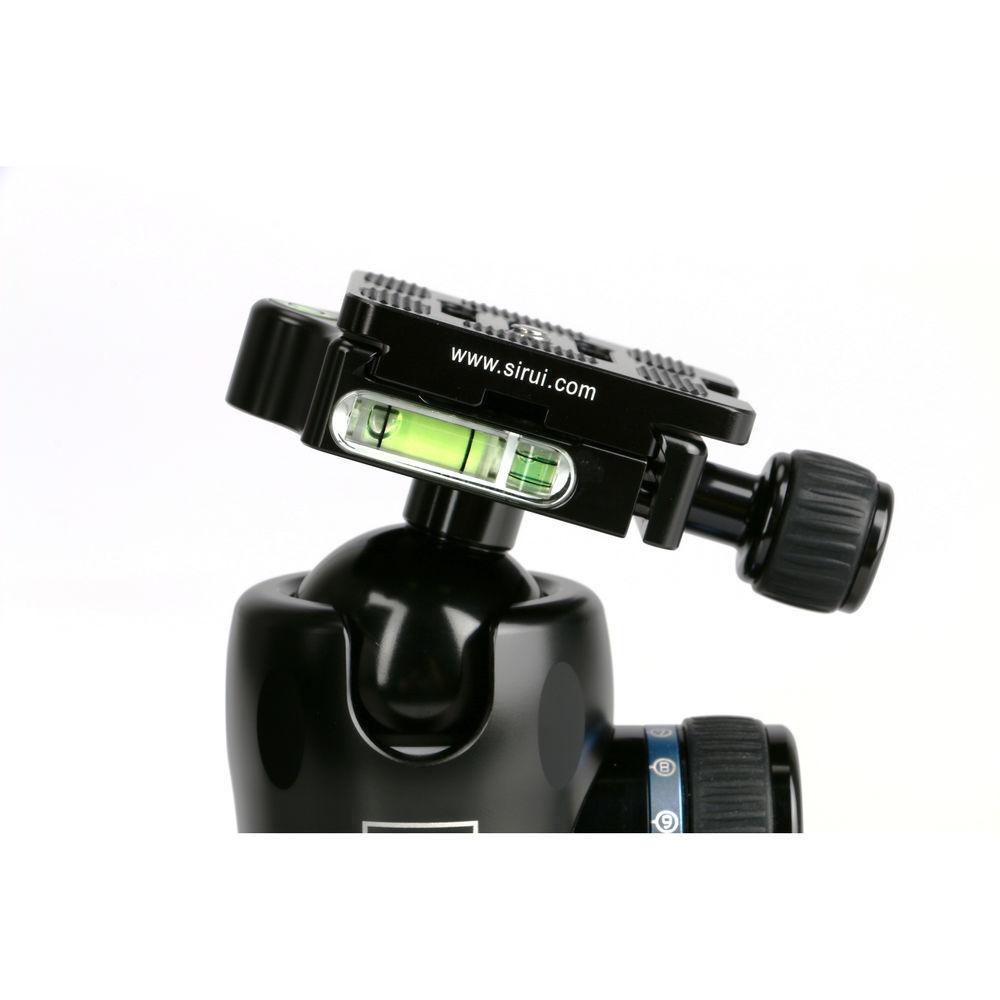

- Two bubble levels (horizontal and vertical) on the quick-release platform ensure that your framing hews to the horizon in either portrait or landscape orientation

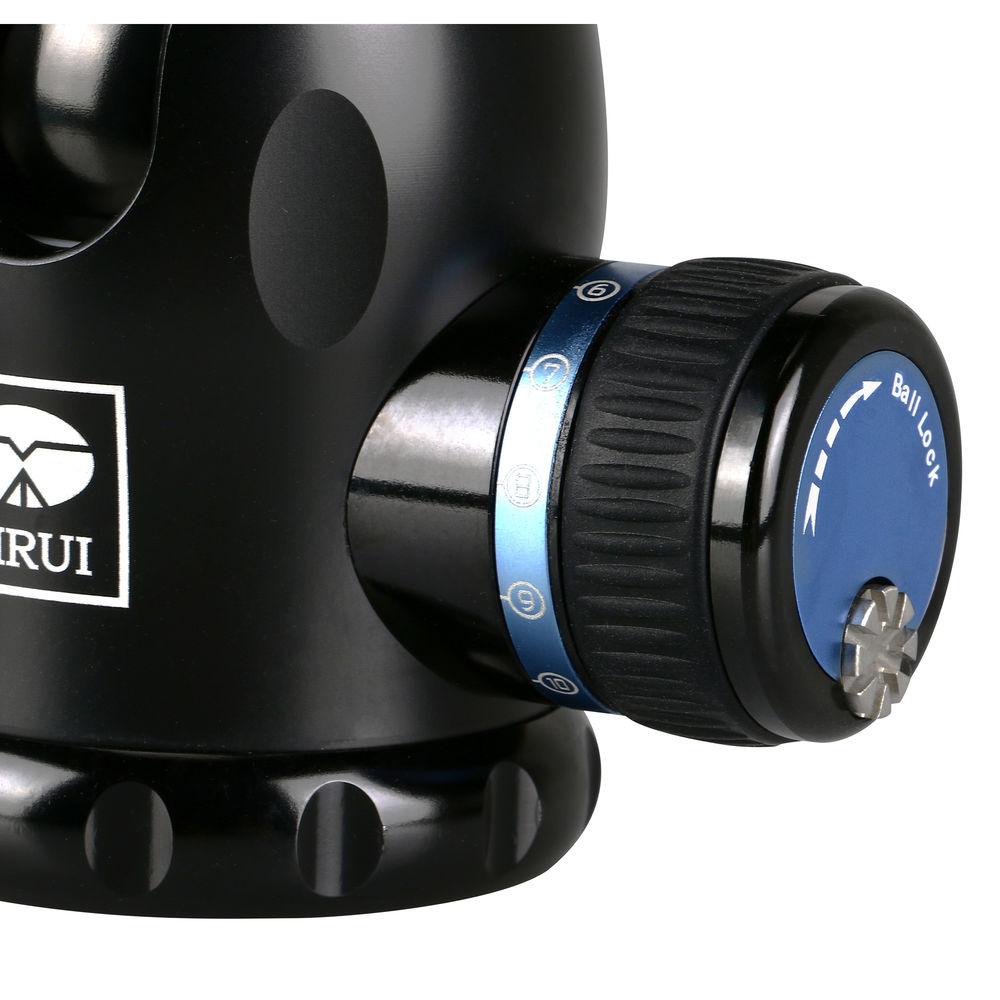

- The friction-control knob, integrated into the ball-locking knob, allows the operator to adjust the resistance of the ball's movement
- Quick-release plate is aluminum alloy with a rubberized surface
- Stainless steel camera screw

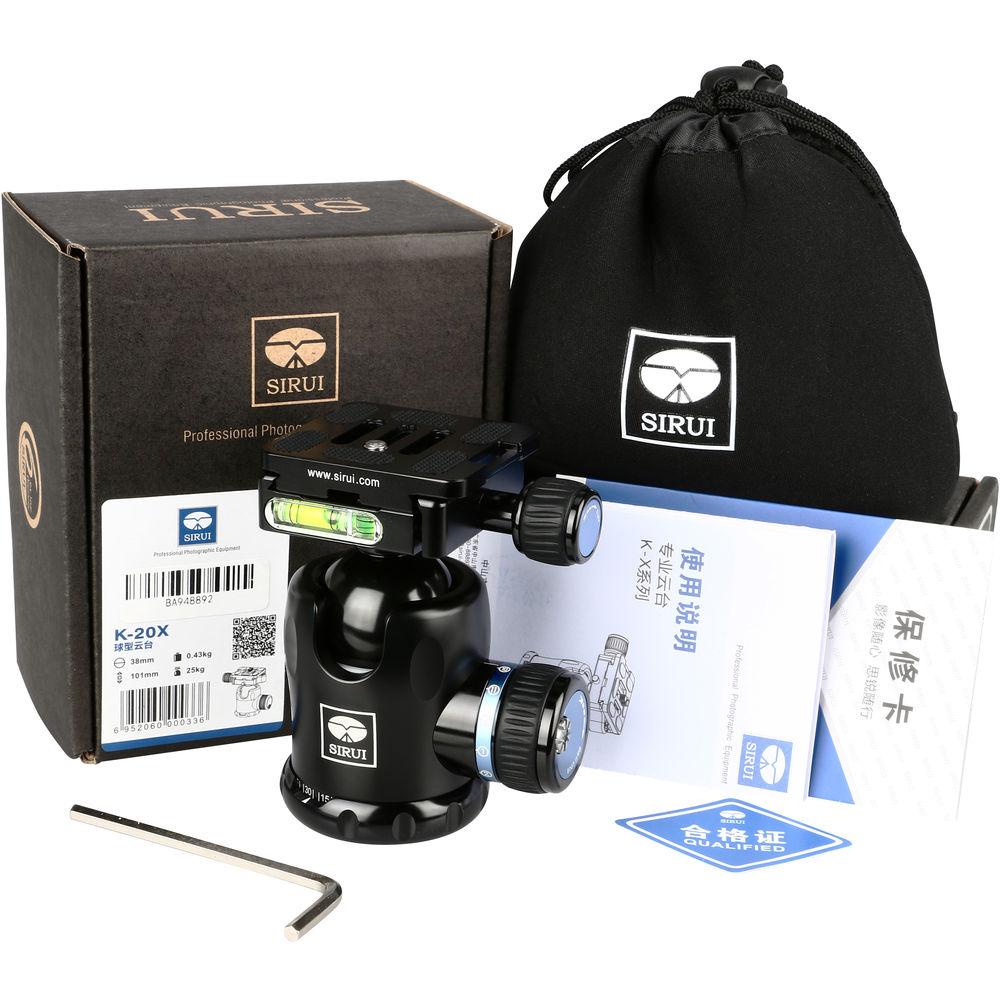

In the Box Sirui K-20x Ball Head Quick-Release Plate Pouch Allen Key Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui K-20x Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui K-20X Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | Load Capacity | 55 lb / 25 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Panning Range | 360
