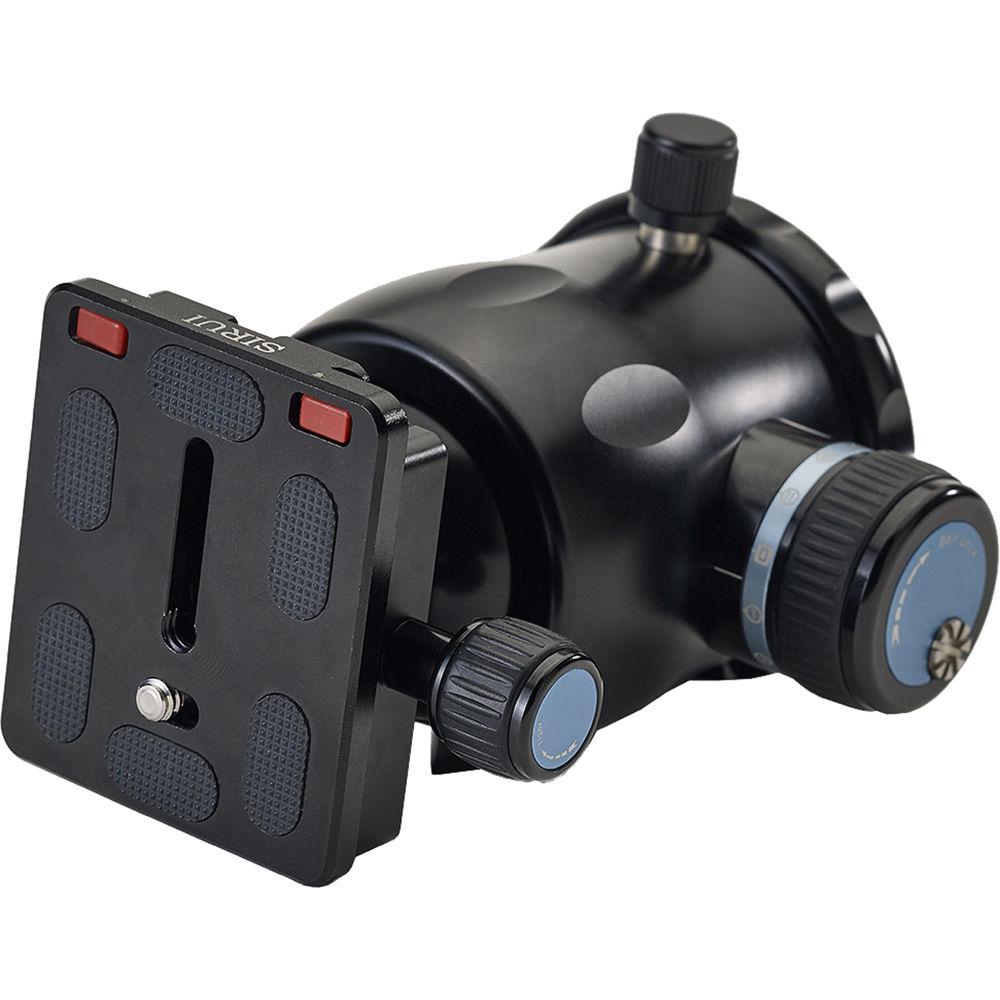

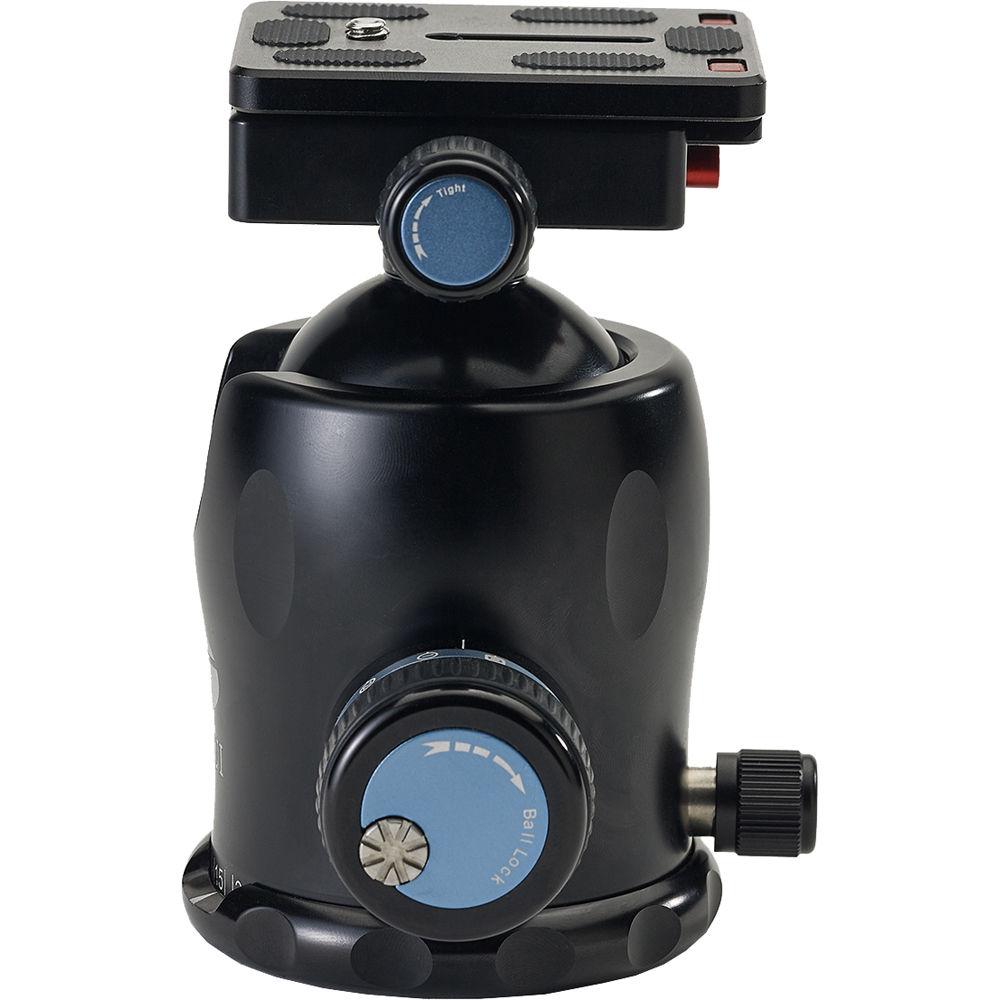

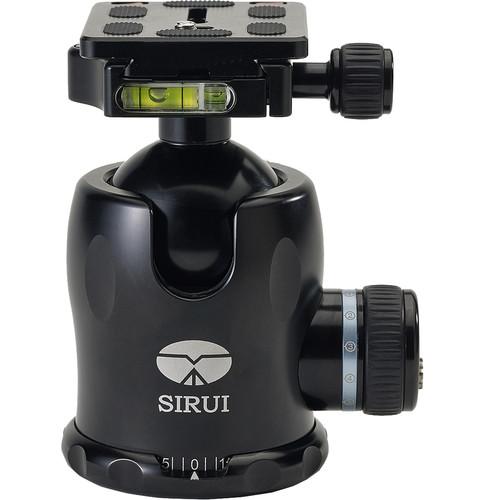

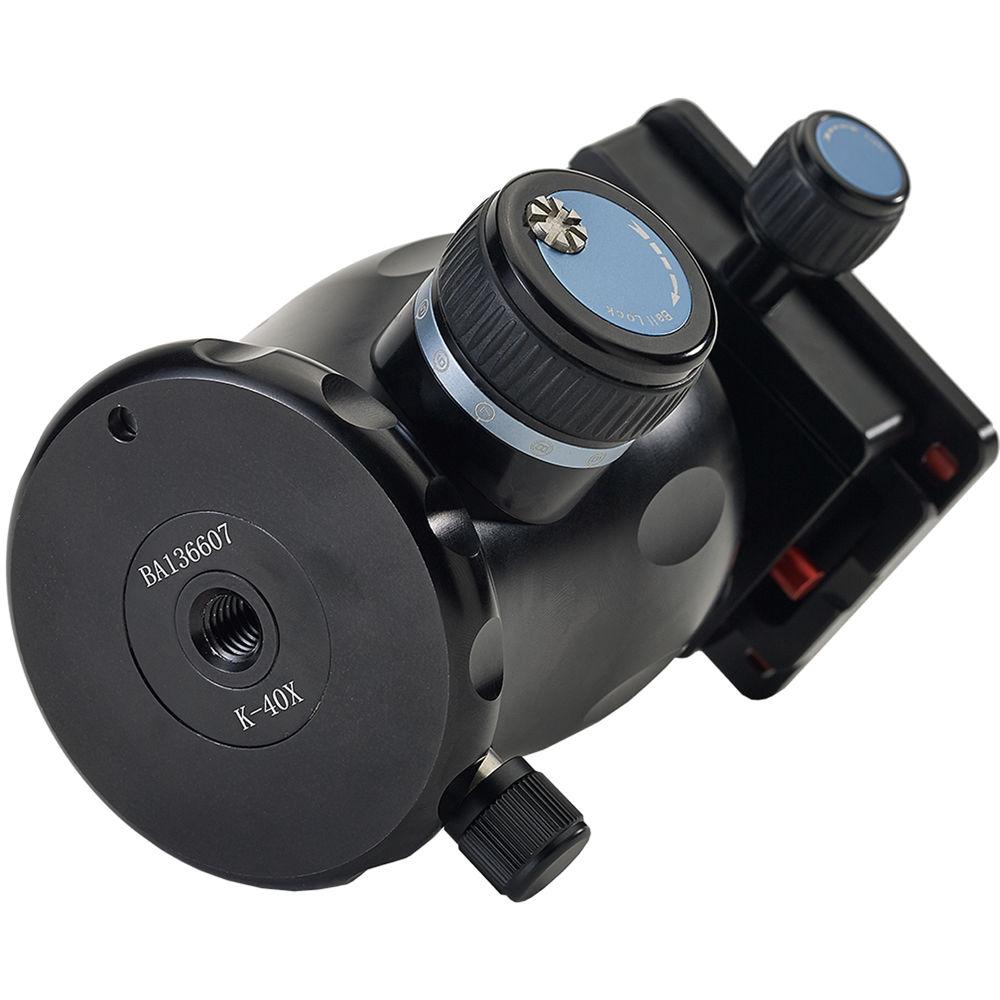

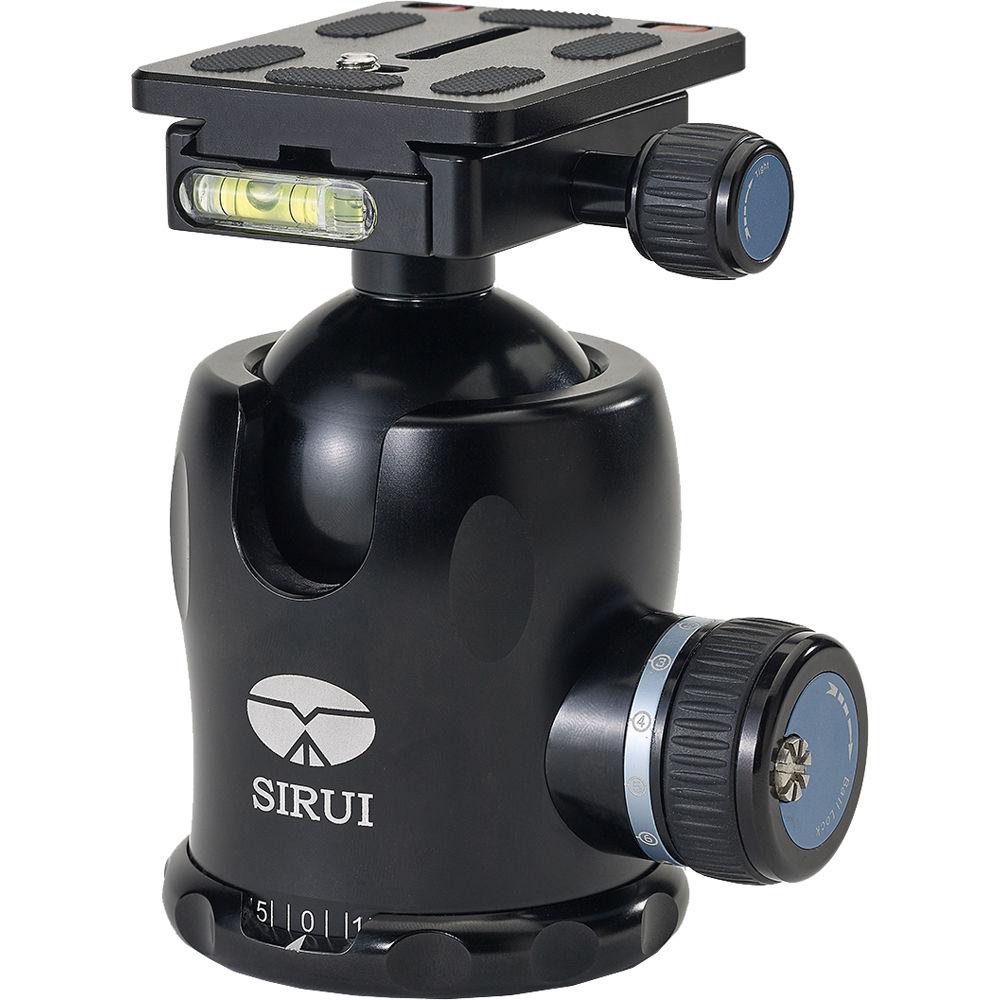

Product description The Sirui K-40X Ball Head is an extremely sturdy head with control knobs for pan, tilt, and tension, plus an Arca-style clamp for the included quick-release plate. The pan, tilt, and quick-release knobs are all separate, while the tension knob is integrated into the ball-locking (tilt) knob. The head tilts 90° for portrait orientation. There's also a video pin on the plate to keep camcorders from twisting.The interior ball locking of the K-40X head has a sphere tolerance of 0.01mm, and it's equipped with an orientation-memory locking dial. This helps yield a high load capacity of 77 lb. The quick-release clamp features a secondary release button that prevents any inadvertent disengagement of the camera/plate from the clamp, thereby adding to the head's overall security and stability. The Arca-style platform conforms to standard sizes, so you can use compatible plates from other manufacturers. The three control knobs allow a photographer to exercise extremely fine control over the orientation of the camera, whether it's a DSLR, 35mm, medium-format camera, or even a camcorder. Pan, for instance, can be adjusted while the tilt stays locked, enabling precise movement that's measurable – there are degree markers at the panning base for panoramic photography. The K-40X is CNC-machined from an aircraft-grade aluminum alloy and anodized with an oxidation treatment that ensures a durable, high-quality finish. - Arca-style quick-release clamp with secondary safety lock
- Two bubble levels (horizontal and vertical) on the quick-release platform ensure that your framing hews to the horizon in either portrait or landscape orientation
- The friction-control knob, integrated into the ball-locking knob, allows the operator to adjust the resistance of the ball's movement
- Quick-release plate is aluminum alloy with a rubberized surface
- Stainless steel camera screw
In the Box Sirui K-40X Ball Head Quick-Release Plate Pouch Allen Key Limited 6-Year Warranty yasqxadwvb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui K-40X Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sirui K-40X Ball Head can be downloaded in PDF format at the link stated below.
Technical parametersSirui K-40X Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | Load Capacity | 77 lb / 35 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Panning Range | 360
