Product description

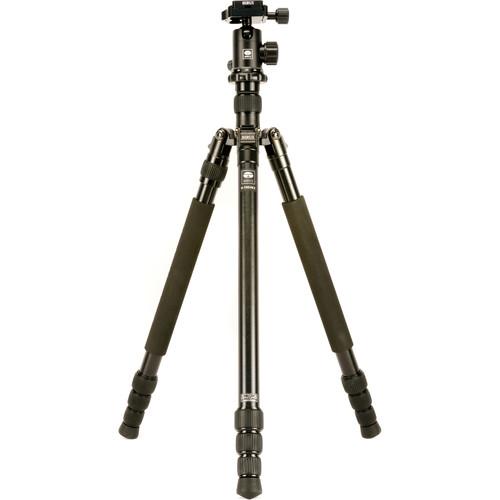

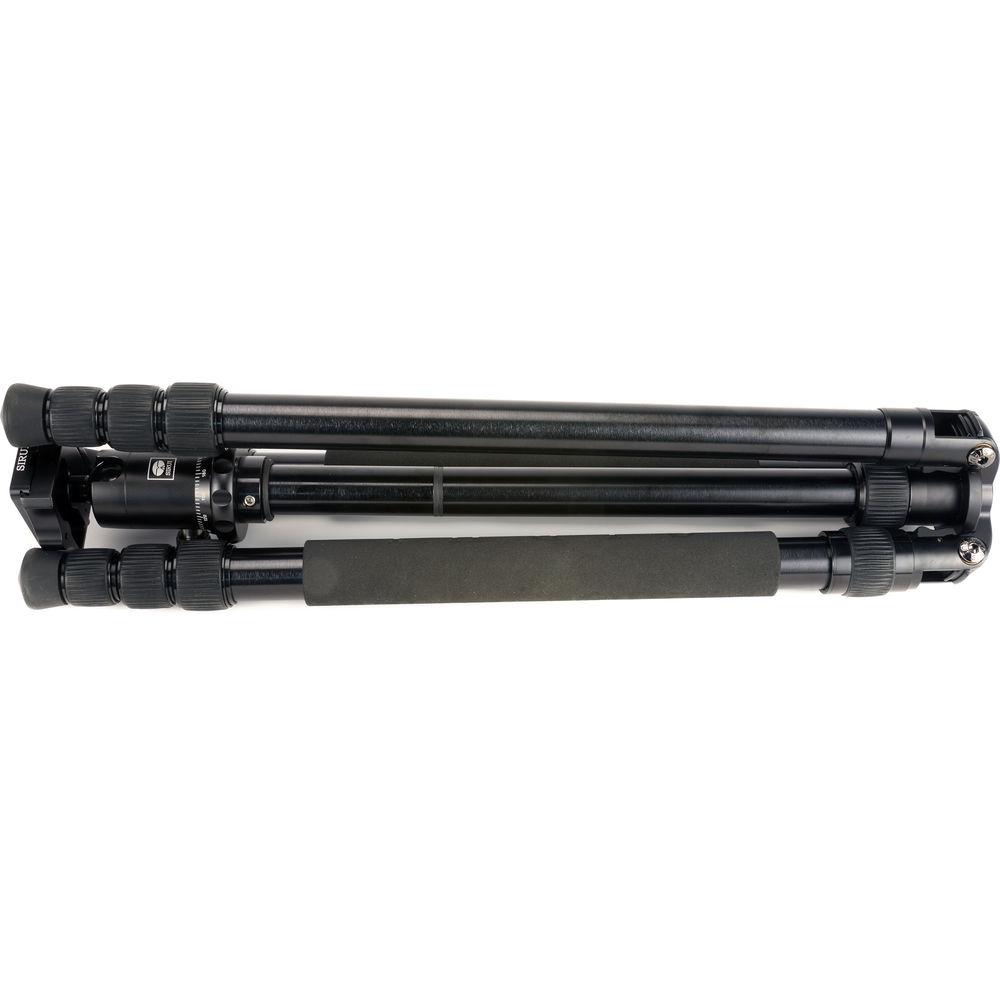

• N-1004KX Aluminum Tripod The Sirui N-1004KX 4-Section Aluminum Tripod is a great tripod for anyone who needs to pack light and reserve the option to, at a moment's notice, slim down their camera's support system to just a monopod. The N-1004KX features a leg that unscrews and attaches to a second included mounting plate to form a monopod. And, differing from the N-1004 model, the N-1004KX features a split center column for a fast and easy transition to low-angle shooting.Reaching a maximum height of 63", the tripod itself is quite versatile in its own right – the N-1004KX weighs just 3.1 lb but supports up to 26.5 lb thanks to its thick leg sections (only 3mm difference in diameter of each leg section) and forged aluminum alloy construction. It's suitable for use with just about any head and any 35mm camera, DSLR, point & shoot, or camcorder.The N-1004KX tripod's legs fold upward 180° to achieve a relatively compact folded length of 18.3" – even with select head models attached. The entire package will fit comfortably in most carry-on bags and many backpacks. A custom case with padded handle is included.The tripod's center column is reversible, and the N-1004KX comes with a short center column so that you can set up extremely close to the ground for ultra-low-angle shooting. With the center column split and the long section removed, you can set the legs at their widest angle (80°) and shoot from only 5.5" off the ground.
  • The tripod converts easily into a monopod.
  • A new split center column allows for faster and easier transition to low-angle shooting.
  • Forged aluminum alloy results in stronger components than the traditional casting process that's often used for tripod chassis. Forging leads to more compacted metal and enhances the integrity of metal grains so they remain consistent and continuous. This leads to a longer product life and better performance.
  • An anodizing surface treatment, produced by an electrolytic oxidation process to increase the thickness of the natural oxide layer on the surface of metal parts, is applied to increase corrosion, wear resistance and surface hardness to enhance color durability.
  • 3mm diameter difference between each successive leg section for greater overall stability.
  • Silicone twist locks for leg stages and anti-leg rotation system for faster, one-handed set-up.

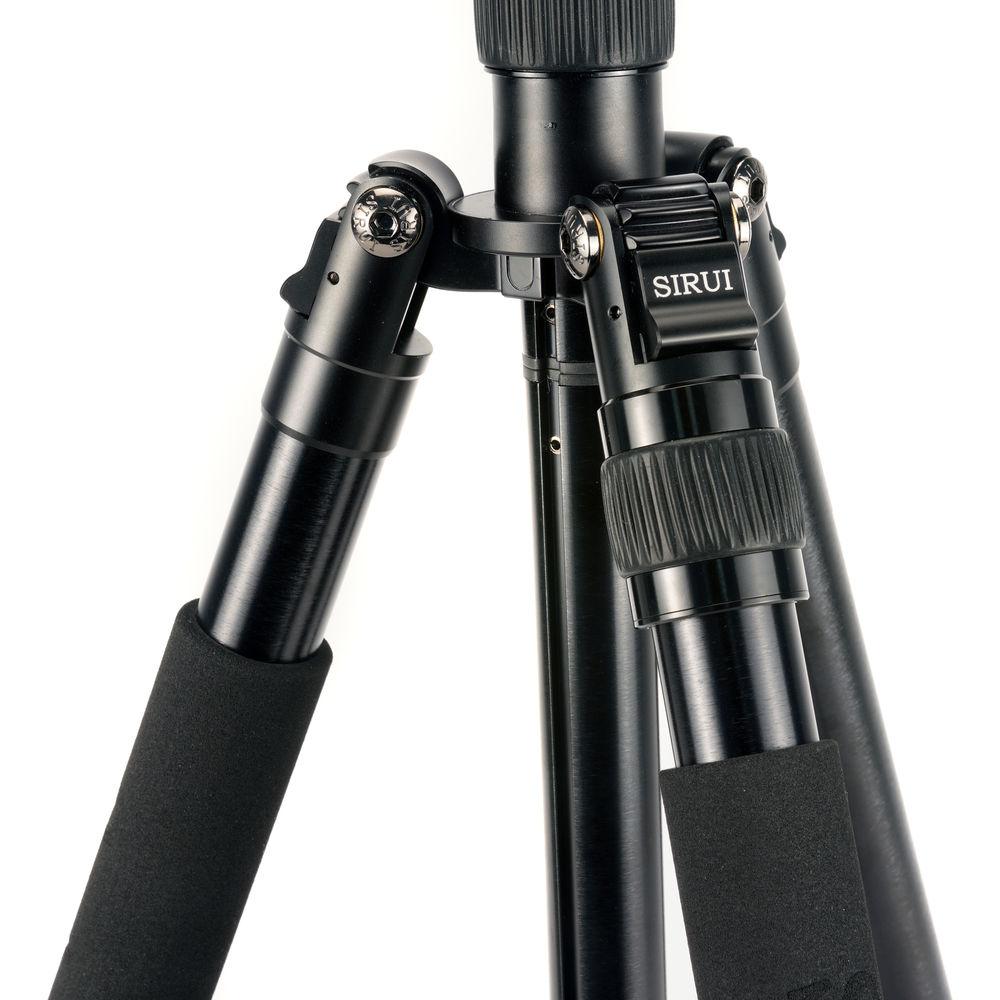

  • Automatic leg-angle lock mechanism for speed and convenience – independently lock legs into place at three different angles: 23°, 52° & 80°.
  • Short center column allows the tripod to reach extremely low positions – minimum height of 5.5".
  • An additional mounting plate attaches to the unscrewed monopod leg to mount a camera. A wrist strap is included for security in case the operator's grip slips.
  • Leg warmer/padding facilitates handling in extreme weather conditions and adds level of protection.
  • Center column hook allows you to add ballast for a sturdier setup in windy conditions
  • Reversible 1/4"-20 & 3/8"-16 screw on mounting plate enables the attachment of virtually any camera, camcorder, or head.
  • Well-designed padded travel bag with sturdy shoulder strap for carrying is included.
• E-10 Ball Head with TY-50E Plate The E-10 Ball Head with TY-50E Plate from Sirui is a 10.6 oz aluminum camera support that features an Arca-type compatible quick release system. The head has two separate knobs, the larger knob unlocks to release the ball movement, and the independent pan lock releases the 360° panning base, which has 5° scale markings. The weight capacity of the ball head is 17.6 lb, which makes it suitable to support large DSLR and medium format cameras. Furthermore, inside the clamp there is a safety stop and on the side of the clamp a security pin release button, which prevents the plate from accidentally sliding and falling out. The included TY-50E plate has a machined eyelet for a hand or shoulder strap.
  • Arca-type compatible ball head with safety stop and security pin release button
  • 360° panning base with 5° scale increments
  • Integrated spirit bubble level for balancing
  • Machined eyelet on the quick release place for a hand or shoulder strap

• Short Center Column

• Monopod Mounting Platform

• Extra Reversible Mounting Screw

• Monopod Wrist Strap

• Padded Travel Case with Shoulder Strap

• Allen Keys

• Limited 6-Year Warranty

• TY-50E Quick Release Plate

• Limited 6-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• N-1004KX Aluminum Tripod

  Load Capacity	26.5 lb / 12 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	52" / 132.1 cm
  Minimum Working Height	6.3" / 16 cm
  Folded Length	17.3" / 43.9 cm
  Head Mount Type	1/4"-20 Screw, 3/8"-16 Screw
  Weight	2.8 lb / 1.3 kg
  Materials	Aluminum Alloy
  Bubble Level	No

  Leg Lock Type	Twist Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Leg Diameter	1" / 25.4 mm

  Center Column Features	Split
  Center Column Sections	2
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	20.8 x 5.5 x 5.3"

• E-10 Ball Head with TY-50E Plate

  Load Capacity	17.6 lb (8 kg)
  Ball Sphere Diameter	1.1" (29 mm)
  Quick Release	Arca-type
  Spirit Level	Yes
  Tension Control	No
  Separate Panning Lock	Yes
  Tripod Mount Thread Size	3/8"-16
  Height	3.5" (8.9 cm)
  Base Diameter	1.7" (42 mm)
  Weight	10.6 oz (300 g)

  Box Dimensions (LxWxH)	5.5 x 4.8 x 3.0"
