User Manual for Sirui N-1004KX Aluminum Tripod Click to enlarge the picture
Contents of the user manual for the Sirui N-1004KX Aluminum Tripod
- Product category: Tripod Legs Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Tripod Legs
 |
User manual for the Sirui N-1004KX Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

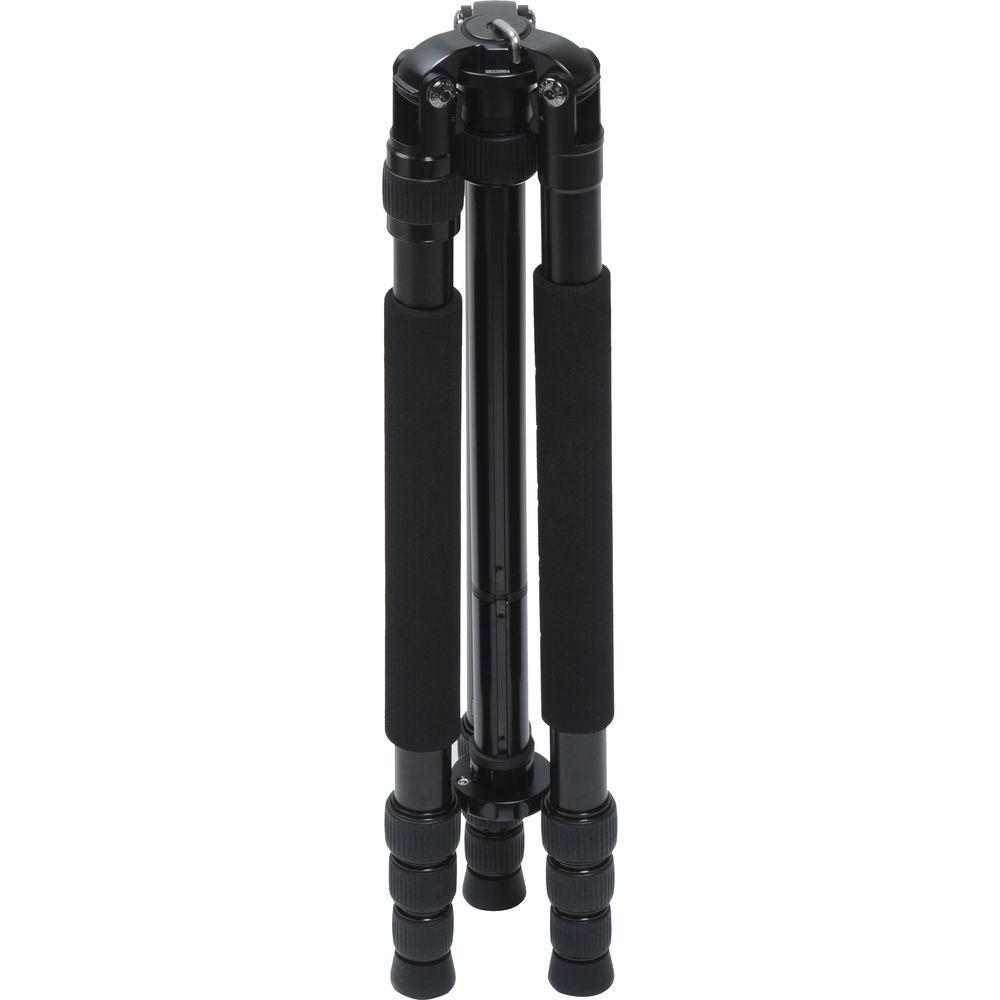

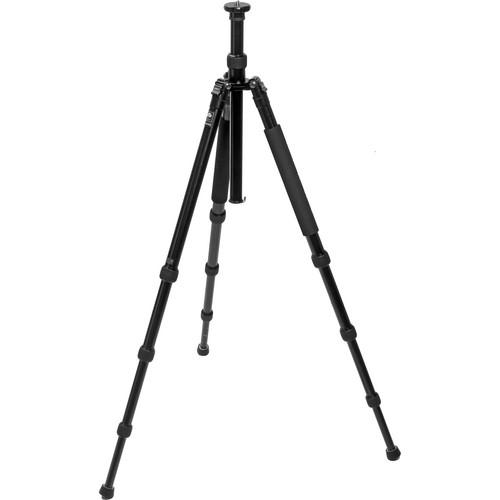

Product description The Sirui N-1004KX 4-Section Aluminum Tripod is a great tripod for anyone who needs to pack light and reserve the option to, at a moment's notice, slim down their camera's support system to just a monopod. The N-1004KX features a leg that unscrews and attaches to a second included mounting plate to form a monopod. And, differing from the N-1004 model, the N-1004KX features a split center column for a fast and easy transition to low-angle shooting.Reaching a maximum height of 63", the tripod itself is quite versatile in its own right – the N-1004KX weighs just 3.1 lb but supports up to 26.5 lb thanks to its thick leg sections (only 3mm difference in diameter of each leg section) and forged aluminum alloy construction. It's suitable for use with just about any head and any 35mm camera, DSLR, point & shoot, or camcorder.The N-1004KX tripod's legs fold upward 180° to achieve a relatively compact folded length of 18.3" – even with select head models attached. The entire package will fit comfortably in most carry-on bags and many backpacks. A custom case with padded handle is included.The tripod's center column is reversible, and the N-1004KX comes with a short center column so that you can set up extremely close to the ground for ultra-low-angle shooting. With the center column split and the long section removed, you can set the legs at their widest angle (80°) and shoot from only 5.5" off the ground. - The tripod converts easily into a monopod.
- A new split center column allows for faster and easier transition to low-angle shooting.
- Forged aluminum alloy results in stronger components than the traditional casting process that's often used for tripod chassis. Forging leads to more compacted metal and enhances the integrity of metal grains so they remain consistent and continuous. This leads to a longer product life and better performance.
- An anodizing surface treatment, produced by an electrolytic oxidation process to increase the thickness of the natural oxide layer on the surface of metal parts, is applied to increase corrosion, wear resistance and surface hardness to enhance color durability.
- 3mm diameter difference between each successive leg section for greater overall stability.
- Silicone twist locks for leg stages and anti-leg rotation system for faster, one-handed set-up.
- Automatic leg-angle lock mechanism for speed and convenience – independently lock legs into place at three different angles: 23°, 52° & 80°.

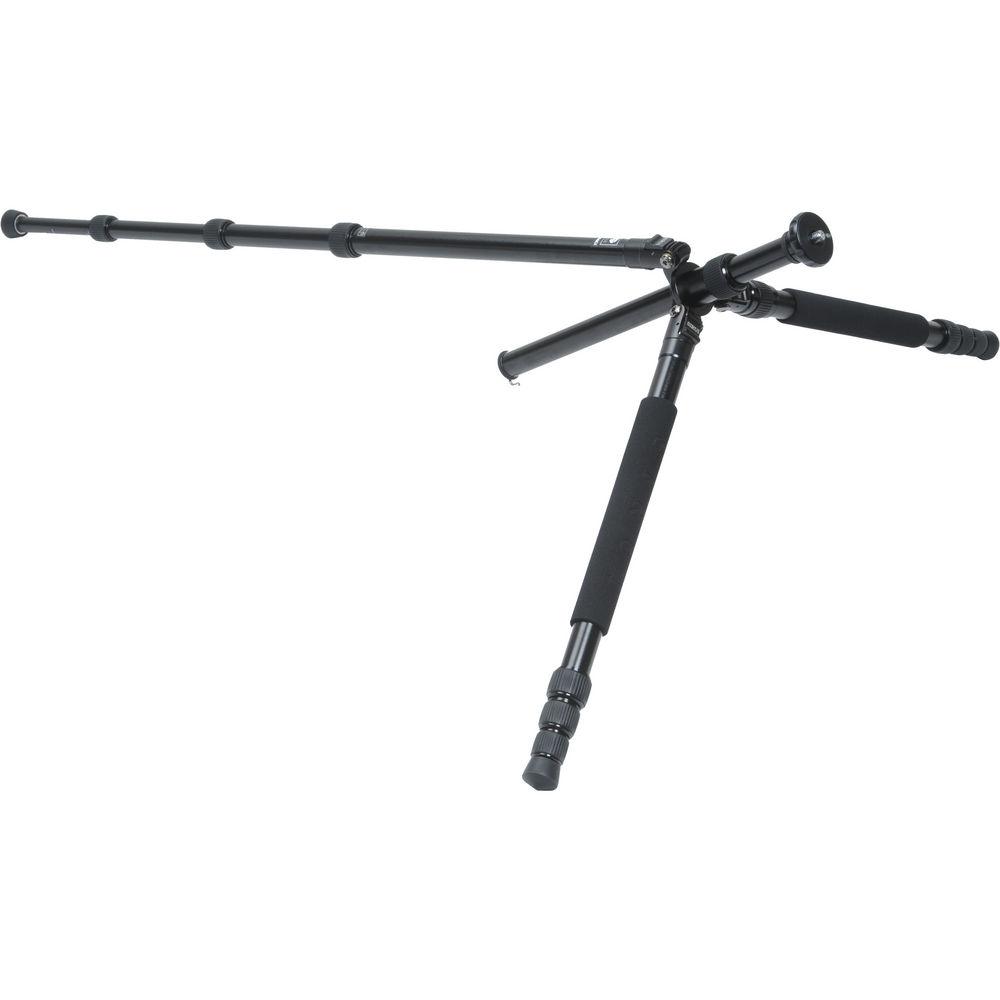

- Short center column allows the tripod to reach extremely low positions – minimum height of 5.5".

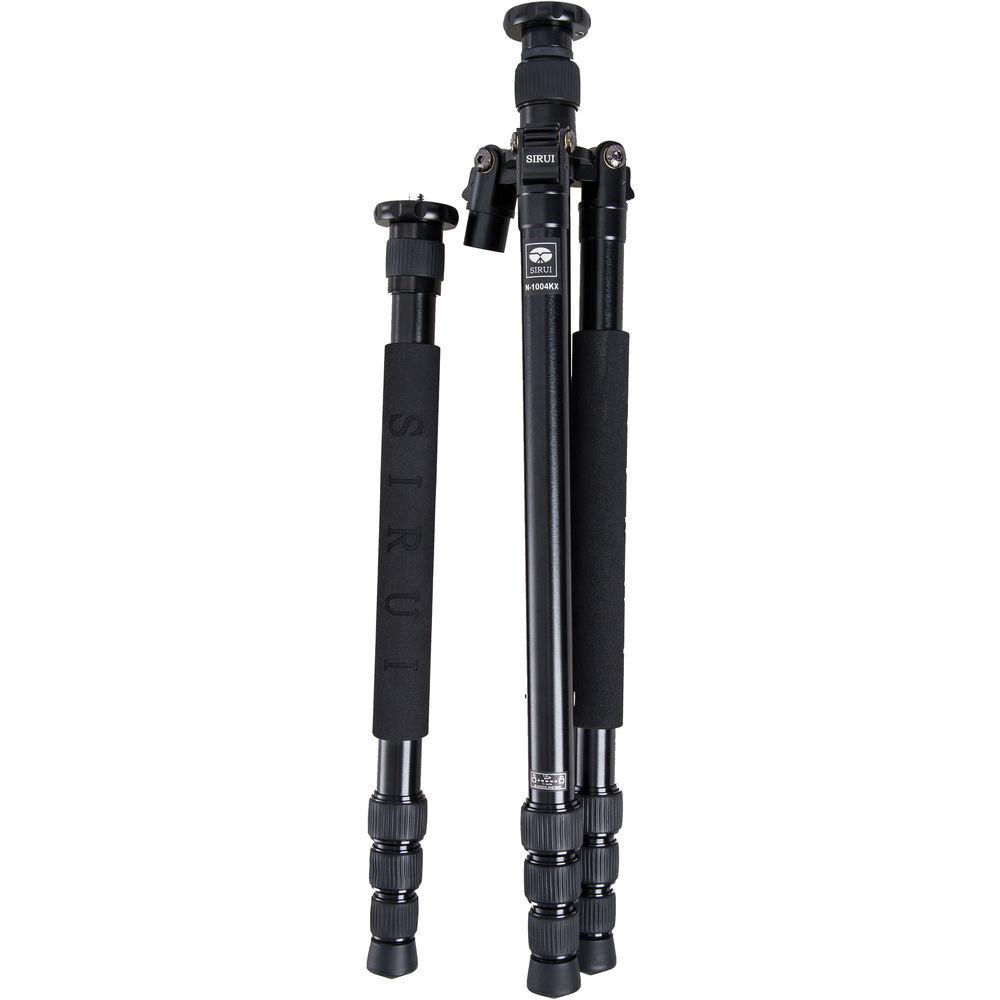

- An additional mounting plate attaches to the unscrewed monopod leg to mount a camera. A wrist strap is included for security in case the operator's grip slips.
- Leg warmer/padding facilitates handling in extreme weather conditions and adds level of protection.
- Center column hook allows you to add ballast for a sturdier setup in windy conditions
- Reversible 1/4"-20 & 3/8"-16 screw on mounting plate enables the attachment of virtually any camera, camcorder, or head.
- Well-designed padded travel bag with sturdy shoulder strap for carrying is included.
In the Box Sirui N-1004KX Aluminum Tripod Short Center Column Monopod Mounting Platform Extra Reversible Mounting Screw Monopod Wrist Strap Padded Travel Case with Shoulder Strap Allen Keys Limited 6-Year Warranty aztscqqyvszuxzsbey Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui N-1004KX Aluminum Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui N-1004X Specs | | | Load Capacity | 26.5 lb / 12 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 52" / 132.1 cm | | Minimum Working Height | 6.3" / 16 cm | | Folded Length | 17.3" / 43.9 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 2.8 lb / 1.3 kg | | Materials | Aluminum Alloy | | Bubble Level | No | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1" / 25.4 mm | | | | Center Column Features | Split | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 20.8 x 5.5 x 5.3" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
