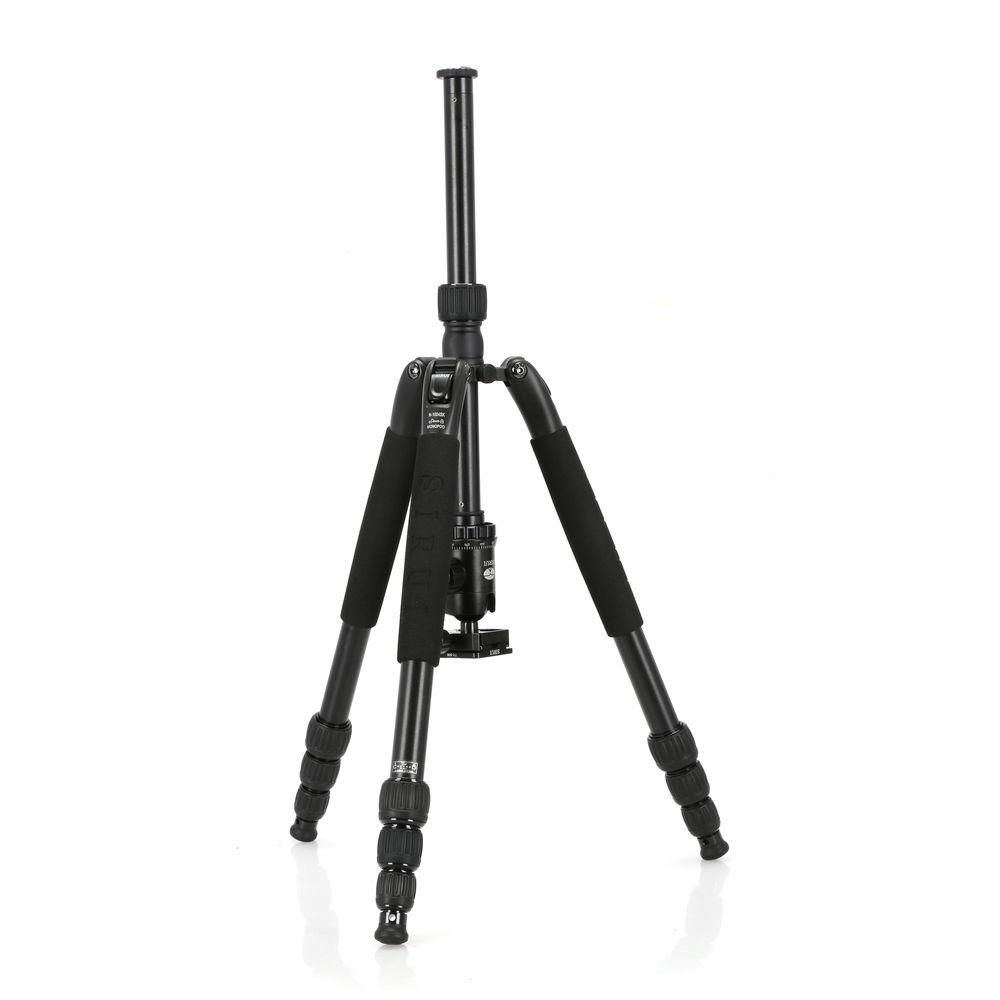

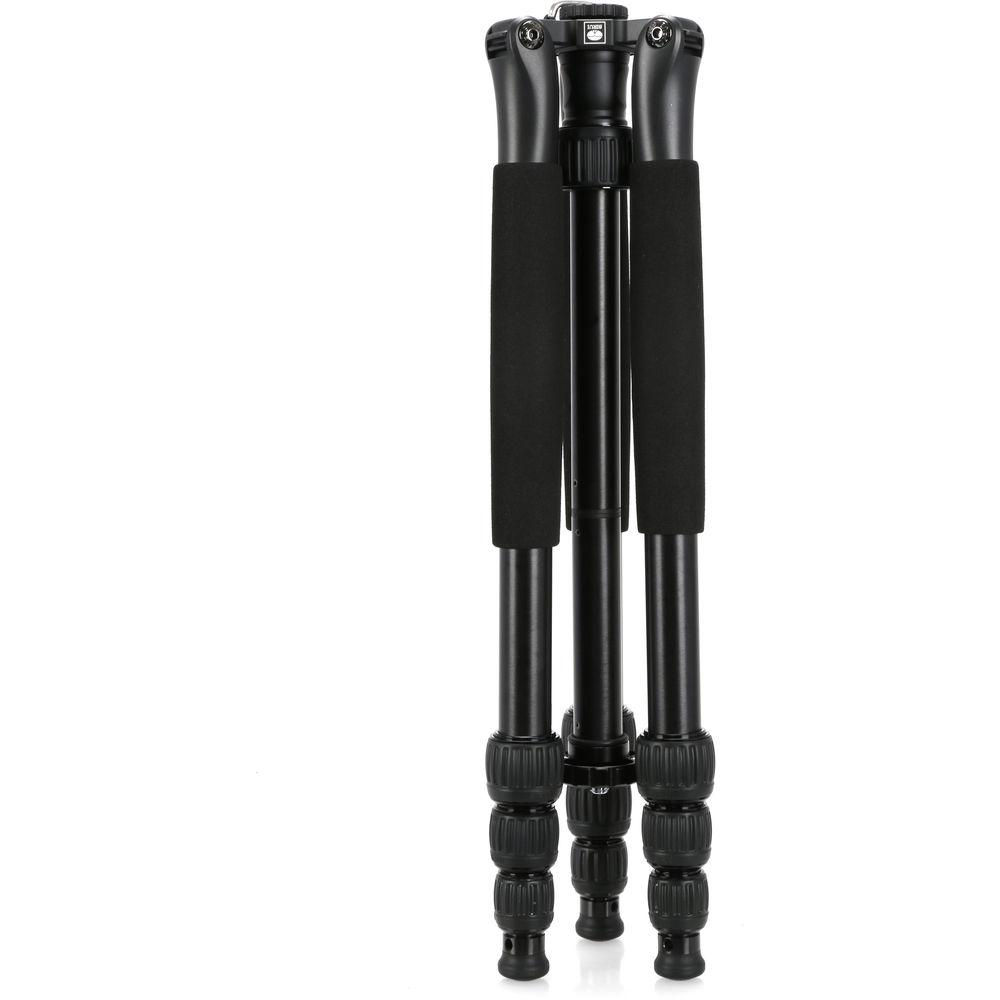

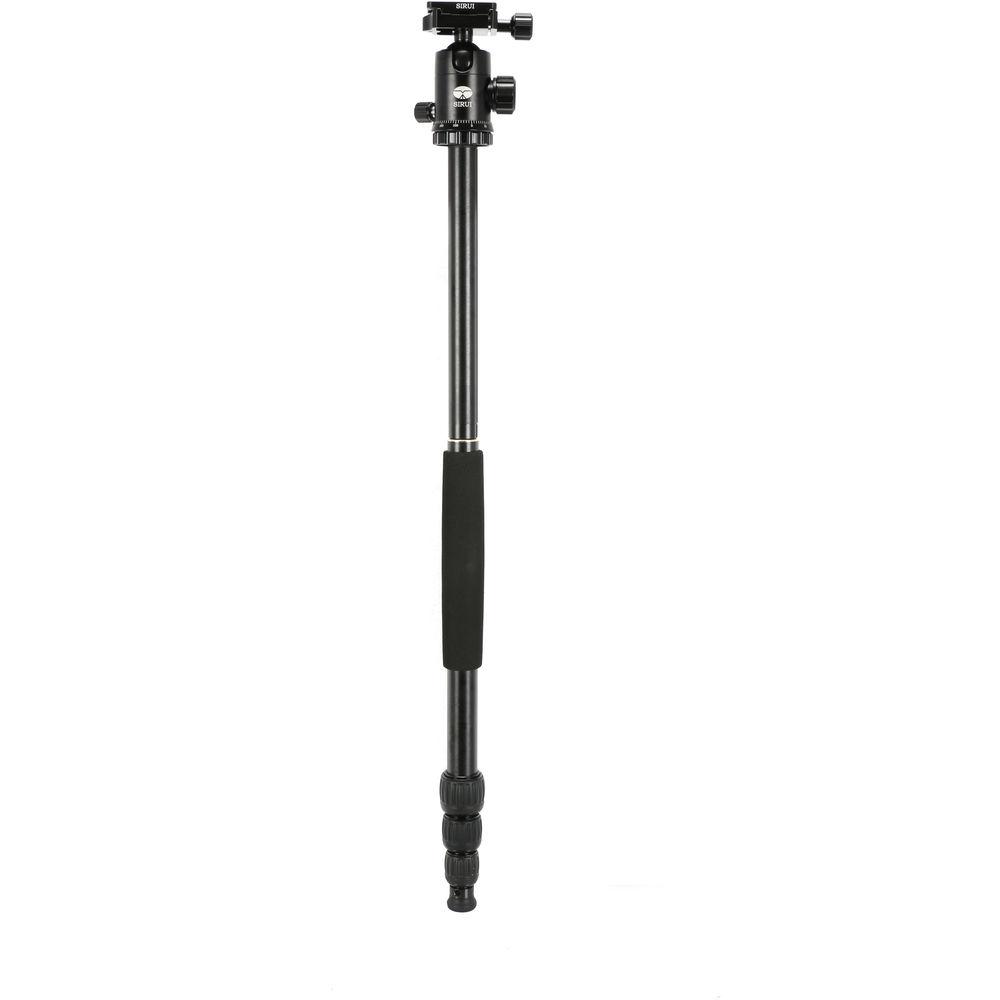

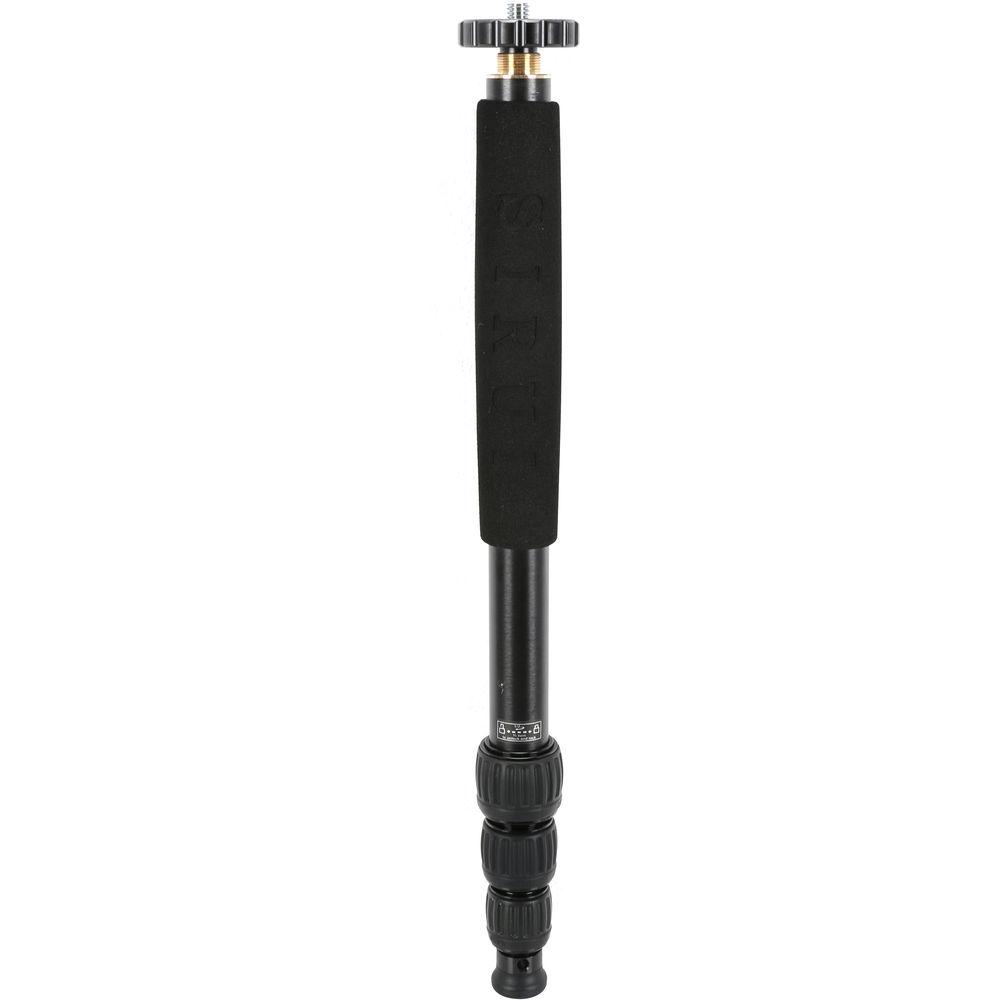

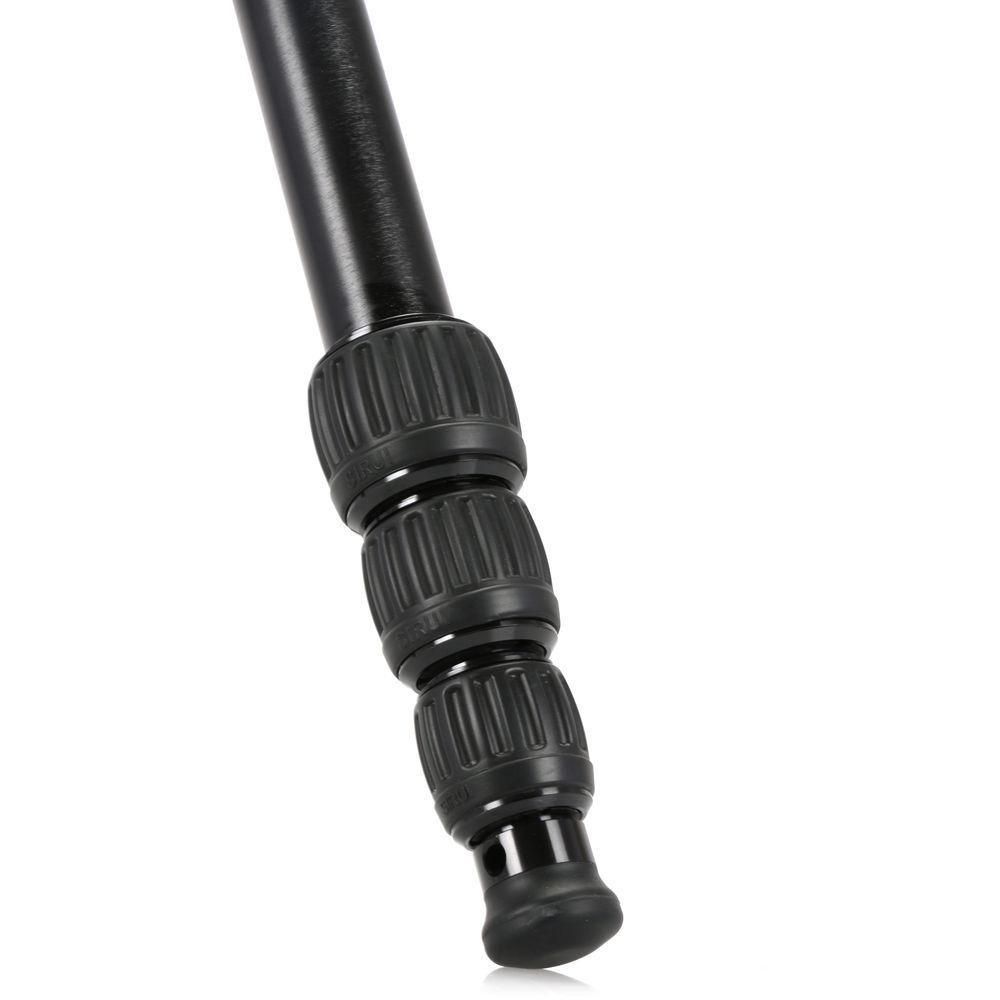

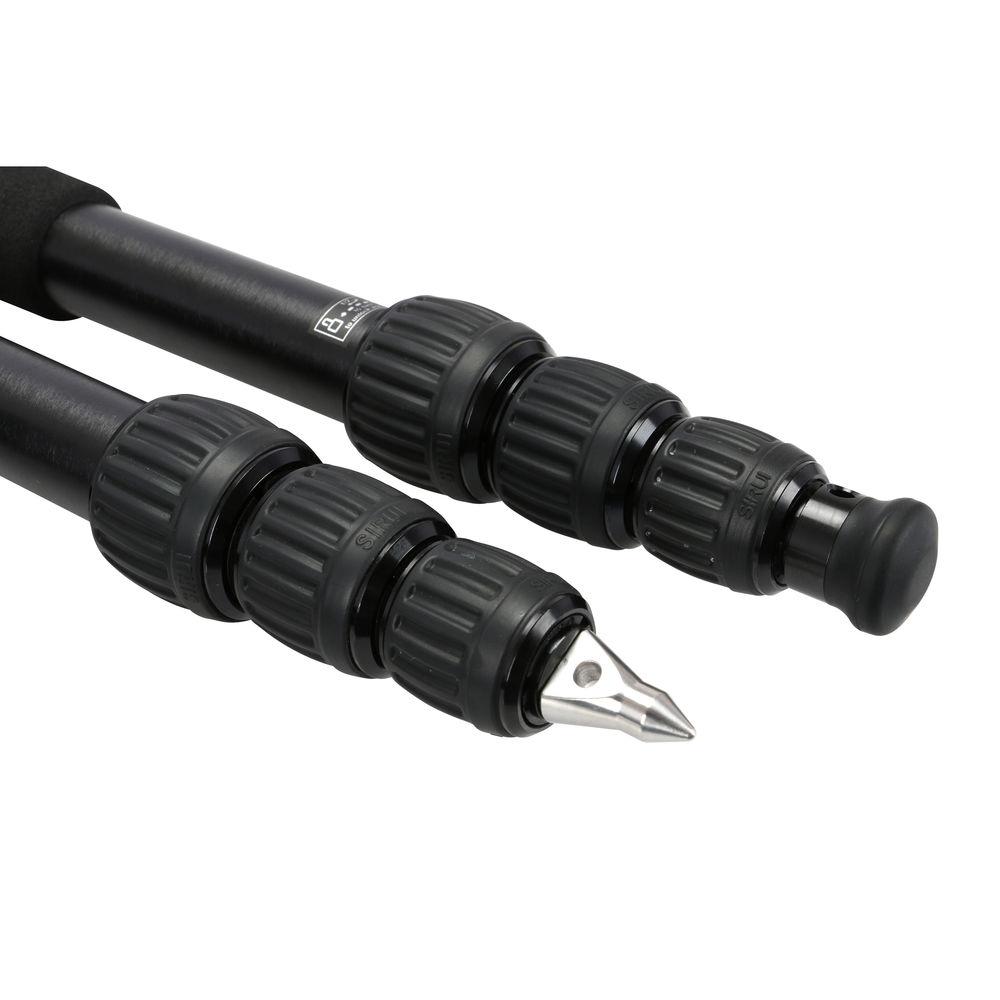

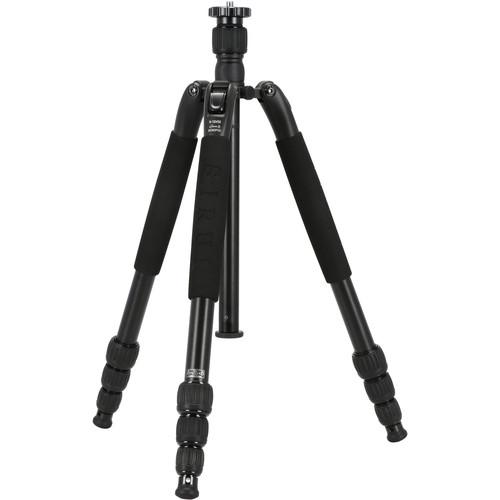

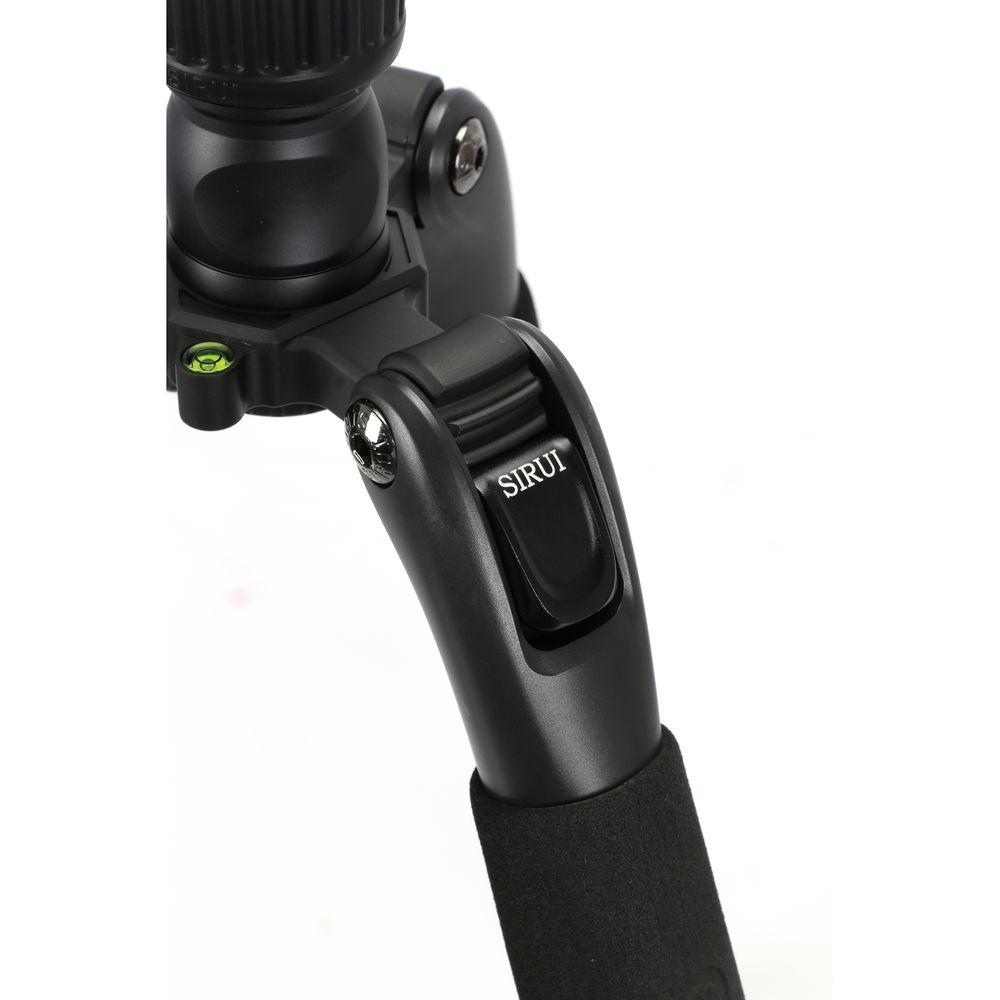

Product description The Sirui N-1004SK N-S Series Tripod is a four-section support with aluminum legs that extend along with the rapid center column by unlocking each twist-lock section. The tripod can reach a maximum height of 62.2". With three variable legs angles, independent leg spread, and the use of the included split center column, the legs can completely splay out to offer a minimum height of 5.9". The center column is also reversible, so you can get closer to ground, which is ideal for macro or low-angle photography. To store or carry the 3.7-pound tripod, the legs fold 180° to produce a compact 18.3" support. The tripod is capable of supporting a camera and lens that weigh up to 26.4 pounds; the magnesium-alloy spider has an integrated bubble level to level out your horizon, and a 1/4"-20 socket to attach accessories without the need of a clamp. One of the tripod's legs is detachable and can convert into a monopod that has a maximum height of 59.4". Additionally, each rubber foot is removable and interchangeable with a steel spike, which helps to secure the tripod into softer terrain. In the Box Sirui N-1004SK N-S Series Tripod (Aluminum) Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui N-1004SK N-S Series Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui N-1004SK Specs | | | Load Capacity | 26.4 lb / 11.97 kg | | Maximum Working Height | 62.2" / 158 cm | | Max Height without Center Column | 52" / 132.08 cm | | Minimum Working Height | 5.9" / 15 cm | | Folded Length | 18.3" / 46.48 cm | | Weight | 3.7 lb / 1.68 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1" / 25.40 mm | | Feet Features | Removable, Spiked | | | | Maximum Working Height | 59.4" / 150.88 cm | | Leg Sections | 4 | | Monopod Foot Features | Removable, Spiked | | | | Center Column Features | Reversible, Split | | Center Column Shape | Round | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | Center Column Rotation | 360° | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.5 x 5.5 x 5.5" |
