User Manual for Sirui PB-10 Multi-Axial Panoramic Head Click to enlarge the picture
Contents of the user manual for the Sirui PB-10 Multi-Axial Panoramic Head
- Product category: Panoramic & Time Lapse Heads Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Panoramic & Time Lapse Heads
 |
User manual for the Sirui PB-10 Multi-Axial Panoramic Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

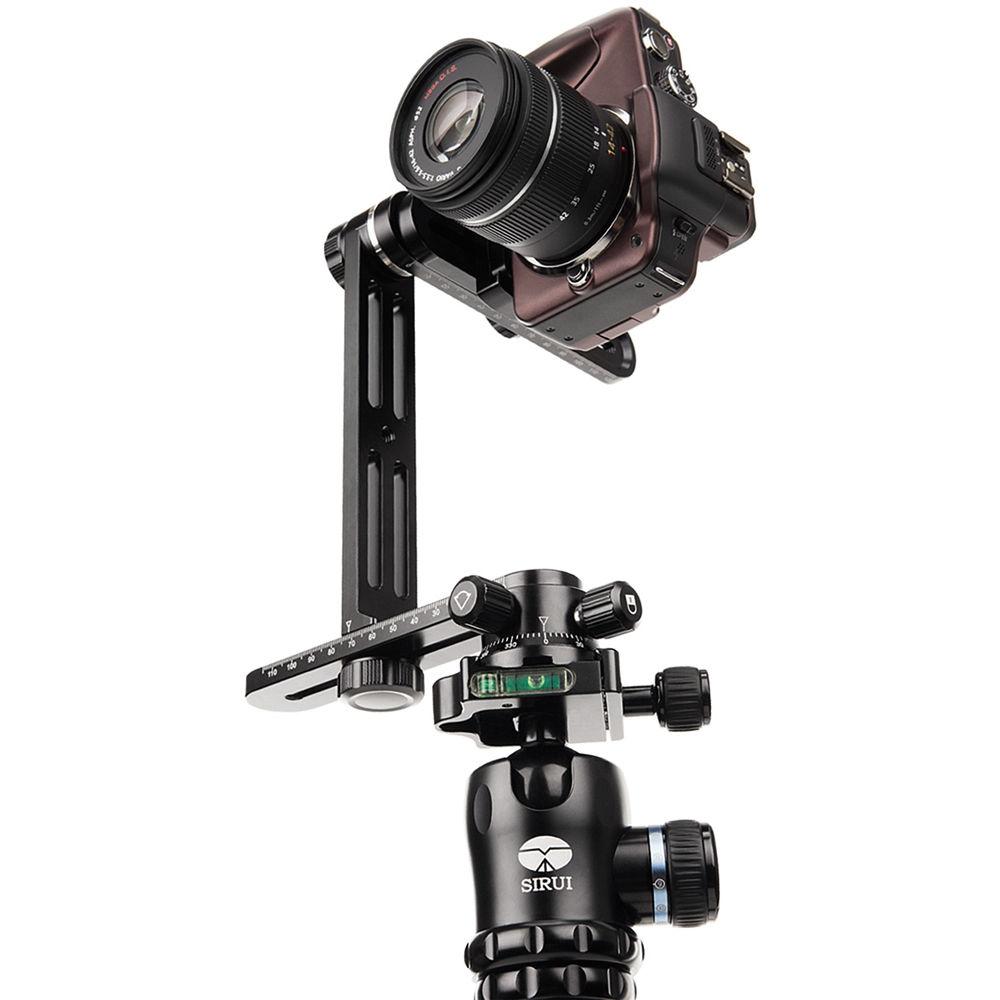

Product description Time-Lapse Tips and Tools Read More Create spherical or panoramic images with the 8.3" Sirui PB-10 Multi-Axial Panoramic Head that consist of a 360° panning base, vertical and horizontal rails, and a swing arm with an Arca clamp. The 14.8 oz head's load capacity is 6.6 lb, which is suitable for mirrorless and compact DSLR systems, and degree scales are located on each rail so setups can be repeated. The vertical rail slides across the horizontal rail to adjust, and the swing arm rotates 360° in 15° increments to help create panoramic or spherical shots. The panning base mounts onto tripods with a 3/8"-16 threaded mount, but can also mount to Arca-type compatible ball heads because of the dovetails located on the bottom of the rotating base. An independent pan locking knob and a tension control knob are located on the base. By turning the tension knob slightly, tension is increased, and at every 15° there is an indicating click stop. The bubble level on the horizontal rail ensures that the whole setup is aligned with the horizon. - PB-10 has a load capacity of 6.6 lb, which is suitable for mirrorless and DSLR systems
- The swing arm, which has an Arca-type clamp, rotates 360° in 15° increments to help create panoramic or spherical shots
- 360° panning base mounts onto tripods with a 3/8"-16 threaded mount, but can also mount to Arca-type compatible clamps because of its dovetails on the bottom
- The base has an independent pan locking knob and tension control, which is increased along with a click stop every 15°

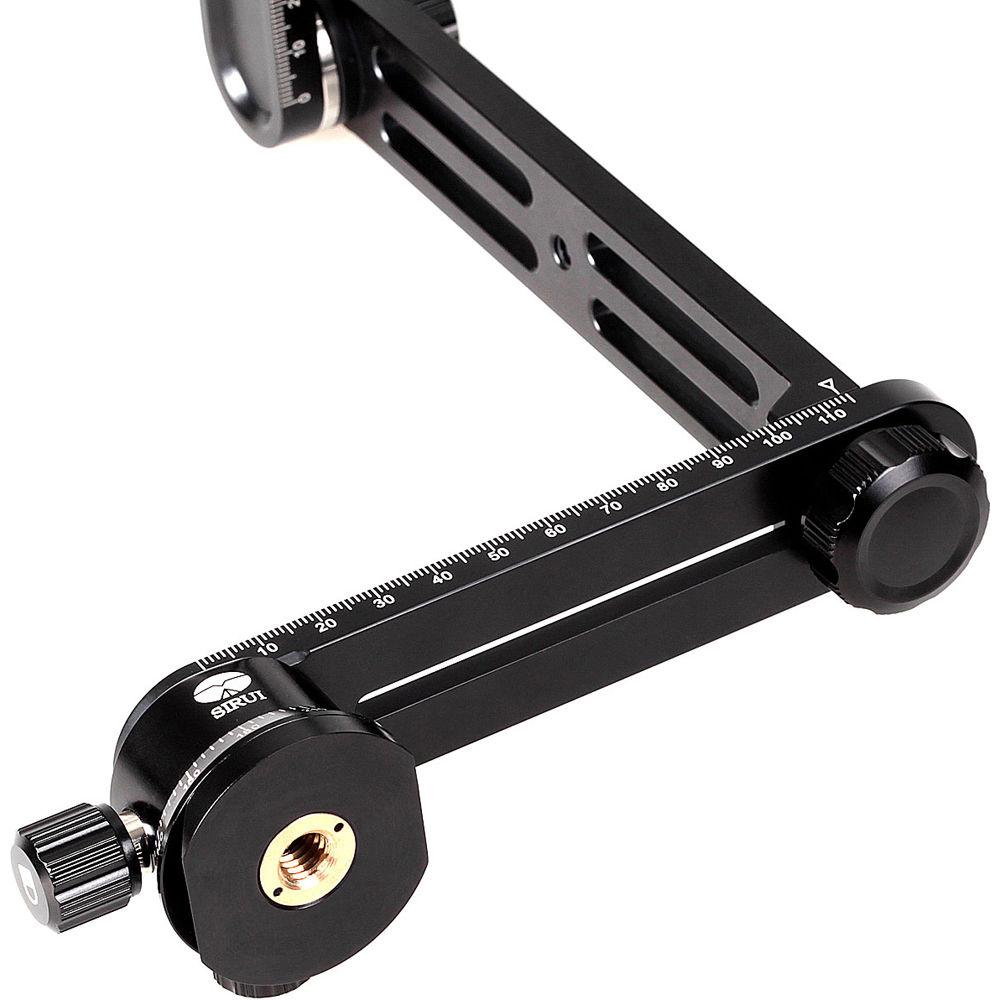

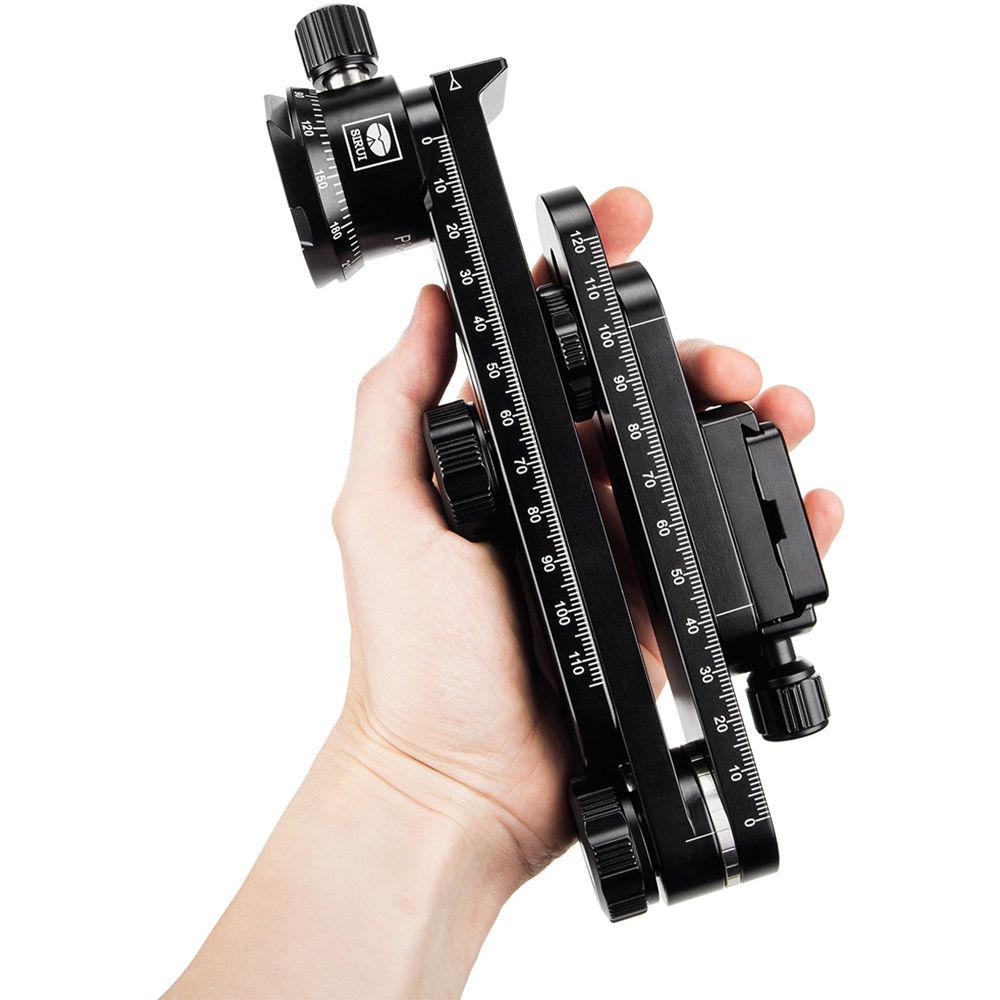

- Degree scales are located on each rail, so future setups can be repeated

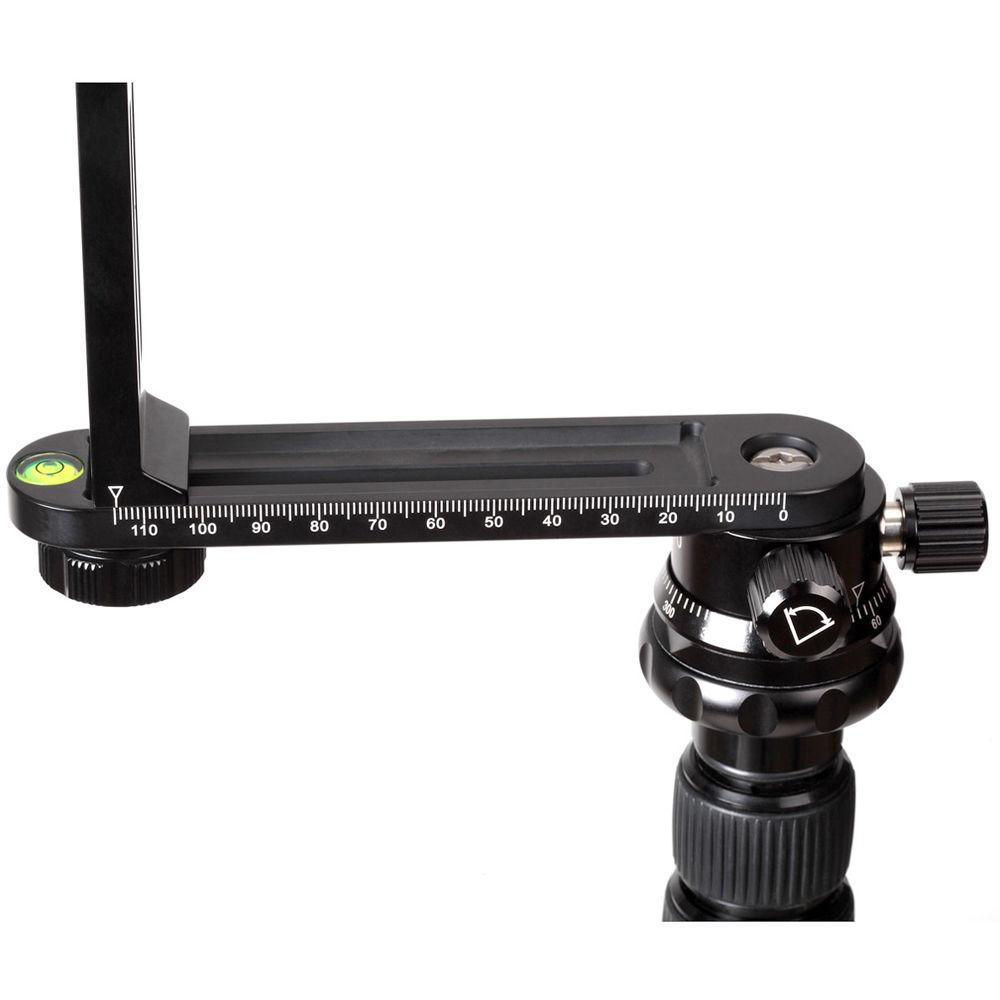

- Bubble level on the horizontal rail ensures that the whole setup is aligned with the horizon
In the Box Sirui PB-10 Multi-Axial Panoramic Head TY-C10 Quick Release Plate Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui PB-10 Multi-Axial Panoramic Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui PB-10 Specs | Material of Construction | Aluminum | | Rotation | Base: 360°Swing Arm: 360° | | Click-Stops | Every 15° | | Load Capacity | 6.6 lb / 3 kg | | Dimensions (W x H x D) | 6.7 x 8.3 x 6.7" / 17 x 21 x 17 cm | | Weight | 14.8 oz / 420 g | | | | Package Weight | 1.51 lb | | Box Dimensions (LxWxH) | 9.65 x 3.45 x 2.55" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
