User Manual for Sirui PH-20 Gimbal Head Click to enlarge the picture
Contents of the user manual for the Sirui PH-20 Gimbal Head
- Product category: Tripod Heads Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Tripod Heads
 |
User manual for the Sirui PH-20 Gimbal Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

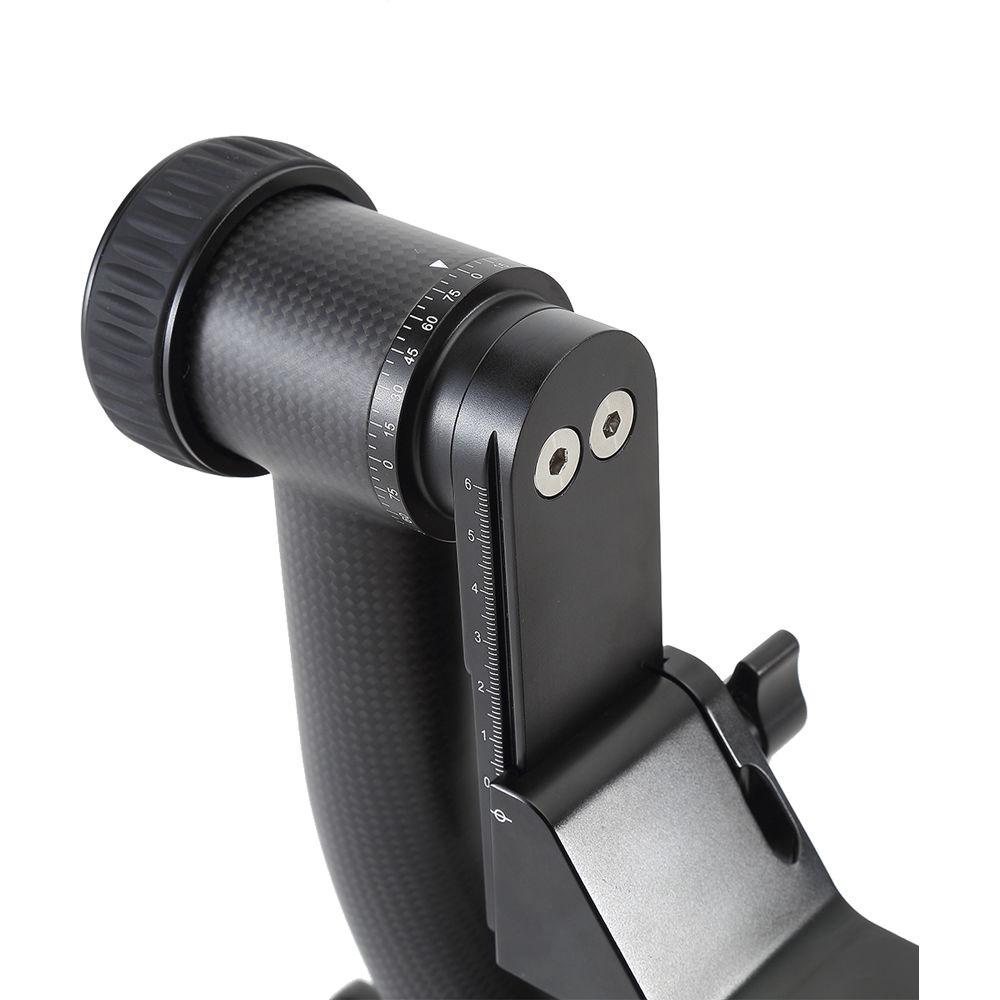

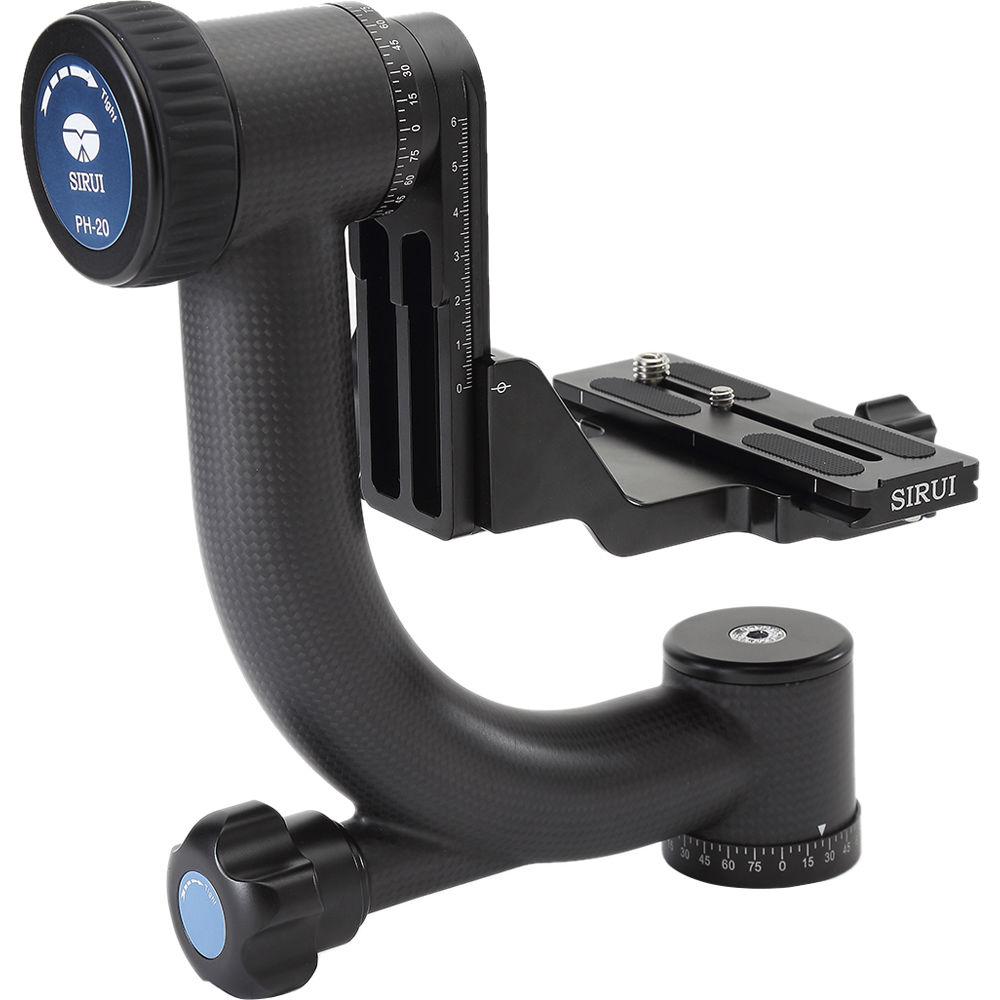

Product description - Sirui PH-20 Gimbal Head Demo

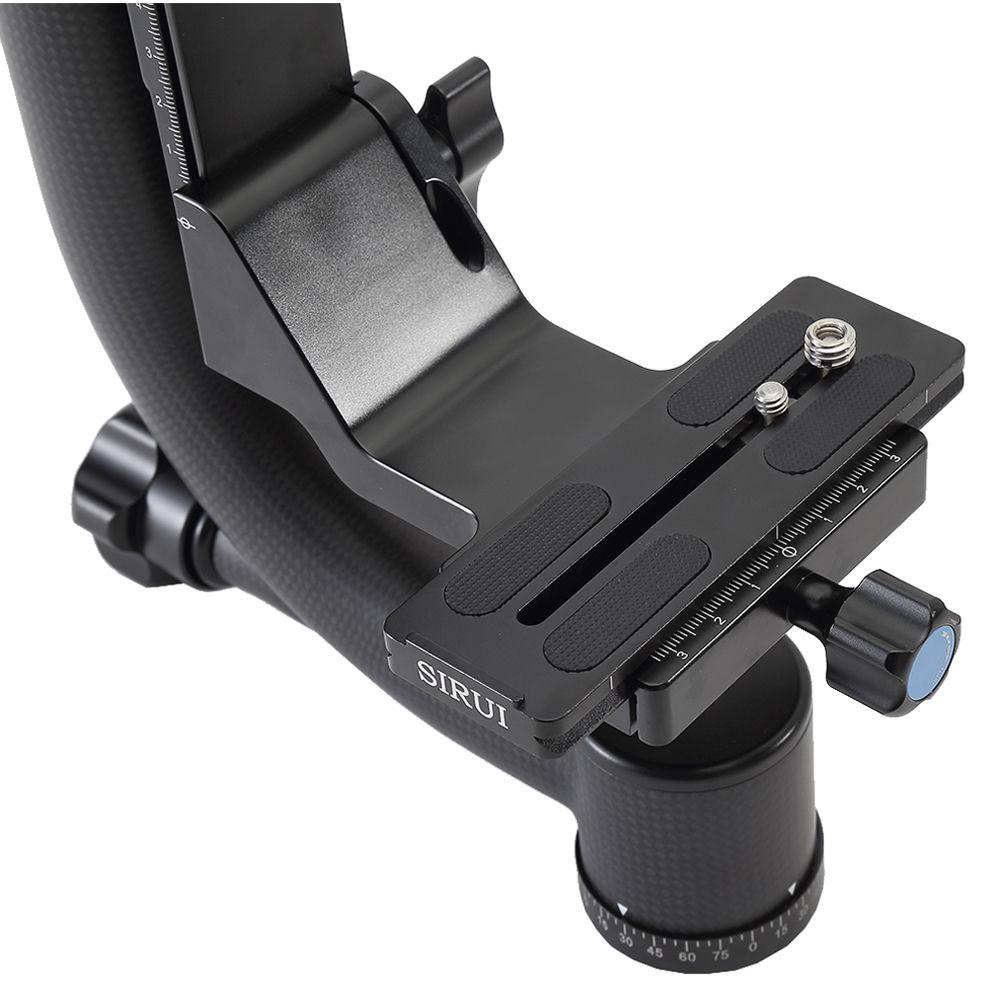

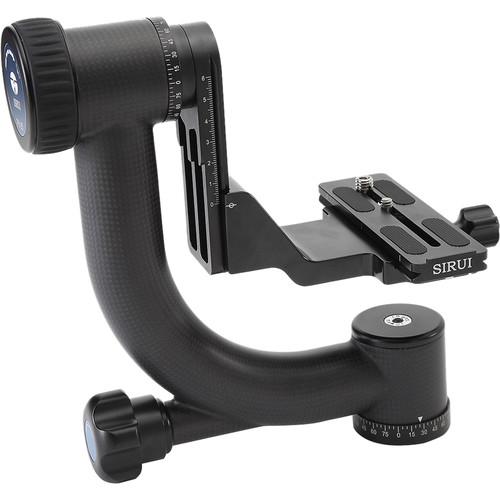

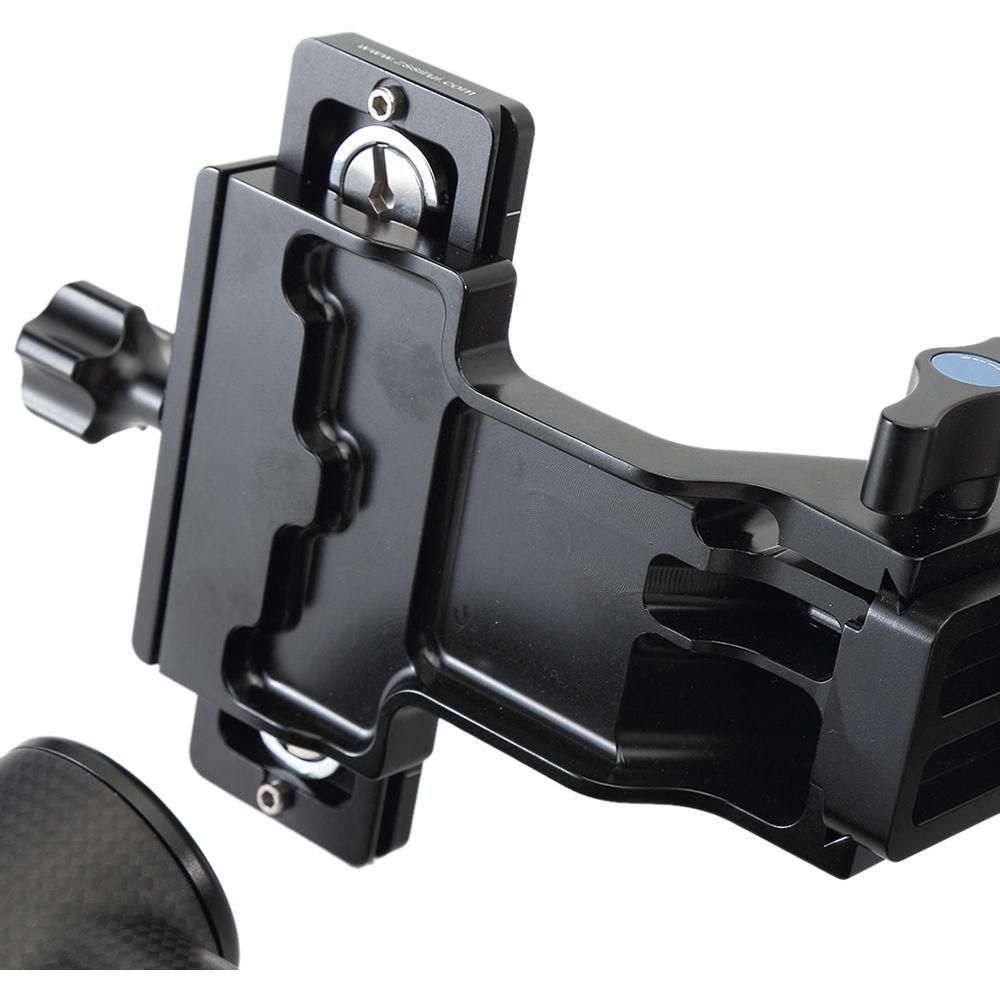

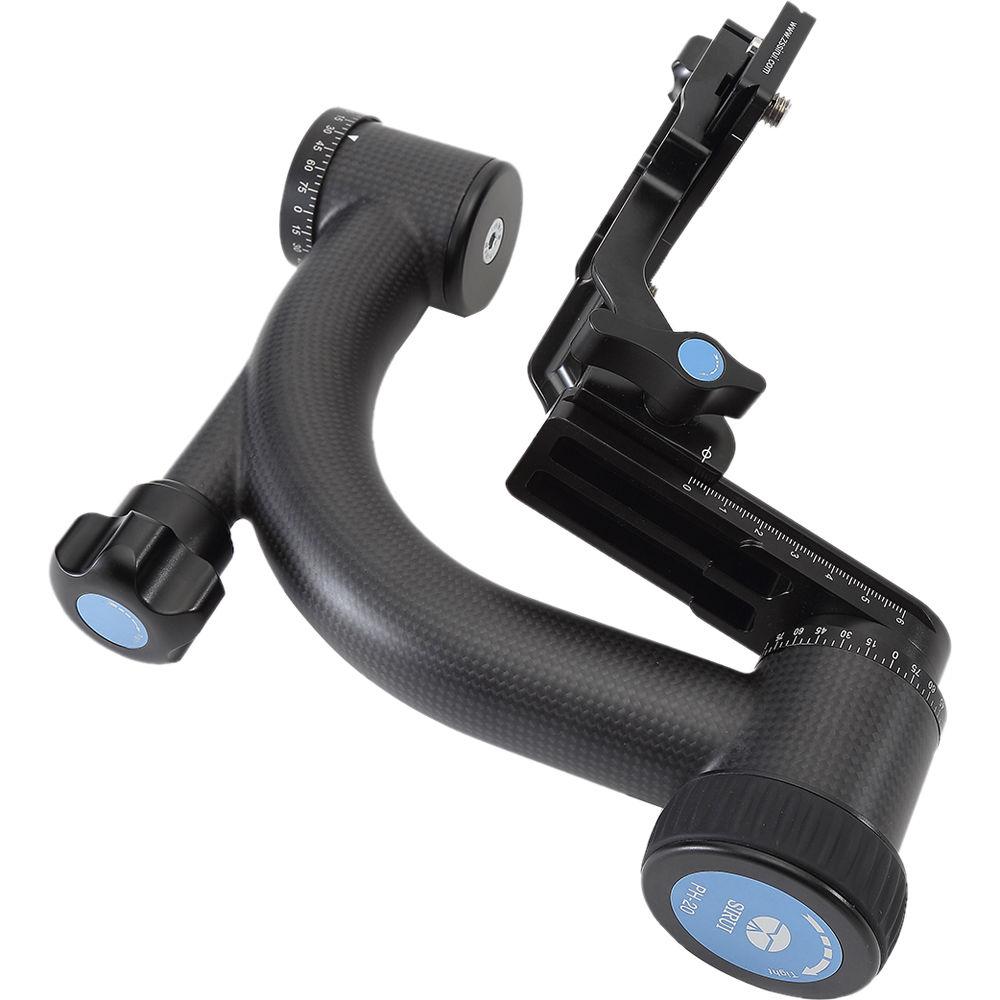

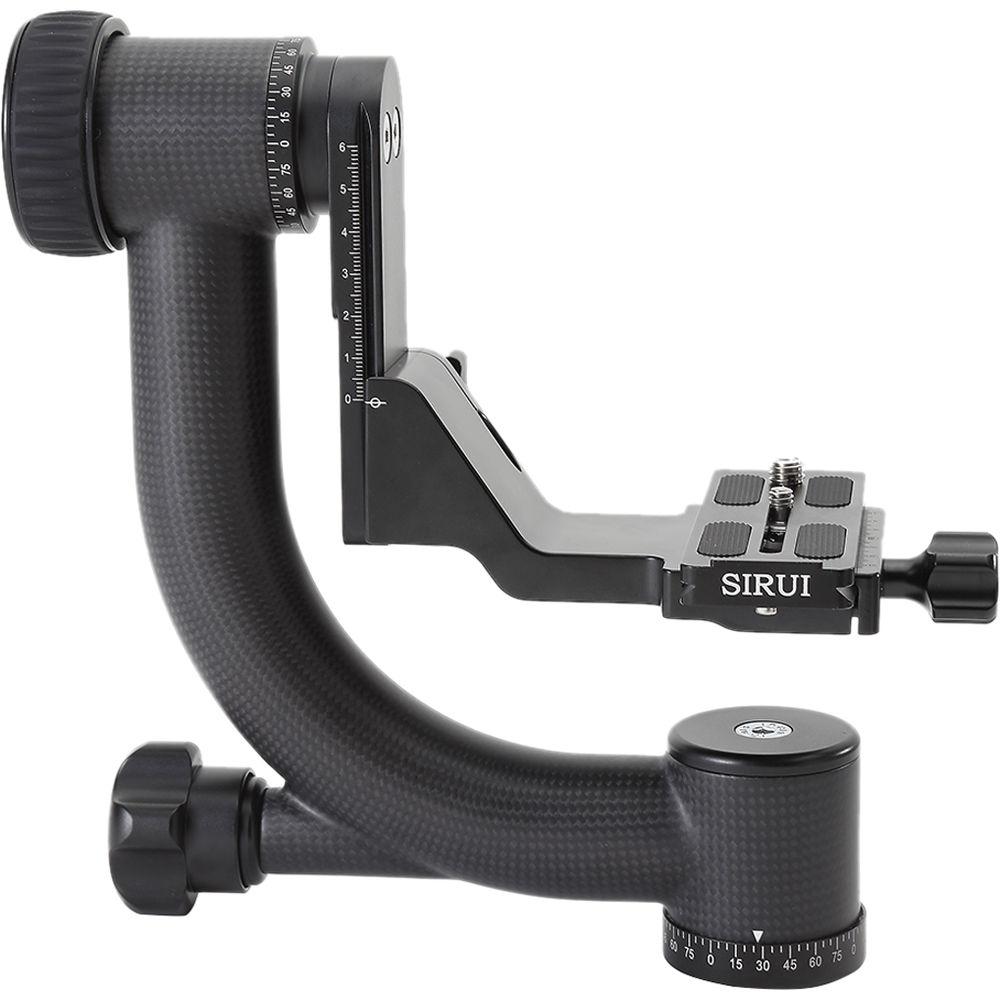

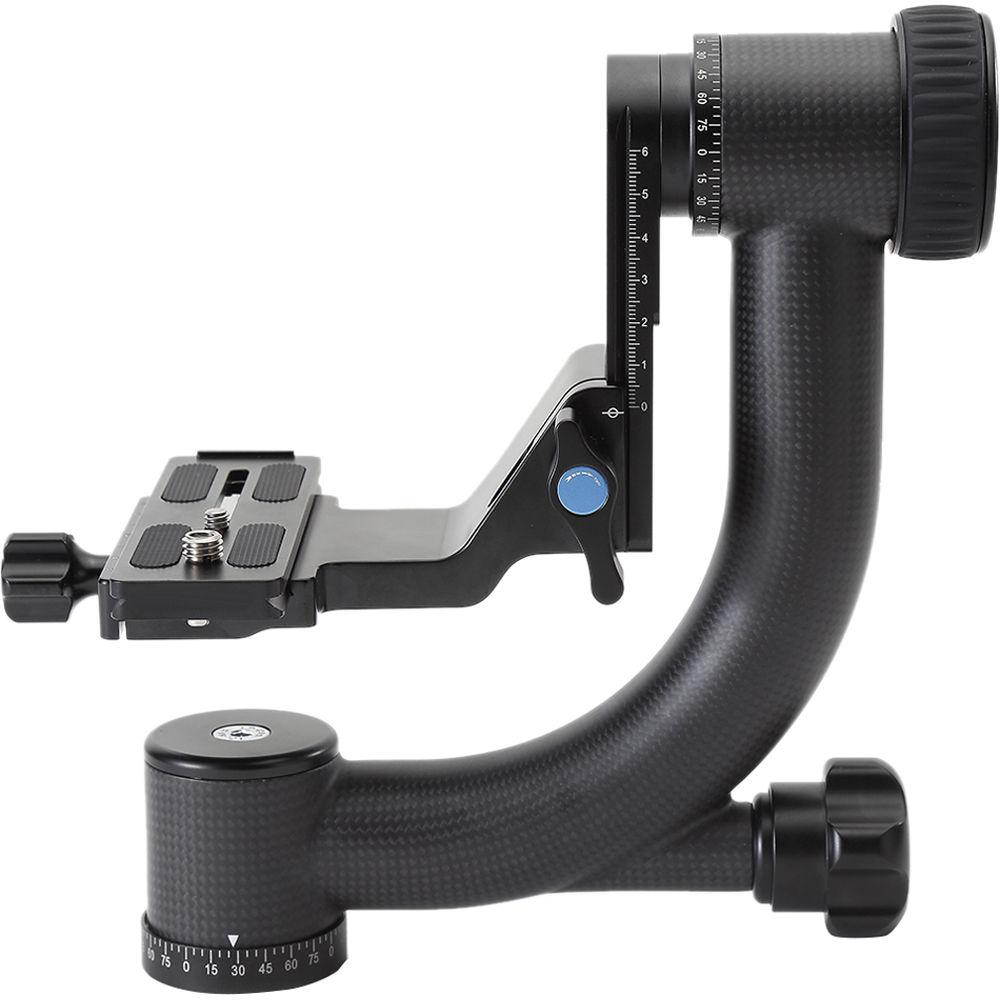

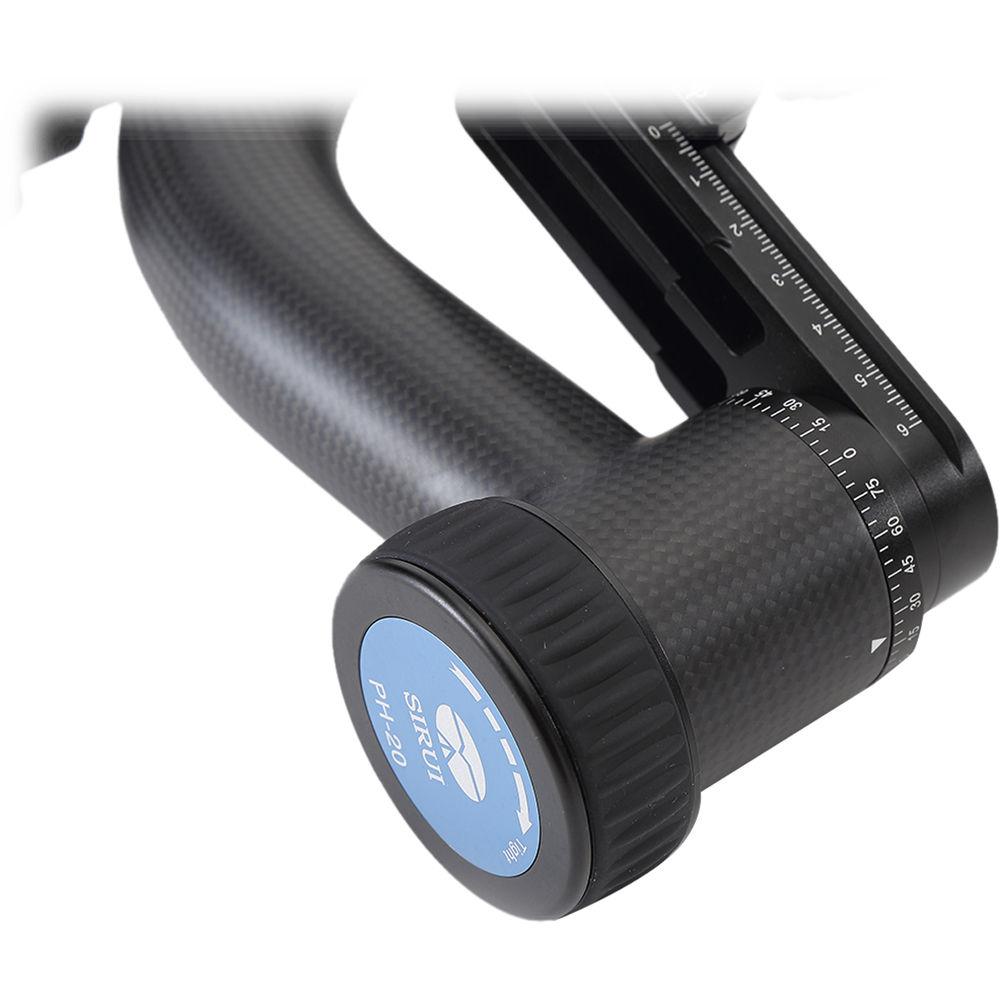

The Sirui PH-20 Gimbal Head is a great solution to the problem of shooting moving subjects with a long telephoto lens. Ball heads and 3-way heads can be cumbersome in fast-moving situations, but the gimbal head makes your camera and heavy lens seemingly weightless, and you can smoothly and precisely track fast-moving subjects. Cross-patterned, multi-layer carbon fiber in the arm and forged aircraft aluminum alloy in the L-bracket make the PH-20 very strong--it can hold up to 44 lb, but it weighs only 2.4 lb. Carbon fiber also reduces vibrations and provides better tolerance for temperature changes. With the camera and lens perfectly balanced on the gimbal head, there’s no need to lock any controls. You can quickly and easily move your camera in any direction with a very light amount of force. In fact, a correctly aligned system can be controlled with one finger. - Exceptionally strong carbon fiber and aluminum alloy gimbal head
- Supports up to 40 lb, but only weighs 2.4 lb
- Reduced vibrations and better tolerance for temperature changes due to carbon fiber construction

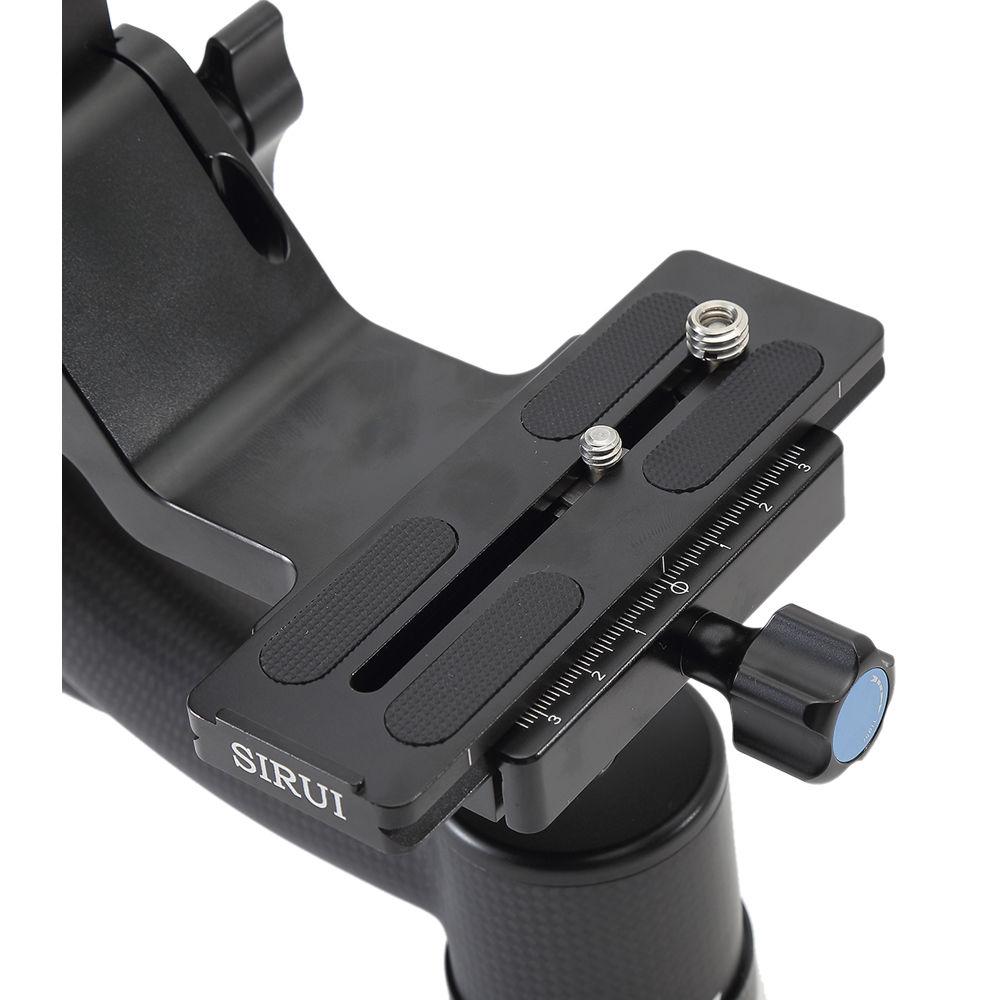

- Arca-compatible quick release system, calibrated quick release platform, and included quick release plate
- Horizontal 360° range, and tilt of +150° to -60°
- Ideal for using long telephoto lenses to photography moving subjects
In the Box Sirui PH-20 Gimbal Head Quick Release Plate Quick Release Platform Tools Custom Fitted Case Limited 6-Year Warranty usvdvfyfywaedddbtdu Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui PH-20 Gimbal Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui PH-20 Specs | | | Head Type | Gimbal Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 44 lb / 20 kg | | Independent Pan Lock | Yes | | | | Dimensions | H: 9.1 x W: 9.1 x L: 4.7" / H: 23.0 x W: 23.0 x L: 12.0 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 12.6 x 12.1 x 4.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
