User Manual for Sirui T-005X Aluminum Tripod with C-10S Ball Head Click to enlarge the picture
Contents of the user manual for the Sirui T-005X Aluminum Tripod with C-10S
- Product category: Tripods with Heads Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Tripods with Heads
 |
User manual for the Sirui T-005X Aluminum Tripod with C-10S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

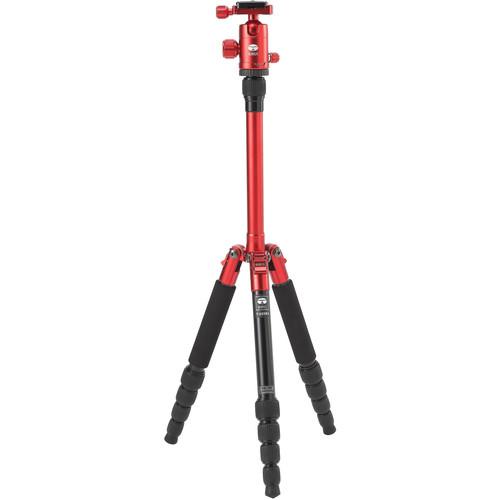

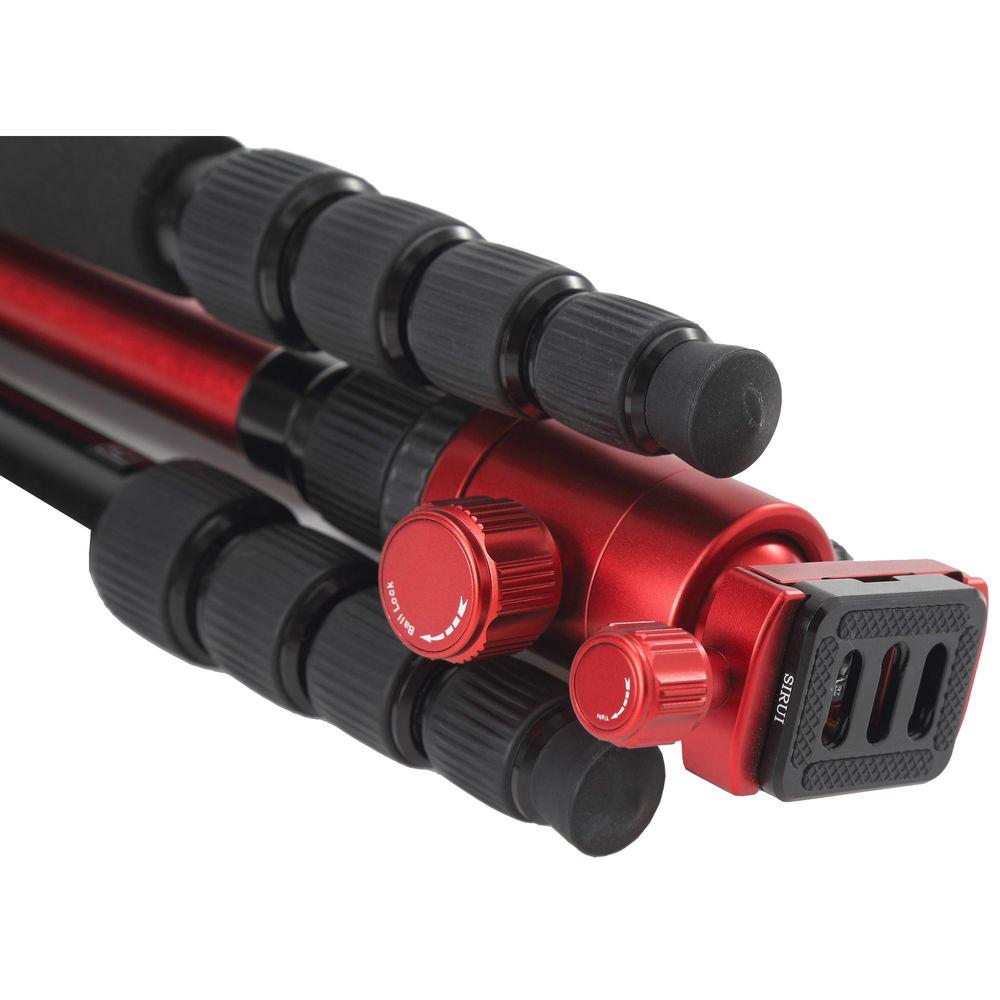

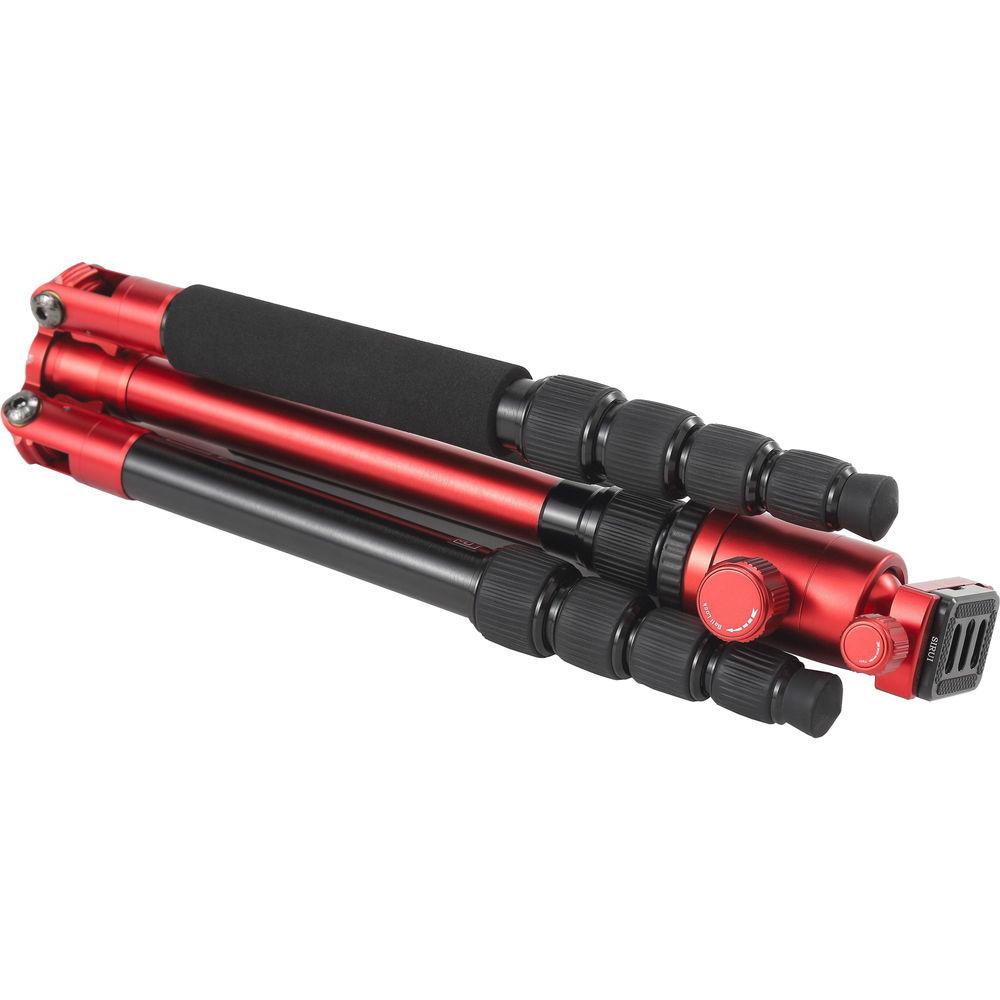

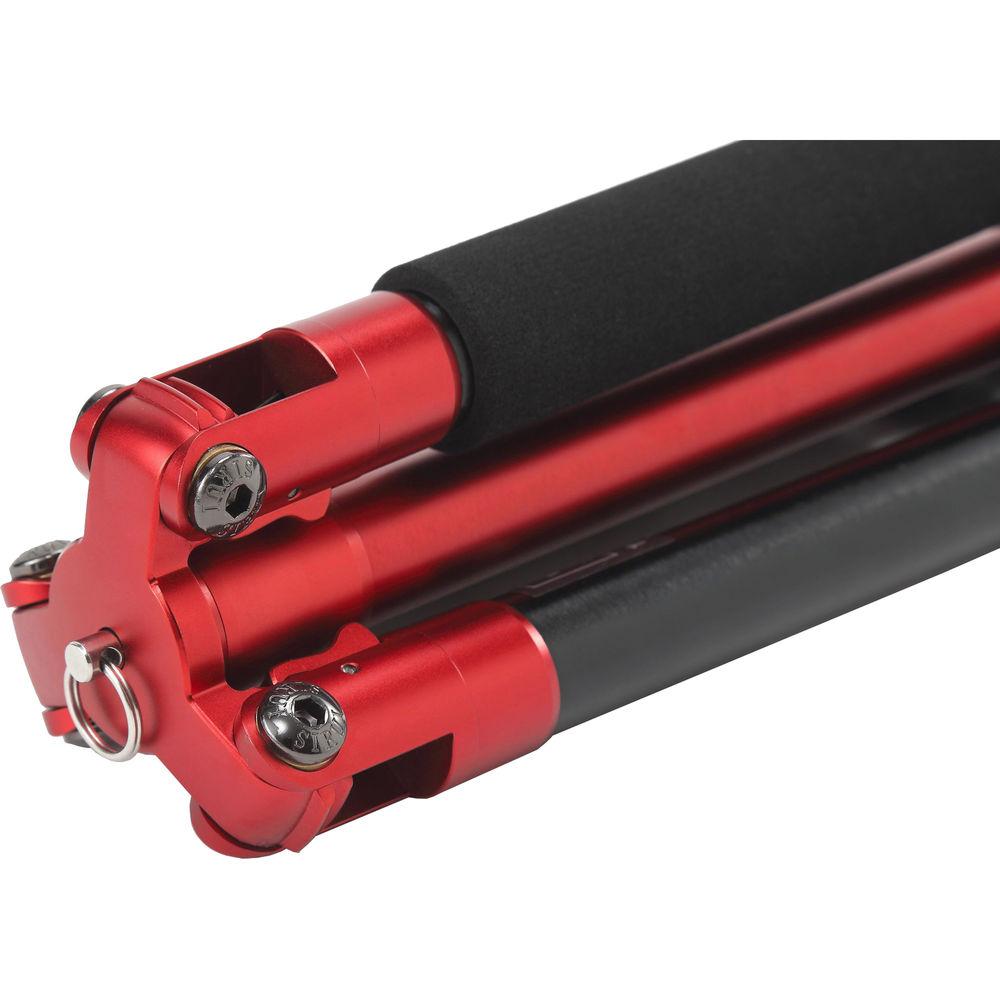

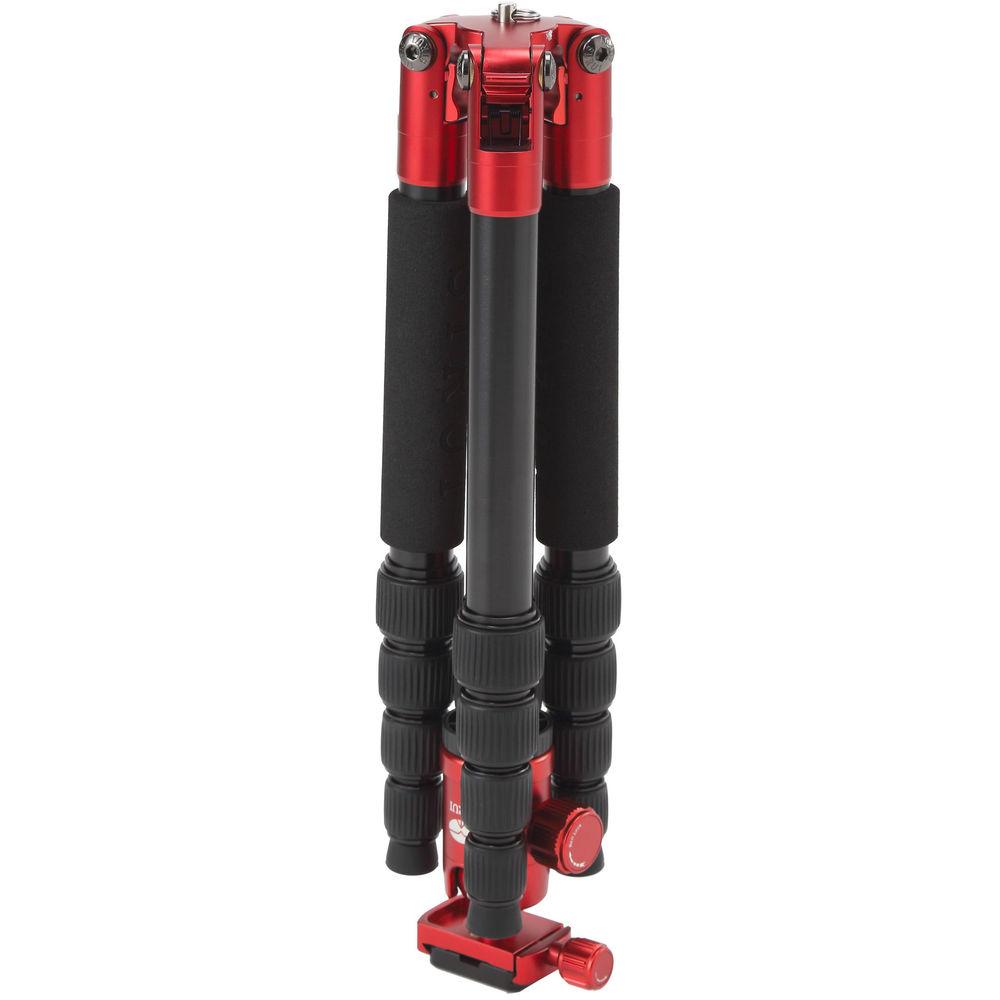

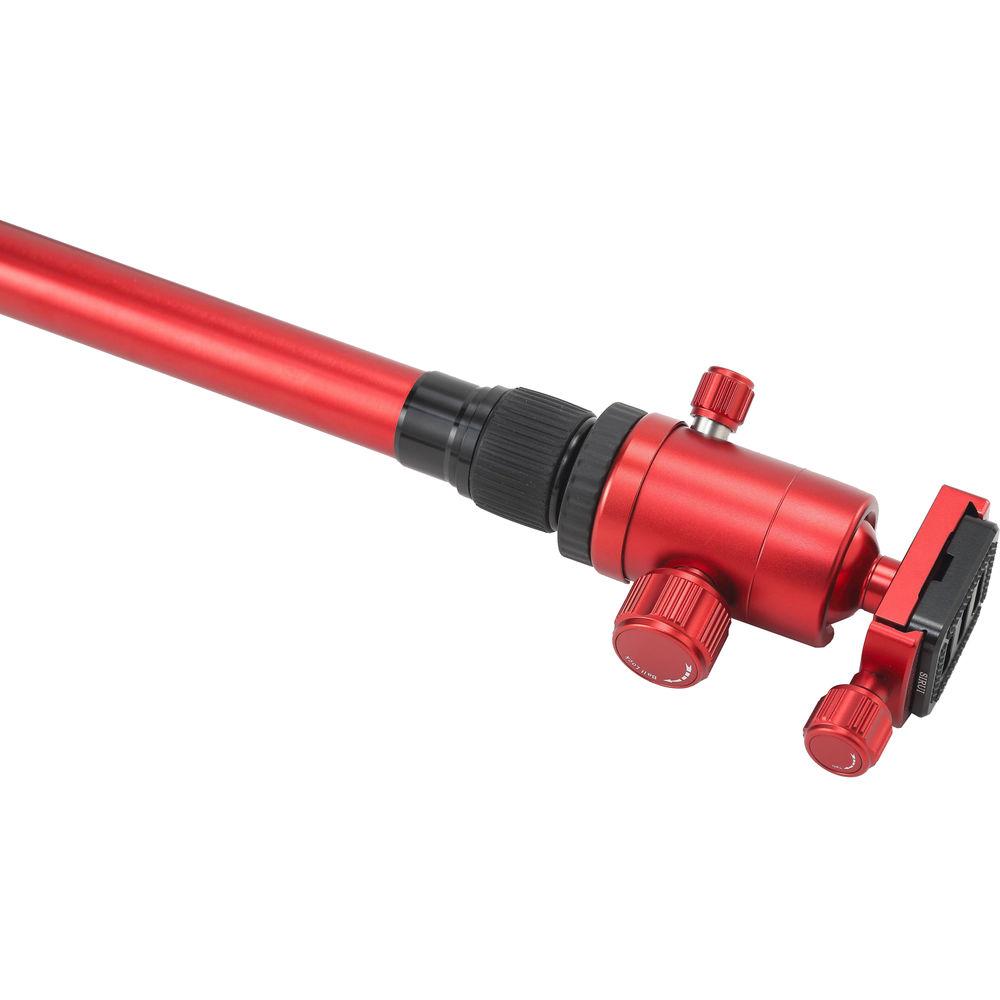

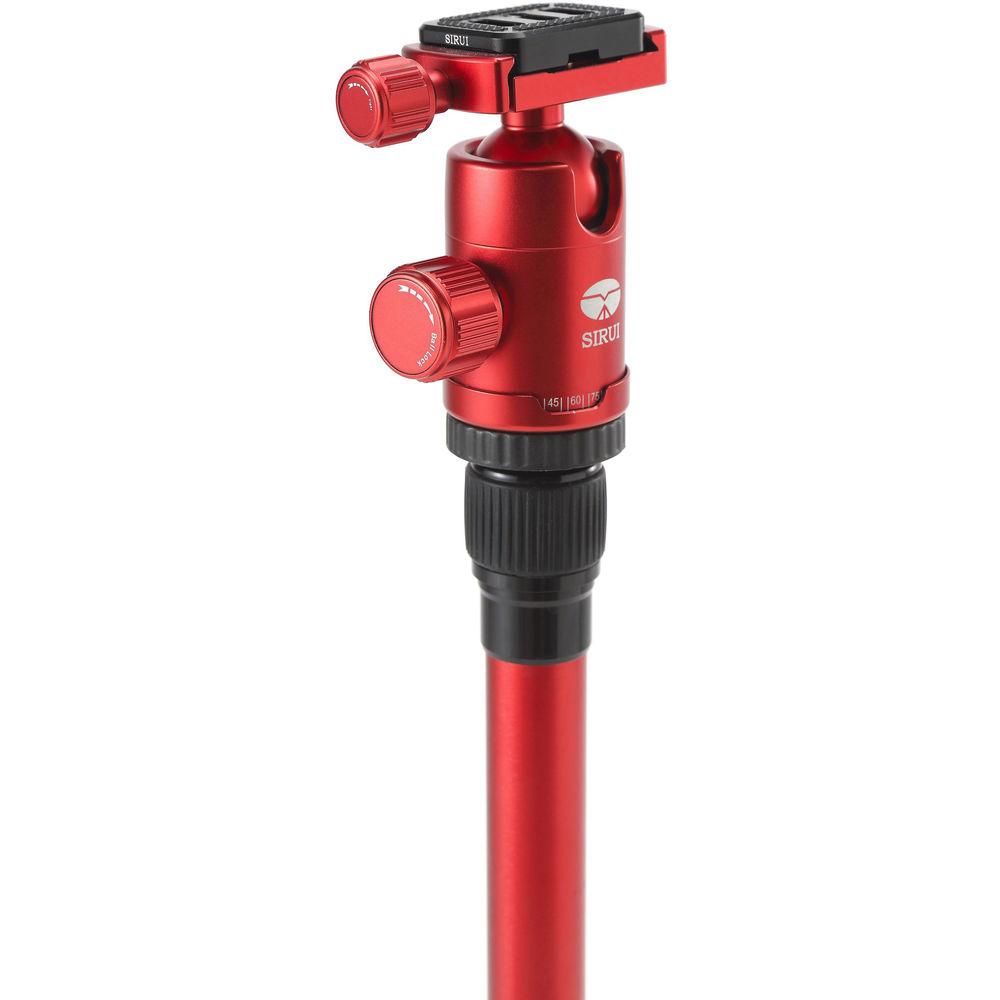

Product description Time-Lapse Tips and Tools Read More The red T-005X Aluminum Tripod with C-10S Ball Head from Sirui is a compact, lightweight, and stylish tripod with included head. With upward-folding legs, it collapses to just 12.2" with the head attached and weighs just 2.3 lb. Supporting loads up to 8.8 lb, this support is capable of holding DSLR cameras with lightweight lenses and is ideal for compact and mirrorless cameras and camcorders. The T-005X features twist locks for easy setup and each leg has and automatic leg-angle lock mechanism for speed and convenience. A removable center column allows for table-top and low angle shooting as low as 4.1" with the ball head. When fully extended, the tripod reaches a maximum height of 54" with the head attached. The C-10S is an extremely capable ball head, its separate knobs for pan and tilt adjustments enable the user to perform tasks such as panoramic photography while keeping the tilt locked. An Arca-type compatible quick release plate is included, as is a soft carrying case and a tool set. - A removable center column allows for table-top and low angle shooting.
- Three leg-angle positions mean each leg can be set independently for use on uneven terrain.
- Legs fold up 180º for extra compactness when stored.
- For speed and convenience, each leg has an automatic leg-angle lock mechanism
- Well-designed padded traveling bag with shoulder strap and tools included
In the Box Sirui T-005X Aluminum Tripod with C-10S Ball Head (Red) C-10S Ball Head Quick Release Plate Soft Carrying Case Tools Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui T-005X Aluminum Tripod with C-10S Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui T005RX Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 54" / 137.2 cm | | Max Height without Center Column | 48" / 124 cm | | Minimum Working Height | 4.1" / 10.5 cm | | Folded Length | 12.2" / 30.99 cm | | Materials | Aluminum Alloy | | Weight | 2.3 lb / 1.0 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Leg Diameter | 0.9" / 22 mm | | Bubble Level | No | | | | Center Column Features | Removable | | Center Column Sections | 1 | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 16.0 x 3.8 x 3.7" |
