User Manual for Sirui T-2005X 5-Section Aluminum Tripod Click to enlarge the picture
Contents of the user manual for the Sirui T-2005X 5-Section Aluminum Tripod
- Product category: Tripod Legs Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Tripod Legs
 |
User manual for the Sirui T-2005X 5-Section Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

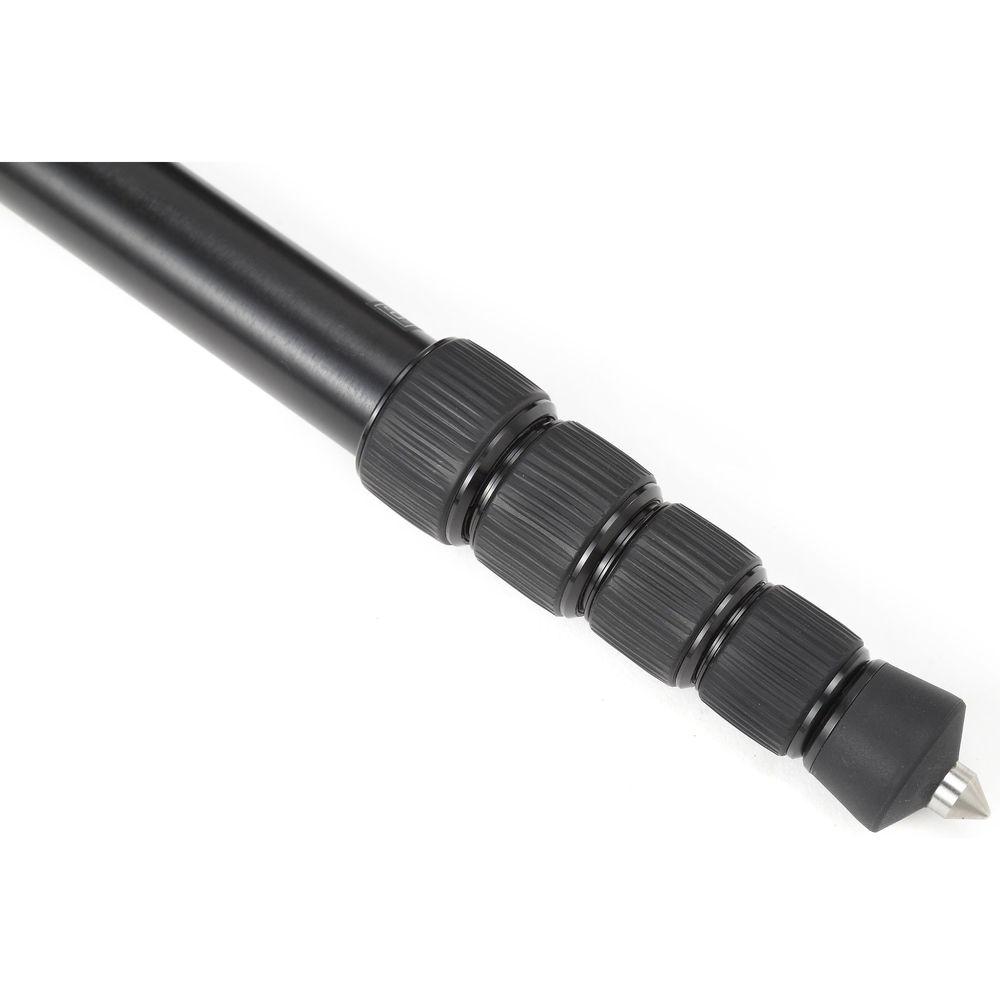

Product description The Sirui T-2005X 5-Section Aluminum Tripod is a very lightweight, compact tripod that extends to a maximum height of 56.9" and folds down to just 14.6" for easy transport. Weighing only 3.1 lb, the T-2005X supports loads up to 26.5 lb thanks to its thick upper leg sections and forged aluminum construction. The T-2005X tripod is suitable for use with just about any head and any 35mm camera, DSLR, point & shoot, or camcorder. It's an excellent travel model due to its relatively light weight and the fact that its legs fold upward to achieve a folded length of only 14.6". That's a figure that won't necessarily grow if you attach a head – the legs extend past the height of many head models that you'll mount, so the entire package stays very compact to fit comfortably in most carry-on bags and many backpacks. The tripod's center column is reversible, and the T-2005X comes with a short center column so that you can set up extremely close to the ground for ultra-low-angle shooting. With the short center column installed, you can set the legs at their wide angle (80°) and shoot from only 5.3" from the ground. - Forged aluminum results in stronger components than the traditional casting process that's often used for tripod chassis. Forging leads to more compacted metal and enhances the integrity of metal grains so they remain consistent and continuous. This leads to a longer product life and better performance
- An anodizing surface treatment, produced by an electrolytic oxidation process to increase the thickness of the natural oxide layer on the surface of metal parts, is applied to increase corrosion & wear resistance and surface hardness, and to enhance color durability
- Silicone twist locks for leg stages
- Anti-leg rotation system makes setup faster
- Automatic leg-angle lock mechanism for speed and convenience – independently lock legs into place at two different angles
- Short center column allows the tripod to reach extremely low positions – minimum height of 5.3"
- Leg warmer on one leg facilitates handling in extreme weather conditions and helps protect it
- Center column hook allows you to add a ballast for a sturdier setup in windy conditions
- Well-designed padded travel bag with sturdy shoulder strap for carrying
In the Box Sirui T-2005X 5-Section Aluminum Tripod Short Center Column Padded Travel Bag with Shoulder Strap Allen Key Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui T-2005X 5-Section Aluminum Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui T-2005X Specs | | | Load Capacity | 26.5 lb / 12 kg | | Maximum Working Height | 56.9" / 144.5 cm | | Max Height without Center Column | 49" / 124.5 cm | | Minimum Working Height | 5.3" / 13.5 cm | | Folded Length | 14.6" / 37.1 cm | | Head Mount Type | 1/4"-20 Screw | | Weight | 3 lb / 1.4 kg | | Materials | Aluminum Alloy | | Bubble Level | No | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Leg Diameter | 1.1" / 27.9 mm | | Feet Features | Spiked, Retractable | | | | Center Column Features | Reversible | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.42 lb | | Box Dimensions (LxWxH) | 21.6 x 5.8 x 5.4" |
