User Manual for Sirui T1004E10 Street Runner Tripod Kit Click to enlarge the picture
Contents of the user manual for the Sirui T1004E10 Street Runner Tripod Kit
- Product category: Tripods with Heads Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Tripods with Heads
 |
User manual for the Sirui T1004E10 Street Runner Tripod Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

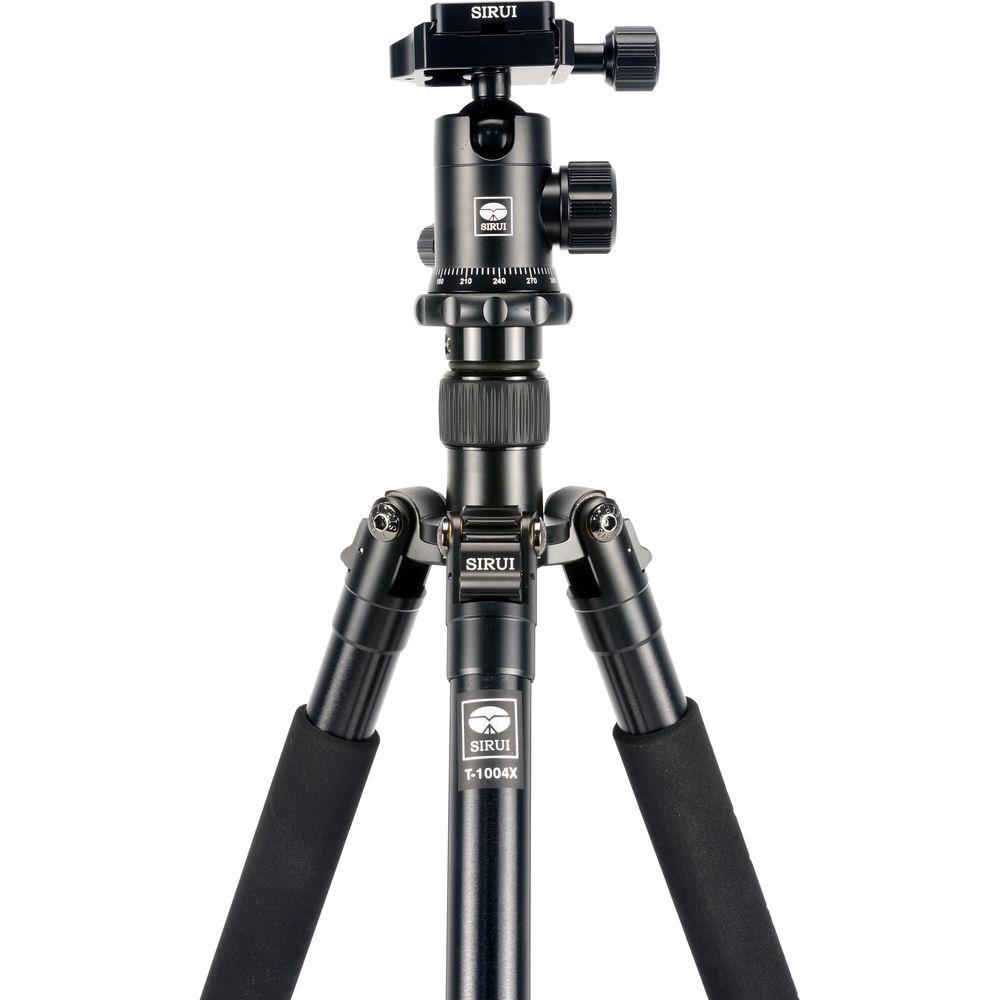

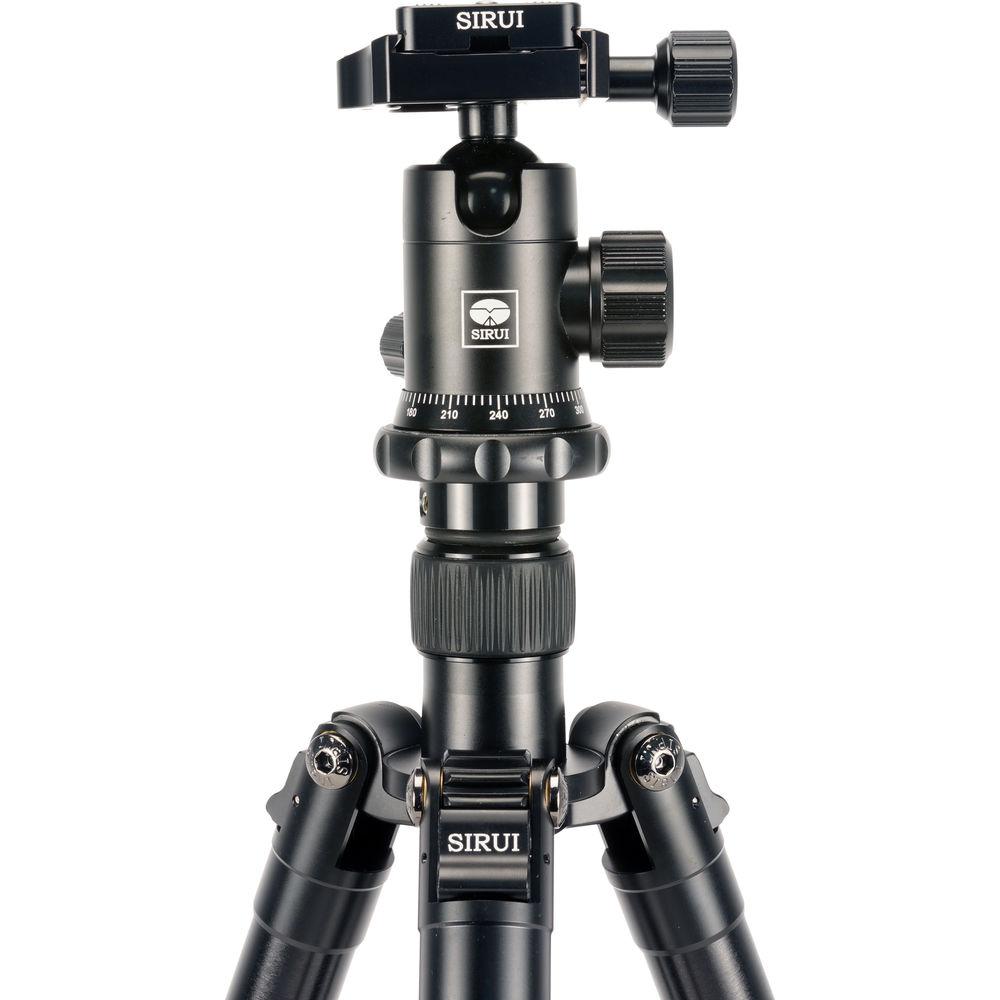

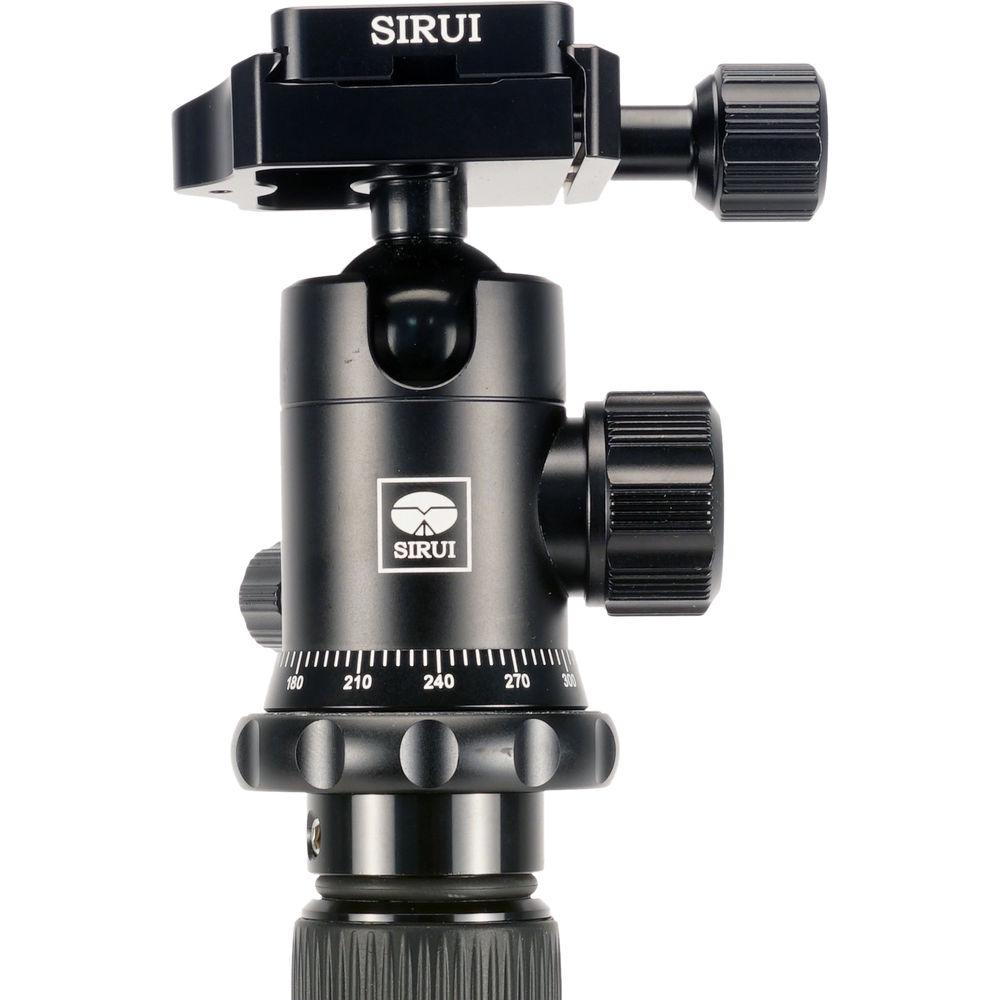

Product description Time-Lapse Tips and Tools Read More The T1004E10 Street Runner Tripod Kit from Sirui is an ideal combination of a lightweight tripod with a compact ball head for the photographer that travels locally or internationally. This tripod and head combo is a convenient tool for any place or any situation that should arise. - E-10 Ball Head with TY-50E Plate The E-10 Ball Head with TY-50E Plate from Sirui is a 10.6 oz aluminum camera support that features an Arca-type compatible quick release system. The head has two separate knobs, the larger knob unlocks to release the ball movement, and the independent pan lock releases the 360° panning base, which has 5° scale markings. The weight capacity of the ball head is 17.6 lb, which makes it suitable to support large DSLR and medium format cameras. Furthermore, inside the clamp there is a safety stop and on the side of the clamp a security pin release button, which prevents the plate from accidentally sliding and falling out. The included TY-50E plate has a machined eyelet for a hand or shoulder strap.
- Arca-type compatible ball head with safety stop and security pin release button
- 360° panning base with 5° scale increments
- Integrated spirit bubble level for balancing
- Machined eyelet on the quick release place for a hand or shoulder strap

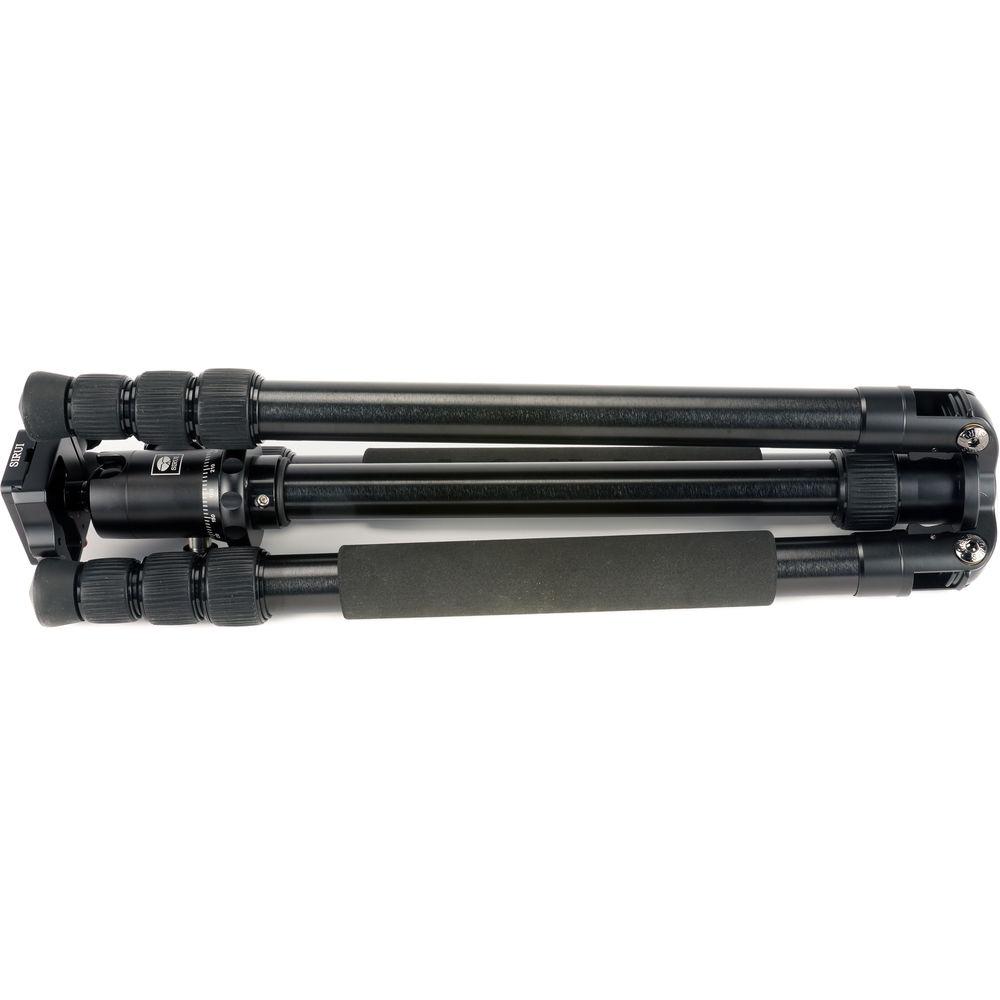

- T-1004X Traveler Aluminum Tripod The T-1004X Traveler Aluminum Tripod from Sirui is a four-section support which weighs 2.7 lb. Its reverse-folding legs enable the tripod to become compact and folded down to 18.5". By unlocking and fully extending the tripods' legs and center column, the support can reach a maximum working height of 55.3", with a load capacity of 22.1 lb, making the Traveler suitable for a DSLR with a telephoto lens. The variable leg angles enable the tripod to go as low as 5.3", and the hook at the base of the center column allows you to hang a small sandbag or camera bag for stability. Additionally, as uneven terrain can make your tripod unsteady, by turning the rubber feet back on the legs they reveal twist-out steel spikes that stick into the ground and add further stability.
In the Box Bundle Items E-10 Ball Head with TY-50E Plate - TY-50E Quick Release Plate
T-1004X Traveler Aluminum Tripod User Manual PDF 3mbvztqwybbyfuuzewdauxsycvryzc Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui T1004E10 Street Runner Tripod Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - E-10 Ball Head with TY-50E Plate
| Load Capacity | 17.6 lb (8 kg) | | Ball Sphere Diameter | 1.1" (29 mm) | | Quick Release | Arca-type | | Spirit Level | Yes | | Tension Control | No | | Separate Panning Lock | Yes | | Tripod Mount Thread Size | 3/8"-16 | | Height | 3.5" (8.9 cm) | | Base Diameter | 1.7" (42 mm) | | Weight | 10.6 oz (300 g) | | | | Box Dimensions (LxWxH) | 5.5 x 4.8 x 3.0" | - T-1004X Traveler Aluminum Tripod
| | | Load Capacity | 22.1 lb / 10.02 kg | | Maximum Working Height | 55.3" / 140.5 cm | | Max Height without Center Column | 45.9" / 116.59 cm | | Minimum Working Height | 5.3" / 13.5 cm | | Folded Length | 18.5" / 46.99 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 2.7 lb / 1.22 kg | | Materials | Aluminum Alloy | | Bubble Level | No | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 0.98" / 24.89 mm
0.63" / 16.00 mm | | Feet Features | Rubber, Spiked | | | | Center Column Features | Ballast Hook, Reversible | | Center Column Shape | Round | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 20.5 x 5.4 x 5.3" |
