User Manual for Sirui Video Survival Kit 2 Tabletop Dolly with Slider Track Click to enlarge the picture
Contents of the user manual for the Sirui Video Survival Kit 2 Tabletop
- Product category: Cine Dollies Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Cine Dollies
 |
User manual for the Sirui Video Survival Kit 2 Tabletop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

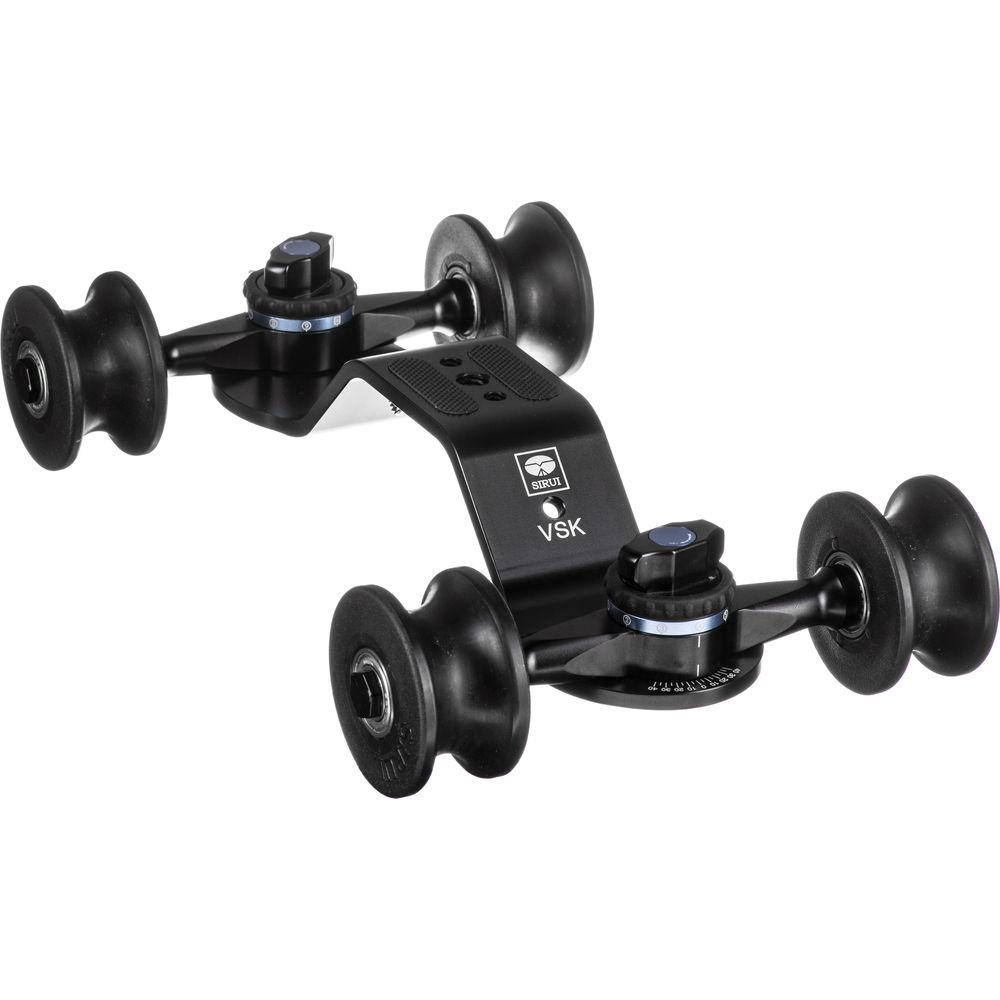

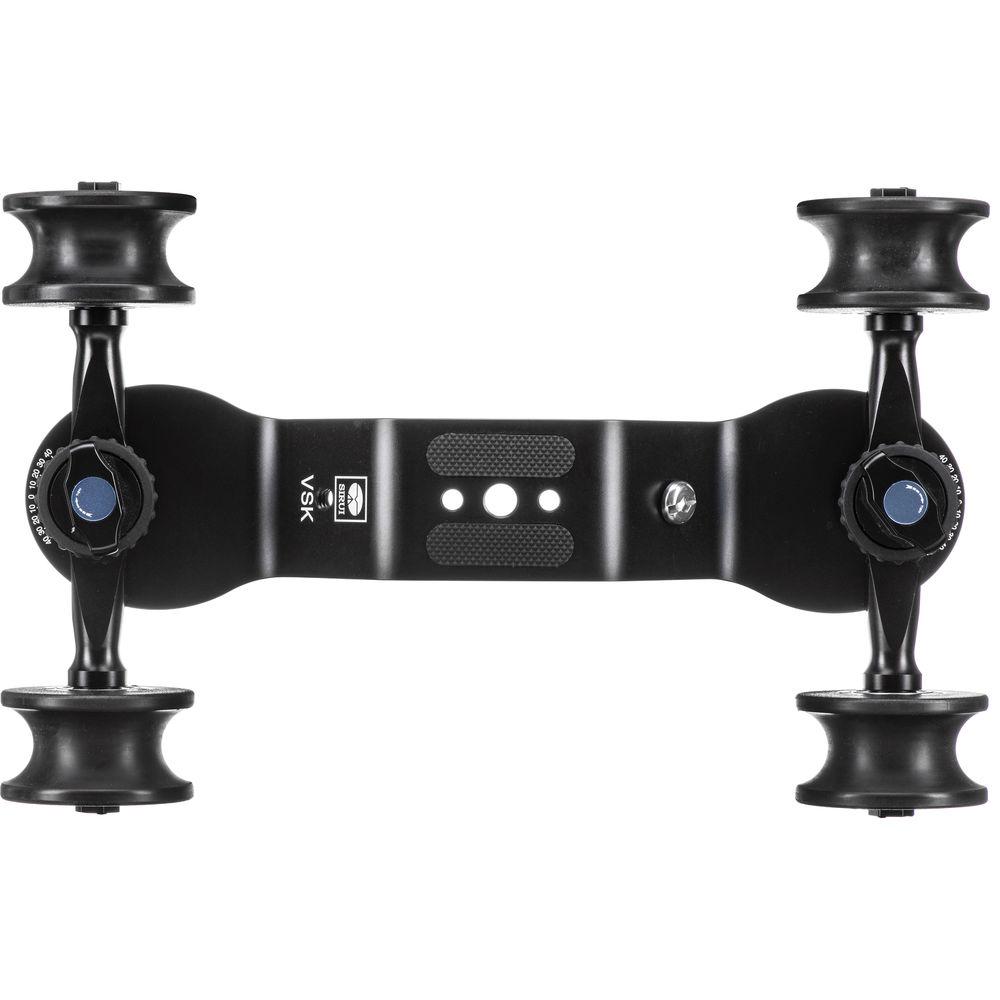

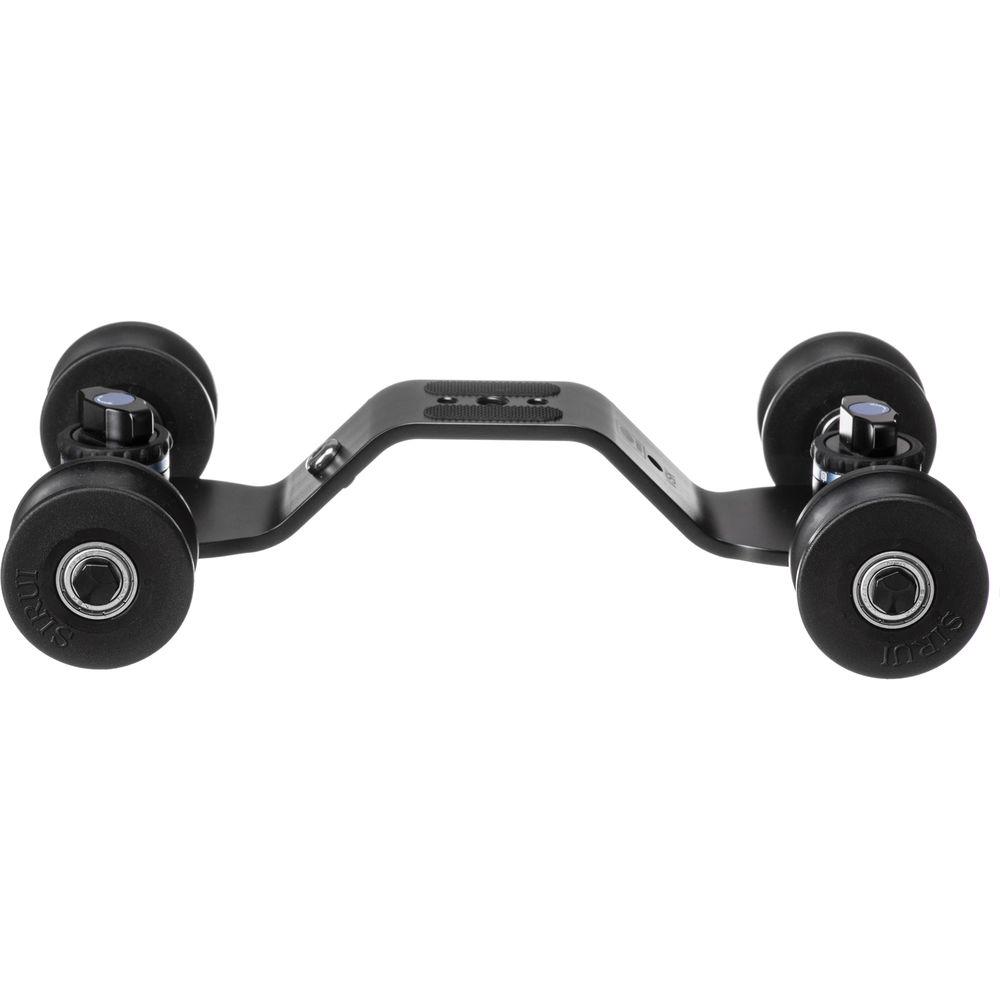

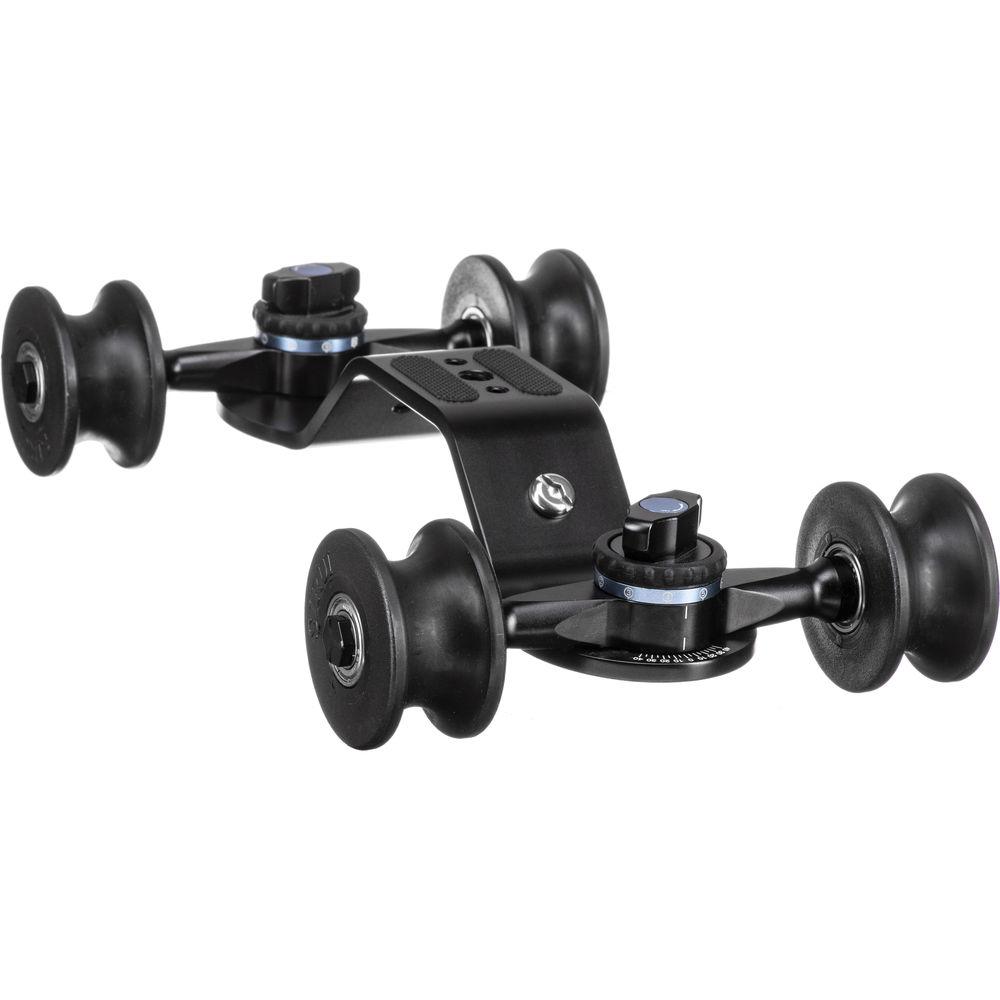

Product description The Sirui Video Survival Kit 2 Tabletop Dolly with Slider Track or VSK2 is a basic slider kit with a slider dolly that also functions as a tabletop dolly for use on smooth surfaces. The slider dolly is a raised platform with front and rear articulating wheels which allow it to make turns when used on a smooth, flat surface. The front and rear wheel axles are independent of each other, allowing you to adjust your turn radius.

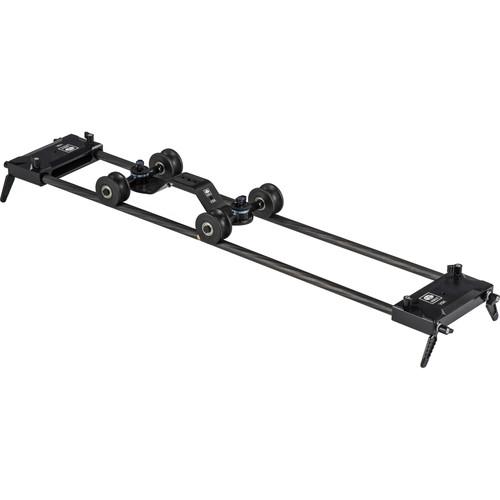

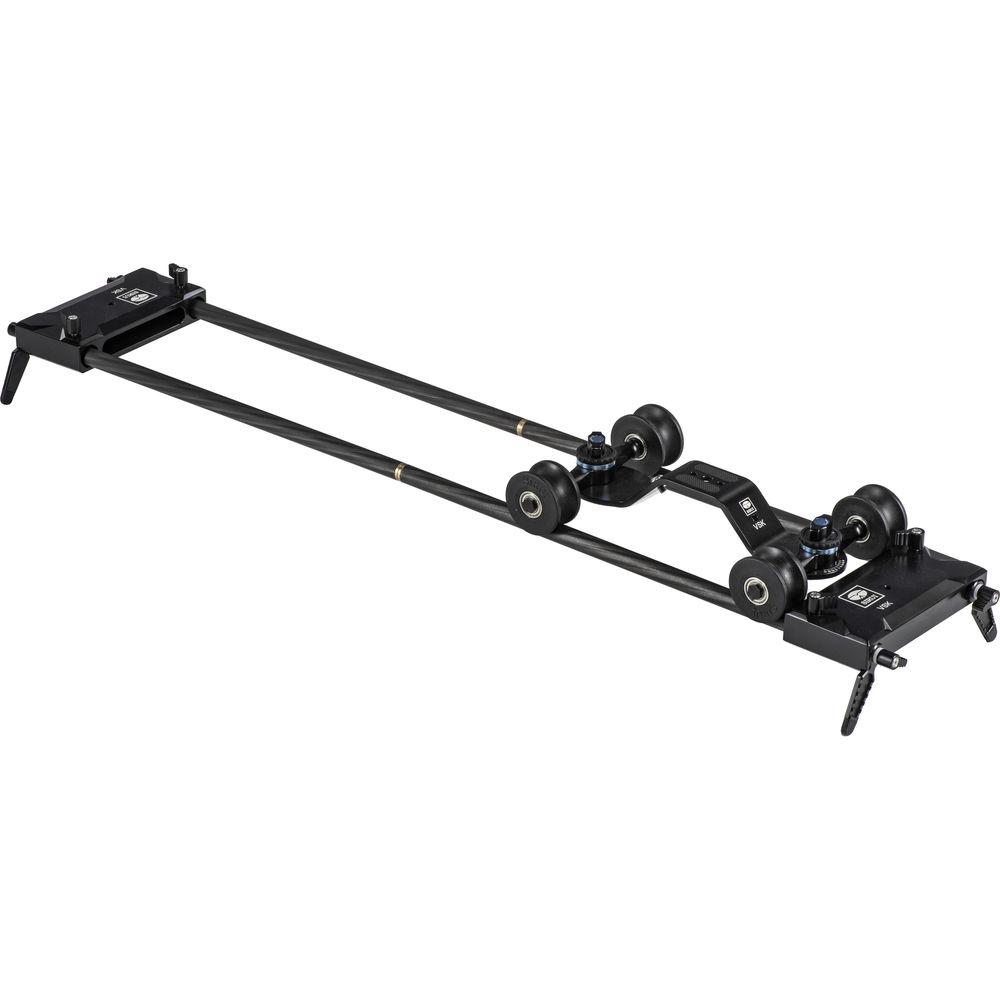

The slider track consists of four 15mm diameter carbon fiber rods, and it comes with two couplers and two end stops. This allows you to assemble a dual-rail track that is 34" long. Mounting the slider dolly on this track provides approximately 17" of travel along the rails. The track provides a smooth platform for the dolly, but it is only meant to be placed on a flat surface and cannot be used on uneven or angled surfaces. - Slider dolly wheel axles independently articulate for adjustable turn radius.
- The slider dolly features a 3/8"-16 threaded mounting hole for mounting flat heads or other camera supports. There are two 1/4"-20 threaded mounting holes on either side of the threaded mounting screw.
- The track assembles and disassembles easily and includes a coupler which allows you to extend the track.
In the Box Sirui Video Survival Kit 2 Tabletop Dolly with Slider Track Tabletop Dolly 4 x Carbon Fiber Rod (15.75") 2 x Connecting Bolt 2 x End Block Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui Video Survival Kit 2 Tabletop Dolly with Slider Track in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui SUVSK2 Specs | Load Capacity | Track: 16.3 lb / 7.4 kg
Slider Carriage: 26.5 lb / 12 kg | | Mounting | 1 x 3/8"-16 Threaded Screw
2 x 1/4"-20 Threaded Holes | | Maximum Turn Degree | Front Dolly Wheels: ±20°
Rear Dolly Wheels: ±20° | | Dimensions | Track: 33.98 x 7.8 x 4.37" / 86.3 x 19.8 x 11.1 cm
Carriage/Dolly: 10.31 x 6.5 x 2.28" / 26.2 x 16.5 x 5.8 cm | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 21.0 x 13.0 x 4.0" |
