User Manual for Sirui VTJ-1.8 Video Travel Jib Click to enlarge the picture
Contents of the user manual for the Sirui VTJ-1.8 Video Travel Jib
- Product category: Cranes & Jibs Sirui
- Brand: Sirui
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sirui Cranes & Jibs
 |
User manual for the Sirui VTJ-1.8 Video Travel Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sirui product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sirui user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sirui product will considerably shorten its lifespan!
|

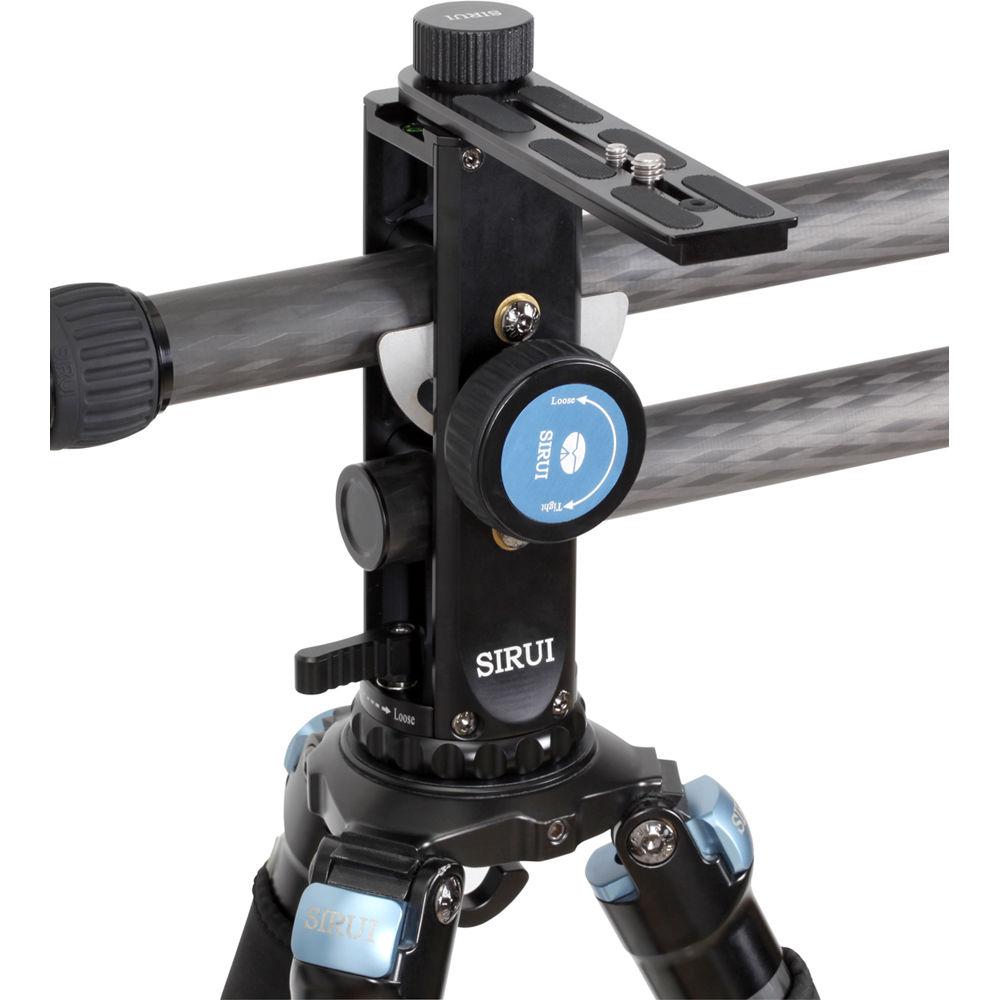

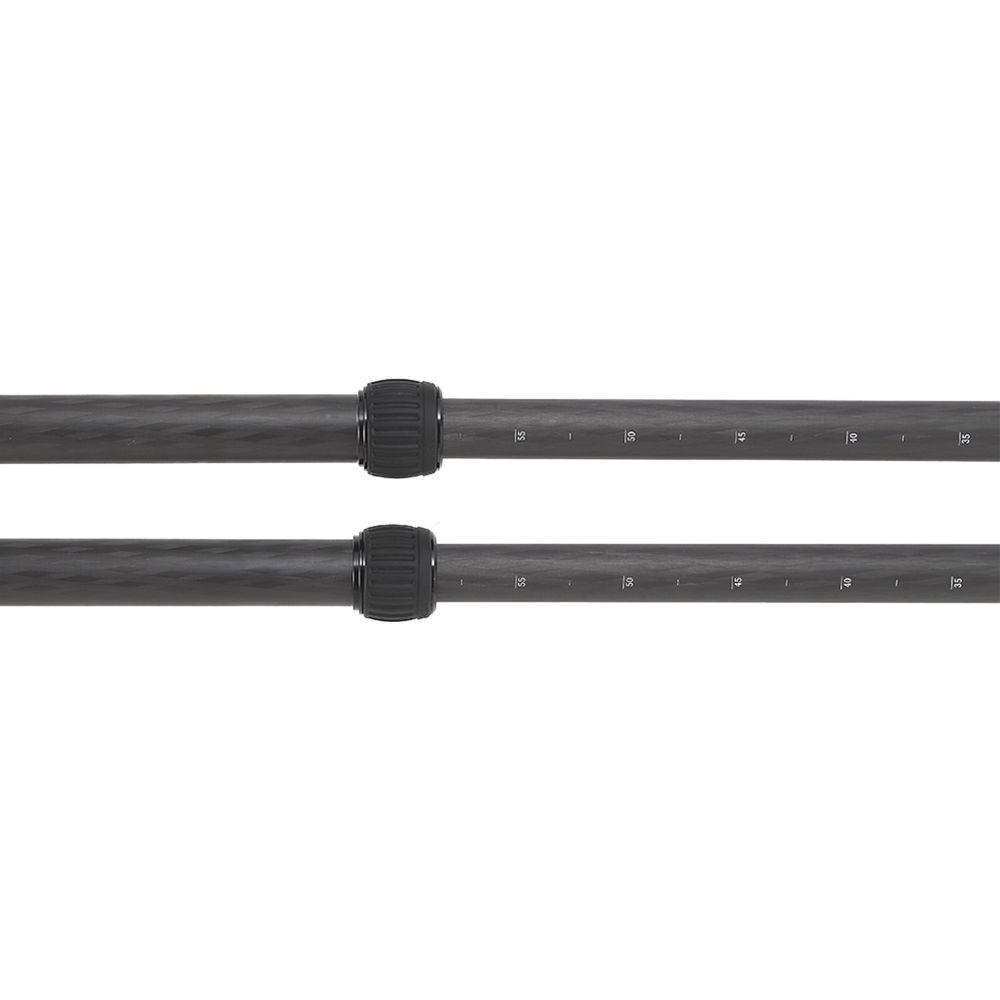

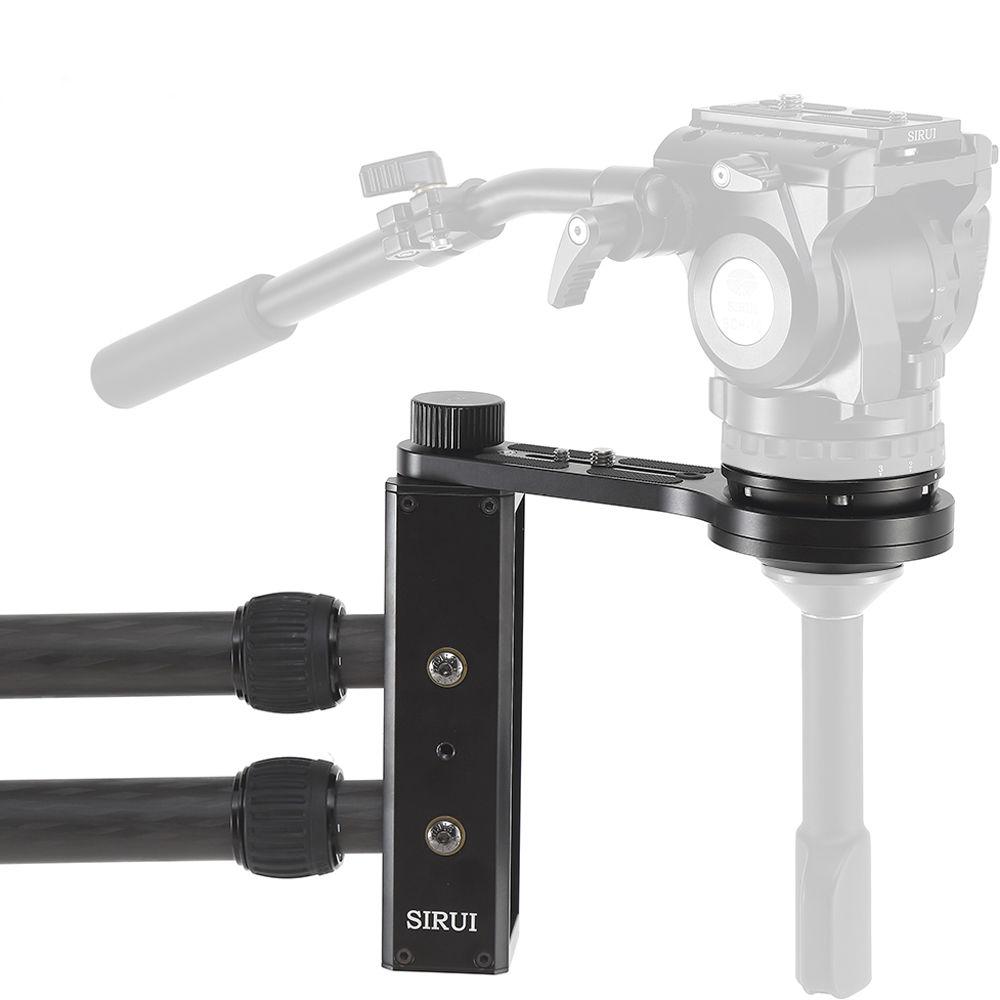

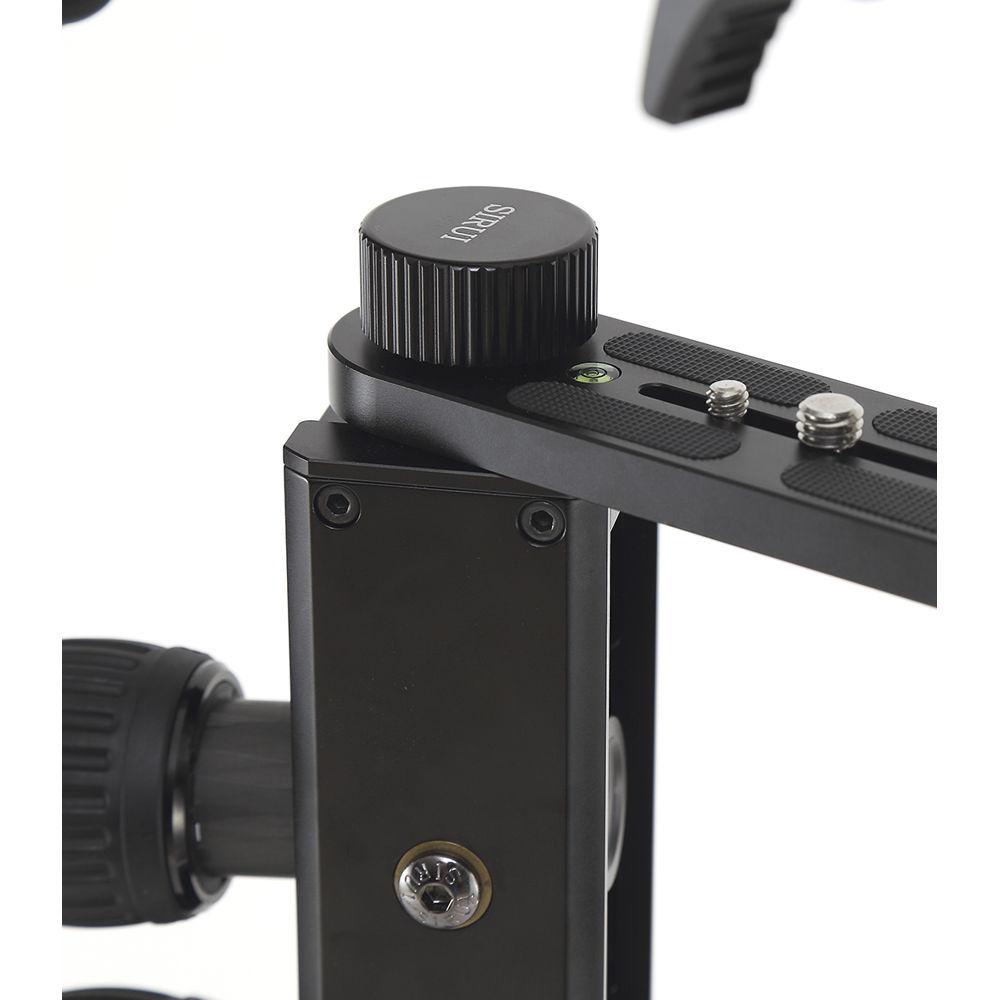

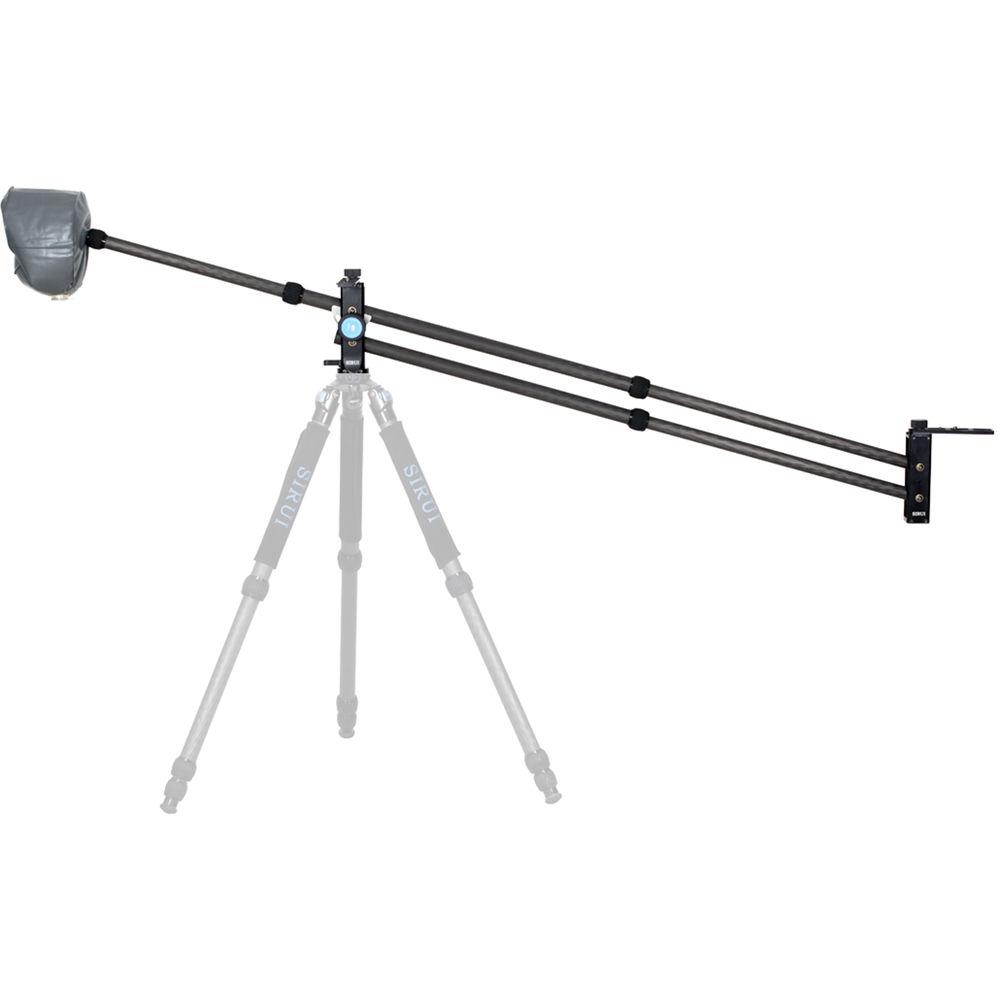

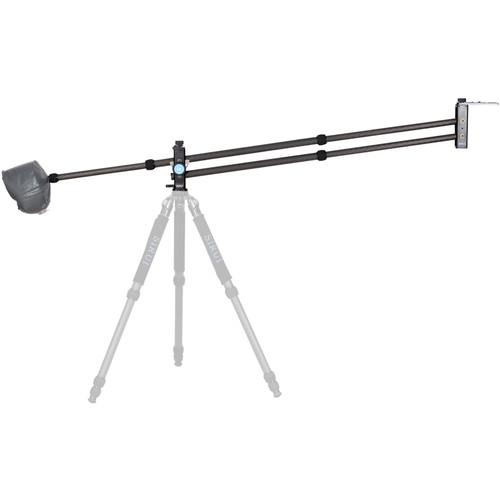

Product description Portable and lightweight, the Sirui VTJ-1.8 Video Travel Jib is a telescopic jib arm that lets you perform smooth, sweeping crane-style shots without weighing down the production. Its tubes are constructed from 10-layer carbon fiber to keep the weight of the system to approximately 6 lb, while also enhancing stability and reducing vibrations. The jib arm supports loads up to 10 lb and includes two mounting plates that feature 1/4"-20 and 3/8"-16 tie-down screws for mounting a camera of flat-base head, as well as a 75mm bowl for mounting a 75mm ball head.

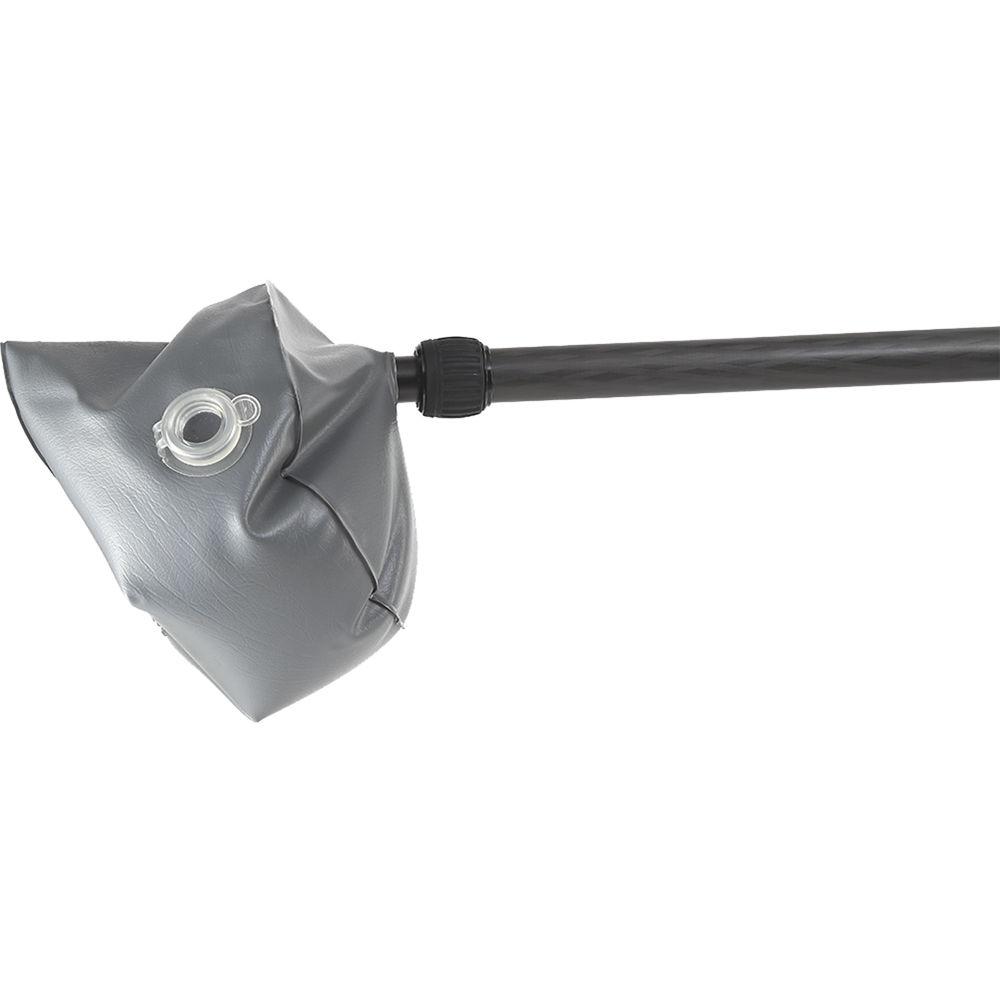

For increased versatility, the telescopic arm design provides a working arm length of 4.2 to 6'. To balance your camera load, the jib includes a container that can be filled with water or sand to achieve the proper counterweight. Also included is an additional platform at the central axis mounting a monitor, and a padded case to easily store and transport the entire system.
Note: For maximum stability, the jib arm should be mounted on a tripod that is able to fully support the weight of the arm, camera, and counterweight. A video tripod without a center column is recommended. - Features
-
- Supports loads up to 10 lb
- 10-layer carbon fiber tubes
- 4.2 to 6' working arm length (1.8' of telescopic extension)
- 0.74 to 3.6' height range (from top of optional tripod)
- Mounting plates with 1/4"-20 and 3/8"-16 tie-down screws, as well as 75mm bowl
- 360° rotation and +45°/-45° tilt
- Camera stays level during operation
- Counterweight container for filling with water or sand (approximately 5 liters)
- Extra-large locking knob for perfect handling, even with cold or gloved hands
- Monitor platform at the central axis
- Padded case
In the Box Sirui VTJ-1.8 Video Travel Jib 2 x Mounting Plates Center Monitor Mounting Plate Counterweight Container Padded Case Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui VTJ-1.8 Video Travel Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui SUVTJ18 Specs | Construction | 10-layer carbon fiber tubes
Aluminum | | Payload Capacity | 10 lb (4.5 kg) | | Arm Length | 4.2 to 6' (127 to 182 cm) | | Height Range | 0.74 to 3.6' (22.5 to 109 cm) | | Tilt Range | -45 to -45° | | Pan Range | 360° | | Tripod Attachment | 3/8"-16 thread hole | | Head Attachment | 1/4"-20 and 3/8"-16 screws
75 mm bowl | | Length | 4.2 to 7' (2.13 m)
| | Collapsed Size | 2.7' (0.83 m) | | Width | 3.2" (8.2 cm) (without mounting bracket and counterweight container) | | Weight | 5.95 lb (2.7 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 35.5 x 9.5 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
