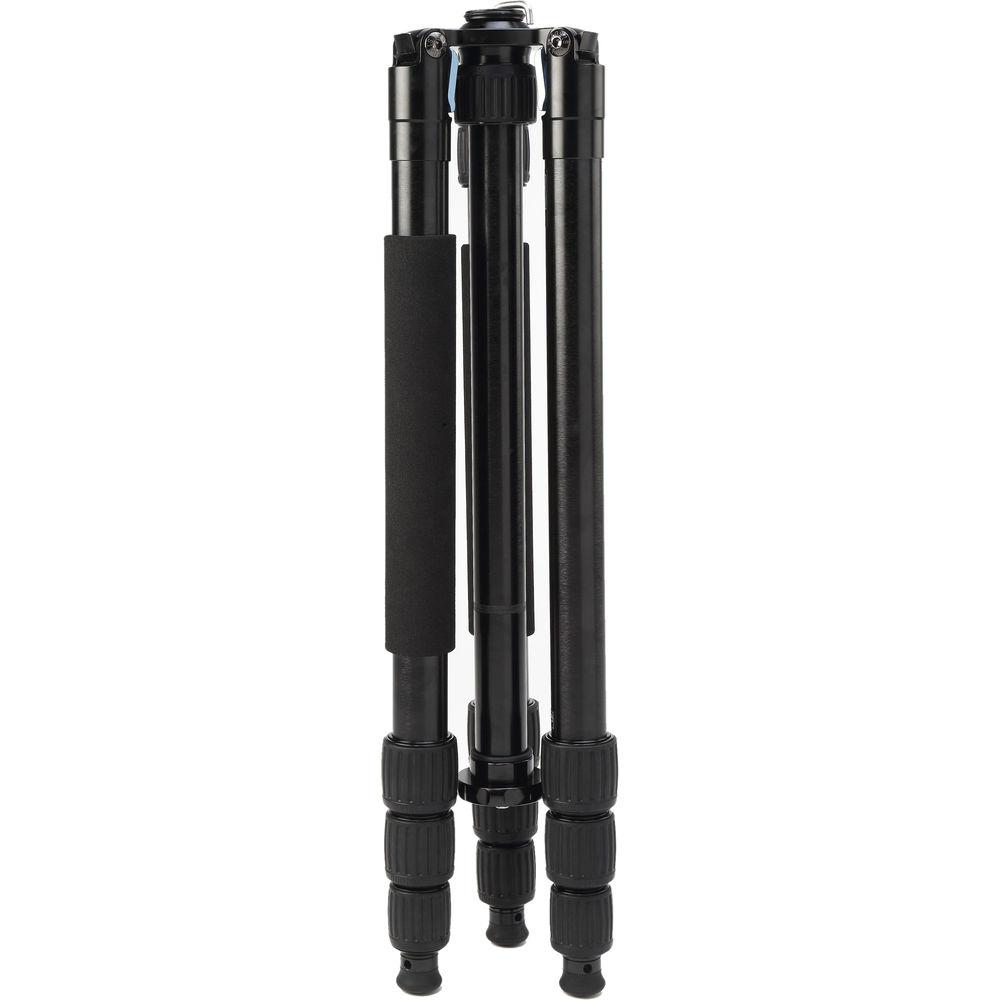

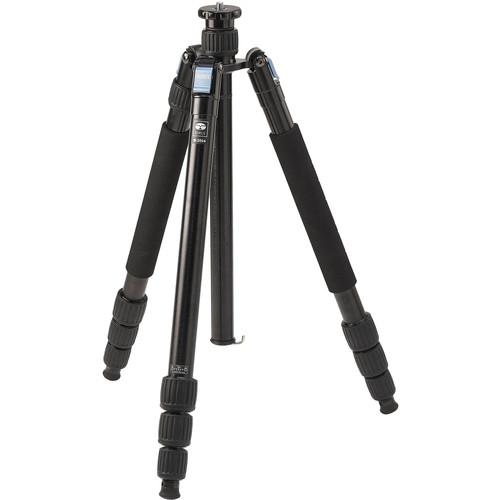

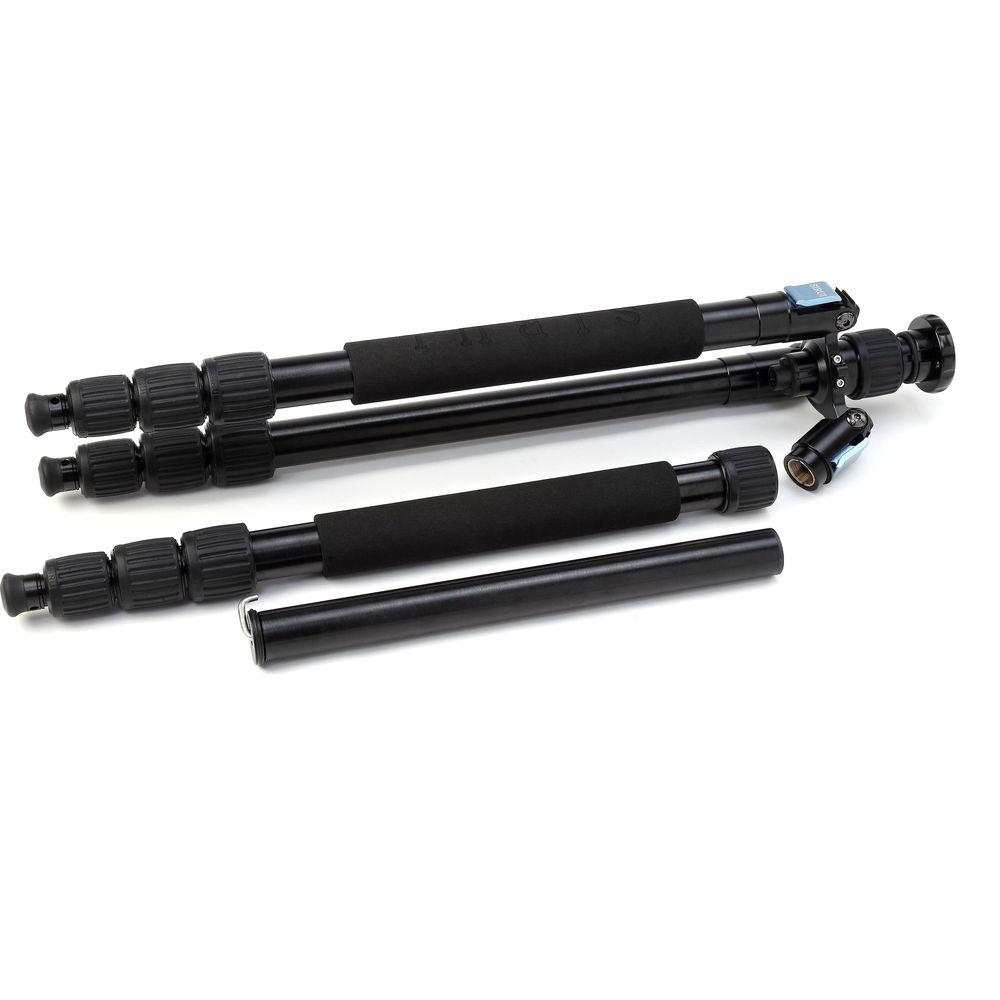

Product description The W-2004 Waterproof Aluminum Alloy Tripod from Sirui features a Waterproof Sealing System that prevents water, dust, or other particles from entering the leg tubes. The tripod extends to a maximum height of 70.9", holds up to 39.7 lb, and weighs 4.6 lb. Reverse-folding legs wrap around most ball heads allowing the tripod to fold down to 20.5".

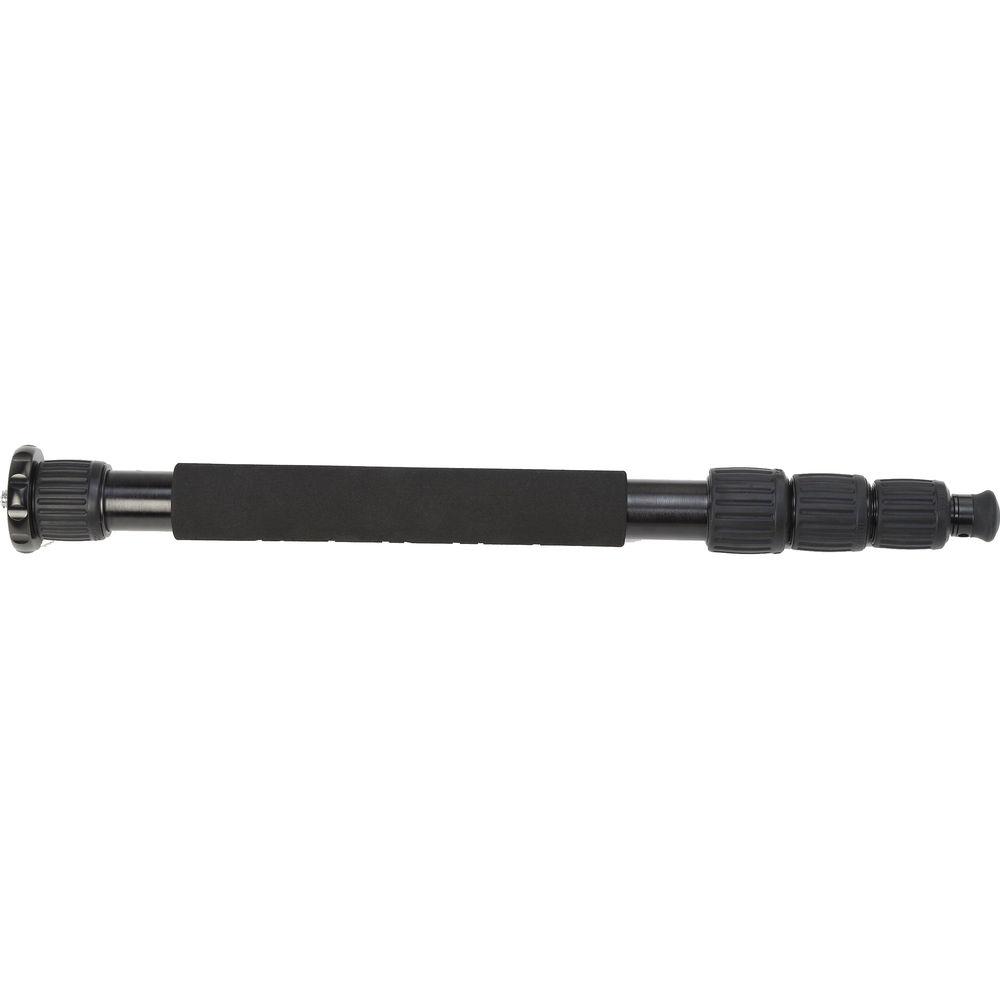

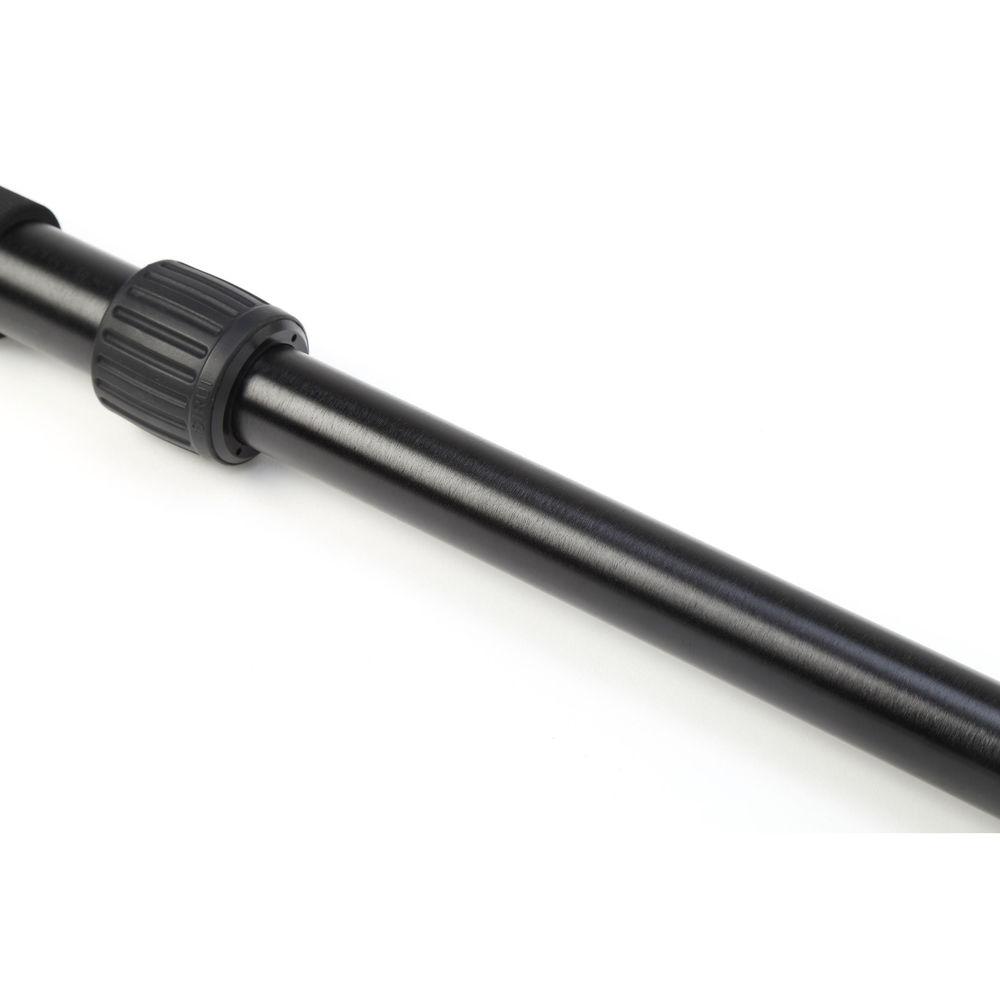

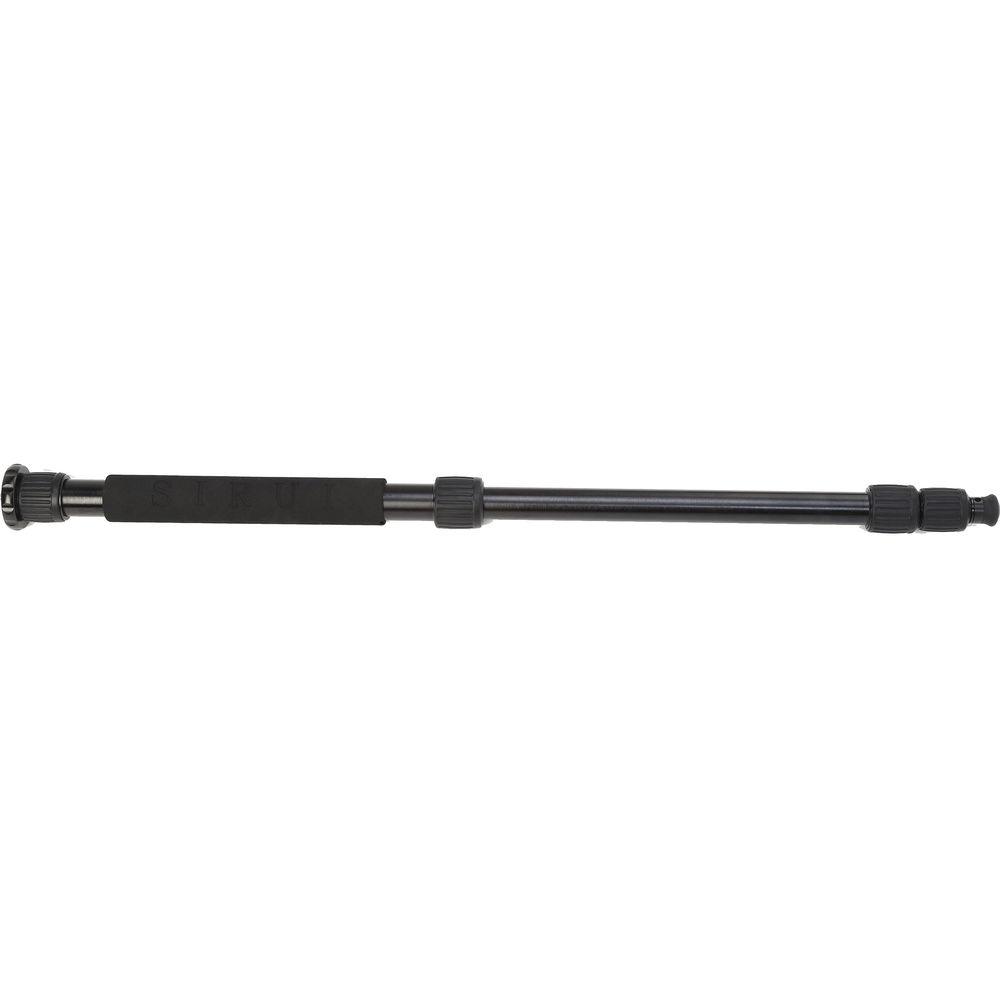

The 4-section legs are individually adjustable and are held in place with twist locks. One of the legs is removable and can be attached to the center column to make a full-sized 69.7" monopod. The removable rubber feet can be replaced by stainless-steel spikes, affording the tripod stability on a variety of surfaces. The split center column allows the tripod to reach its minimum height of 6.1", and a ballast hook on the center column can hold a stabilizing weight. In the Box Sirui W-2004 Waterproof Aluminum Alloy Tripod Padded Case Shoulder Strap Tool Kit 3 x Stainless Steel Spikes Monopod Wrist Strap Extra 3/8"-16 Mounting Screw Extra Platform Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sirui W-2004 Waterproof Aluminum Alloy Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSirui SUW2004 Specs | | | Load Capacity | 39.6 lb / 18 kg | | Maximum Working Height | 70.9" / 180.1 cm | | Max Height without Center Column | 57.9" / 147 cm | | Minimum Working Height | 6.1" / 15.5 cm | | Folded Length | 20.5" / 52.1 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.6 lb / 2.1 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Feet Features | Spiked | | | | Center Column Features | Ballast Hook, Split | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 23.0 x 6.6 x 5.8" |
