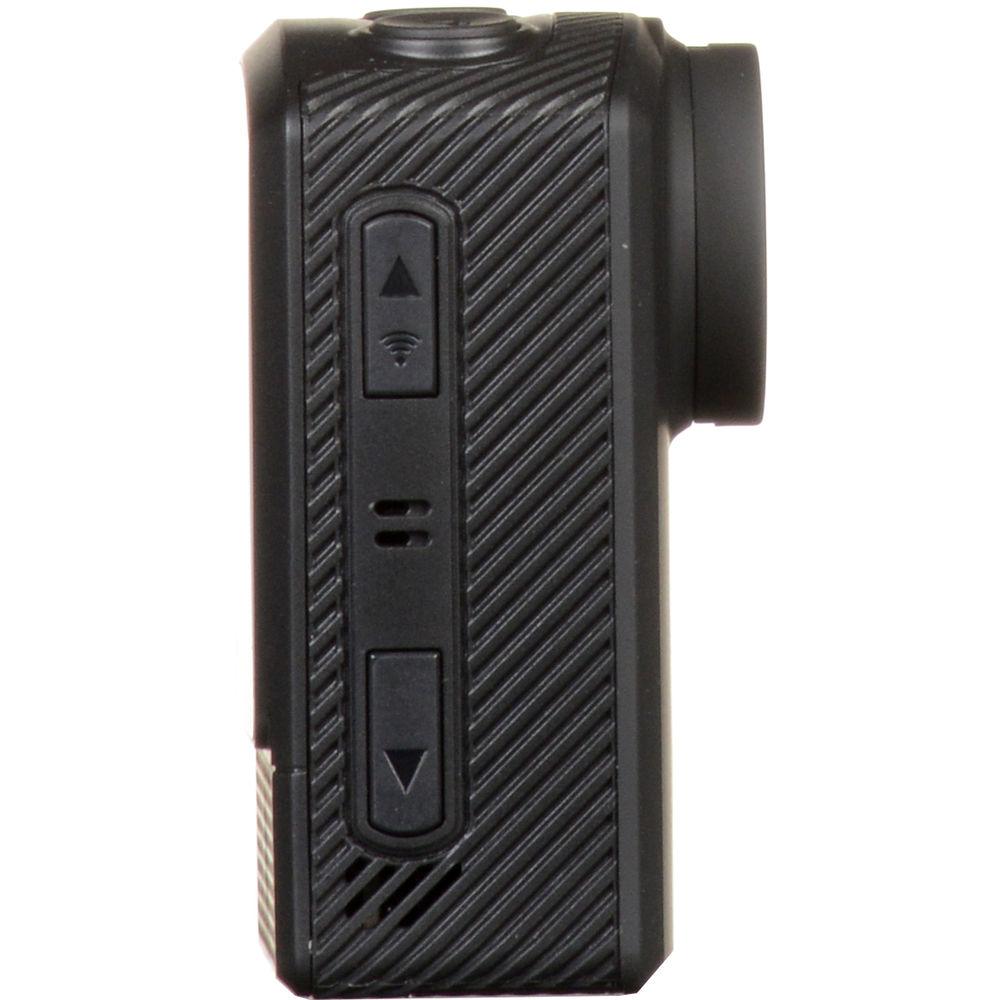

User Manual for SJCAM M20 HD Action Camera Click to enlarge the picture
Contents of the user manual for the SJCAM M20 HD Action Camera
- Product category: Sports & Action Cameras SJCAM
- Brand: SJCAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SJCAM Sports & Action Cameras
 |
User manual for the SJCAM M20 HD Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SJCAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SJCAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SJCAM product will considerably shorten its lifespan!
|

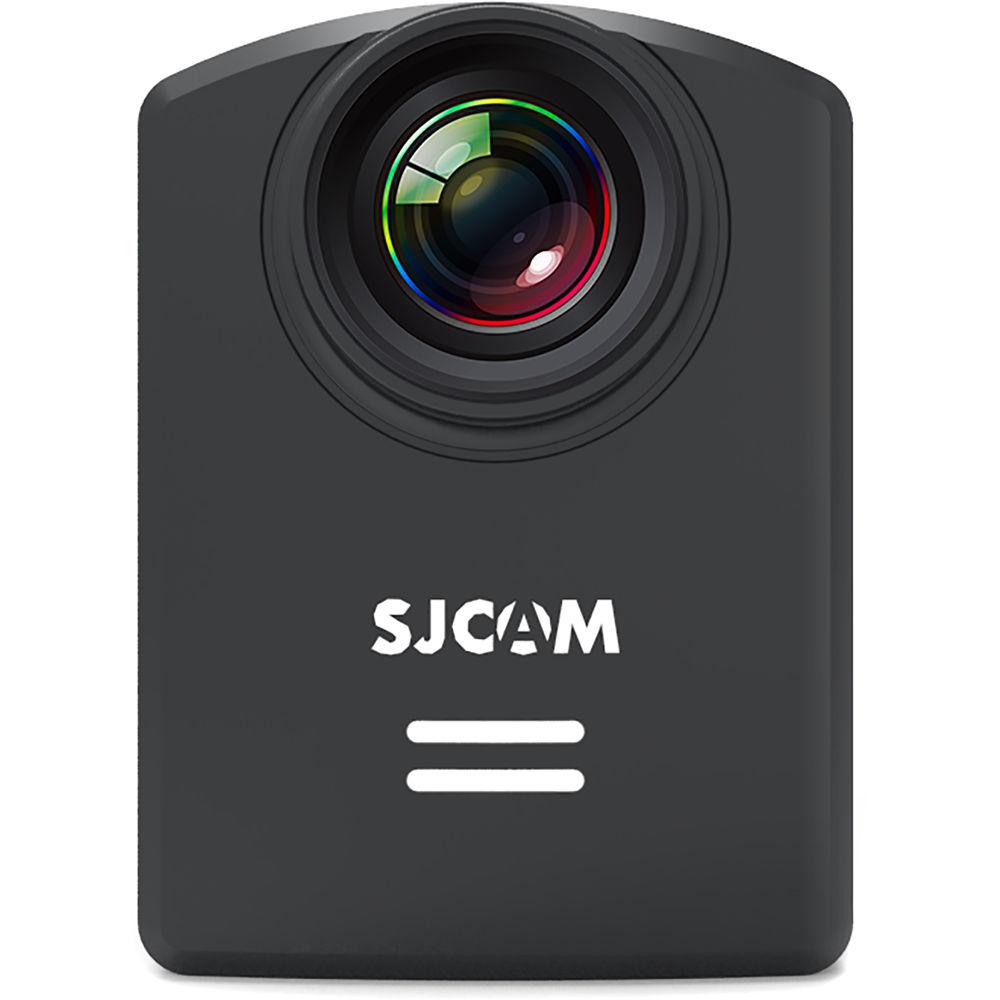

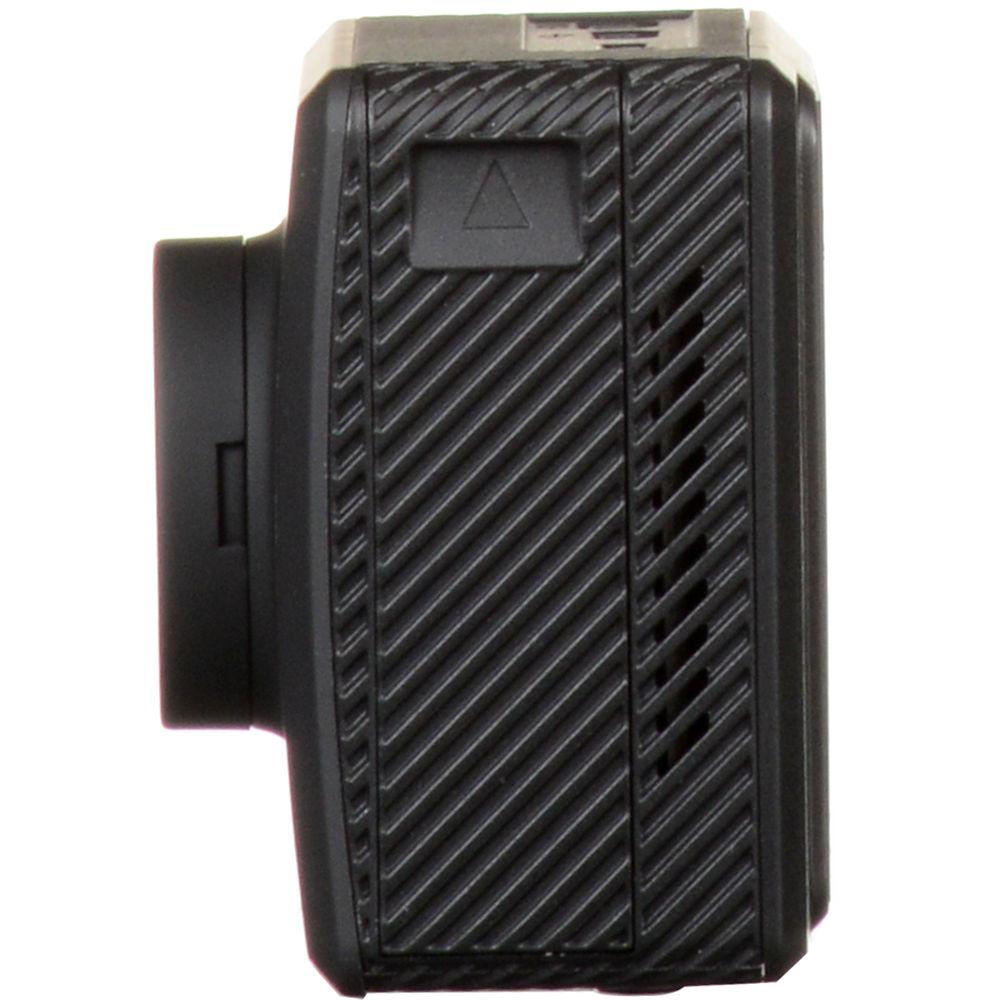

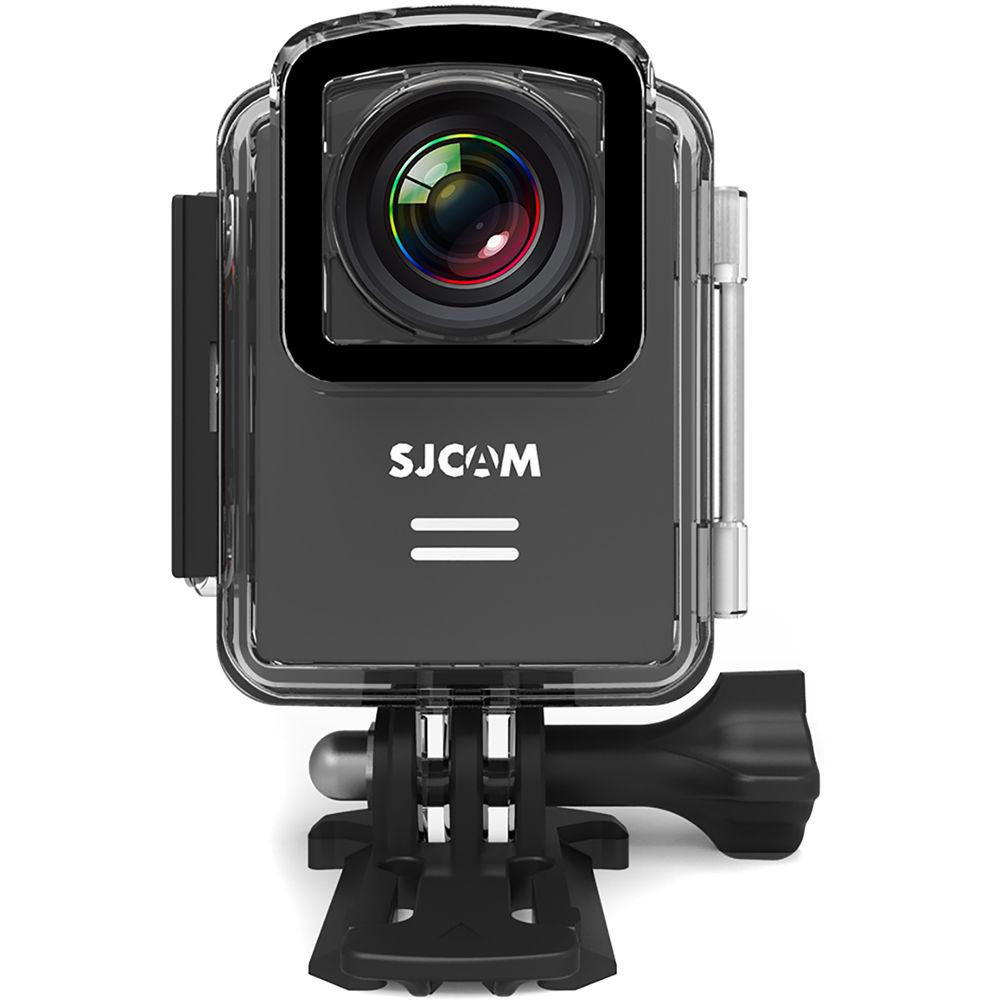

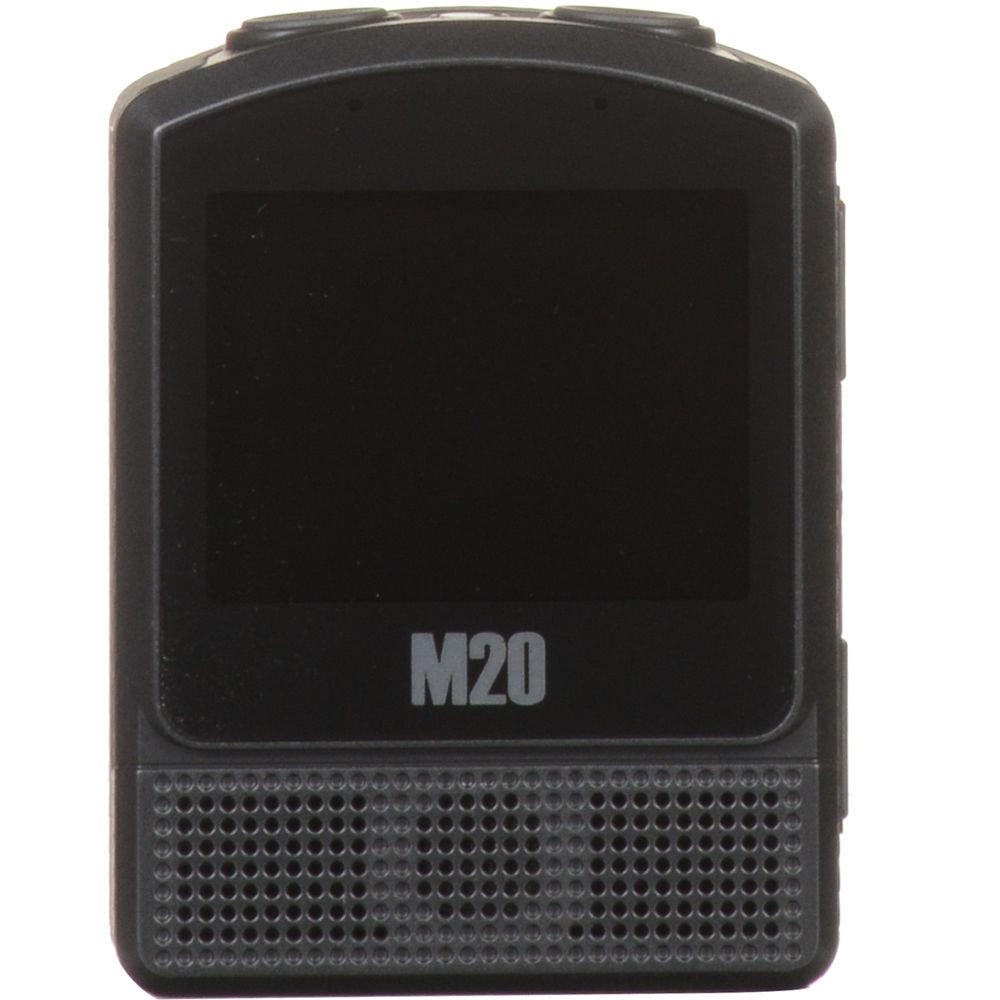

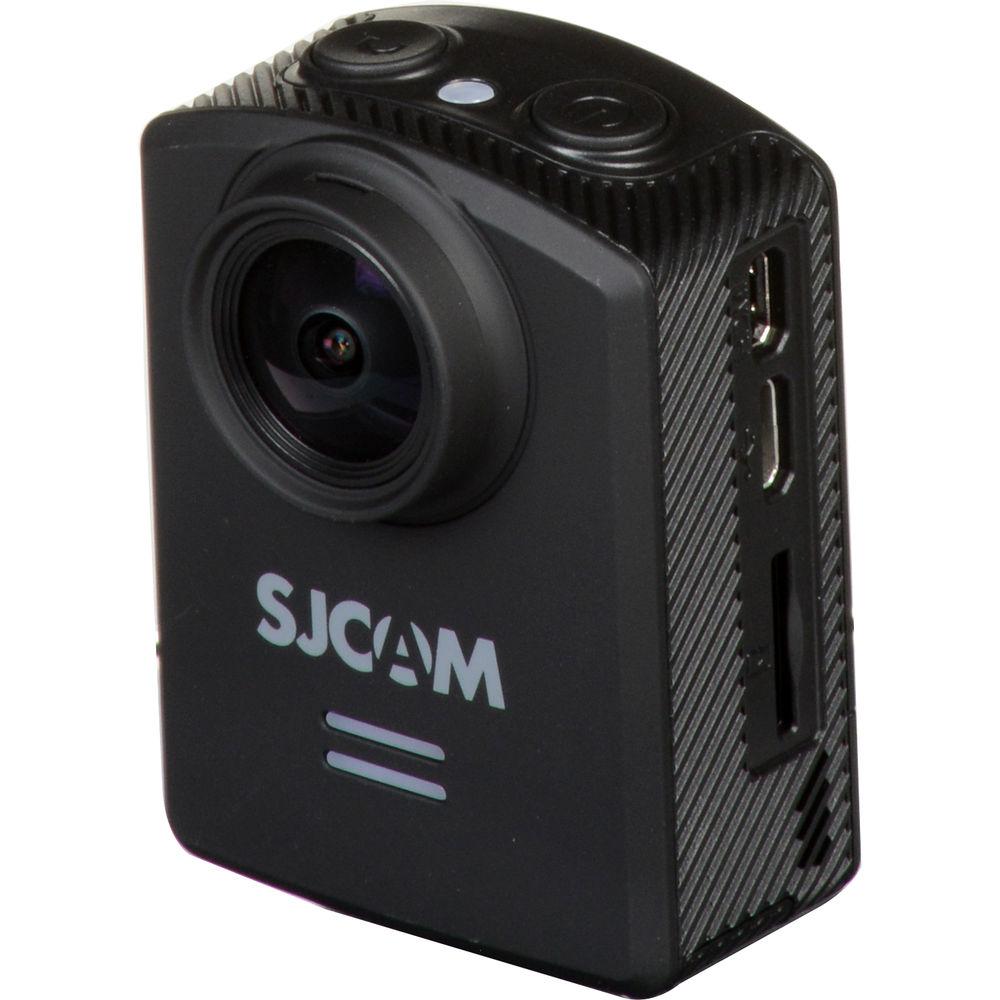

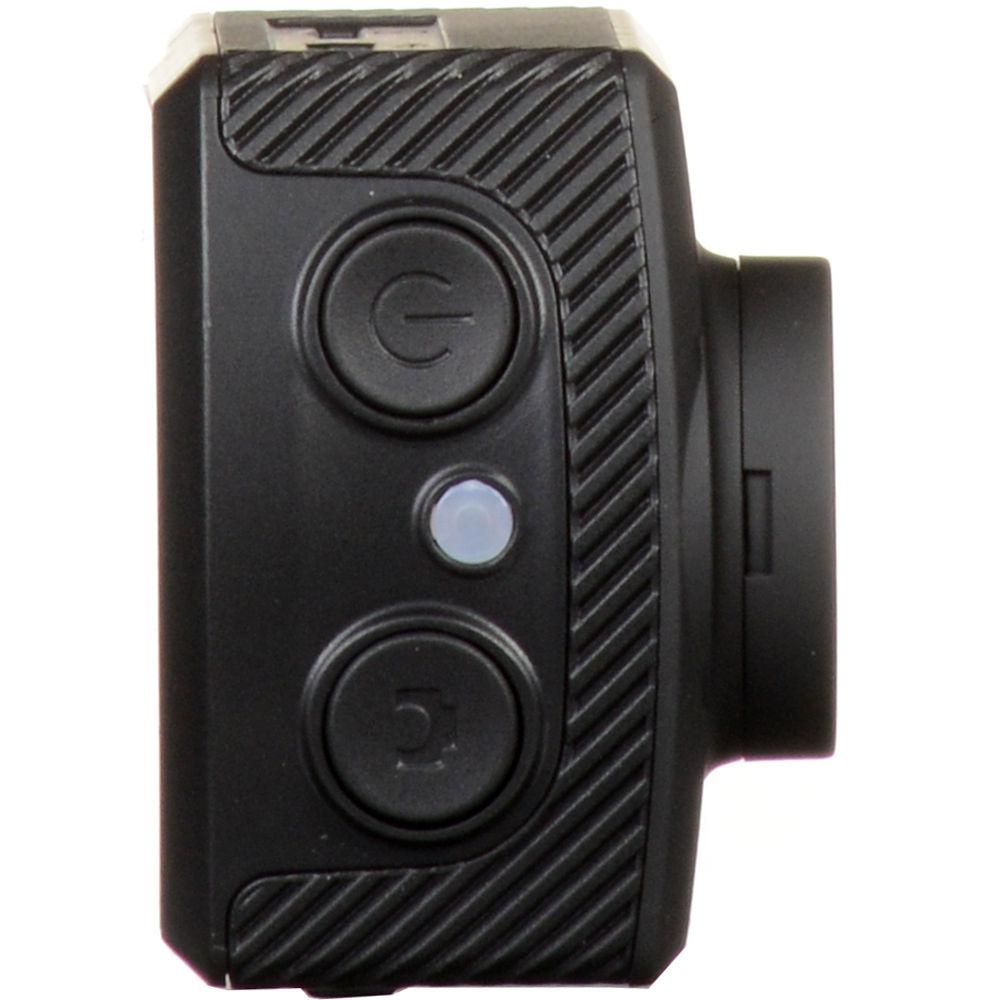

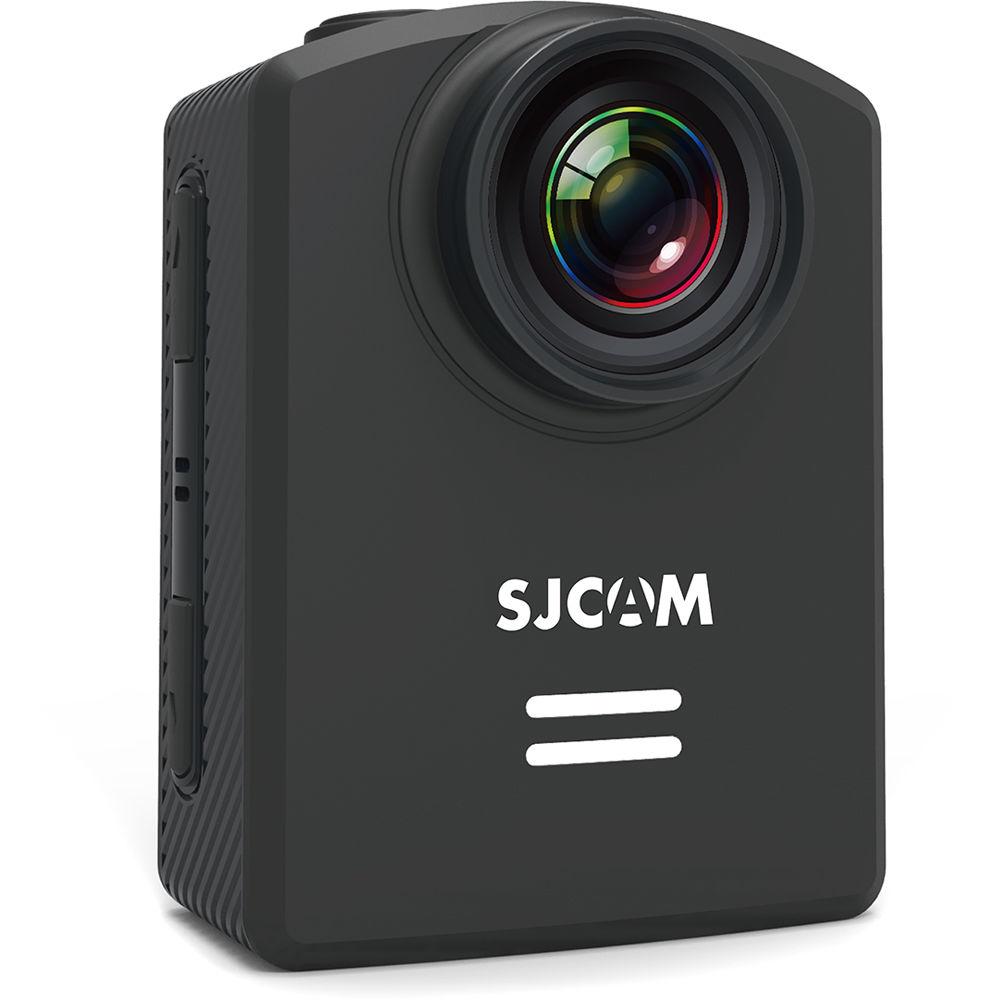

Product description Pack the SJCAM M20 HD Action Camera with you to record videos on your hiking, driving, swimming, or diving excursions. The included mounting accessories and waterproof housing lets you secure the camera in many different ways from classic tripod mounting to helmet mounting and vehicle mounting. Use the convenient 1.5" LCD screen to see your framing and adjust settings at-a-glance. Video resolutions up to 2.5K can be recorded in MOV or MP4 formats, and high-resolution 16 megapixel photos can be taken in JPEG or raw formats thanks to the IMX206 sensor. Lower your resolution to WVGA and achieve frame rates up to 240 fps. Wi-Fi connectivity lets you share photos and videos wirelessly as well as monitor what your camera sees. Furthermore, if you like a dedicated remote control, the M20 can connect to a separately available Bluetooth remote control. - Multiple Shooting Modes
-
- Single Shot
- Burst-Shot Mode: 3 photos per second
- Timer: 2s, 3s, 5s, 10s, 20s, 30s, 60s
- Continuous: 2 seconds, 5 seconds, 10 seconds
- Compact design weighs 2 oz with battery
- Waterproof to depths of 100'
- Record video while charging
- Replaceable rechargeable battery
In the Box SJCAM M20 HD Action Camera Waterproof Housing Quick-Release Buckle Handlebar Seat Post Mount Curved Adhesive Mount Flat Adhesive Mount 3-Way Pivot Arm Mount 2 x Adhesive Tape Strips Frame Mount Quick-Release Clip for Frame Mount Vertical Quick-Release J-Hook Buckle 1/4"-20 Tripod Mount Tripod Mount Adapter Cleaning Cloth USB Cable Battery Limited 1-Year Warranty User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SJCAM M20 HD Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSJCAM M20 Specs | | | Sensor | 1-Chip 1/2.3" CMOS | | Color Filter | RGB | | Sensor Resolution | 16.35 MP | | | | System | NTSC | | Recording Media | x microSD/HC/XC (128 GB Maximum) | | Video Format | 2880 x 2160 at 24 fps
2560 x 1440 at 30 fps
1920 x 1080p at 30/60 fps
1280 x 720p at 120 fps
800 x 480p at 240 fps | | Still Image Resolution | JPEG: 16 Megapixel, 4608 x 3456
JPEG: 12 Megapixel, 4032 x 3024
JPEG: 10 Megapixel, 3648 x 2736
JPEG: 8 Megapixel, 3264 x 2448
JPEG: 5 Megapixel, 2592 x 1944
JPEG: 3 Megapixel, 2048 x 1536
JPEG: 2 Megapixel, 1920 x 1080
JPEG: 1.3 Megapixel, 1280 x 960
JPEG: .3 Megapixel, 640 x 480 | | | | Display Type | LCD | | Screen Size | 1.5" | | | | Shooting Modes | Burst Shooting

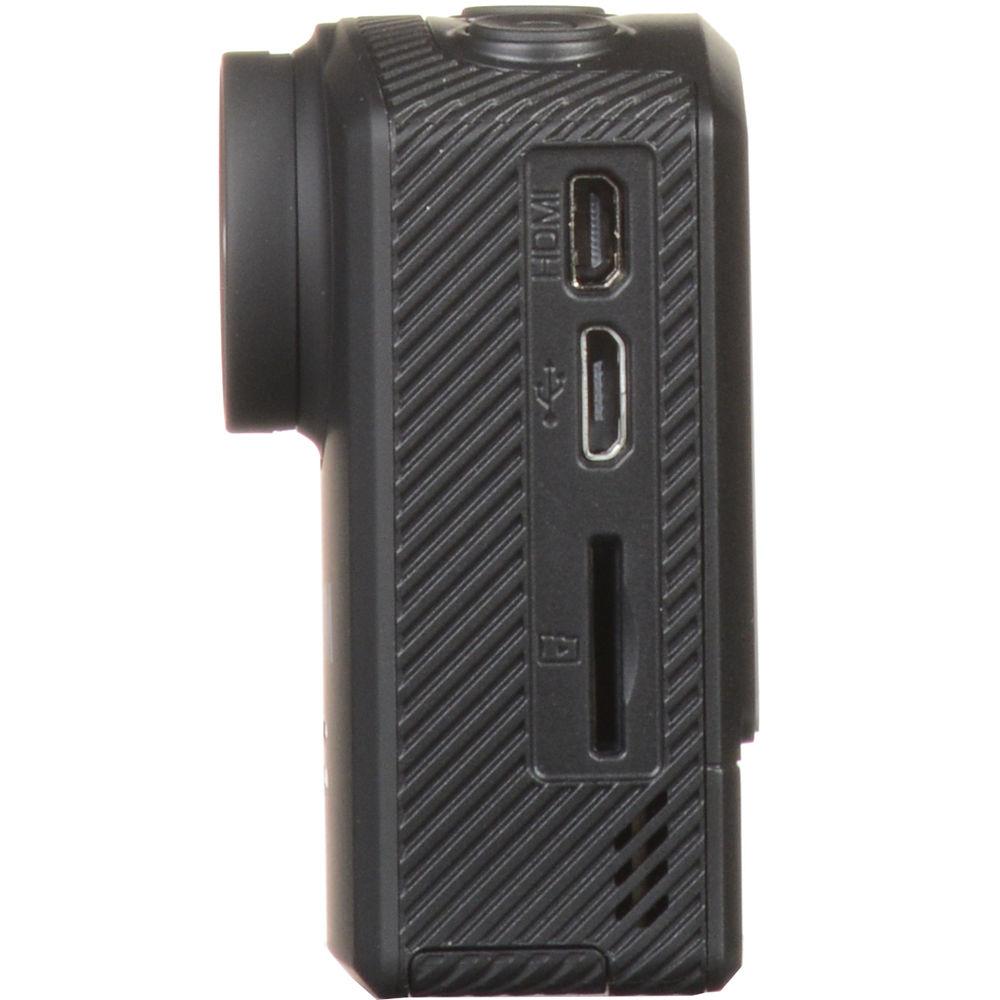

Time-Lapse Movie | | Burst Photo | 3 Photos / 1 Second | | | | Image Stabilization | Digital | | Waterproof Depth Rating | 100.0' / 30.0 m (Waterproof Housing) | | IP Rating | IP68 | | Built-In Mic | Yes | | Wi-Fi | Yes | | | | Inputs | 1 x USB 2.0 Type-A | | Outputs | 1 x HDMI (Unspecified) | | | | Supported Languages | Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Battery | Rechargeable Lithium-Ion Battery Pack, 900 mAh
Max Runtime: 1.3 Hours per Charge | | Charging Method | USB | | Dimensions (W x H x D) | 1.6 x 0.9 x 2.1" / 4.1 x 2.3 x 5.3 cm | | Weight | 1.8 oz / 50.5 g Without Battery
2.0 oz / 55.5 g With Battery | | | | Package Weight | 1.345 lb | | Box Dimensions (LxWxH) | 10.85 x 5.25 x 2.7" |
