User Manual for SJCAM SJ4000 Action Camera Click to enlarge the picture
Contents of the user manual for the SJCAM SJ4000 Action Camera
- Product category: Sports & Action Cameras SJCAM
- Brand: SJCAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SJCAM Sports & Action Cameras
 |
User manual for the SJCAM SJ4000 Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SJCAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SJCAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SJCAM product will considerably shorten its lifespan!
|

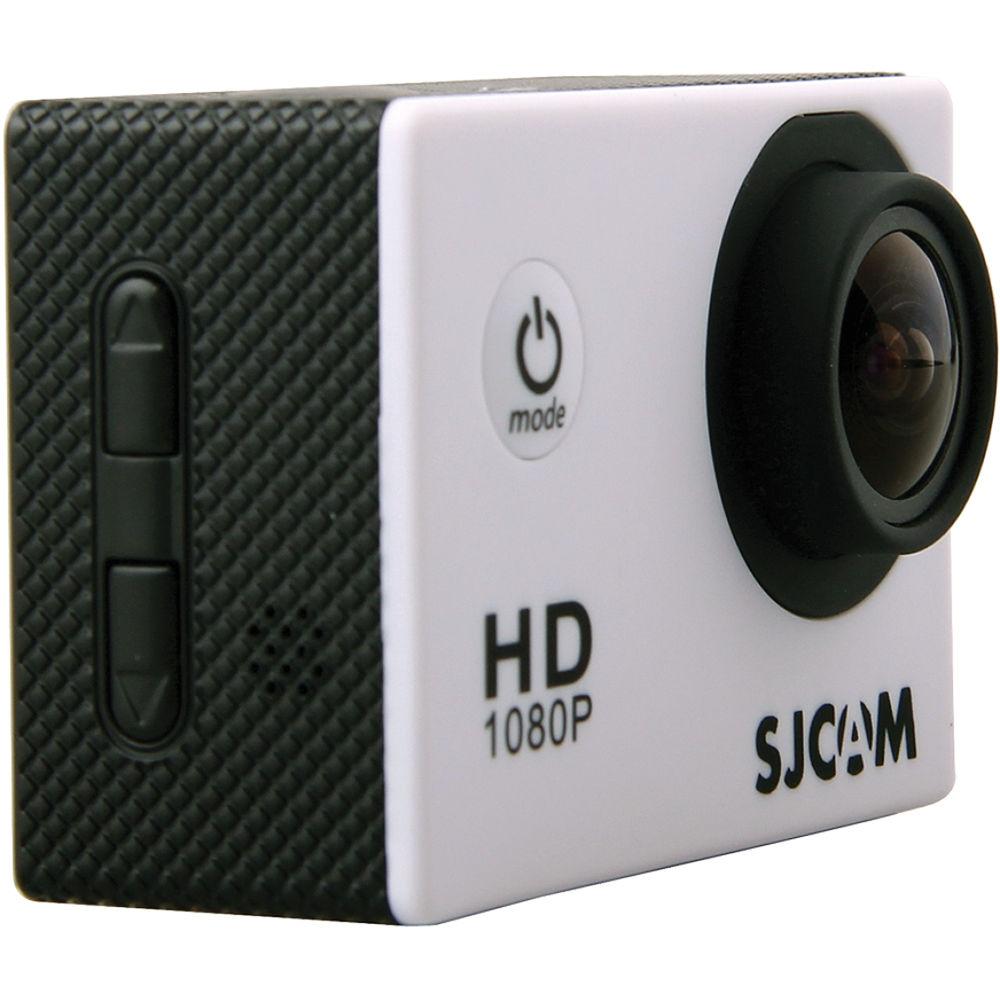

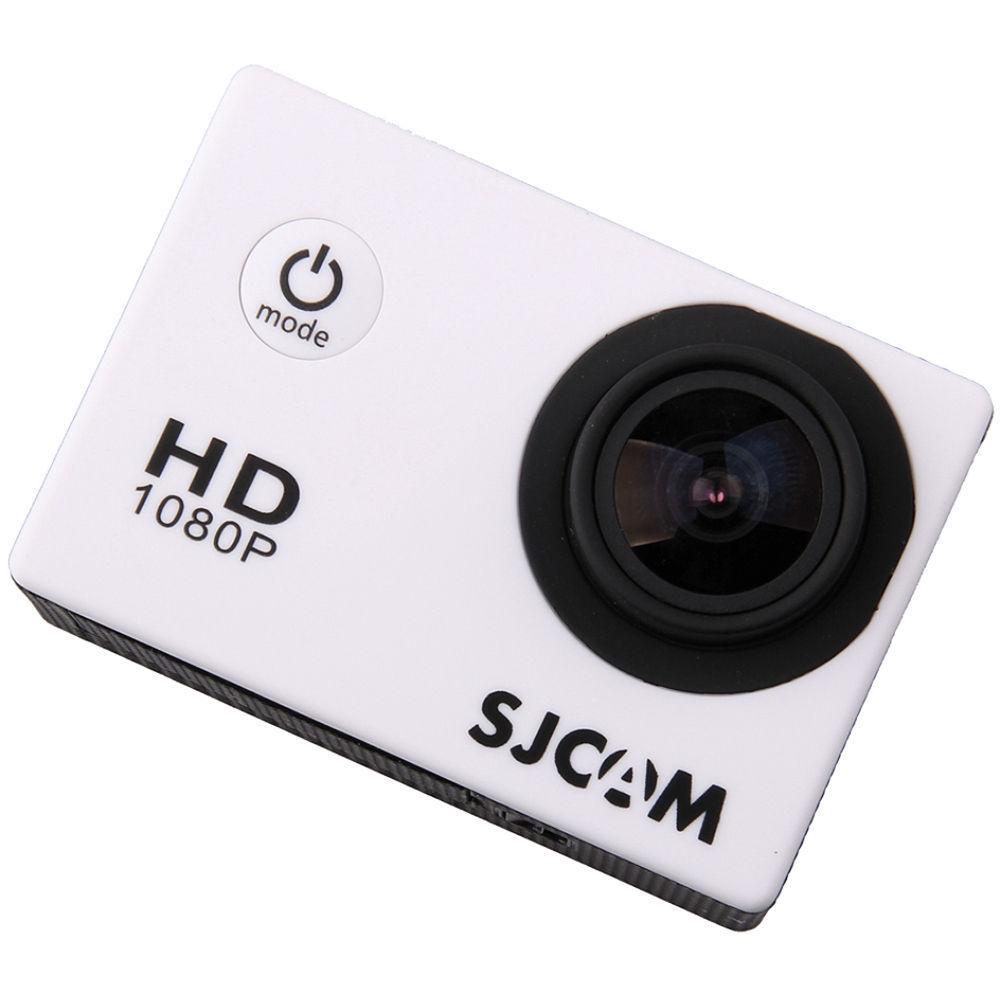

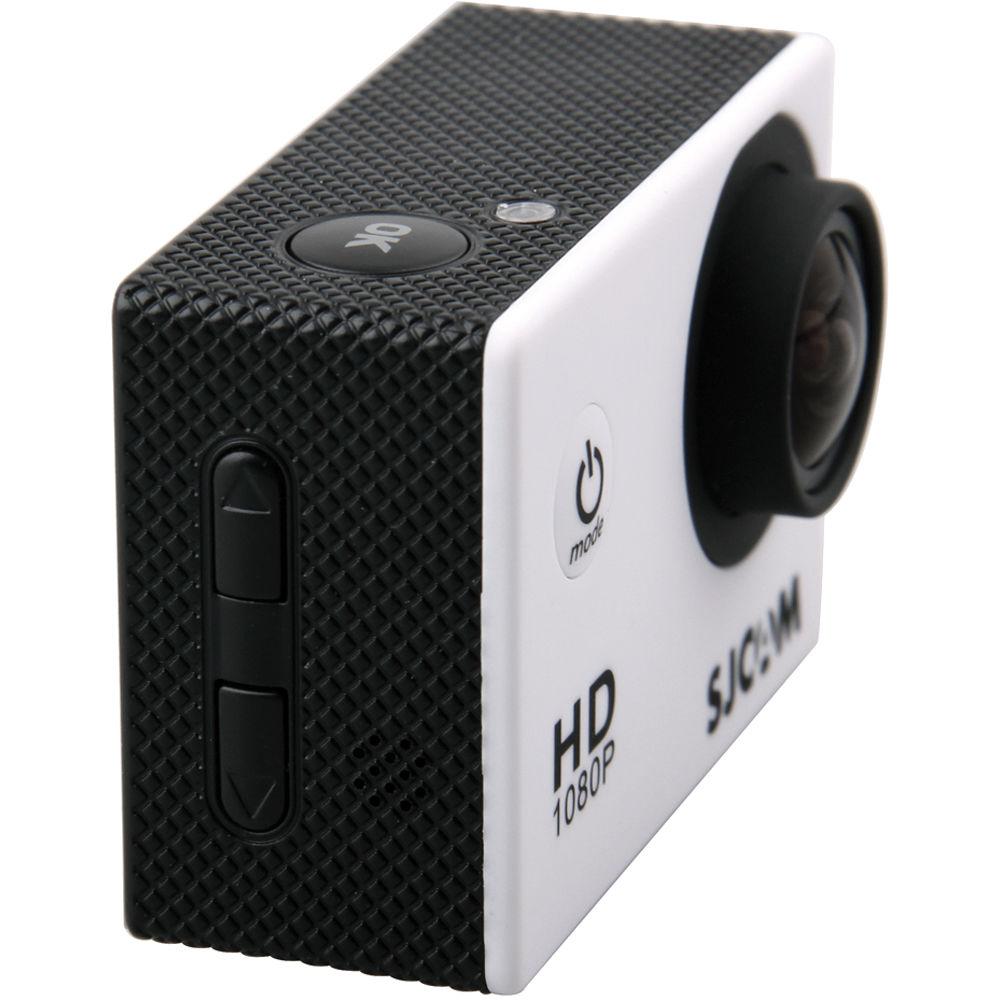

Product description Designed for point-of-view style action shooting, the white SJ4000 Action Camera from SJCAM records 1080p video and takes 12MP still photos. It features an assortment of mounts to cover just about every situation, including solutions for helmets, handlebars, surfboards, and more.

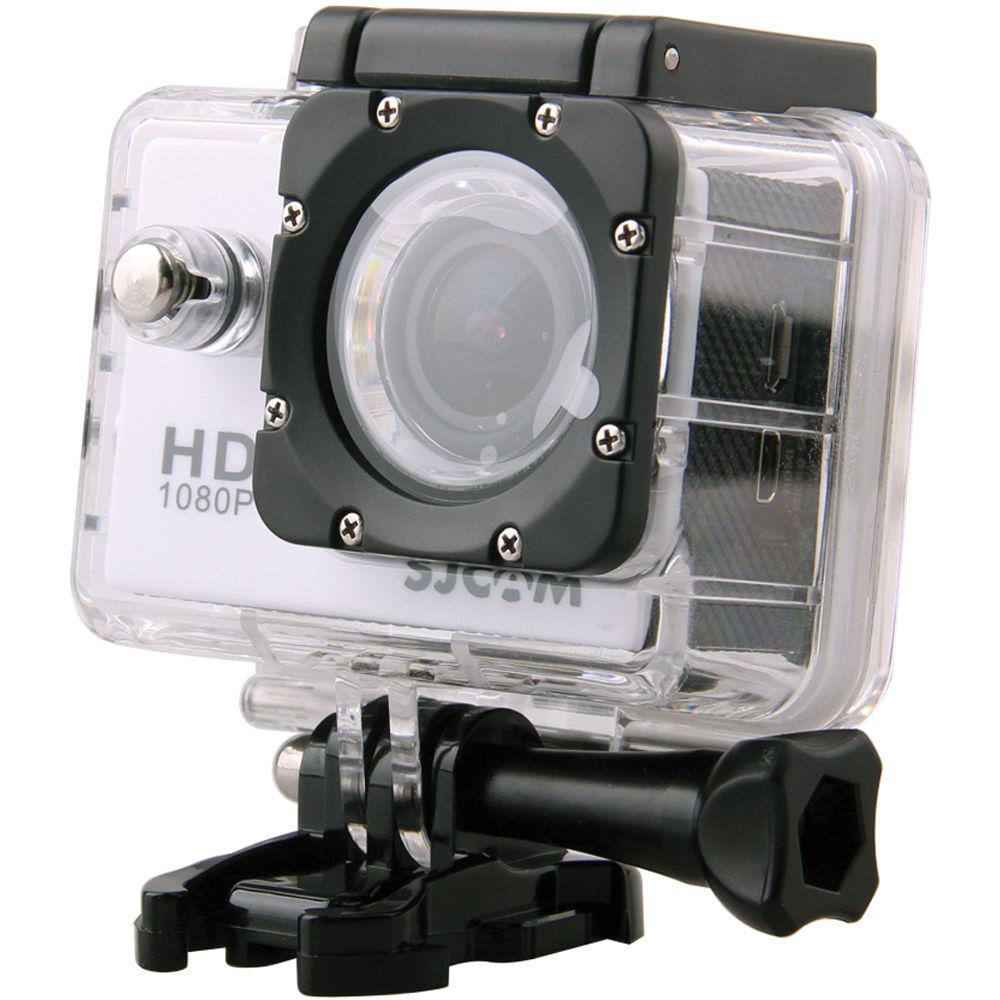

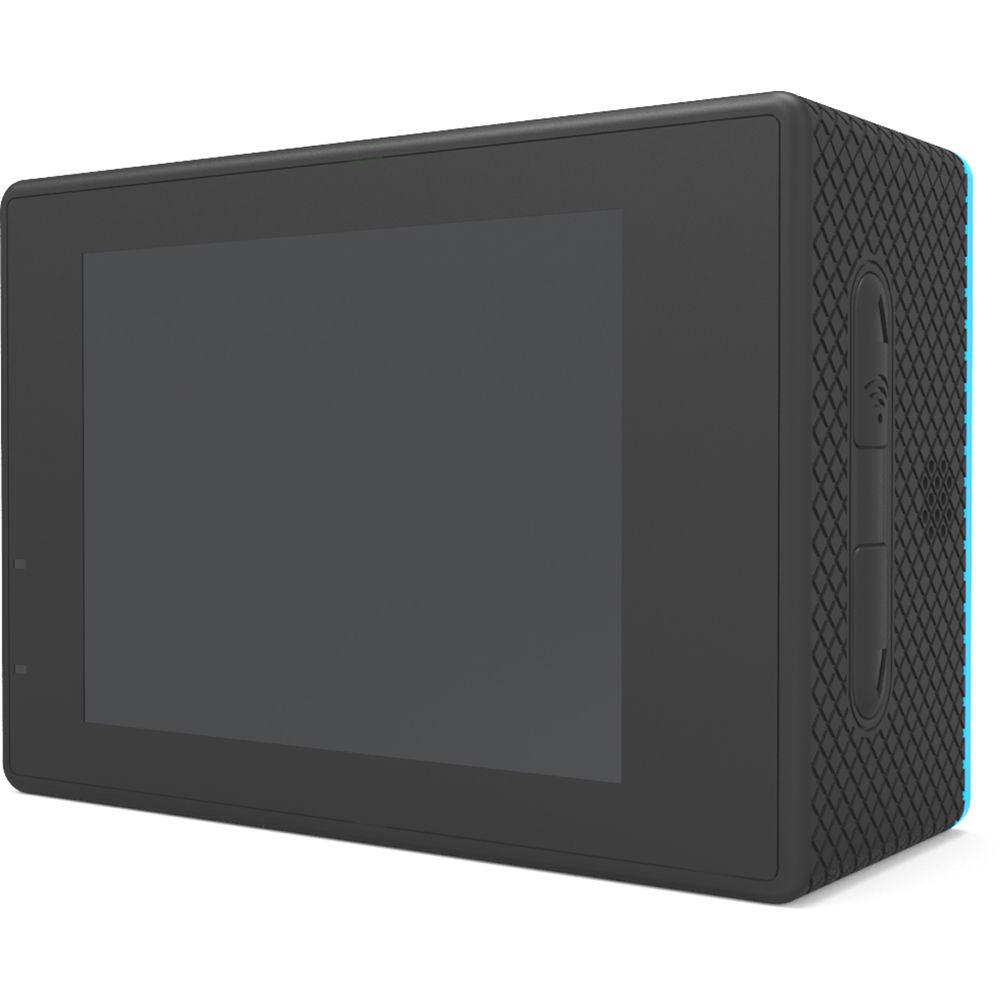

The camera also features an underwater housing that, with a 100' depth rating, is safe to take snorkeling or on many dives. A 2" LCD screen on the back of the camera allows you to compose your shots as well as review what you've already recorded.
The camera records to microSD and microSDHC memory cards up to 32GB in capacity. It records H.264 video in a .mov type file and offers 720p, VGA (848 x 480), and QVGA (640 x 480) settings in addition to 1080p Full HD. A USB port allows you to transfer footage to a computer, and there is a streaming function so you can use the camera as a webcam. - Key Features
-
- Ultra-wide 170° lens
- Compose your shots and review what you've already recorded on a 2" onboard LCD display
- The camera can stream video through its USB port so that it can function as a webcam when connected to a computer
- Capture stills at 12, 8, 5, 3, 3, 1.2, and 0.3 megapixels
- Removable 900mAh rechargeable lithium-ion battery (3.5-hour charge time)
- Built-in mic
- Decorative sticker set included for personalizing your camera
In the Box SJCAM SJ4000 Action Camera (White) Battery for SJ4000, SJ5000, and SJM10 Waterproof Housing Waterproof Housing Bracket Waterproof Housing Clip Handlebar Mount Multifunction Clip Camera Clip Helmet Mount USB Cable Tripod Adapter Camera Strap 4 x Zip Tie Camera Tether 2 x 3M Adhesive Pad Sticker Set Lens Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SJCAM SJ4000 Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSJCAM SJ4000 Specs | | | Sensor | 1-Chip CMOS | | Sensor Resolution | 3.15 MP | | | | Maximum Aperture | f/2.8 | | Fixed Focus | Yes | | Angle of View | 170° | | | | System | NTSC/PAL Supported through Composite A/V output | | Recording Media | 1 x microSD/HC (32 GB Maximum) | | Video Format | 1920 x 1080p at 30 fps (H.264)
1280 x 720p at 60 fps (H.264)
848 x 480p at 60 fps (H.264)
640 x 480 at 60 fps (H.264) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | JPEG: 12 Megapixel, 4000 x 3000 (4:3)
JPEG: 8 Megapixel, 3264 x 2448 (4:3)
JPEG: 5 Megapixel, 2560 x 1920 (4:3)
JPEG: 3 Megapixel, 2048 x 1536 (4:3)
JPEG: 2 Megapixel, 1920 x 1080 (16:9)
JPEG: 1.2 Megapixel, 1280 x 720 (16:9) 5 MP and higher resolutions achieved through interpolation | | Audio Format | PCM | | Sampling Frequency | LPCM: 48.0 kHz | | Bit Rate | LPCM: 16.0-Bit | | | | Display Type | LCD | | Screen Size | 2" | | Resolution | 960 x 240 | | Aspect Ratio | 4:3 | | | | Waterproof Depth Rating | 100.0' / 30.0 m (Waterproof Housing) | | White Balance Modes | Auto
Cloudy
Daylight
Incandescent | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Tripod Mount | 1/4" - 20 Via included tripod adapter | | | | Supported Languages | English
French
German
Italian
Spanish | | Battery | Rechargeable Lithium-Ion Battery Pack, 900 mAh
Max Runtime: 1.4 Hours per Charge | | Charging Method | USB | | Charging Time | 3.5 Hours | | Dimensions (W x H x D) | 2.3 x 1.6 x 1.2" / 59.3 x 41.1 x 29.3 mm with projections
2.3 x 1.6 x 1.0" / 59.3 x 41.1 x 24.7 mm without projections | | Weight | 1.55 oz / 44 g without battery
2.05 oz / 58 g with battery | | | | Package Weight | 1.37 lb | | Box Dimensions (LxWxH) | 10.3 x 5.25 x 2.7" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
