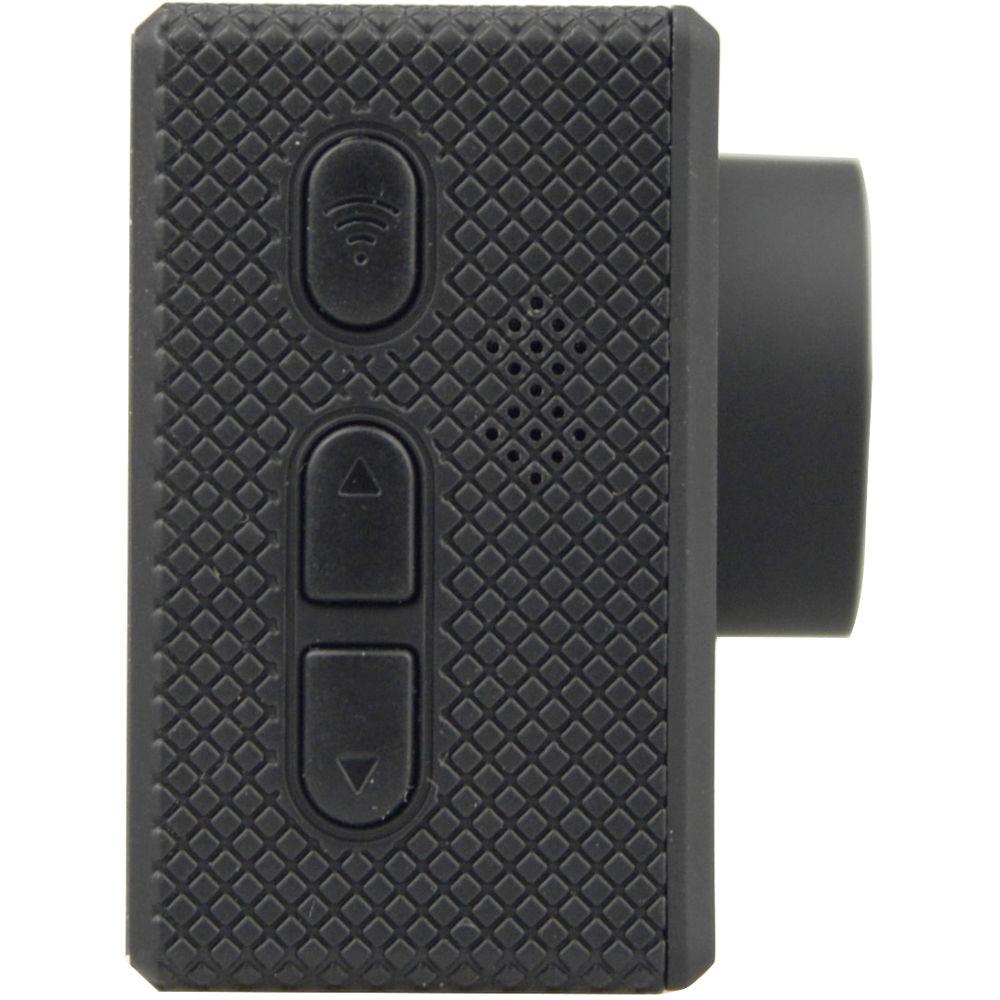

User Manual for SJCAM SJ5000X Elite 4K Action Camera Click to enlarge the picture
Contents of the user manual for the SJCAM SJ5000X Elite 4K Action Camera
- Product category: Sports & Action Cameras SJCAM
- Brand: SJCAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SJCAM Sports & Action Cameras
 |
User manual for the SJCAM SJ5000X Elite 4K Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SJCAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SJCAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SJCAM product will considerably shorten its lifespan!
|

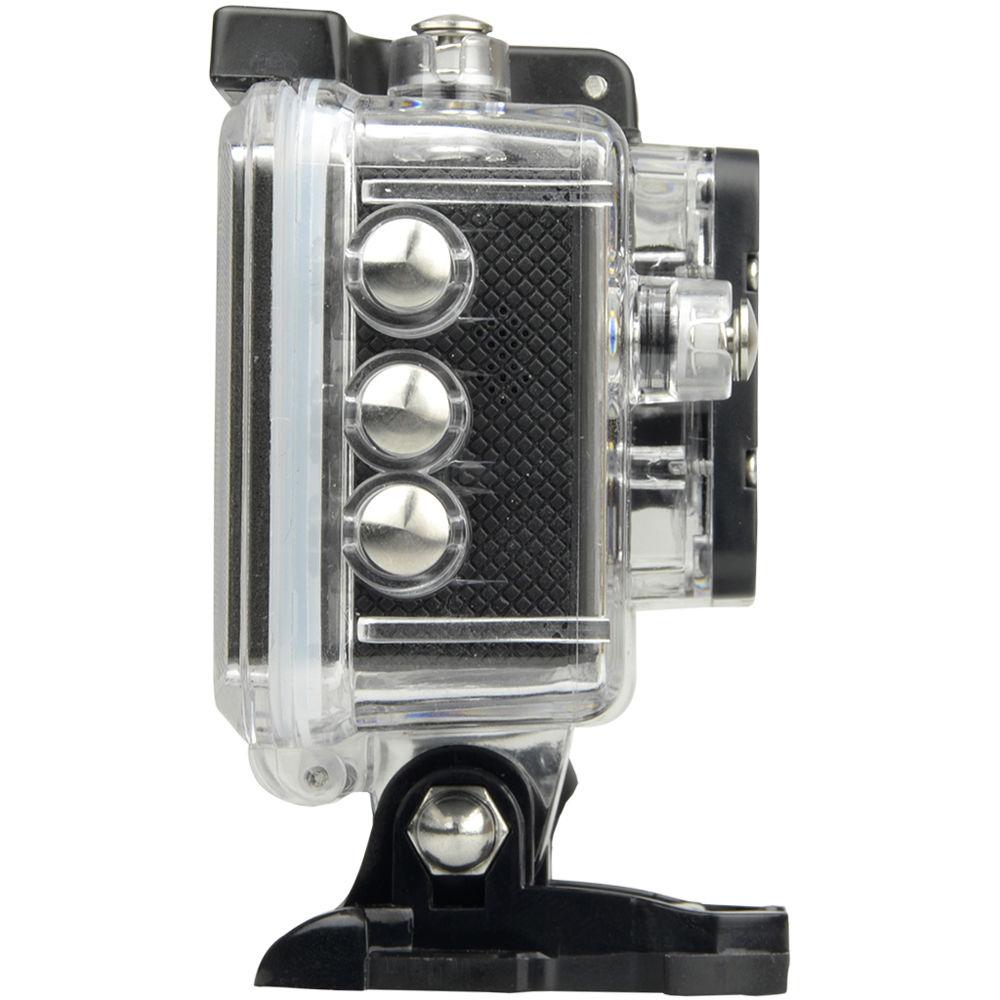

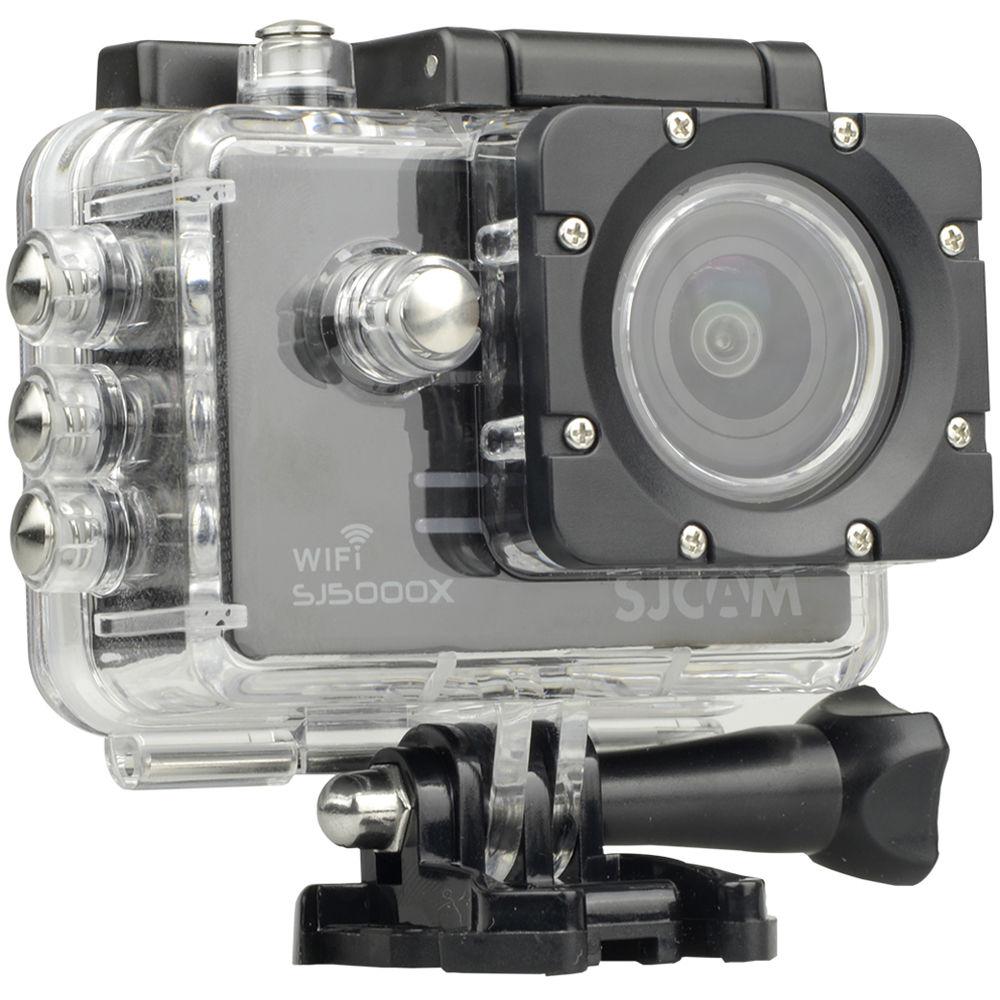

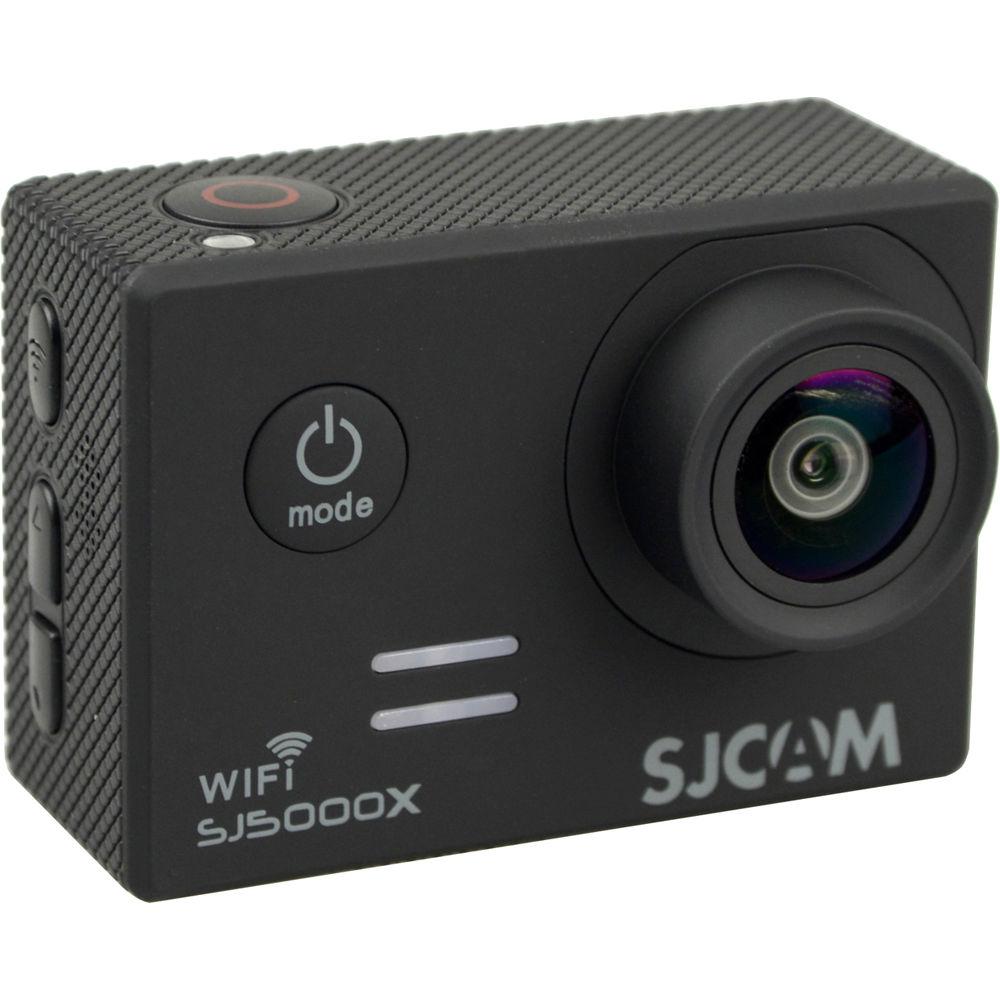

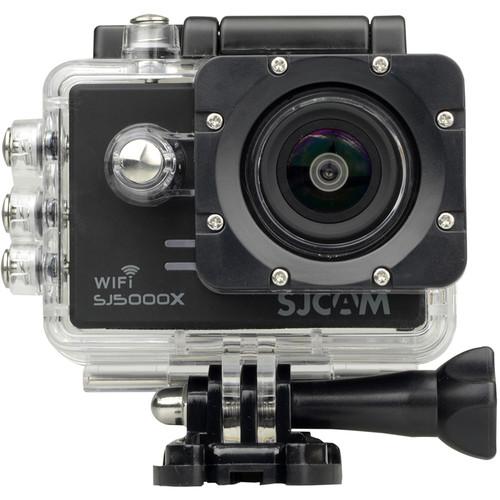

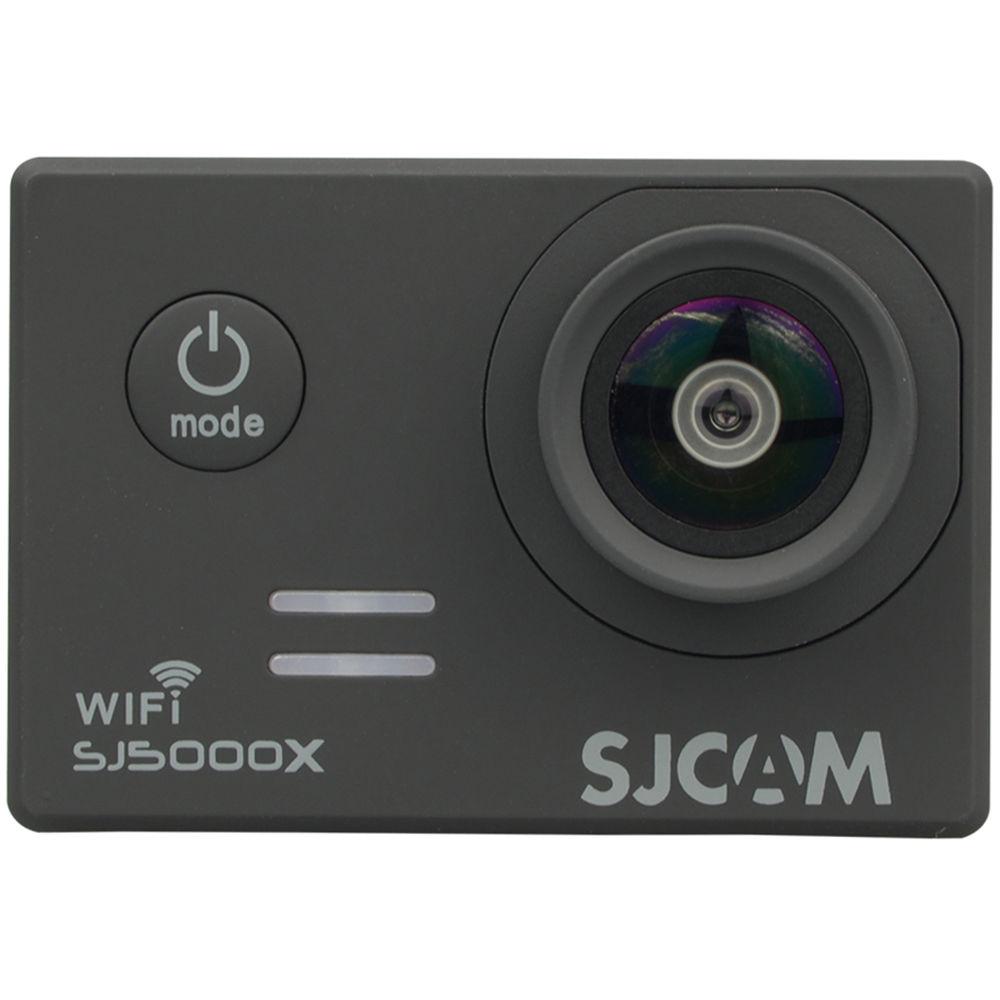

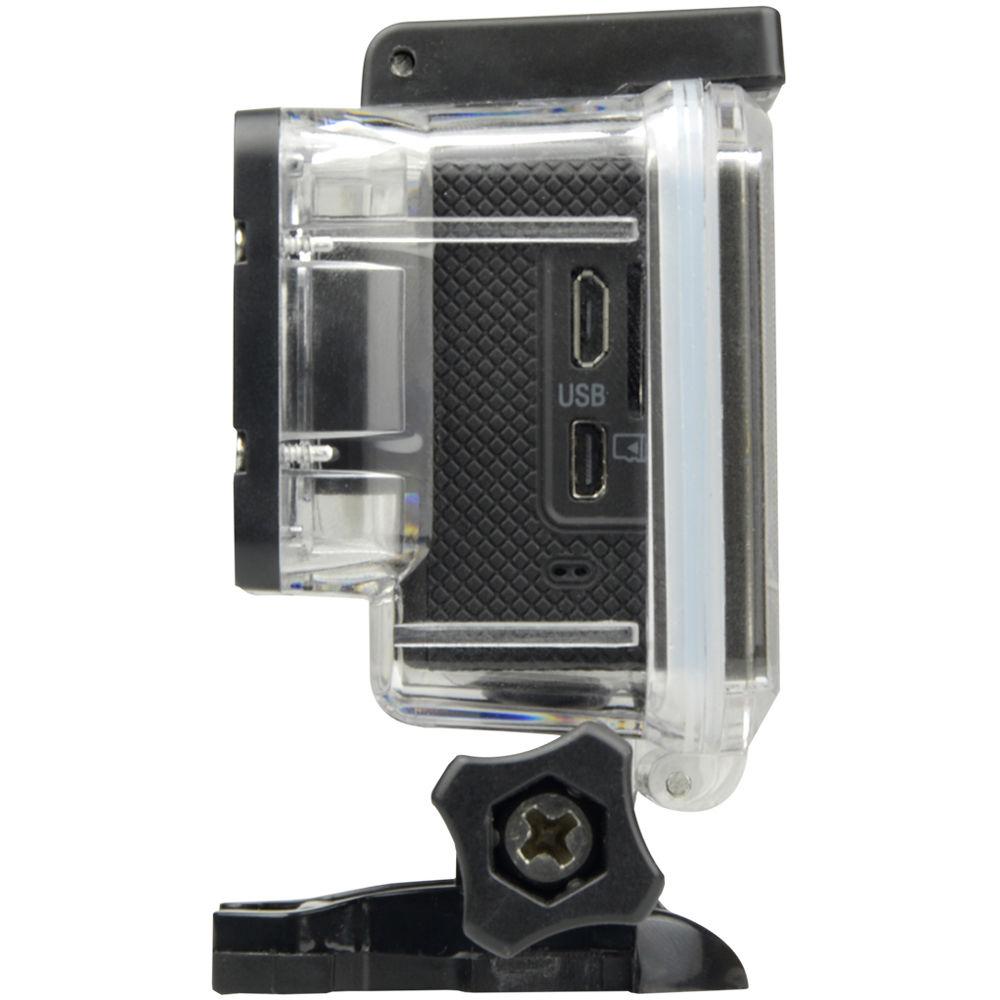

Product description Featuring a 12MP Sony CMOS sensor, the black SJ5000X Elite is the first action camera from SJCAM to support UHD 4K (3840 x 2160) video at 24 fps and 2.5K (2560 x 1440) at 30 fps. It also adds a built-in gyroscope sensor for anti-shake digital image stabilization, and a larger 2" rear LCD screen for easier shot monitoring and playback. The camera is also Wi-Fi enabled, so you can remotely control, monitor, and transfers files using an iOS or Android devices. Included is a waterproof housing with a 98'-depth rating and an assortment of mounts, includes solutions for helmets, handlebars, backpacks, and more.
In addition to 4K and 2.5K video recording, the camera supports 1080p video up to 60 fps and 720p video up to 120 fps for slow-motion playback. It can also take up to 12MP still images. The camera is powered using an included rechargeable 900mAh battery pack that provides up to 80 minutes of continuous 1080p video recording. The camera can also be powered externally via a micro-USB port and can automatically power on when it detects the external power source. This feature is useful for dash cam applications when paired with an optional 12 VDC car power adapter. Dash cam use is further bolstered thanks to a loop recording mode and built-in motion-activated recording.
Note: UHD 4K resolution video is interpolated from 2880 x 2160. - Key Features
-
- 12MP CMOS sensor
- UHD 4K at 24 fps / 2.5K at 30 fps
- 1080p video up to 60 fps / 720p up to 120 fps
- 12MP still photos
- 170° lens
- Gyroscope sensor to support anti-shake digital stabilization

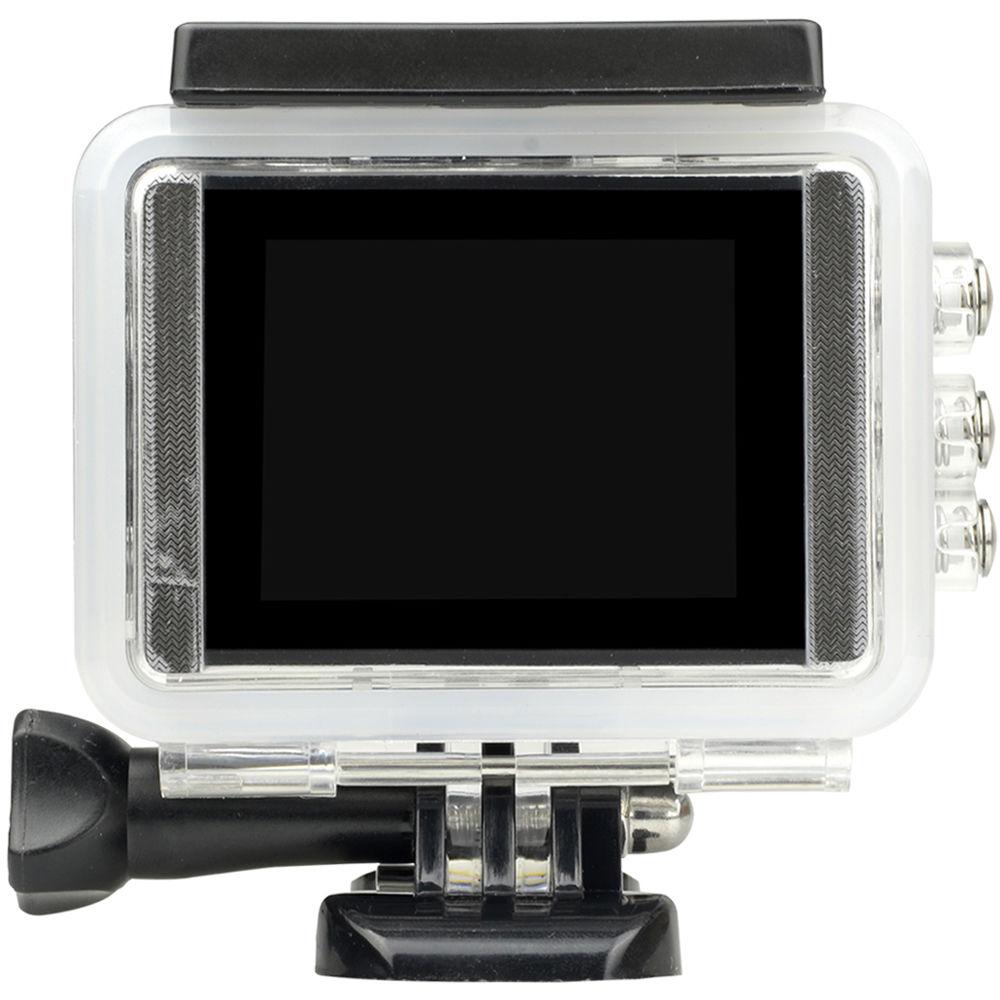

- 2" rear LCD screen
- Built-in Wi-Fi for remote monitoring and control
- Records to microSD/SDHC/SDXC cards up to 64GB
- Removable 900mAh battery pack (provides 80 minutes of continuous 1080p and 2.5K recording)

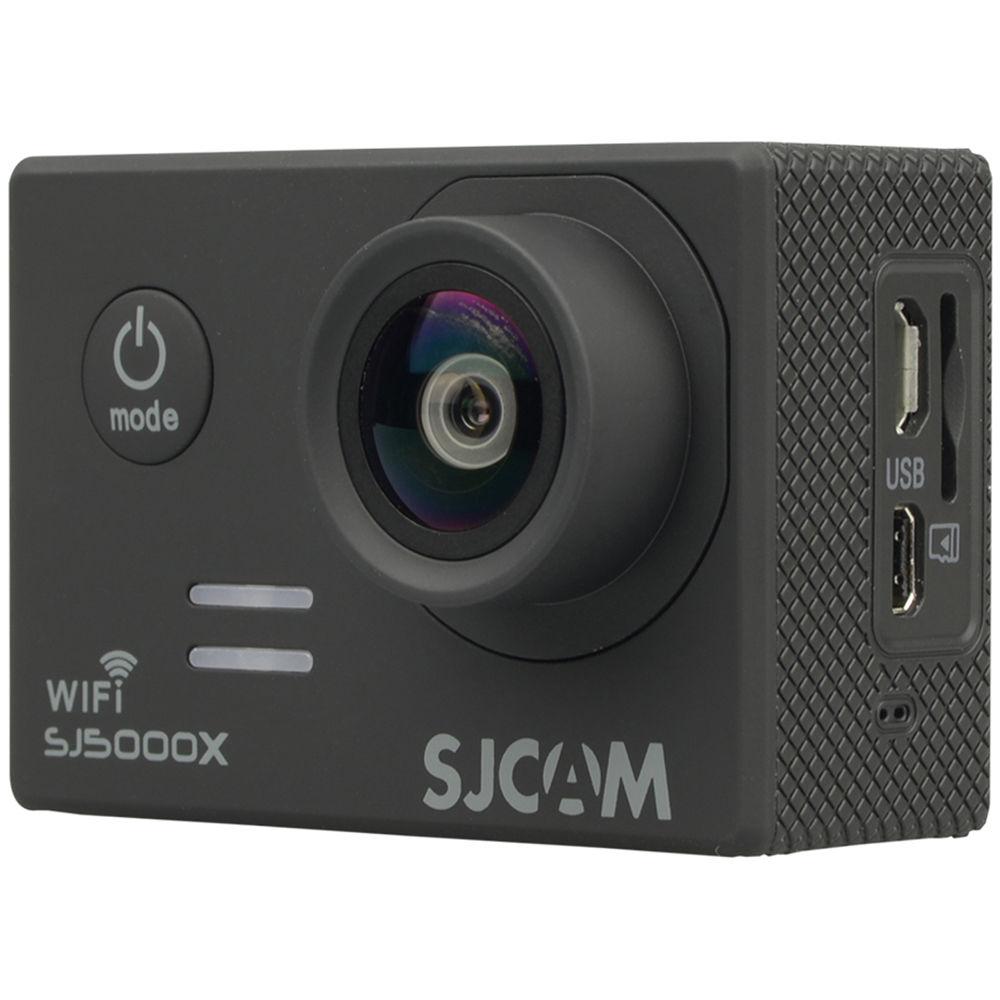

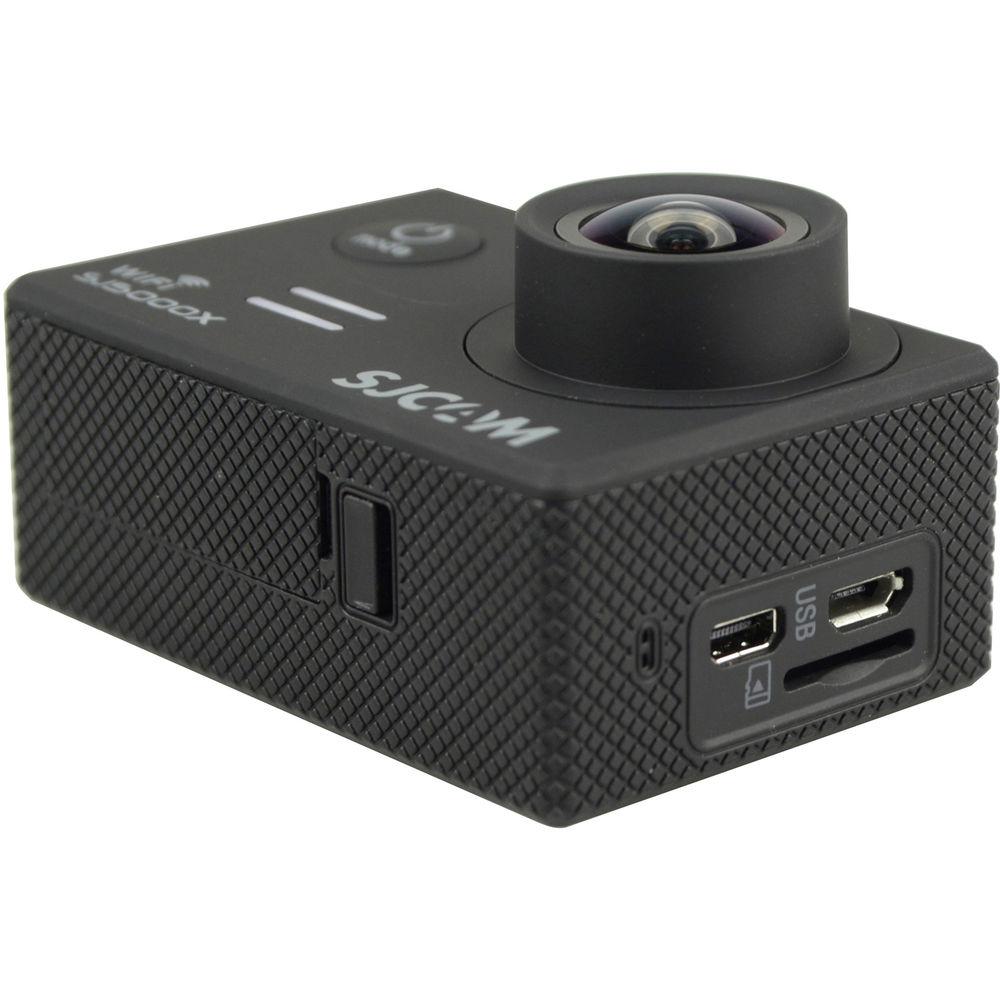

- Micro-USB and micro-HDMI ports
- WDR mode
- Loop recording
- Auto power on/off
- Motion-activated recording
- Time and date display
In the Box SJCAM SJ5000X Elite 4K Action Camera (Black) Waterproof Housing Base Mount Long Thumbscrew 900mAh Lithium-Ion Battery Quick-Release J-Shaped Buckle Housing Backdoor with Holes Handlebar/Seatpost/Pole Mount Curved Adhesive Mount Flat Adhesive Mount 2 x 3M Adhesive Tape 3-Way Pivot Arm Mount with Screw Short Connector with Screw 1/4"-20 Camera Tripod Mount Tripod Mount Adapter Backpack Lip Mount Shell 2 x Hook-and-Loop Strap USB Cable (3') Silicone Lens Cover Lens Cleaning Cloth 2 x SJCAM Sticker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SJCAM SJ5000X Elite 4K Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSJCAM SJ5000X Specs | | | Sensor | 1-Chip CMOS Sony IMX078 | | Sensor Resolution | 12 MP | | | | Recording Media | x microSD/HC/XC | | Video Format | 3840 x 2160p at 24 fps (MP4)
2560 x 1440p at 30 fps (MP4)
1920 x 1080p at 30/60 fps (MP4)
1280 x 720p at 30/60/120 fps (MP4) | | Still Image Resolution | JPEG: 12 Megapixel, 4032 x 3024 (4:3)
JPEG: 10 Megapixel, 3648 x 2736 (4:3)
JPEG: 8 Megapixel, 3264 x 2448 (4:3)
JPEG: 5 Megapixel, 2592 x 1944 (4:3)
JPEG: 3 Megapixel, 2048 x 1536 (4:3)
JPEG: 2 Megapixel, 1920 x 1080 (16:9)
JPEG: 1.2 Megapixel, 1280 x 960 (4:3)
JPEG: .3 Megapixel, 640 x 480 (4:3) | | Audio Format | AAC | | | | Display Type | LCD | | Screen Size | 2" | | | | Photo ISO Range | 100 - 1600 (Auto) | | Video ISO Range | 100 - 1600 (Auto) | | Exposure Modes | Modes: Auto
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | | | Image Stabilization | Digital | | Waterproof Depth Rating | 98.0' / 30.0 m (Waterproof Housing) | | White Balance Modes | Auto
Cloudy
Daylight
Fluorescent
Tungsten | | Built-In Mic | Yes | | Wi-Fi | Yes | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB Micro-B | | | | Supported Languages | Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese
Turkish | | Battery | Rechargeable Lithium-Ion Battery Pack, 5 VDC, 900 mAh
Max Runtime: 1.3 Hours per Charge | | Charging Method | USB | | Dimensions (W x H x D) | 2.4 x 1.0 x 1.7" / 6.1 x 2.5 x 4.3 cm | | Weight | 2.40 oz / 68 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.9 x 5.2 x 2.7" |
